Product Information

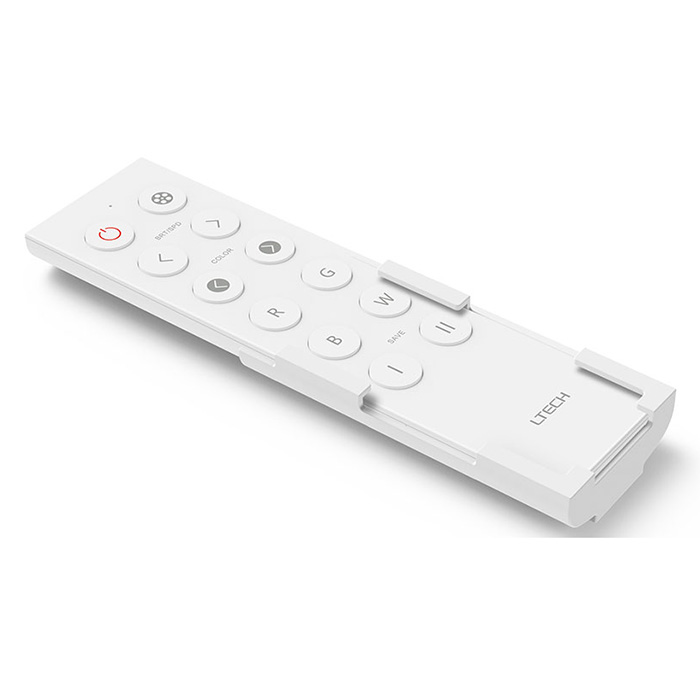

Effortlessly manage your four-channel lighting with the Ltech F4 RF Remote Control. This dedicated led tape remote control provides reliable, long-range operation via a stable 2.4GHz wireless signal, giving you full command over color, white light, and brightness from up to 20 meters away. Designed for seamless integration, the F4 pairs exclusively with Ltech F4-3A, F4-5A, and F4-CC wireless receivers, making it the ideal handheld solution for both residential and commercial projects requiring precise and responsive control of RGBW LED strip lights.
Key Features
Dedicated 4-Channel RGBW Control
Independently adjust RGB colors and a separate white channel for pure whites or delicate pastel shades.
Reliable 2.4GHz RF Signal
Offers a stable 20-meter (65ft) line-of-sight range, free from the directional limitations of IR remotes.
Intuitive 12-Key Interface
Easily power lights on/off, adjust brightness, select static colors, and cycle through dynamic modes.
Seamless System Integration
Designed specifically to pair and work flawlessly with Ltech F4-3A, F4-5A, and F4-CC wireless receivers.
Ergonomic & Portable Design
A sleek, lightweight body powered by a common CR2032 battery ensures comfortable and convenient use.
Product Specifications
| Parameter | Details |
|---|---|
| Model | LT-F4 |
| Working Voltage | DC3V (Powered by CR2032 Battery) |
| Working Frequency | RF 2.4GHz |
| Remote Distance | 20m (line of sight) |
| Control Channels | 4 Channels (RGBW) |
| Compatible Receivers | F4-3A, F4-5A, F4-CC |
| Working Temperature | -30℃ to 55℃ |
| Dimensions | L150 × W46 × H18 mm |
| Weight | 80g |
Ideal Applications
How to Control & Use This Controller
- Power Up: Open the battery compartment on the back of the remote and insert one CR2032 coin battery, observing the correct polarity.
- Prepare Receiver: Ensure your compatible Ltech F4-series receiver is correctly wired between your LED power supply and your RGBW LED strip lights.
- Pairing: To link the remote to the receiver, power off the receiver and then power it back on. Within 3 seconds, press any key on the F4 remote. The connected lights should flash to confirm successful pairing.
- Control: Use the keys to operate your lights. The color buttons allow for static color selection, the brightness keys dim the output, and mode buttons cycle through pre-programmed dynamic effects.
- This remote requires a compatible Ltech F4-series receiver (sold separately) to function.
- Always ensure the voltage of your power supply matches the voltage required by your LED strip.
- The 20m remote distance is based on line-of-sight; range may be reduced by walls or other obstacles.
What's in the Box
- ✓1 x LT-F4 RF RGBW Remote Control
- ✓1 x User Manual
- ✓Note: CR2032 battery is not included due to shipping regulations and must be purchased separately.
⇩ Downloads & Documents
PDFF1 (1)
Frequently Asked Questions
Q: Which receivers is this remote compatible with?
A:This remote is specifically designed to work with Ltech F4-3A, F4-5A, and F4-CC wireless receivers. It is not compatible with other series or brands.
Q: My led remote control is not working. What should I check?
A:First, check that the CR2032 battery is fresh and installed correctly. Second, try re-pairing the remote to its receiver. Finally, ensure you are within the 20m range and that there are no significant radio frequency interferences.
Q: Can I control multiple lighting zones independently with one F4 remote?
A:The F4 is a single-zone remote. While you can pair it with multiple receivers, they will all respond to commands simultaneously as one zone. For multi-zone control, you would need a different remote and receiver system.
Q: What type of battery does the F4 remote use?
A:It uses a standard CR2032 3V lithium coin battery, which is widely available.
Q: Does this remote work with any RGBW LED strip?
A:Yes, it can control any standard common-anode RGBW LED strip as long as the strip is connected to a compatible Ltech F4-series receiver.
