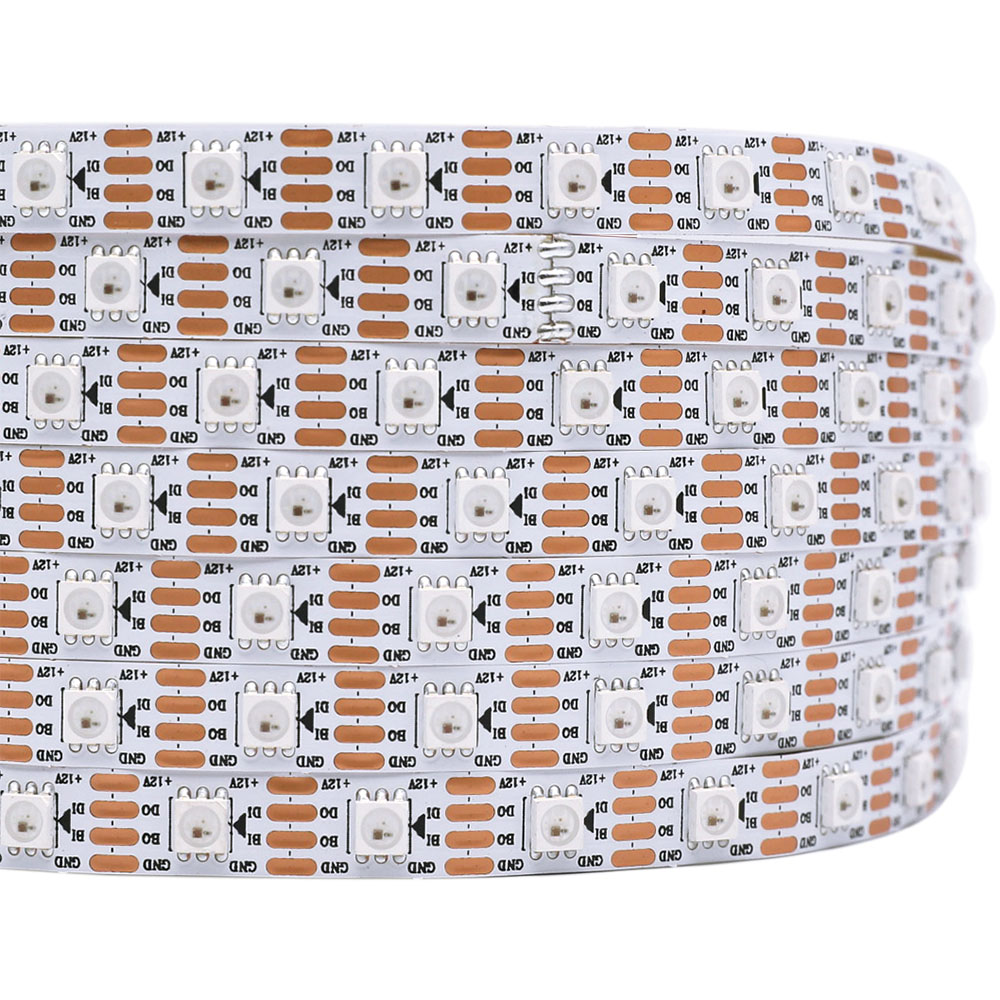

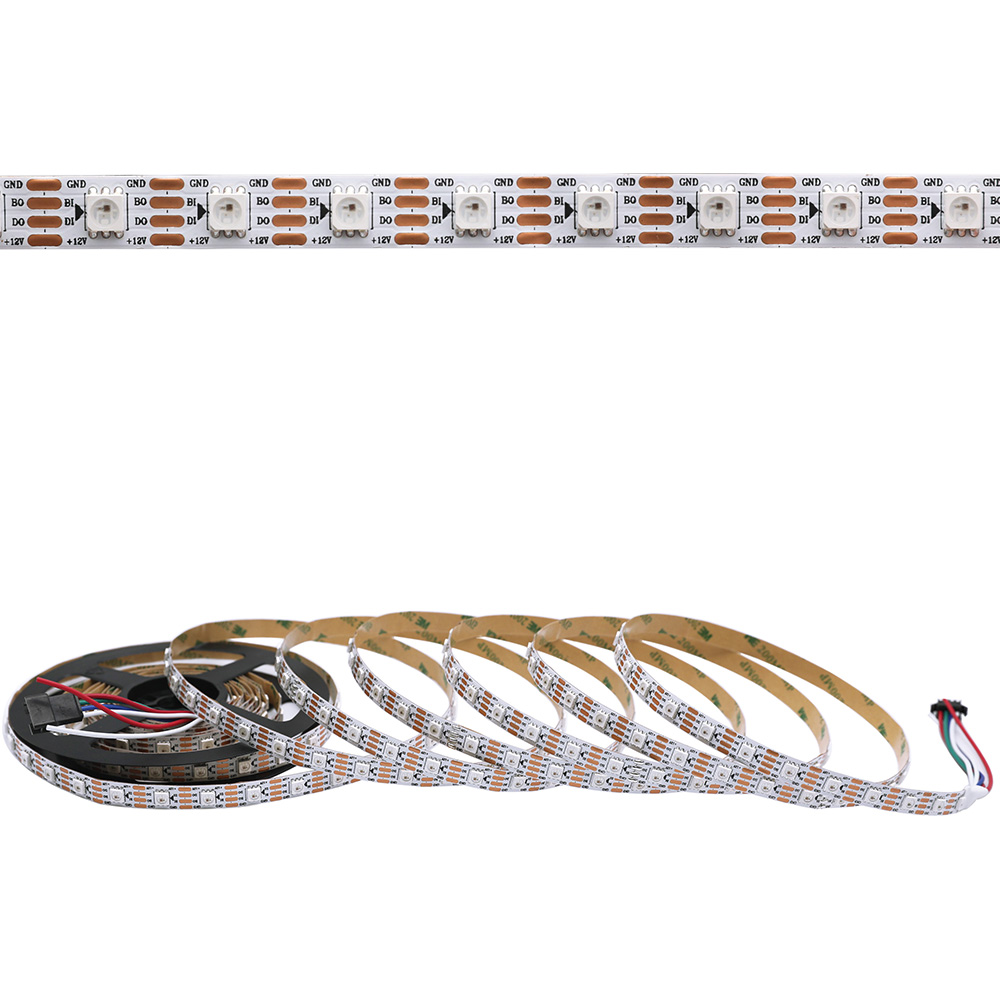

WS2815 Engineering Individually Addressable RGB DC12V LED Pixel Lights Strip
WS2815 engineering digital led strip vs WS2815 regular digital strip
The LED chip of the engineering WS2815 LED pixel light adds resistance, compared with the regular WS2815 addressable LED strip, under the same ultra long running length and weak SPI signal, the engineering WS2815 pixel led strip will not flicker, and the lighting effect is better.
However, the regular WS2815 LED strip is sufficient for general use, and the price will also be relatively cheap.
WS2815 engineering addressable led light strip support MCU control board, compatible with all SPI controllers on the market, WS2811, SK6812, WS2812B, SM16703 protocol, and compatible with MK2 long-distance isolated pixel driver board controller.
1. Dual-signal wires version, signal break-point continuous transmission. If one led is damaged, it will not affect the other LEDs working.

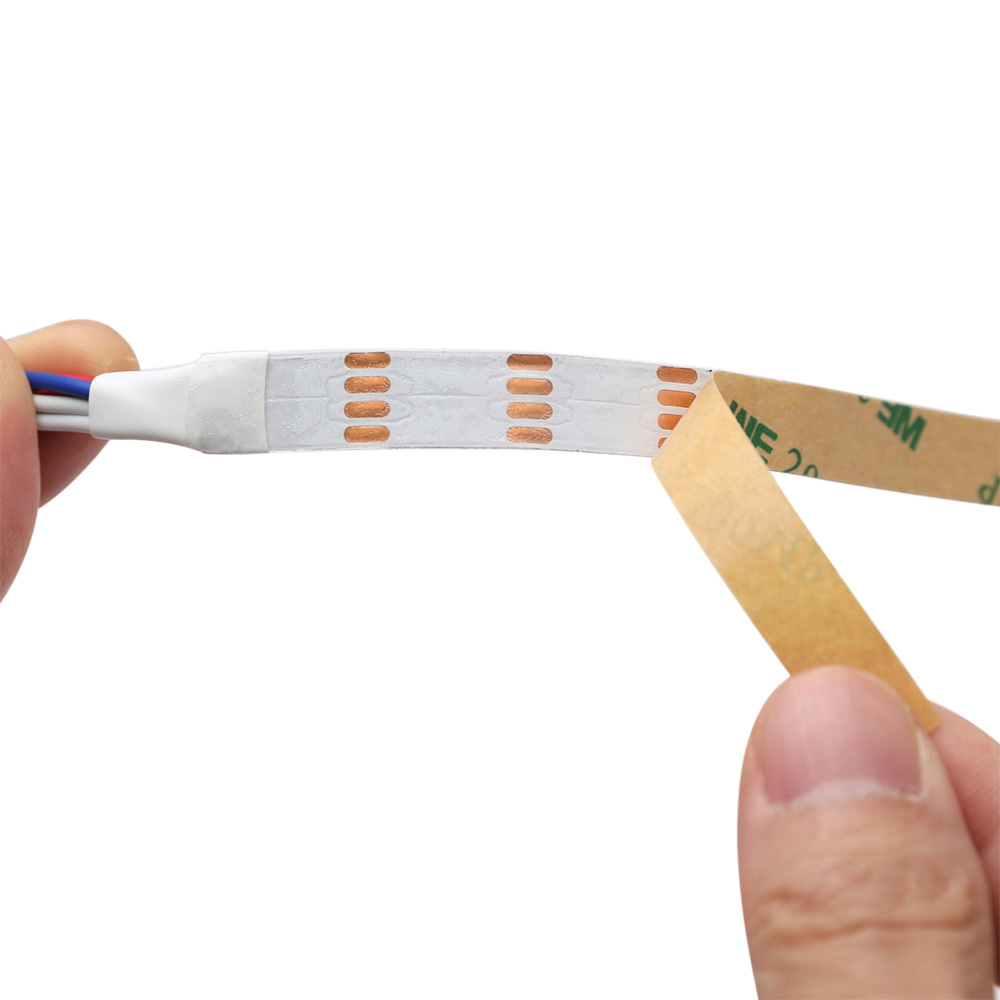

2. With 4-pins male connector and separated power/ground wire at both ends for easy interconnection and power connection.
3. Waterproof IP65, IP67, IP68 digital led strips available, suitable for indoor and outdoor environment.
4. Individually addressable: Every 1 IC control 1 LED, every LED can be individually addressable and show any color you want.
5. Wide compatibility. Works great with LED screnn, LED wall, advertising board, and widely applled for KTV, hotel, bars, clubs, wedding party lighting, etc.

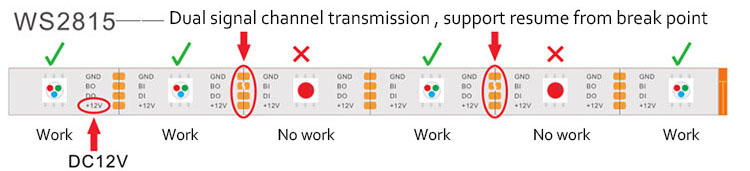

WS2812 vs WS2815, single signal vs breakpoint resume series
WS2815 Pin Function
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
For more addressable led strip knowledge, you can read: Ultimate Guide to Choosing the Right Addressable LED Strip
Standards and Certifications
|LED Resource||5050 SMD RGB|
|IC Type||WS2815 IC (WS2815 Chips Specifications Download )|
|Input Voltage||12V DC|
|LED Quantity||60LED/m, total 300 LEDs, each LED is separately controlled|
|IC Quantity||60 IC/meter (1 IC drives 1 led chip)|

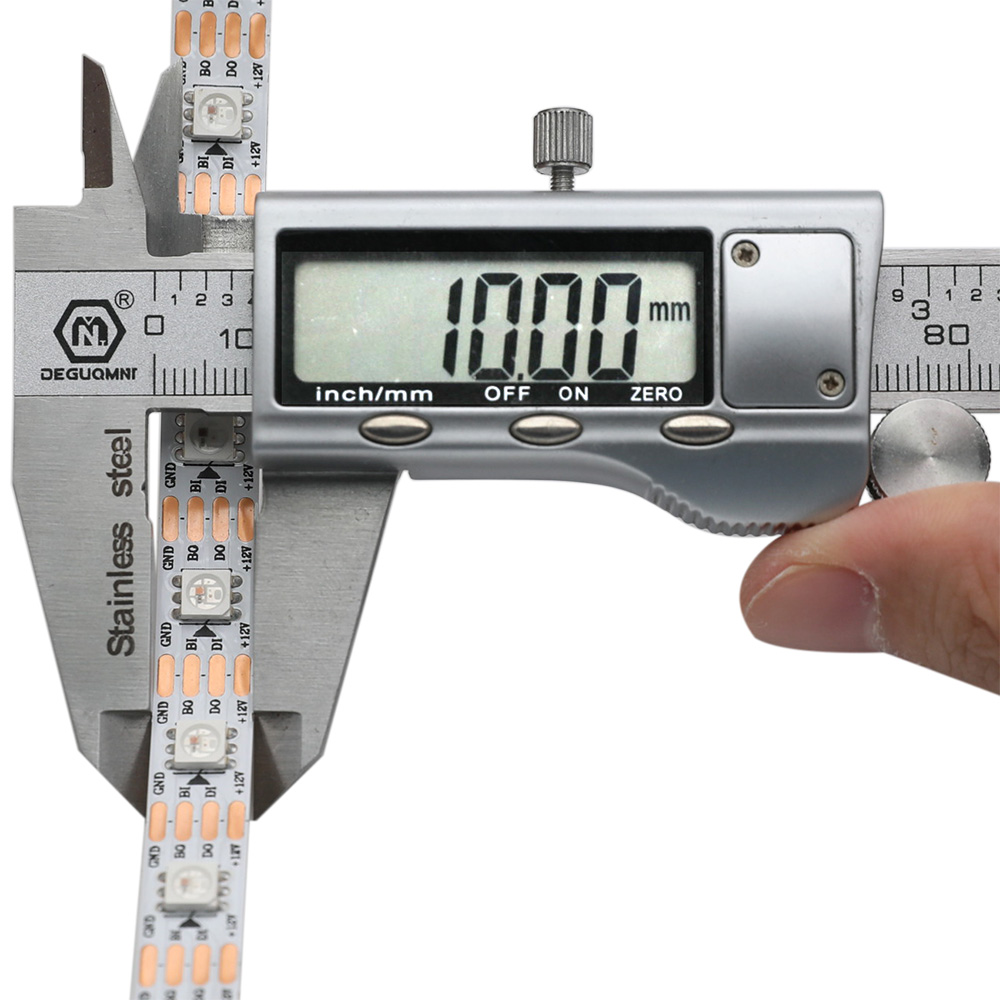

|Dimensions||L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )|
|Waterproof||Non-waterproof or IP65/IP67/IP68|

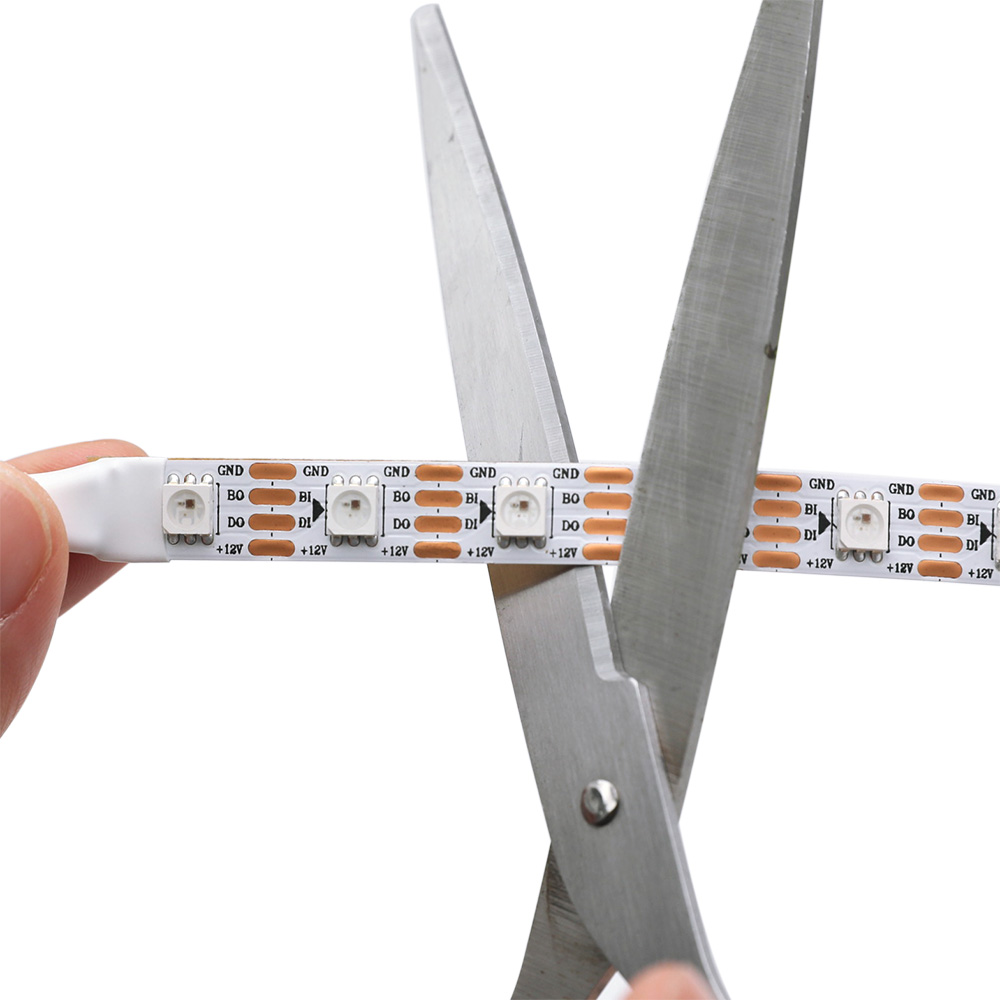

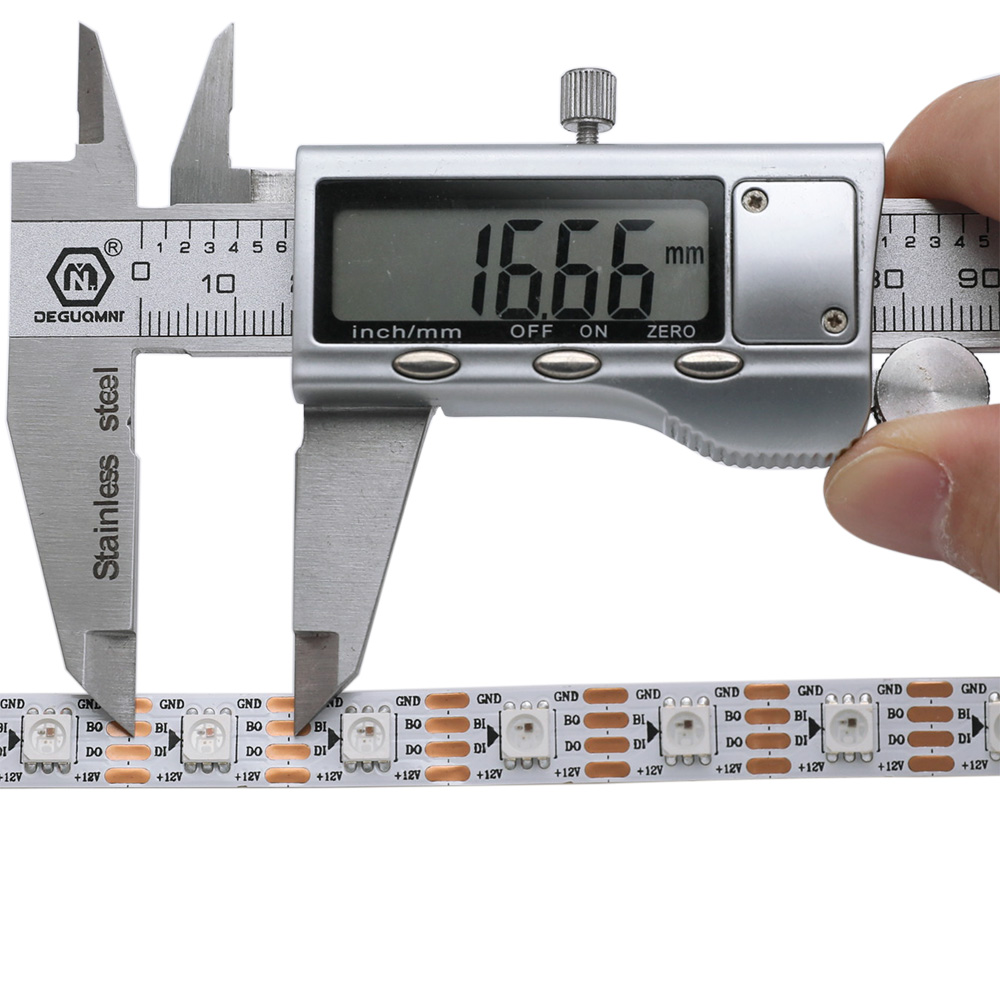

|Cuttable||Every one LED is cuttable, 16.66mm|

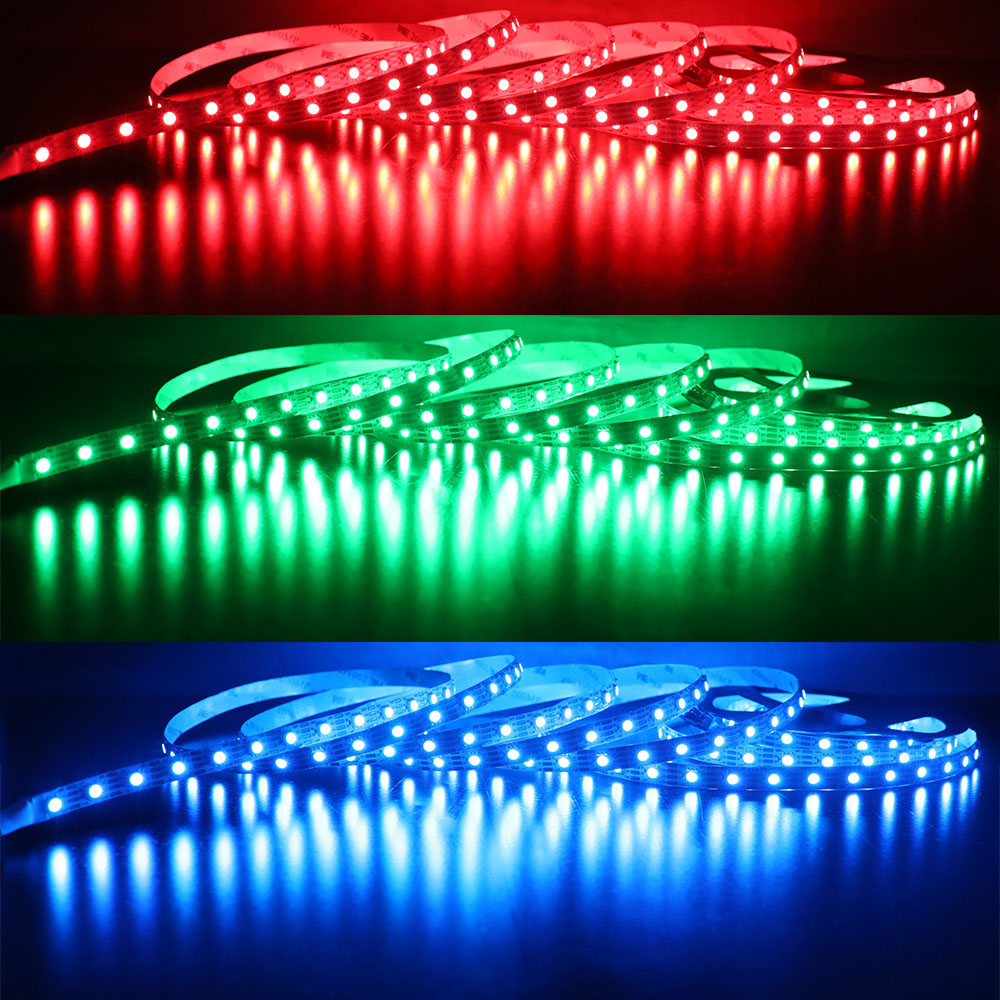

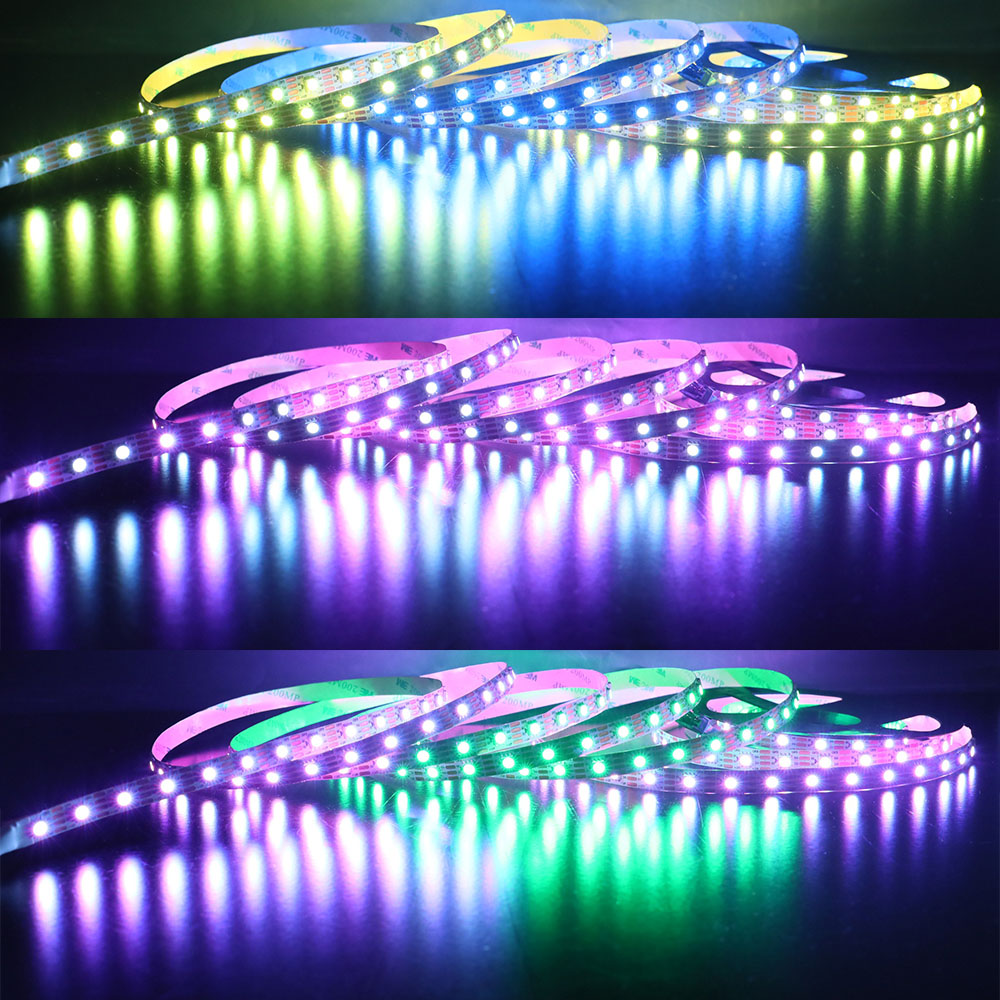

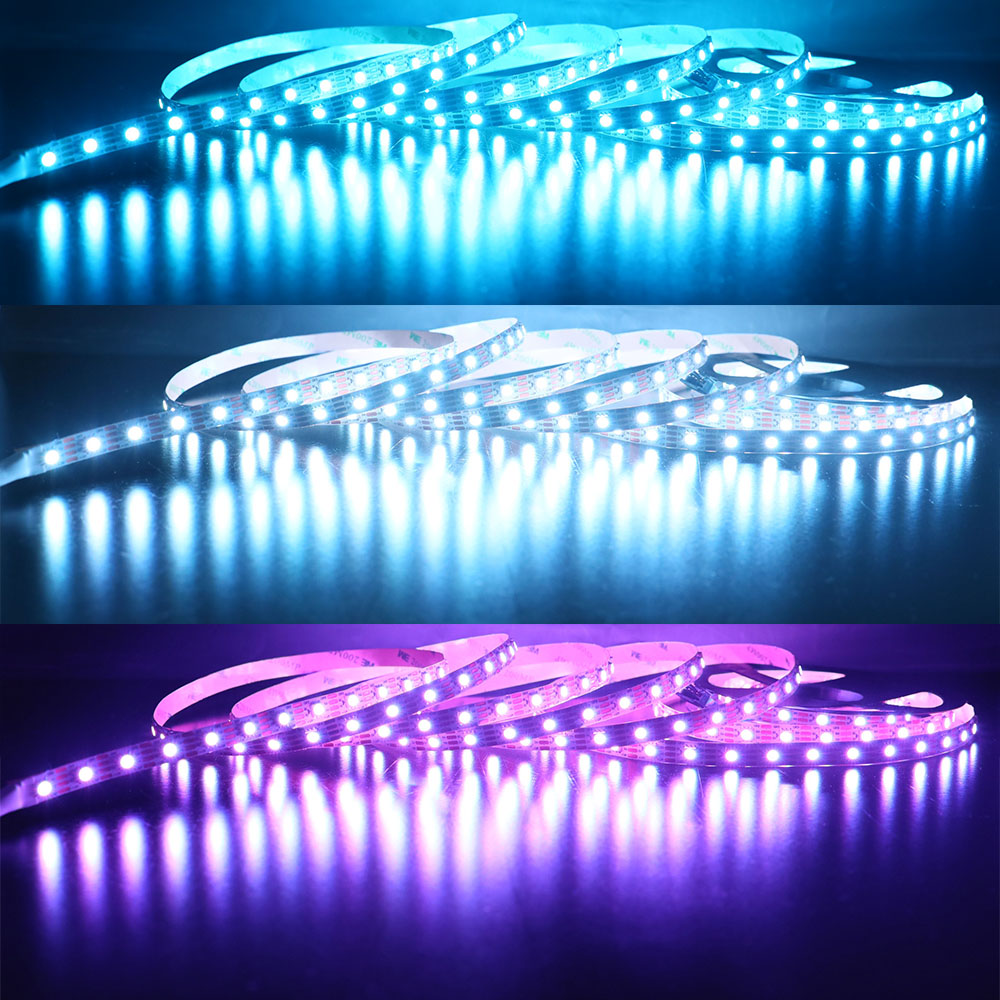

|LED Color||Full-color RGB, dream color changing|
|FPC color||WHITE /BLACK PCB|
|Lumen Per LED||20~22Lumen 6600lm Max /16.4ft|
|Working Temperature||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature||-40°F (-40°C) ~ 176°F (80°C)|
|Beam Angle||120 degrees|
How to wire breakpoint resume series addressable led strip lights?
Breakpoint resume series addressable pixel led lights wiring diagram:
*Click the above picture to know more addressable led strip wiring diagram.
About how to install non-waterproof pixel led strip lights and outdoor waterproof led pixel light strips, how to cut and connect addressable led strip lights, can addressable led strip lights use led aluminum channel, how to use led aluminum profiles, etc., please read: How to install addressable led strips?
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
