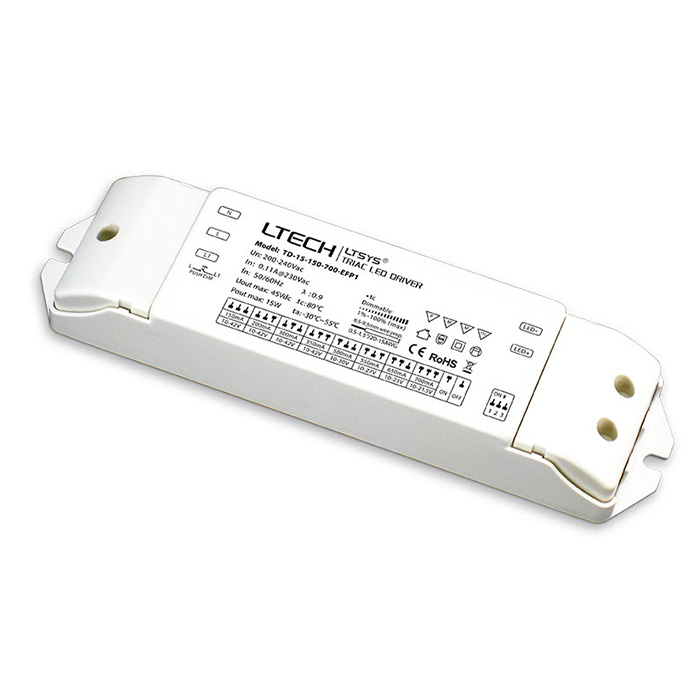

TD-15-150-700-EFP1 15W 150-700mA (200-240Vac) Triac/ELV PWM digital dimming
1、Dimming interface: Triac/ELV
2、Apply to leading edge / trailing edge Triac dimmers and dimming system.
3、Built-in high-performance MCU, the dimming curve can be customized.
4、PWM digital dimming, no alter LED color rendering index.
5、Dimming range: 0~100%, dimming depth: Max. 0.1%.
6、0~100% flicker-free, achieve the level of exemption assessment.
7、Multi-current & wide voltage, suitable for different power LED.
8、Over load / Over-heat / Short circuit protection.
9、Class 2 power supply. Full protective plastic housing.
10、Compliant with Safety Extra Low Voltage standard.
11、Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Dimming interface: Triac/ELV, Push
Dimming range: 0~100%, dimming depth: Max. 0.1%
Input voltage: 200-240VAC
Current Accuracy: ±5%
Output voltage: 10-42Vdc
CC output: 150mA-700mA
Output power: 1.5W~15W
working temperature: ta: -20°C ~ 50°C tc: 80°C
Package Size: 178×48×33mm(L×W×H)
Weight (G.W): 140g±10g
