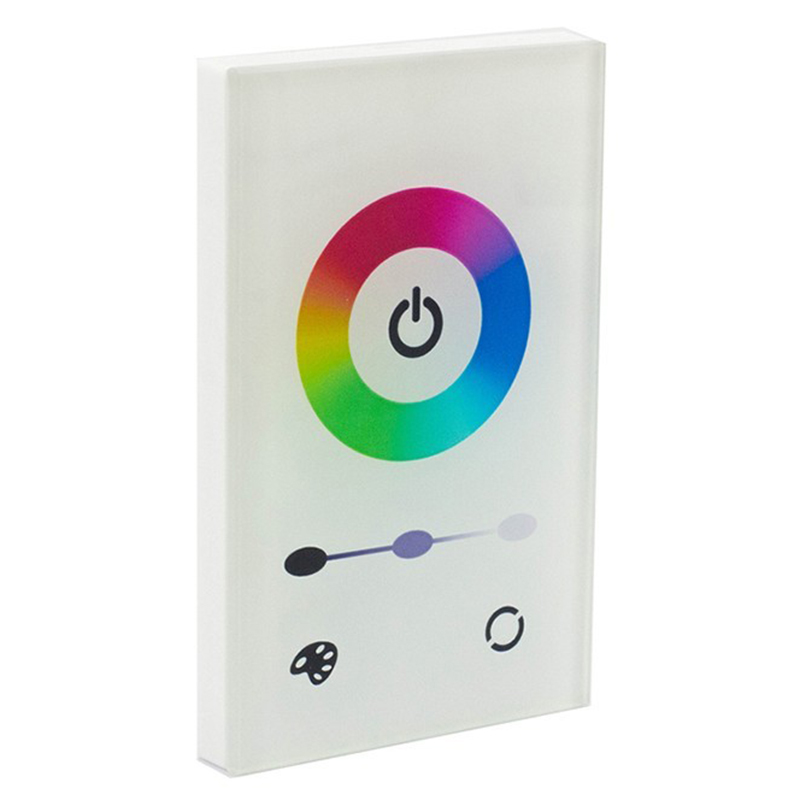

TM08U DC12-24V 3 Channel Low-voltage Touch Panel Full-color Controller
Touch panel controller is a new high-end dimmer which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel lights etc., it has many advantages such as convenient to connect, easy to use and others.
Working Temperature: -20-60 ℃
Supply Voltage: DC12-24V
Output Voltage: DC12-24V
Output: 3 channels
Connection Mode: common anode

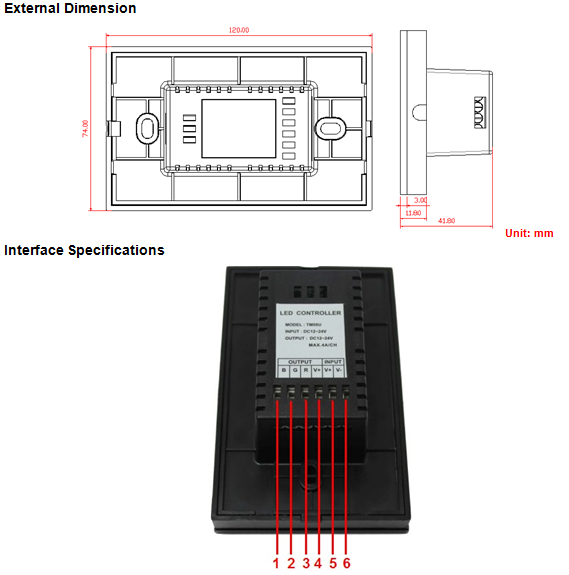

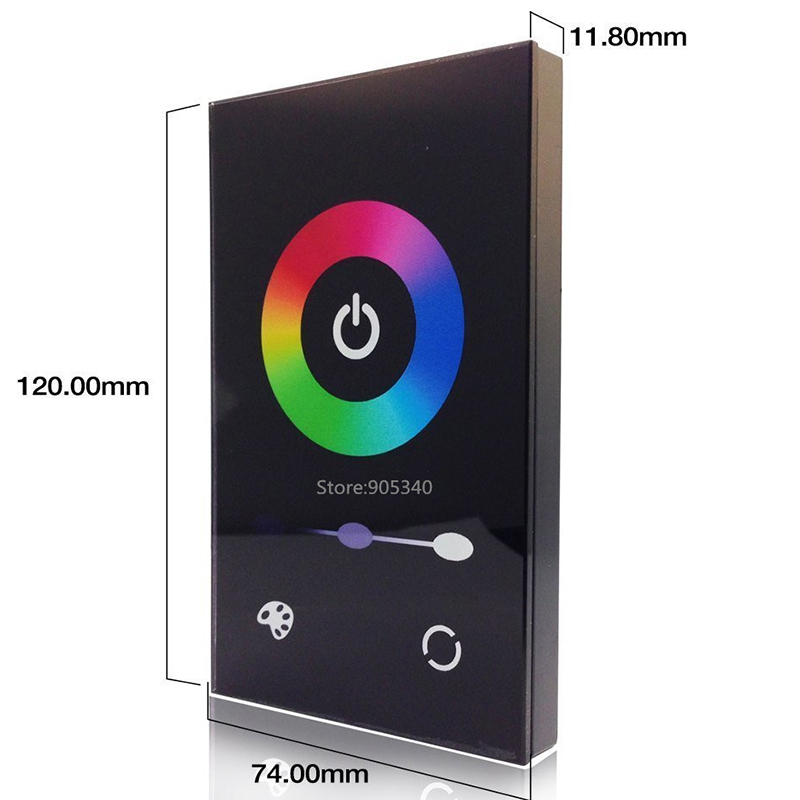

External Dimension: L74 Χ W120 Χ H41.8mm
Packing Size: L150Χ W100 Χ H57 mm
Net Weight: 200g
Gross Weight: 250g
Static Power Consumption: <1W
Output Current: <4A (each channel)
Output Power: 12V<144W, 24V<288W
