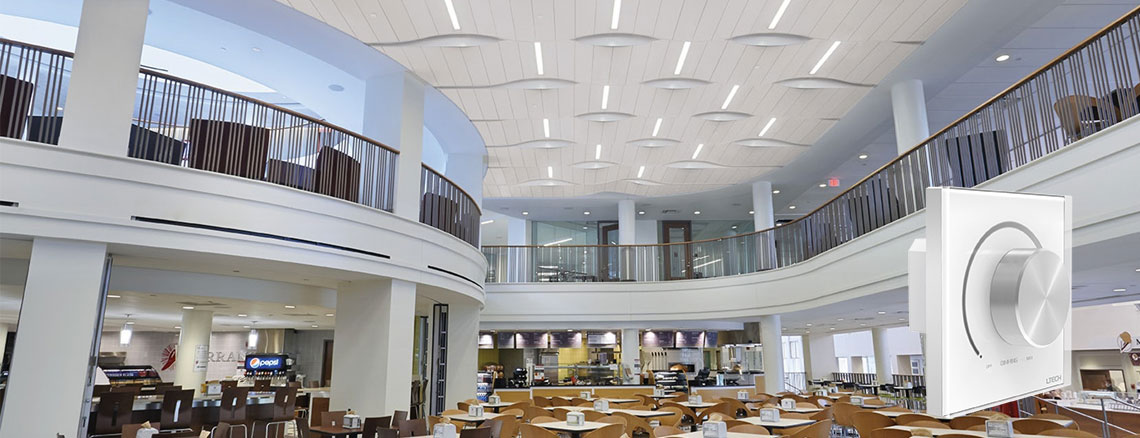

Triac Dimmer E6-TD1
Dimming Mode: Leading edge(triac)
Input Voltage: 200-240VAC,50-60Hz
Load Power: Incandescent lamp:25-500W
High-voltage halogen lamp:25-500W
Working Temp.: -10℃~55℃
Package Size: L106×W106×H60mm
SPI Controller E6-TD1
