TM072E DC12-24V Low Voltage Touch Panel Color Temperature Controller

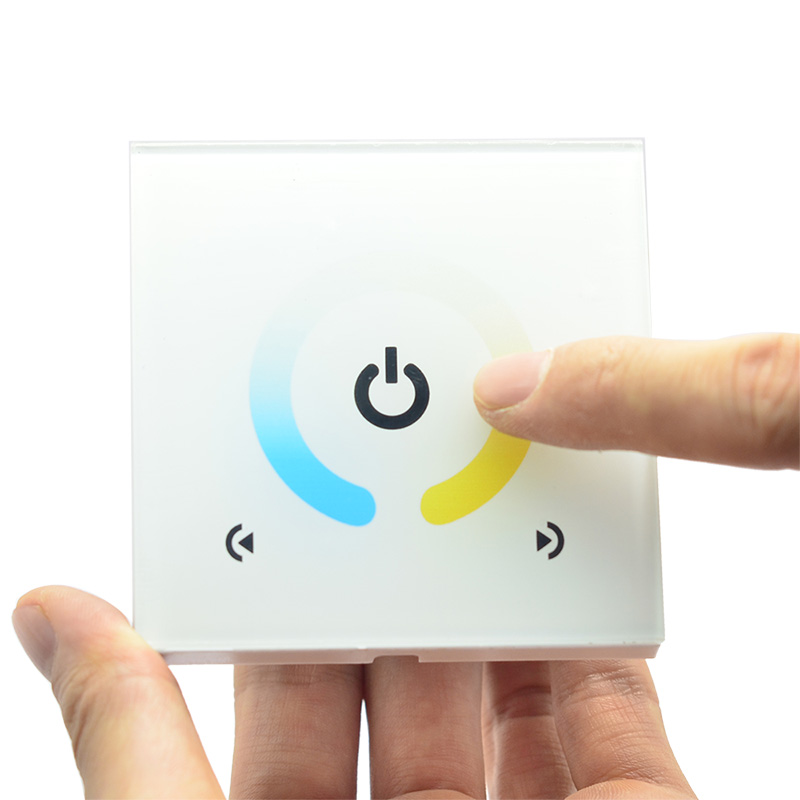

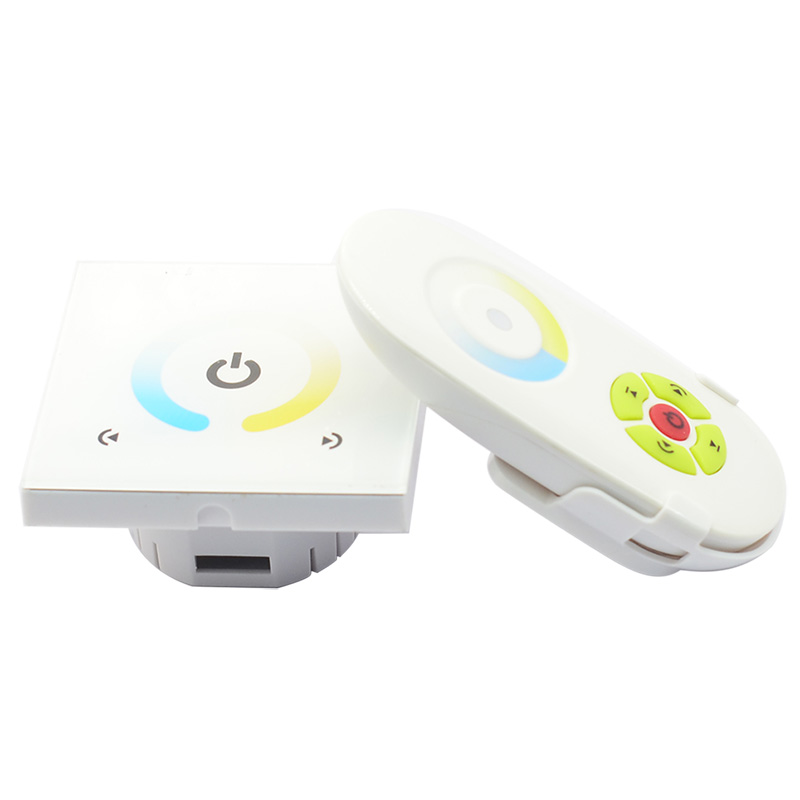

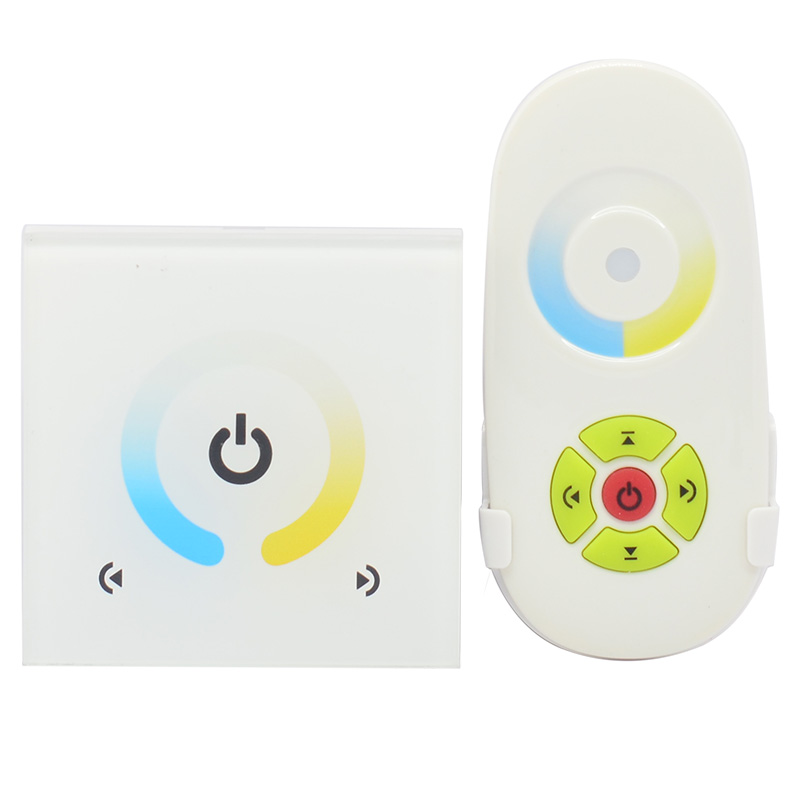

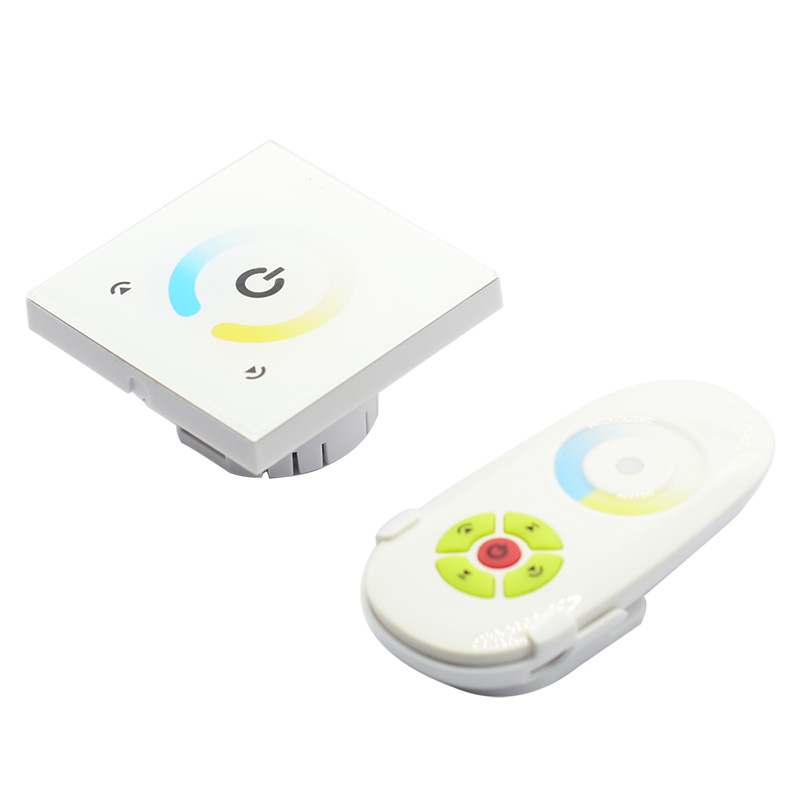

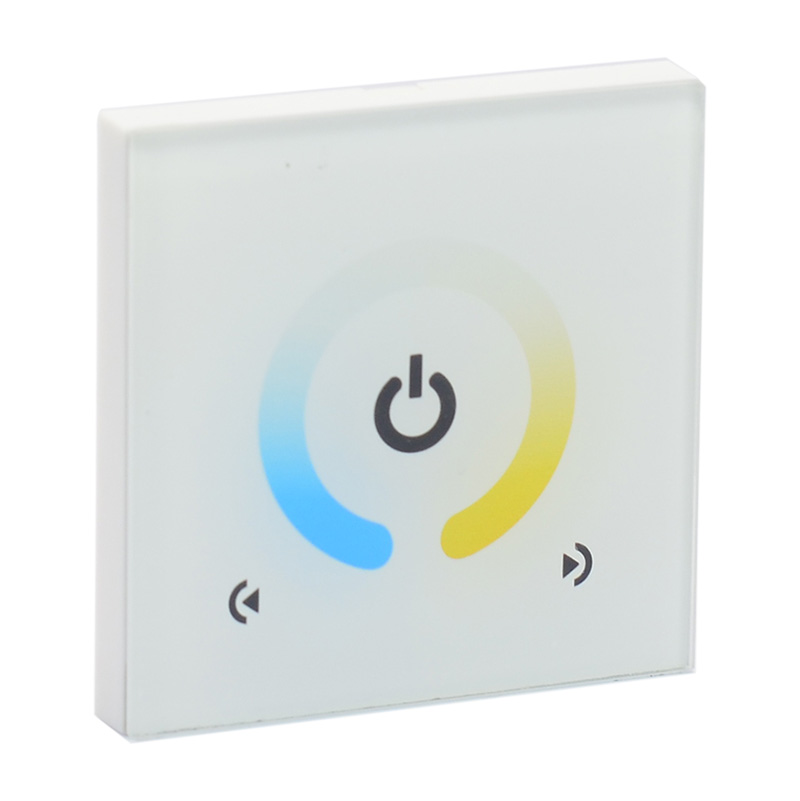

Touch panel controller is a new high-end controller which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel lights etc., it has many advantages such as convenient to connect, easy to use and others. Touch remote control adopts advanced touch design, through combining the touch panel controller with remote control to achieve flexible control. Touch remote control has good performance, looks beautiful, stylish, easy to use.
Working temperature: -20-60℃
Power supply voltage: DC 12-24V
Output voltage: DC12-24V
Output: 2 channel
Connect way: common anode

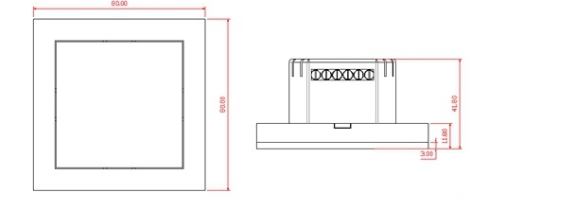

External dimension: L80*W80*H41.8 mm
Packing size: L105*W105*H53mm
Net weight: 128g
Gross weight: 178.6g
Static power consumption: <1W
Output current: < 4A( each channel)
Working frenquency: 1KHz
Output power: 12V:< 96W, 24V:< 192W
Working temperature: -20-60℃

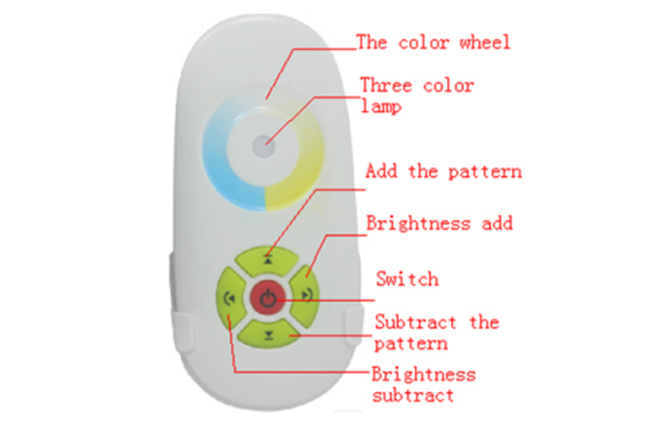

Power supply mode: AAA * 2
Supply voltage: 1.5V * 2
Standby power consumption: 0.00025mW
Standby current: 85uA
Working current: 26mA
Remote distance: >20m
Standby time: 6 months
Standard change function as below:
Gradually fade up/down
Gradually fade in/out

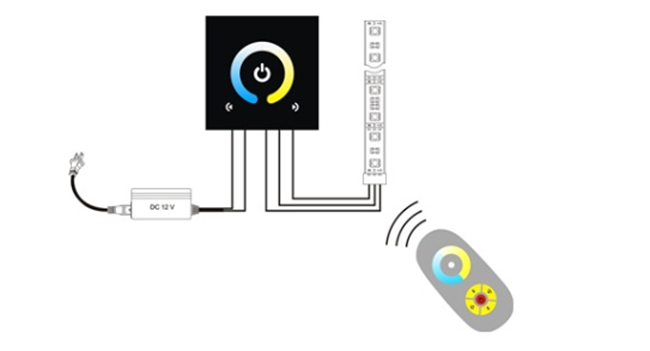

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can
not occur between connecting wire before you turn on the power;
2. The supply voltage of controller ranges in DC12-24V, it may burn out the controller once
exceed the voltage.
3. The remote control enter sleep mode after 30s, now the function of chromatic circle is not
working. If you need to use the remote, please press any key on the remote to awaken it.
