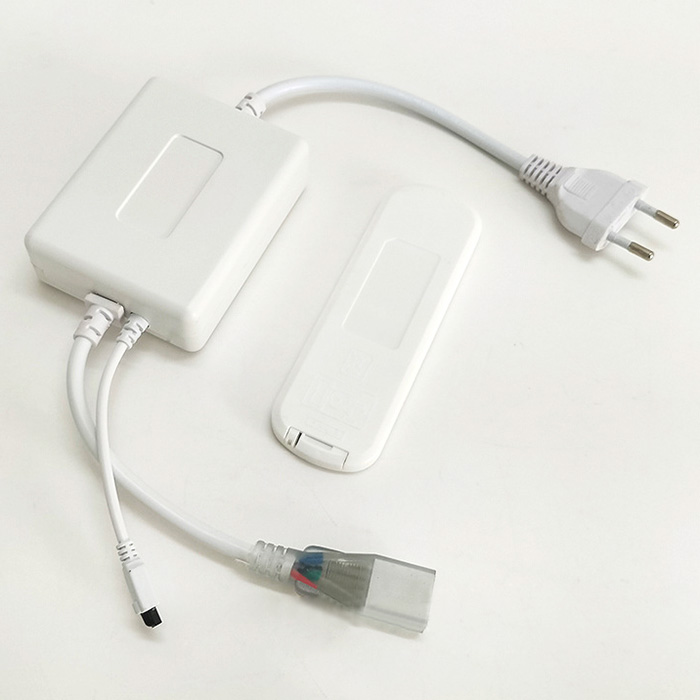

Tuya WiFi Music High Voltage RGB LED Controller With IR Remote
Tuya WiFi Music High... $23.98
10Pcs/Pack 14mm Wide... $0.99
AC110V/220V High-Grade... $59.98
L shape Bends branches 1... $2.20
High voltage led strip... $0.59
High Voltage AC110V... $69.98
SMD5050 High Voltage... $54.98
Tuya WiFi Music High...
10Pcs/Pack 14mm Wide...
L shape Bends branches 1...
High voltage led strip...
High Voltage AC110V...
SMD5050 High Voltage...

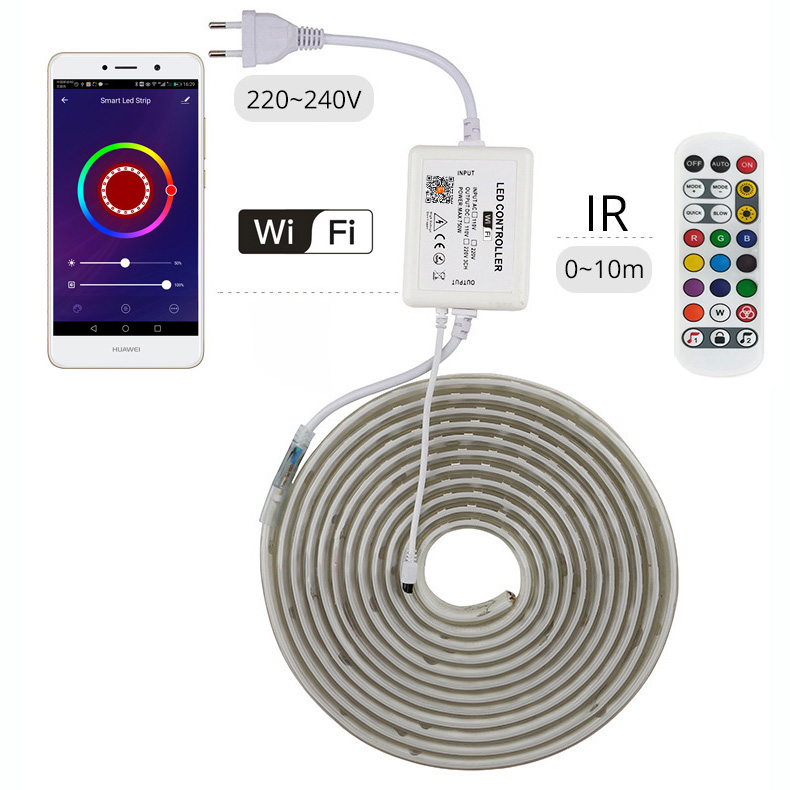

Tuya smart WiFi infrared 24-key RGB music controller is suitable for high-voltage RGB led strips. You can use the smart phone APP to control the LED light mode, or you can use the infrared 24-key remote control to change the static color and dynamic mode of the light strip, and adjust the brightness of the led strip. This high voltage RGB led music controller can be intelligently linked with multiple devices, and can be controlled by Amazon Alexa and Google Assistant intelligent voice. The controller comes with a microphone, and the LED light can change with the rhythm of the music in the music mode.
Standards and Certifications
Working Voltage: AC110V / AC220V
Output Current: 1.2A/CH
Output Channel: 3CH/RGB
Power: 360W Max(AC110V), 720W Max(AC220V)
Control Distance: 8-15meters indoor
Control Type: Mobile APP / 24-key IR remote
Controller Dimension: 90*70*28mm
Working Temperature: -20℃-60℃
1. Scan the product QR code to download the APP and register an account.

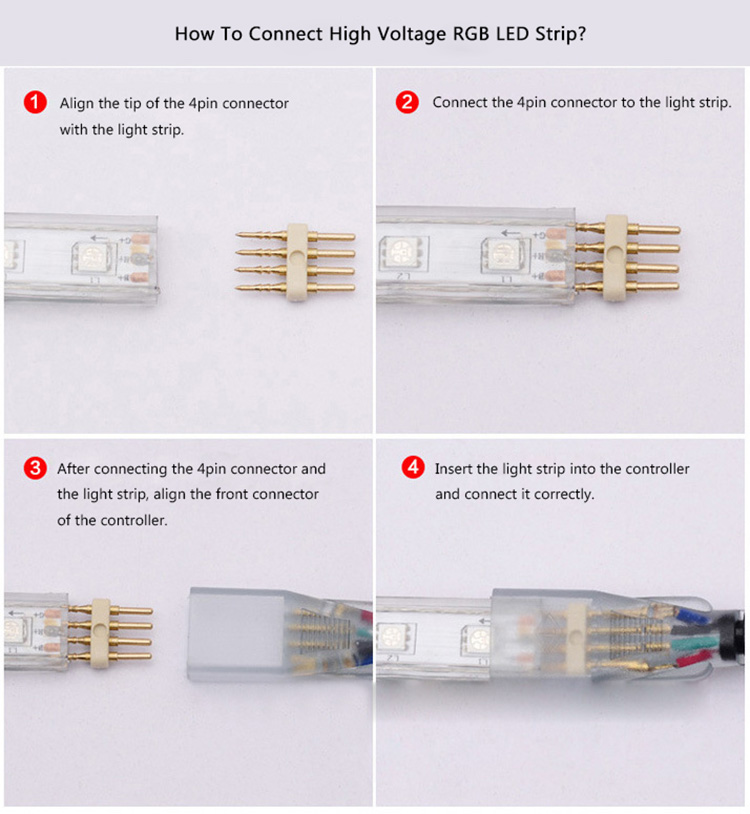

2. Connect the music controller and the led light strip, and turn on the power.
3. Open the Tuya Smart APP, click to add a device, select Lighting → Light strip → Confirm that the indicator light is flashing quickly, enter the WIFI password → Click Next → The connection is added successfully → Click Finish to complete the product network configuration.
(Reset the device: switch the power supply 3 times, on-off-on-off-on, enter the flashing state, please complete the network operation within three minutes.)

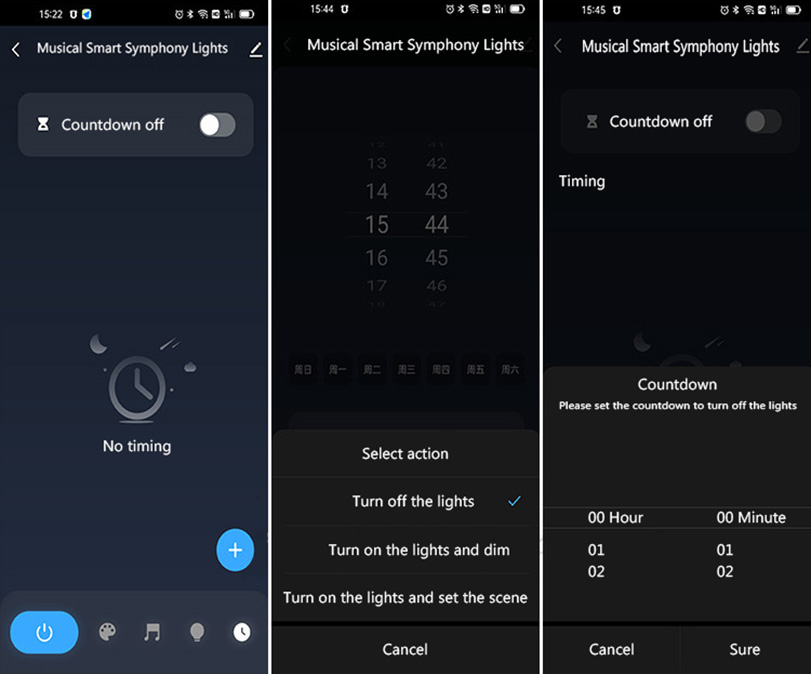

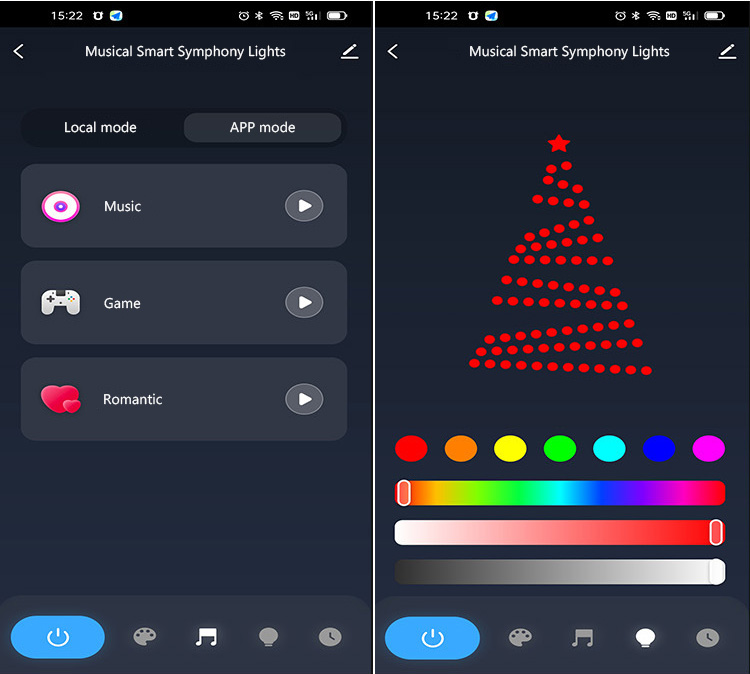

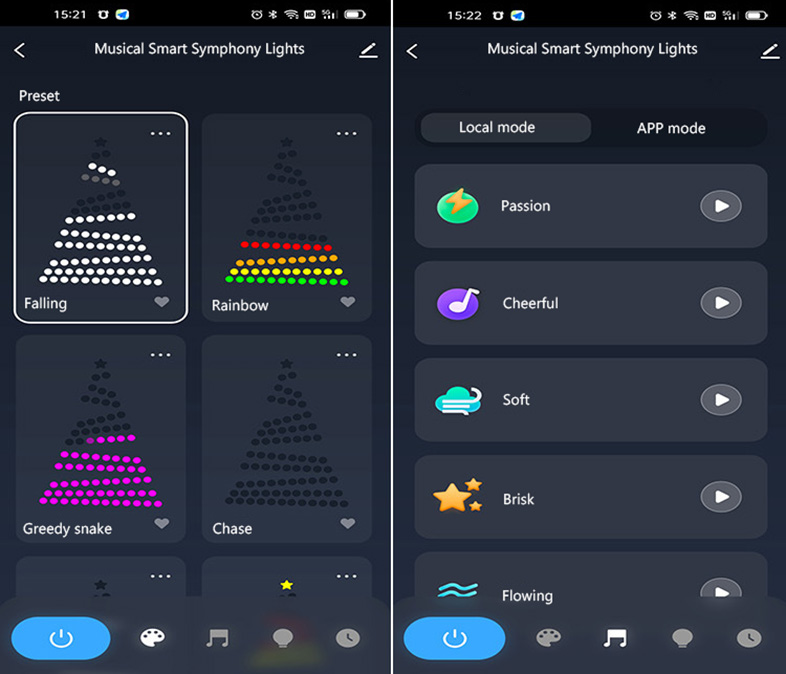

4. Use APP to control the color and light mode of the light strip, adjust the brightness, switch the machine, set the scene, and time, etc.
