D4-S 4CH*6A DC12-24V Constant Voltage DMX512 & RDM Decoder
● Comply with the DMX512 standard protocols.

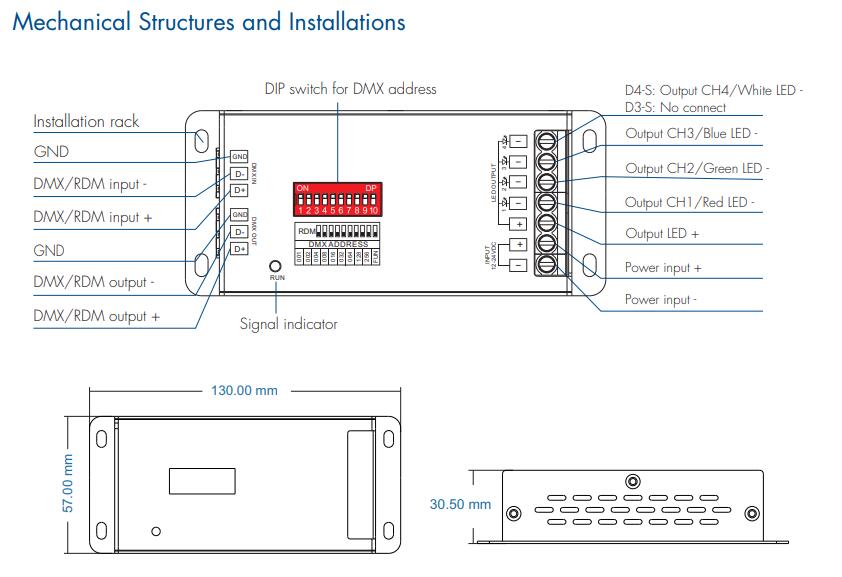

● Set DMX decode start address via DIP switch.
● RDM function can realize intercommunication between DMX master and decoder.
For example, DMX decoder address can be set by DMX master console.

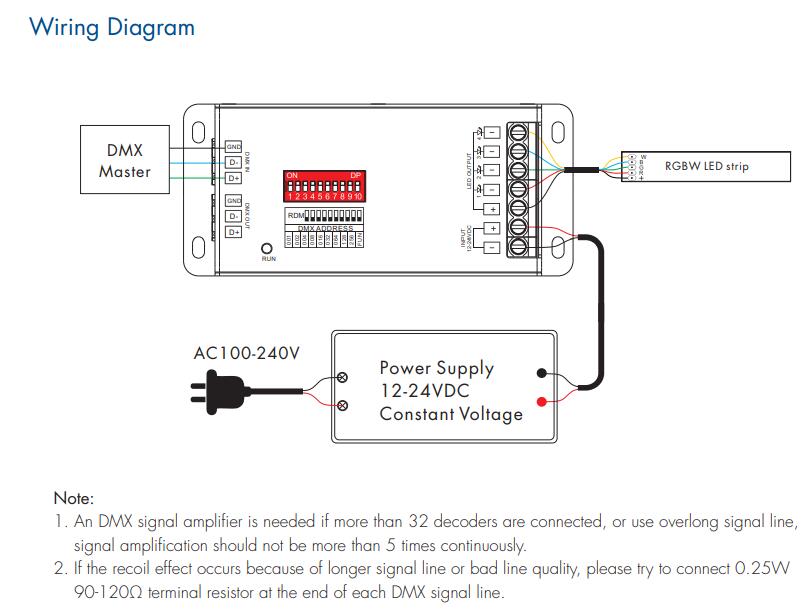

● Green termimal DMX signal input & output.
Input Voltage: DC12-24V
Input Current: 24A
Output Voltage: 4x(12-24)VDC
Output Power: 4x (72-144)W
Output Type: constant voltage
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity
Safety and EMC
EMC Standard (EMC): EN55032:2015,EN61000-3-2:2104, EN61000-3-2:2013, EN55024:2010/A1:2015
Safety Standard(LVD): EN61347-1:2015, EN61347-2-11:2015
Standards and Certifications
1. For dynamic effects (DIP Switch 8,9 = on) : DIP switch 1-7 is used to get 7 speed levels. (7=on, the fastest level)
2. When several DIP switches are on, subjected to the highest switch value.
As the figure above shows, the effect will be 6 colors smooth at 7 speed level.
