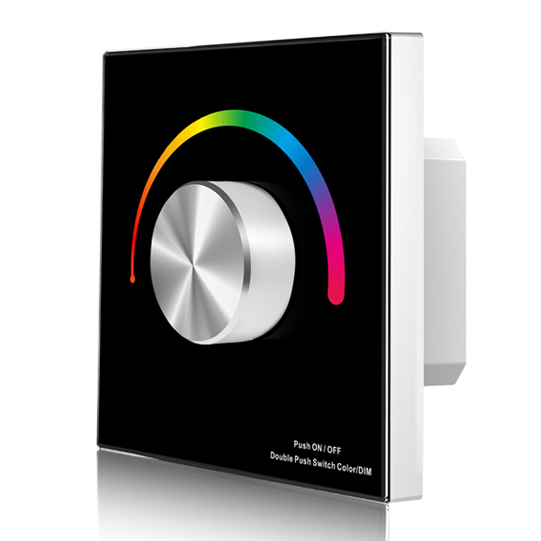

Rotary Glass Panel RGB LED Constant Voltage Controller T3-K For dimmable led strip lights
Rotary panel RGB PWM constant voltage controller, can also be used as RGB remote.

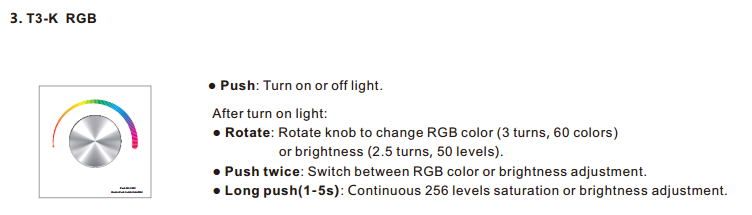

Rotate knob to change RGB color.
Smooth dimming and switch without any flickering.
Adopt 2.4GHz wireless technology, remote distance up to 30m. when used as controller, can accept up to 10 remote control. when used as remote, can remote control multiple controller.
Standard sizes: European 86x86mm

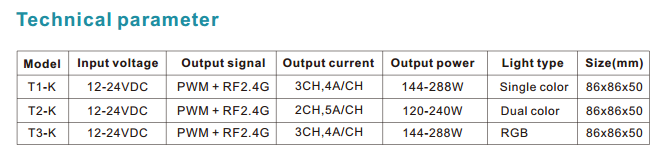

Standards and Certifications
Match Remote Control (two match ways)
The rotary panel controller can also match with the RF remote (optional).End user can choose the suitable match/delete ways. Two options are offered for selection:
Turn on light, turn off, immediately push the knob for 5s, then press on/off key (single zone remote) or zone key (multiple zone remote) of the RF remote within 5s. The LED indicator fast flash 3 times means match is successful.
Turn on light, turn off, immediately push the knob for 10s, delete all matched RF remote. The LED indicator fast flash 6 times means all matched remotes were deleted.
Use Power Restart
Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote. The light blinks 3 times means match is successful.
Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
