DC12-36V 3CH 10A Constant Voltage RF 2.4G Receiver RGB controller V3-X For RGB CCT Single Color LED Strip Light

Model: V3-X
DC12-36V 3CH 10A Constant Voltage RF 2.4G Receiver RGB controller V3-X For RGB CCT Single Color LED Strip Light

$20.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$20.98
10-99
$20.56
100-199
$19.93
200+
$19.09
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

      Summary

     Default as RGB controller, need match RGB remoter,create colorful static or dynamic effect.

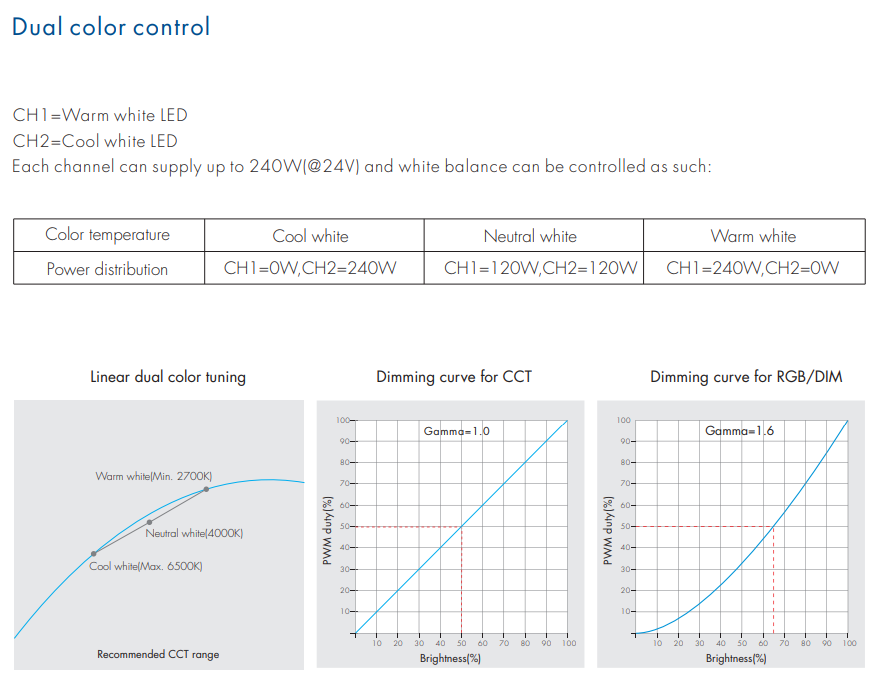

     Can also be used as color temperature or dimming controller, good compatibility.

     Full compatibility with a variety of single color, dual color and RGB remoters.

     PWM achieve 4096 levels flicker-less dimming.

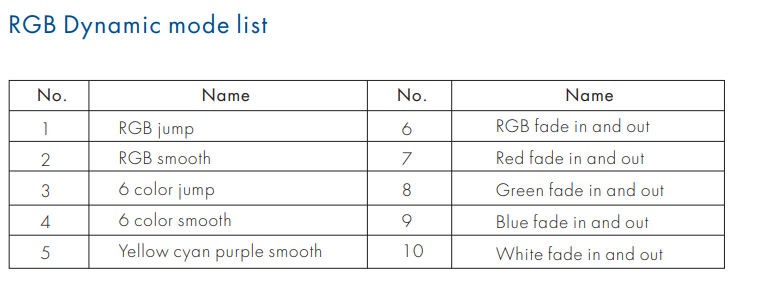

     When control RGB lamp, built in 10 change mode optional.

     Adopt 2.4GHz wireless technology, can accept up to 10 remoters control.

     Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.

     Work with power repeater to expand output unlimitedly.



    Standards and Certifications





    Specifications Download



    Technical Parameters

     Input voltage: 12-36VDC

     Output type: PWM constant voltage

     Output current: 3CH, 10A/CH

     Output power: 3 x (120-360)W

     Grey levels: 4096/CH

     Dimming range: 0-100%

     Remote distance: 30m

     Working temperature: -30℃~55℃

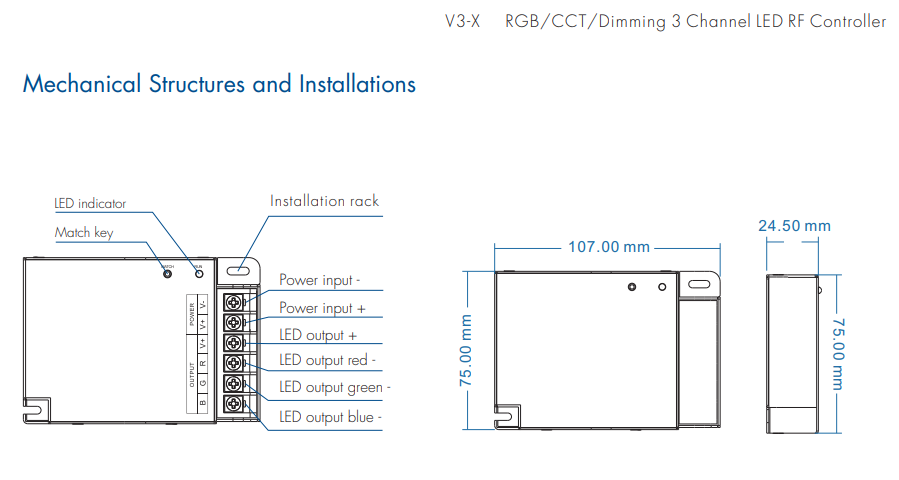

     Product size: L110×W74.5×H24.5mm

     Net weight: 215g

    Match Remote Control (two match ways)

    End user can choose the suitable match/delete ways. Two options are offered for selection:

    Use the controller’s Match key

    Match:

    Short press match key, immediately press on/off key (single zone remote) or zone key (multiple zone remote) of the remote.

    Delete:

    Press and hold match key for 5s to delete all match, The light blinks 5 times means all matched remotes were deleted.



    Use Power Restart

    Match:

    Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote. The light blinks 3 times means match is successful.



    Delete:

    Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
