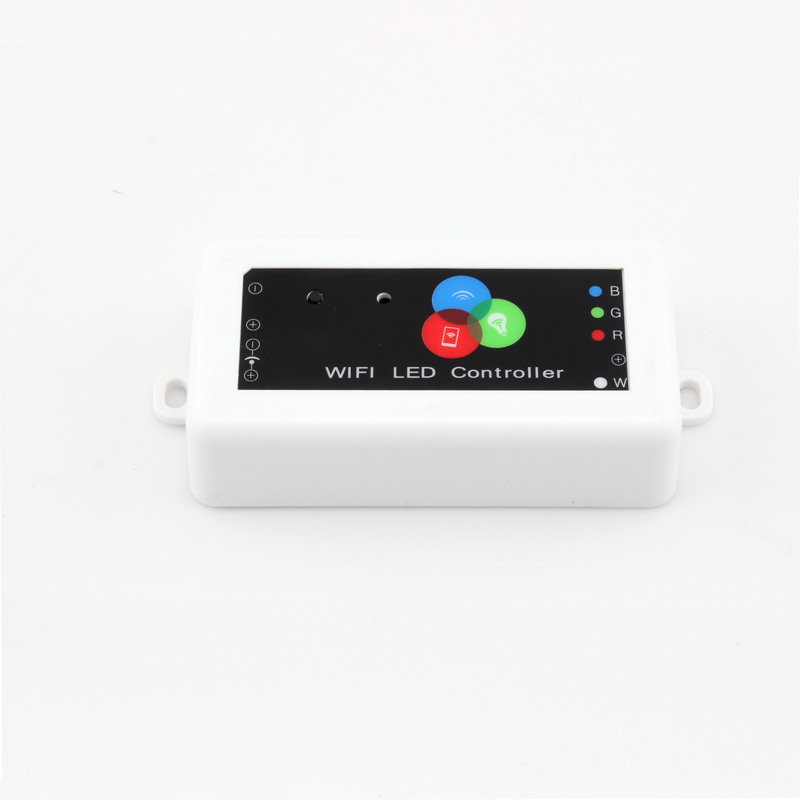

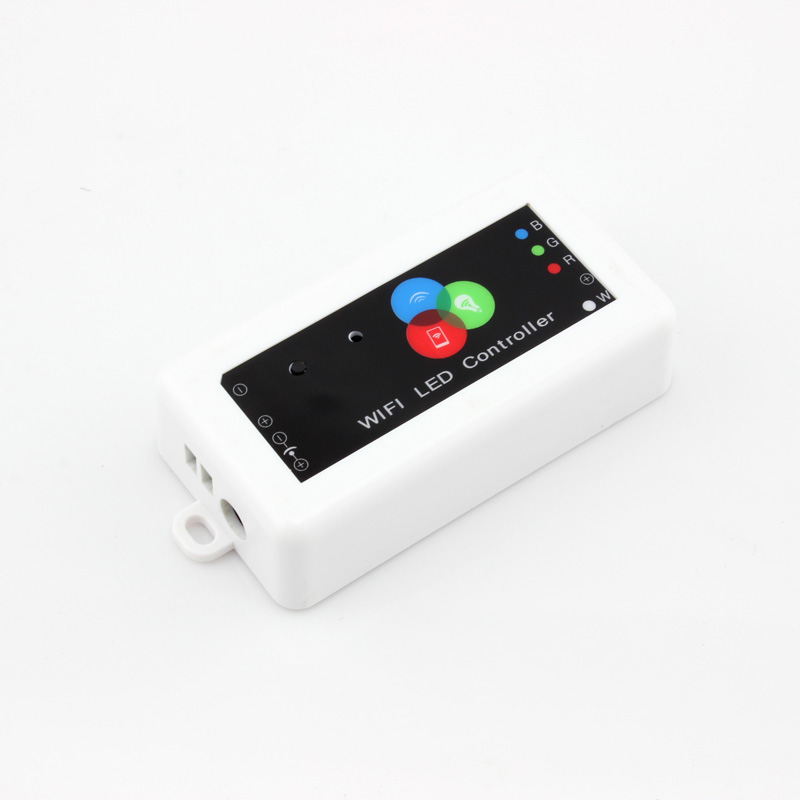

4Ax3CH, LED WIFI controller Control Via IOS or Android Smart Phone Tablet PC Constant Current For RGB RGB+White LED Light Strips

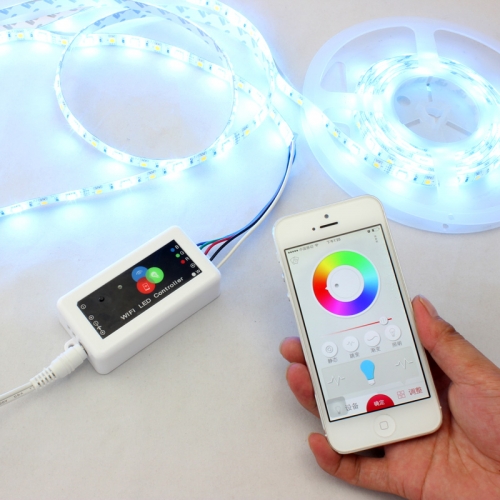

This USR-WL1 LED WIFI Controller Designed for low voltage(5-18V) light, such as 12V RGB or RGBW LED strip, 16 million colors, built-in 20 dynamic model, DIY model, music mode. Divide into groups function. Timing function, automatic turn on/off as your setting time. Set any dynamic models. After installation and settings,your phone (IOS or Android system) can control light directly. The remote control distance reach 50 meters indoor and more than 100 meters outdoor. Controlled by smartphone without any cables, easy operate ,durable using.

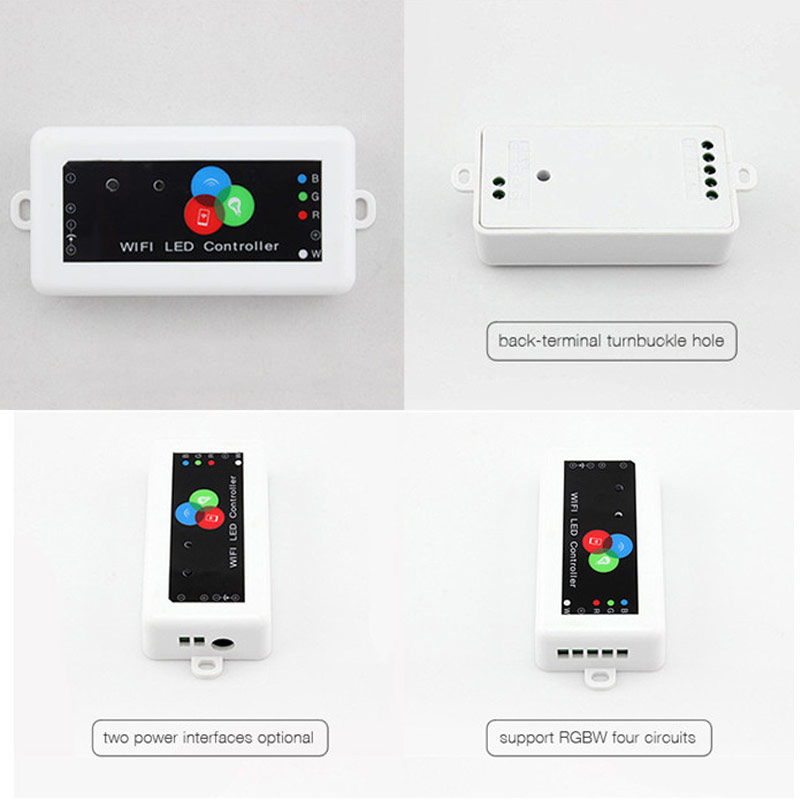

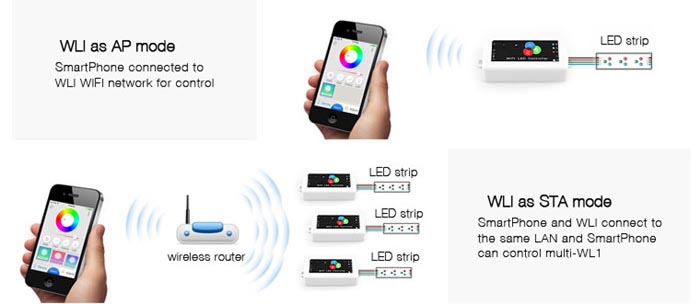

This wifi LED controller can control LED in wireless network environment. As long as install the APP in your smart phone, we can control LED in wireless network environment. Support both wifi control of iOS products such as iPod, iPad, iPhone, iMac(ios4.3 or above). Wireless controller for led strips,usually for KTV hotel etc. Memory function,keep same status as last time after power off . Single control by phone or integrated control by router. Operating platform:requires Android 2.3.3 or later,IOS 6.0 or later. WL1 offers a variety of interface, buttons and indicator lights. And it provides two kinds of power supply interface: DC5.5*2.1 interfaces and R,G,B,W,+ terminal.
Type: RGB/RGBW Controler

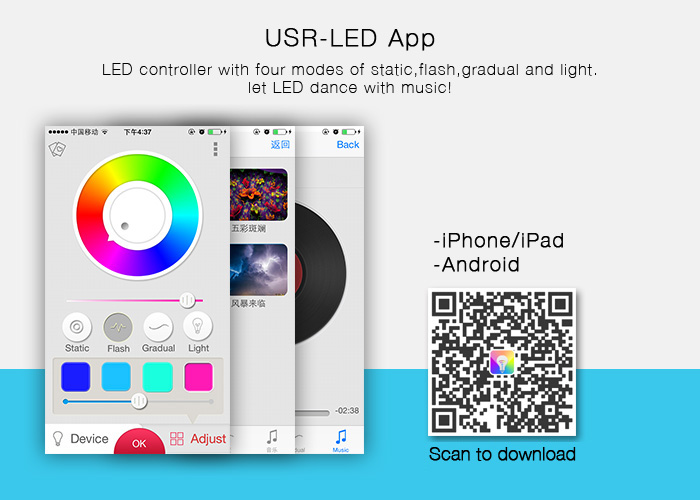

Simple control: the Android phone and IPhone all can control
Supply: Android App and IOS App (Have been tested with Huawei, HTC, Lenovo, SAMSUNG, IPhone, etc. Android each market can download software)
WIFI frequency range: 2.412GHz-2.484GHz
Power supply: DC5V
Size: 84.50*44.50*22.50 (mm)
Wide input voltage: DC 5-18V
Weight: N.W:30g G.W:60g
Max.Load Power: 12A
Output Channel: 3CH/RGB
Work Temperature: -20℃-60℃
Effective Remote Distance: Outdoor,60m ;Indoor, 50m
Input: (wire terminal or DC5V head )
V+: connect anode of power supply
V-: connect cathode of power supply
V+: connect anode of lamp
R: connect anode of red color
G: connect anode of green color
B: connect anode of blue color
W: connect anode of RGBW led light strips white color if your light have this port
Slim light box,lighting, signs, advertising signs, etc.
In high-end stores,shopping malls and other indoor commercial lighting atmosphere
Entertainment,beauty salon lighting,Kara OK and other mood lighting, fashion lighting
For the path and profile signs, illuminated signs, etc.
Shopping malls, hotels, exhibition halls, outdoor decoration and other places
Decorative architectural landscape lighting, home decoration, city lighting
Atmosphere of the bar, KTV,cafes and other leisure venues lighting
Crafts light,car decoration,decorative lighting yacht
1 X WiFi controller
1 X User manual
