DC12/24V Max 24A 6A4CH, LED RGBW Controller With WIFI Hub 2.4GHz RF Touch Color Remote For RGBW LED Light Strips
Universal DC12/24V Red / Green / Blue / White ( RGBW ) LED WiFi Compatible Controller with hand held RF Touch Color Remote. Can control any 12/24V DC RGBW color change LED tape light products. Synchronization function allows single remote can control an unlimited number of receivers. Color selection wheel provides thousands of options from pure white mode and 19 dynamic color-changing modes with speed, brightness and ON / OFF controls. This system is a high-performance RGBW led touch remote controller, adopting the most advanced PWM control technology, controlling all RGBW led products with Five lines and four circuits( common anode),owning 640 thousand colors and 20 automatical changing modes to choose. Also, It has the memory function(that is to say, the previous settings will be resumed when power on again). It is widely used in led RGBW LED strip light, led module and so on. With the technology of the 2.4G high frequency wireless remote control, it has the the characteristics of low power consumption, long distance transmission, and strong anti-interference ability ,high speed telecommunications, etc. The remote looks fashionable and elegant , with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use . The modular design and easy screwed terminals enable the controller easy to match with all kinds of led light products. Radio frequency remote control works through walls with range of about 100 feet.

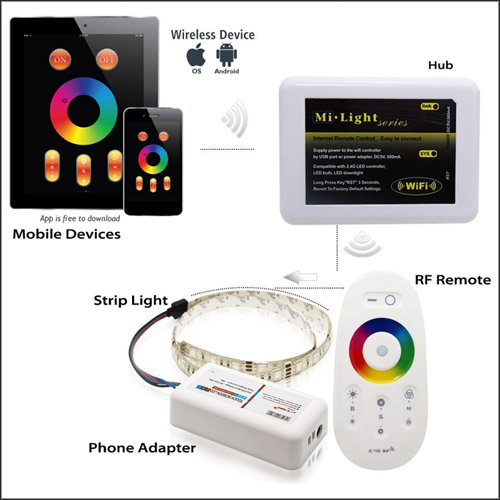

Must be paired with WiFi LED Controller Hub(search CONRGB-WIFI-08 on superlightingled.com) for adjusting all control functions using Smartphone or Tablet running Android or iOS using free app 'WiFi Controller' .
Working temperature: -20-60℃
Supply voltage: DC12V-24V
Output: 4 channels
Connection mode: common anode (+)
Net weight: 186g
Static power consumption: <1W
Output current: <6A (each channel) 24A Max
Output power: 12V:<288W, 24V:<576W
IR Remote Control
Power: AAA battery*2pcs (not including)
Fabrication processing: Multicolor printing & UV varnish

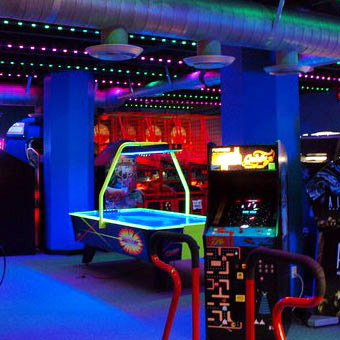

Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
RF Remote Control
Supply voltage of this product is 12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.

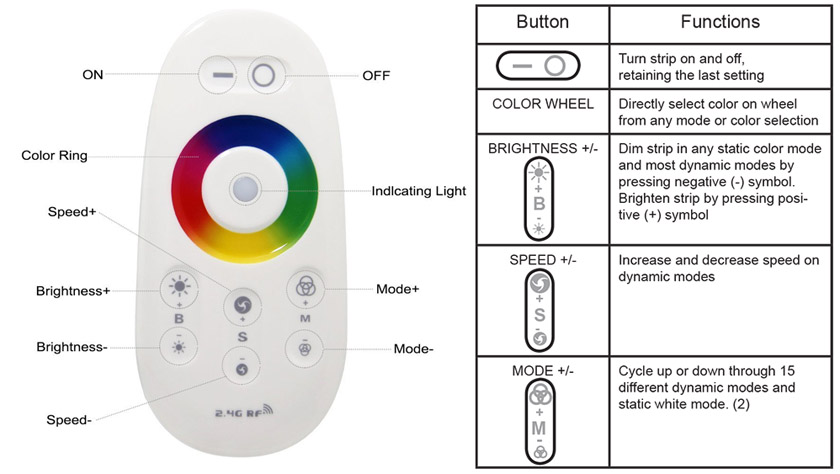

QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Connect according to the Wiring Schematic drawing.

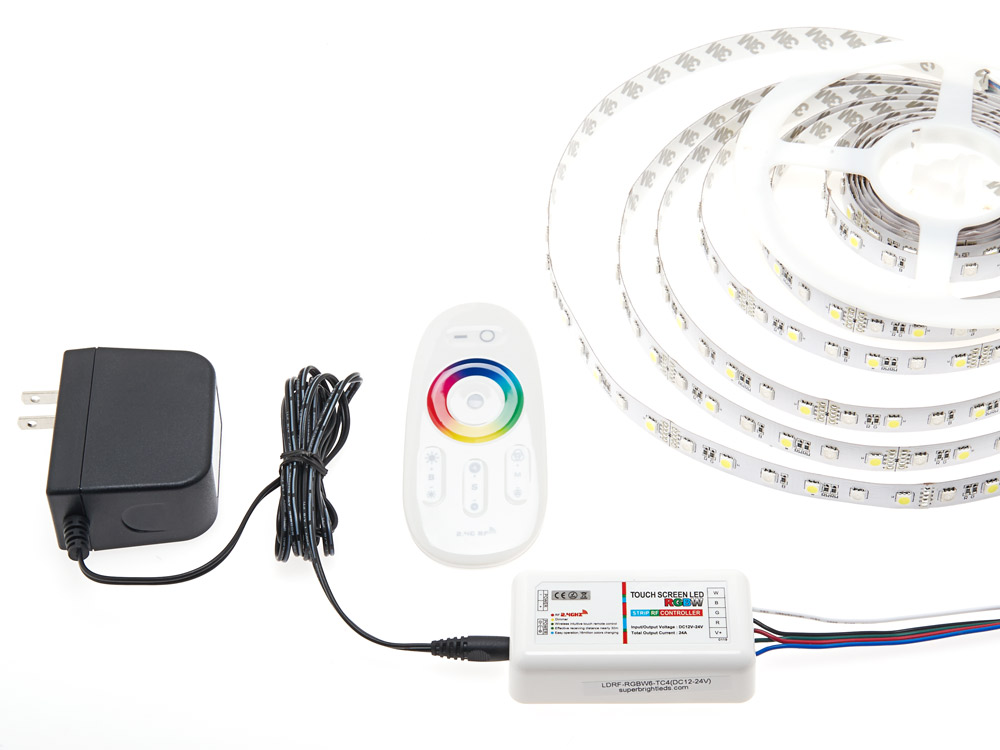

Controller can control a maximum of 30 meters of our Flexible RGBW LED Strip. Over 30 meters, the strips have to connect with an amplifier to reinforce the transmission of signal. Use one RGBW Amplifier for every 15 meters of additional LED Strips.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Not suitable for automobile applications.

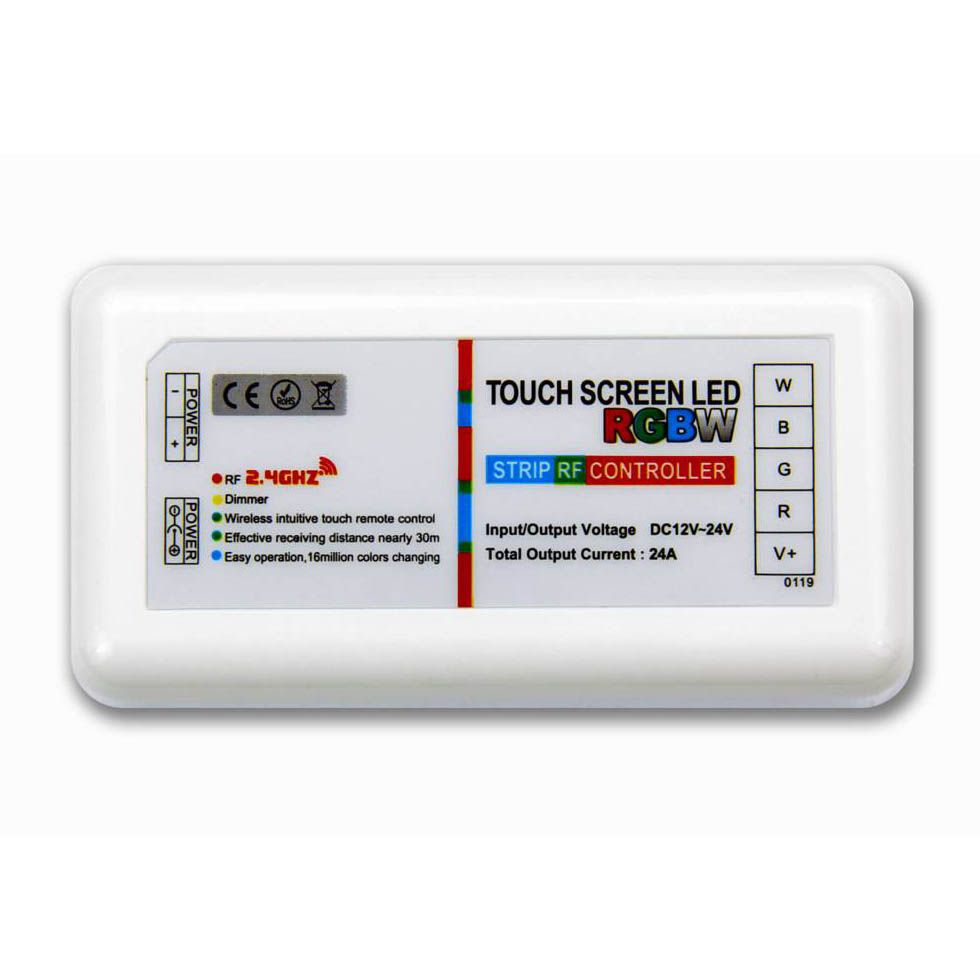

1 x 24A RGBW LED Controller

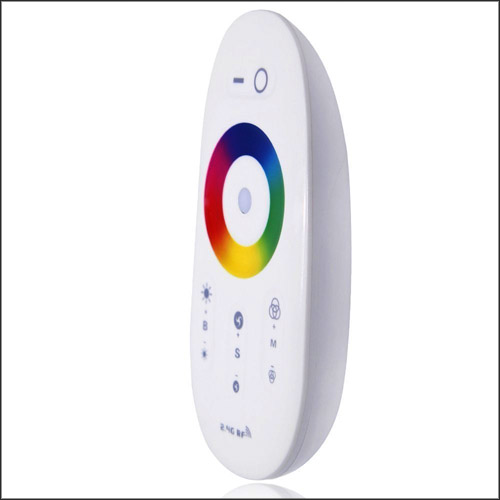

1 x RF Touch Remote Control
