Product Information

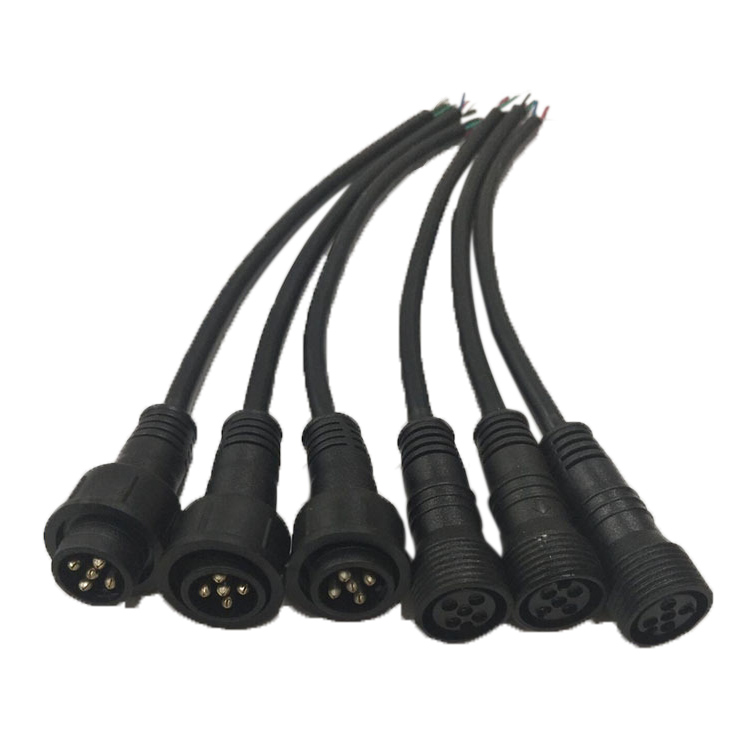

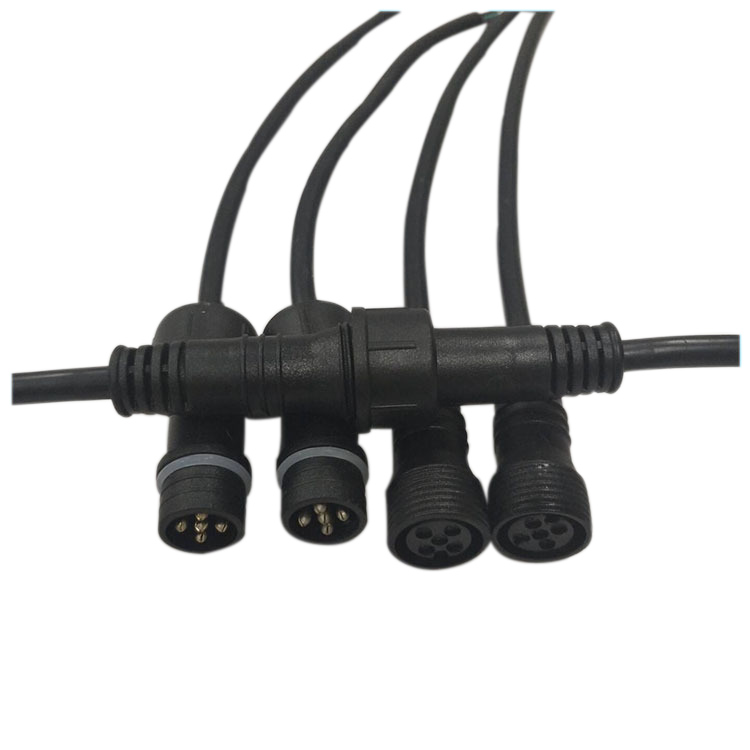

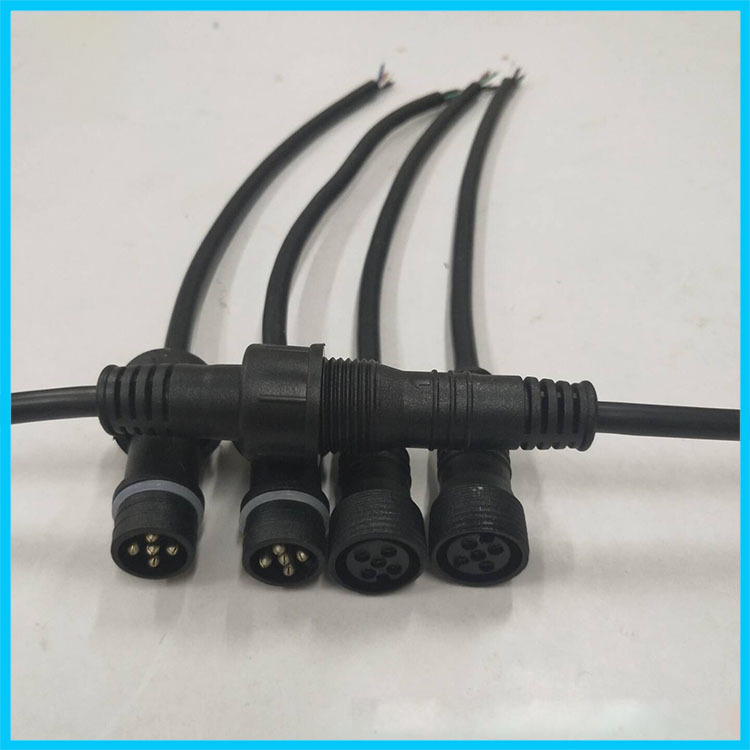

Create robust, weather-resistant connections for your lighting projects with the 5-Pin M18 Waterproof Terminal Connector. Sold as a complete male and female set, this connector plug is engineered for demanding environments where protection from moisture and dust is critical. Unlike simple indoor connectors, this M18 model features a secure screw-on locking ring and an internal screw terminal block, allowing you to create reliable wire-to-wire links for 5-pin RGBW LED strips without any soldering. The core housing is transparent for easy wire inspection during installation, while the durable outer shell is available in black or white to seamlessly match your setup.
Key Features
Robust M18 Waterproofing
Features a threaded M18 locking ring and internal gaskets to create a secure, watertight seal against rain, splashes, and dust.
Secure 5-Pin Terminal Block
Internal screw terminals provide a strong, reliable connection for raw wires, eliminating the need for soldering and ensuring excellent conductivity.
Complete Male & Female Set
Includes both male and female plugs, providing everything you need to create a secure, disconnectable point in your 5-wire lighting circuit.
Durable PVC & Copper Build
Constructed with a tough PVC insulator shell and high-quality copper cores for long-lasting performance in both indoor and outdoor settings.
Versatile Color Options
Available in classic Black or White to discreetly blend in with your cables, fixtures, or mounting surfaces.
Technical Highlights
- Designed for secure wire-to-wire connections in demanding environments.
- Transparent core housing for easy wire inspection before sealing.
- Compatible with both AC and DC low-voltage circuits.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 5PIN M18 Transparent Waterproof Male And Female Plug Terminal Connector |
| Model | 5PIN-WTC-240MM |
| Connector Type | Male & Female Pair, Wire-to-Wire |
| Number of Pins/Cores | 5 |
| Connector Size | M18 Thread |
| Total Assembled Length | Approx. 240mm |
| Connection Method | Internal Screw Terminal Block |
| Shape | Round |
| Interface Type | AC/DC |
| Working Frequency | High Frequency |
| Conductor Material | Copper |
| Insulator Material | PVC |
| Available Colors | Black, White |
Application Scenarios
How to Install & Use This M18 Waterproof Connector
- Ensure all power is disconnected before starting.
- Unscrew the end cap from one of the connector halves.
- Strip approximately 5-7mm of insulation from the ends of your five wires.
- Using a small Phillips head screwdriver, loosen the five terminal screws inside the connector.
- Insert each wire into its corresponding terminal, verifying the correct order for your lighting system (e.g., V+, R, G, B, W).
- Firmly tighten the terminal screws to clamp down on the wires for a secure connection.
- Slide the rubber gasket and end cap back over the cable and screw the cap on tightly to create the waterproof seal.
- Repeat steps 2-7 for the other connector half.
- Align and push the male and female plugs together, then tighten the M18 locking ring to complete the secure, waterproof link.
- Always verify your wiring sequence is consistent on both the male and female connectors to avoid damage to your LED strips.
- Do not overtighten the plastic components.
- This connector is designed for low-voltage LED lighting systems. Do not use for high-voltage AC line applications.
- For maximum waterproof integrity, ensure all caps and the central locking ring are fully tightened.
What's in the Box
- ✓1 x 5-Pin M18 Waterproof Male Connector Plug
- ✓1 x 5-Pin M18 Waterproof Female Connector Plug
Frequently Asked Questions
Q: What does M18 refer to on this led strip connector?
A:M18 refers to the metric thread size of the locking ring, which has a standard 18mm diameter. It's a common size for industrial and waterproof connectors, ensuring a secure fit.
Q: The title says 'Transparent', but the options are Black or White. Which is it?
A:The core housing where the wires connect is made of a transparent material, allowing you to easily inspect the connections. However, the durable outer PVC shell and caps are opaque, available in your choice of Black or White.
Q: Can I use this for a 4-pin RGB strip?
A:No, this is a 5-pin terminal block connector specifically designed for 5-wire systems like RGBW or RGBCCT LED strips. We offer separate 4-pin connectors for standard RGB strips.
Q: Do I need to solder wires to this plug?
A:No soldering is required. This connector features an internal screw-down terminal block. You simply insert the stripped wire ends and tighten the screws for a secure and reliable connection.
Q: What is the maximum wire size this connector can accept?
A:These terminals are designed to accommodate common wire gauges used for LED lighting, typically ranging from 22AWG to 18AWG.
Q: Is this sold as a single piece or a pair?
A:This product is sold as a complete set, which includes one male plug and one matching female plug.
Q: How waterproof is this light connector plug?
A:The combination of a screw-on locking ring and internal rubber gaskets creates a robust waterproof seal, making it suitable for outdoor use and protecting against rain, splashes, and dust.
