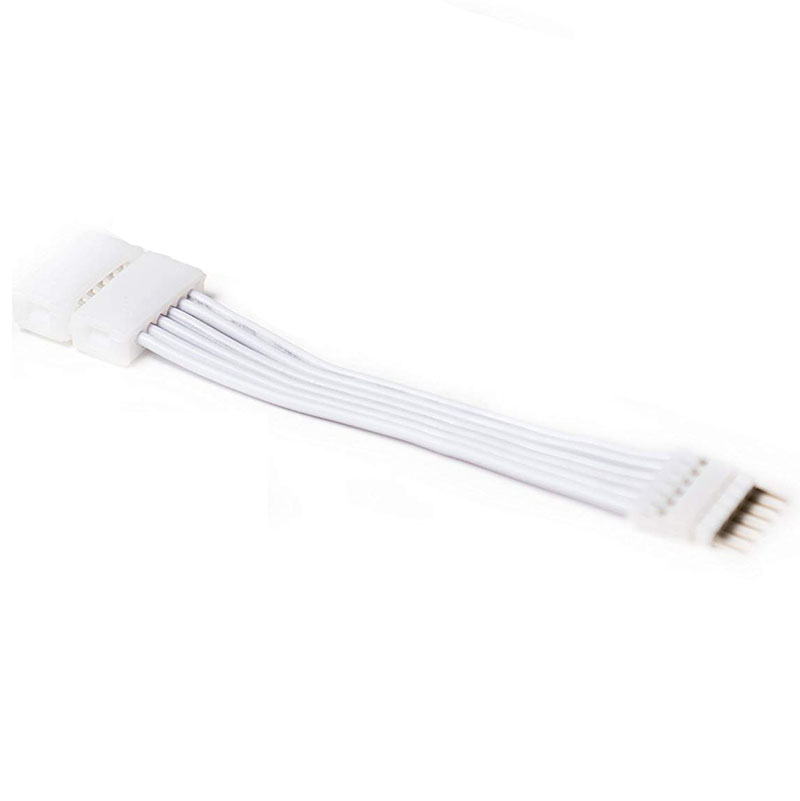

6-Pin to Cut-End Extension Connector for RGB+CCT LED Strip Lights (2 in/50 mm, White)
6-Pin to Cut-End Extension Connector
enables you to connect a cut light strip to an uncut Light strip Extension or any other product (extension cable, splitter, etc.). No more wasting costly light strip pieces! You can also use this connector to create corners for your light strip run, allowing for more design flexibility than ever before! Our cables are flexible and flat, which makes them inconspicuous - perfect for designing your ideal lighting setup!

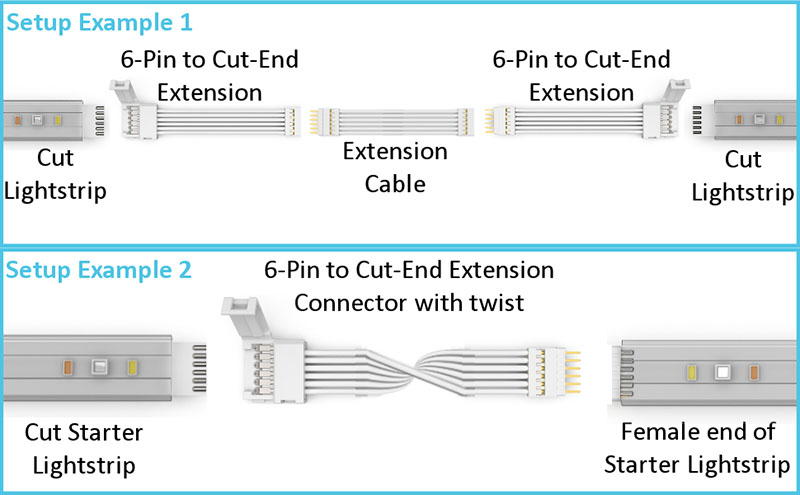

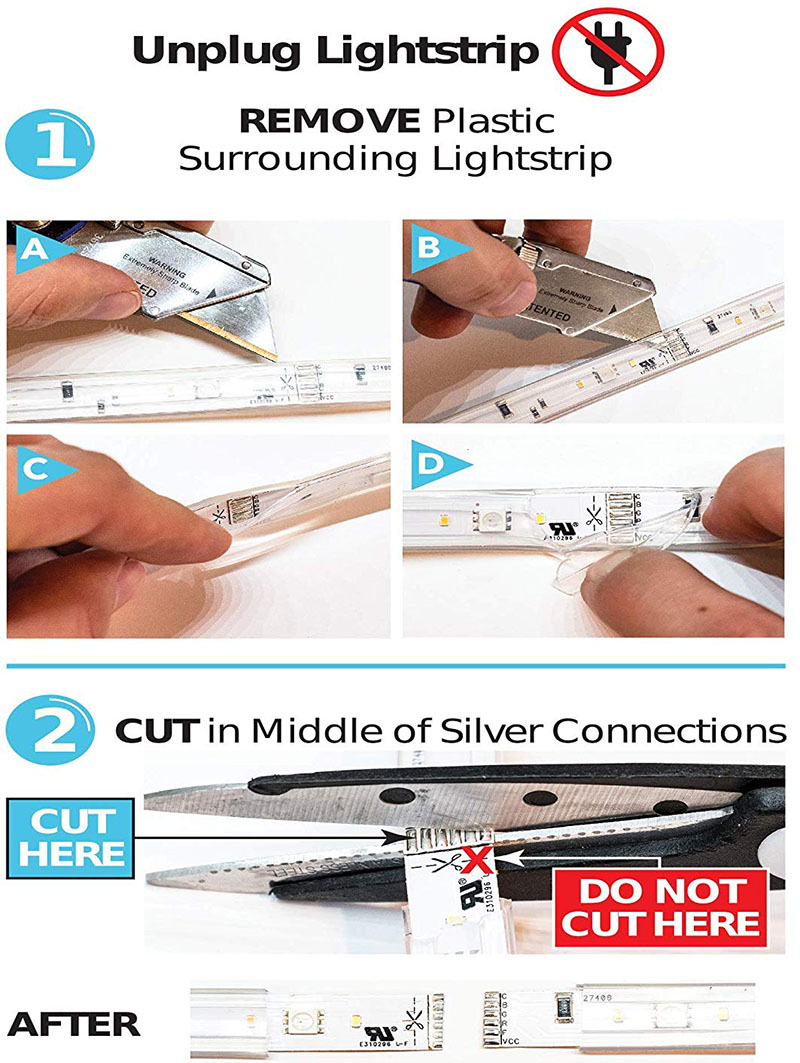

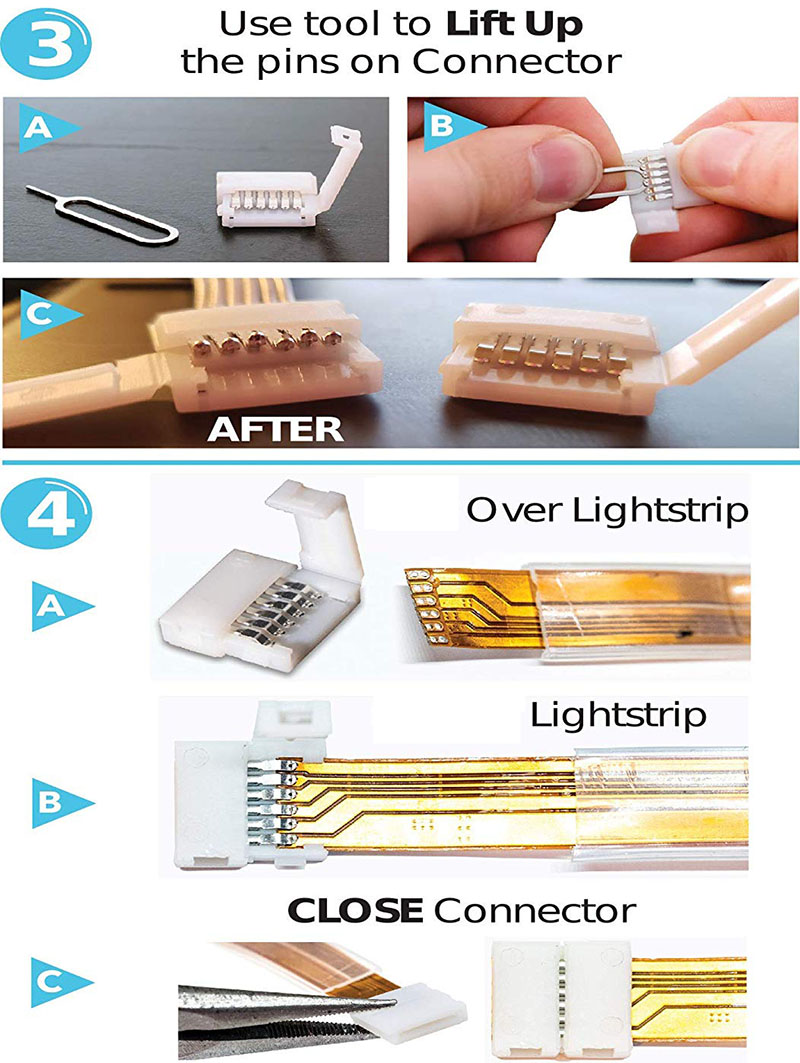

Reusing the end of a cut light strip
Inserting a corner into a light strip run
Important things to keep in mind...
Male ends are removable, converting them to female.
Supports light strip runs up to 33 feet/10 meters (light strips and extension cables combined).
The cable is UL Listed.
Made for Indoor Dry Locations Only.
