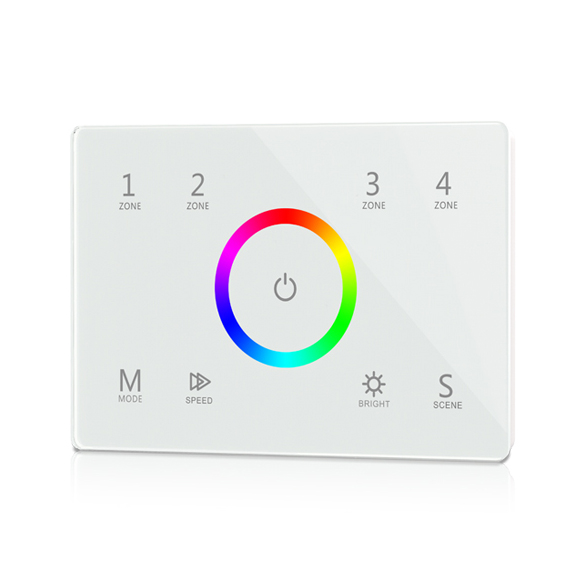

85-265VAC 4 Zones RGB Touch panel T13(IT)
4 zone wall mounted single color/dual color/RGB/RGBW DMX512 master T11(IT) / T12(IT) / T13(IT) / T14(IT)
is a full touch controller designed in accordance with standard protocol DMX512(1990) and offers fast and
accurate color adjustment with unique design touch color wheel. The DMX512 master can control 4 zones with
endless decoders in each zone.
The touch panel 4 zone DMX512 master, can also be used as 4 zone RF remote.
● DMX signal output, comply to standard DMX512 protocol, compatible with DMX decoder from any supplier.
● Ultrasensitive high strength glass touch panel with touch color wheel in the middle and backlighting.
● Smooth dimming and switch without any flickering.
● Smooth and accurate color adjustment by touching the color slide.
● When used as RF remote, can remote control multiple receivers.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● Touch keys with chord tones and LED indicator
