Product Information

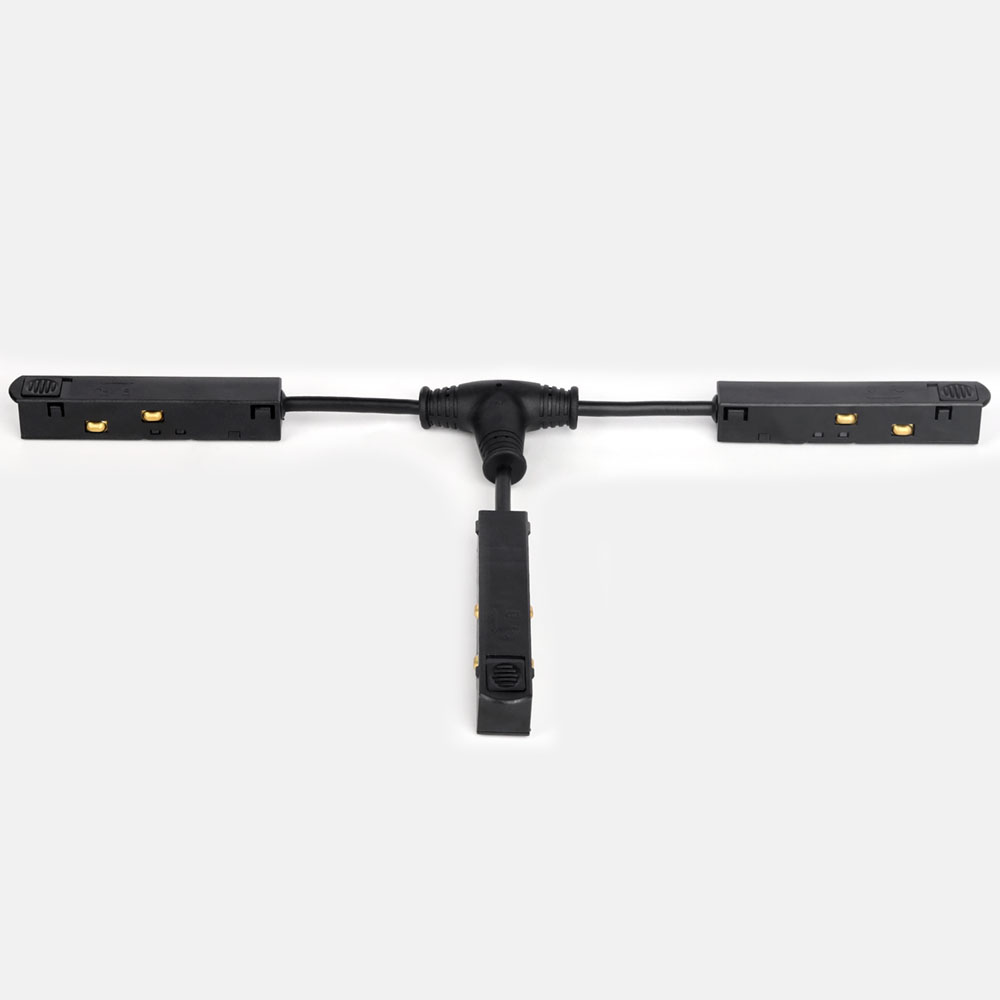

Expand your lighting design possibilities with the Miboxer AM-MR-T20CMB T-Corner Conductive Module. This essential component is specifically engineered to create clean, functional, and electrically continuous three-way junctions in your magnetic track lighting system. Unlike a simple L-corner connector, the T-Corner allows you to branch a new track line off a main run, opening up creative options for grid patterns and complex layouts in residential, retail, or commercial spaces. Its precision design ensures a secure fit and uninterrupted power delivery to all connected track sections and light fixtures, maintaining the integrity and performance of your entire Miboxer lighting setup.
Key Features
Create T-Junctions
Enables the connection of three magnetic track rails at a single point to form a perfect T-shaped intersection.
Seamless Power Flow
Internal conductive elements guarantee uninterrupted power transmission across the junction to all connected track segments.
System Specific Design
Engineered exclusively for a secure and stable connection with the Miboxer 20 Style magnetic track rail system.
Durable Construction
Made from high-quality materials to ensure long-lasting reliability and a secure physical connection between rails.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | T Corner Conductive Module |
| Model Number | AM-MR-T20CMB |
| Brand | Miboxer |
| Compatibility | Miboxer 20 Style Magnetic Track Rail System |
| Function | Connects three track rails in a T-shaped configuration |
| Type | Internal Conductive Connector |
| Installation | Inserts into the track rail channels |
Application Scenarios
How to Install This T-Corner Module
- Turn off all power to the lighting circuit at the breaker before beginning installation.
- Plan your T-junction layout and ensure your magnetic track rails are cut to the correct lengths.
- Align the ends of the three track rails that will form the T-intersection.
- Slide the AM-MR-T20CMB T-Corner Conductive Module into the channels of the three rails, ensuring it is fully seated for a secure physical and electrical connection.
- Mount the assembled track rails to the ceiling or wall according to the track system's installation guide.
- After the full track system is assembled, connect the power input module, restore power, and test the lighting.
- This product is a connector component, not a light fixture.
- Exclusively designed for the Miboxer 20 Style magnetic track system. Do not use with other systems.
- Always disconnect power before installing or modifying your track lighting.
- Ensure all connections are tight and secure to prevent electrical faults or power interruptions.
What's in the Box
- ✓1 x AM-MR-T20CMB T Corner Conductive Module
Frequently Asked Questions
Q: What is the purpose of this T-Corner module?
A:It connects three magnetic track rails at a 90-degree intersection, forming a 'T' shape. This allows you to branch a new track line off a continuous one while maintaining electrical power.
Q: Is this different from the L-Corner connector (AM-MR-L20HSA)?
A:Yes. The L-Corner connects two rails to make a 90-degree turn. This T-Corner connects three rails to create a three-way intersection.
Q: Is this a light fixture?
A:No, the AM-MR-T20CMB is a conductive connector component used to join track rails. Magnetic light fixtures must be purchased separately.
Q: Is this module required to create a T-junction?
A:Yes, to ensure a safe, stable, and electrically continuous connection at a T-junction, this dedicated module is essential.
Q: Can I use this with any brand of magnetic track light?
A:This module is specifically engineered for the Miboxer 20 Style magnetic track system. We cannot guarantee its compatibility or safety with products from other brands.
Q: Does installation require any special tools?
A:No special tools are needed to insert the module itself. It is designed to slide and lock into the track rails. You will, however, need standard tools for mounting the track rails to your surface.
