Product Information
The CSY007-MUSIC is a dedicated addressable RGB light bar controller engineered to deliver real-time sound visualization for commercial entertainment venues and home installations. Operating across a wide DC 5V to 24V input range, this unit directly interfaces with digital single-wire SPI addressable LED strip lights, driving up to 512 individual pixels (or 32 × 16 pixel grid panels). The controller features an onboard acoustic sensor and physical 8-button interface, backed by a wireless remote operating at distances up to 15m. Built-in firmware provides 38 dynamic audio spectrum patterns, 46 music bar outline effects, and 70 ambient non-music patterns with automatic power-down memory retention.
Key Features
154 Built-In Effect Patterns
Includes 38 sound-activated spectrum patterns, 46 music bar outline effects, and 70 non-music linear sequences.
512 Pixel Drive Capacity
Pre-configured for 320 points and adjustable up to 512 pixels to run a 32 × 16 grid screen or continuous perimeter runs.
Wide DC 5V-24V Range
Matches operating voltages across 5V, 12V, and 24V addressable LED strip lights without requiring intermediate step-down converters.
Dual Control Interface
Features 8 onboard manual buttons along with a wireless remote control functioning up to 15m line-of-sight.
Power-Down Memory Retention
Retains pixel count settings, chosen color schemes, and active display modes automatically through power interruptions.
Wide Frequency Processing
Processes audio inputs across 90Hz to 1440Hz to deliver responsive synchronization with bass beats and midrange tones.
Technical Highlights
- Acoustic frequency analysis across 90Hz-1440Hz delivers low-latency responsiveness to ambient music beats and transient rhythms.
- Single-wire digital SPI signal transmission operates data lines directly to WS2811 IC programmable LED strips, WS2812B, and compatible digital chips.
- Onboard EEPROM memory automatically saves the active mode, speed setting, and pixel configuration when power is removed.
- Adjustable pixel length allows custom setups from 1 pixel up to 512 pixels (default preset: 320 pixels).
- Dual input/output terminals support direct 2-wire DC power feed and 3-pin addressable LED strip parts without external signal adapters.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | CSY007-MUSIC |
| Product Type | Addressable RGB Music Controller |
| Operating Voltage | DC 5V - 24V |
| Supported LED Types | Single-wire SPI Addressable RGB / RGBIC LED strip lights |
| Max Pixel Capacity | 512 Pixels (Supports 32 × 16 Matrix or Linear Strips) |
| Default Pixel Setting | 320 Points (User Adjustable) |
| Total Effect Modes | 154 Modes |
| Music Spectrum Patterns | 38 Patterns |
| Music Bar Outline Effects | 46 Effects |
| Static / Non-Music Effects | 70 Effects |
| Frequency Response Range | 90Hz - 1440Hz |
| Control Method | 8-Button Onboard Interface + Wireless Remote |
| Remote Operating Range | Up to 15m |
| Memory Function | Automatic Power-Down Parameter Storage |
| Operating Temperature | -20℃ to +60℃ |
| Certifications | CE, RoHS, FCC |
Application Scenarios
How to Control & Use This Controller
- Select an external power source that matches the exact operating voltage of your addressable LED strip lights (DC 5V, 12V, or 24V). Connect the DC positive and negative leads to the V+ and V- input terminals on the controller.
- Connect the 3-wire output terminal to your LED strip: attach V+ to strip power (+), DAT to the strip data input line (DI/DIN), and GND to strip ground (-). Ensure signal arrows on the LED strip point away from the controller.
- Power on the system. Use the onboard 8-button interface or the included handheld remote to set your strip's actual pixel count (default is 320; adjustable up to 512 pixels).
- Cycle through the dynamic options using the mode keys: select from 38 audio spectrum patterns, 46 music bar modes, or 70 non-music linear patterns. Adjust microphone sensitivity and animation speed to match the room volume.
- Verify operational settings. Turn off power briefly to confirm the onboard memory retains your custom pixel configuration and selected mode upon reboot.
- The controller accepts DC 5V to 24V, but it does NOT convert voltage. Your input power supply voltage must match the voltage rating of the connected LED strip lights exactly.
- Do not route high current loads directly through the controller board for long runs. When powering pixel runs exceeding 5A total draw, inject power directly from your DC12V plastic shell power adapter to the LED strip power lines.
- Ensure data wire polarity is correct before energizing. Connecting the data line to positive voltage will damage the internal IC chips on the LED strip.
- Keep the controller microphone opening free from dust, acoustic foam, or enclosed metal boxes to maintain sound sensitivity.
- Intended for dry indoor environments only. Install inside a protective weather-sealed housing if deployed in humid bar zones or outdoor settings.
What's in the Box

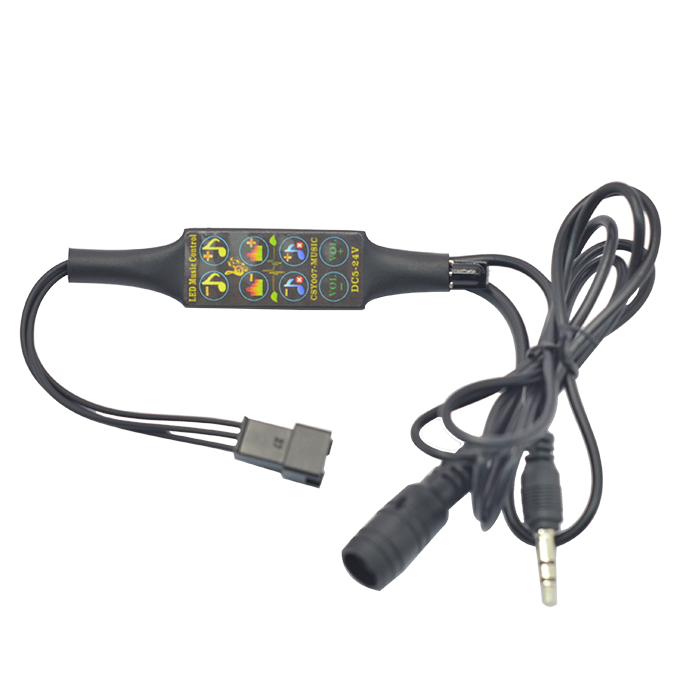

- ✓1 × CSY007-MUSIC Addressable RGB LED Controller

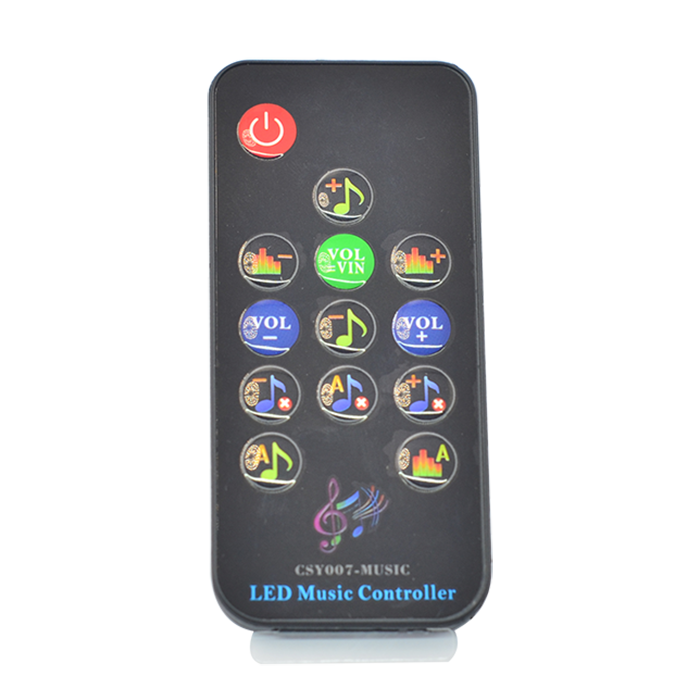

- ✓1 × Handheld Remote Control
- ✓1 × 3-Pin JST Output Connector Cable
- ✓1 × User Operating Manual
Frequently Asked Questions
Q: can you sync led lights to music
A:Yes. The CSY007-MUSIC features an integrated acoustic pickup covering 90Hz to 1440Hz, allowing your digital LED strip to respond to live rhythm, beats, and ambient sound across 84 music modes.
Q: how do i connect my music to my led lights
A:You do not need an auxiliary audio cable. The controller has an integrated microphone sensor that captures ambient audio directly from room speakers, instrument amps, or voices.
Q: how to control rgb led strip
A:You can control mode selection, animation speed, and audio sensitivity either directly using the 8 physical buttons located on the controller body or via the included wireless remote from up to 15m away.
Q: What is the maximum number of pixels the CSY007-MUSIC can drive?
A:The controller supports up to 512 individual pixels (or a 32 × 16 pixel grid bar). The default factory setting is 320 points, which can be reprogrammed using the remote.
Q: Does this controller convert DC 12V to DC 5V?
A:No. The CSY007-MUSIC operates on DC 5V to 24V pass-through power. If your LED strip is DC 5V, you must connect a 5V power supply; if your strip is DC 12V, connect a 12V supply.
