CSY008 RF SPI Music Spectrum Dream Color Controller AUX Input Suitable For WS2812B, SK6812 RGB Addressable LED Strip Lights
· Working voltage: DC5V-24V, controller working current <15mA (no led strip current)
· Function: Can control 32 x 64 = 2048 (max., it is also up to your light) pixel LED strip ligth screen or contour light led strip <you can change the support pixel according to the manual)

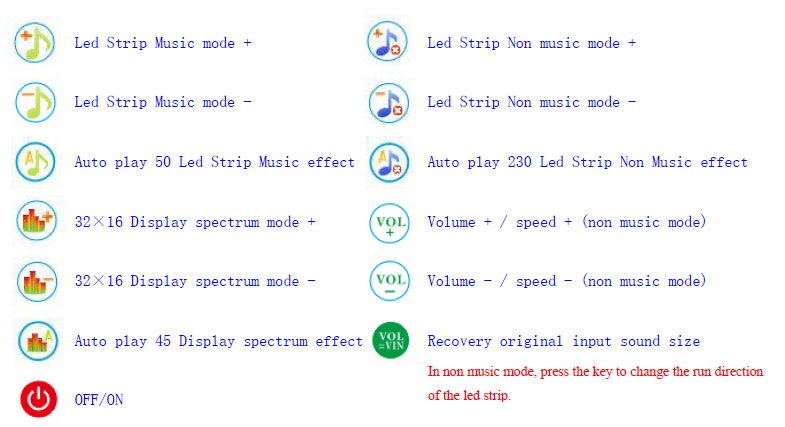

· Effect mode: 45 display spectrum patterns + 50 led strip music effects + 230 non-music led strip effects
· Operating mode: Wireless remote control, with power-down automatic storage function
· Spectrum range: 90HZ-1440HZ, 90HZ at each column (90HZ, 180HZ, 270HZ, 360HZ,... 1440HZ)

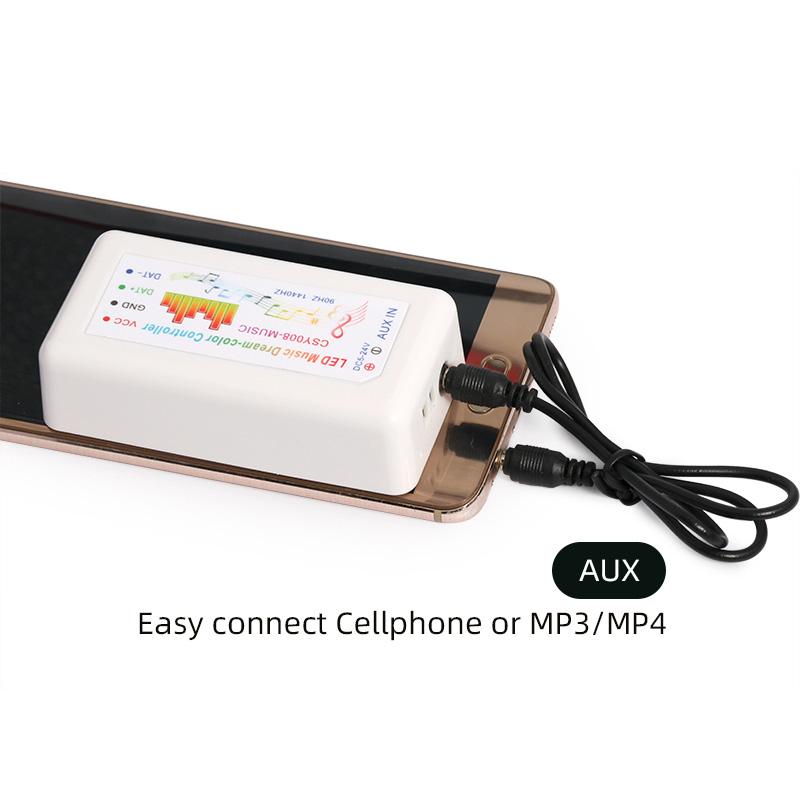

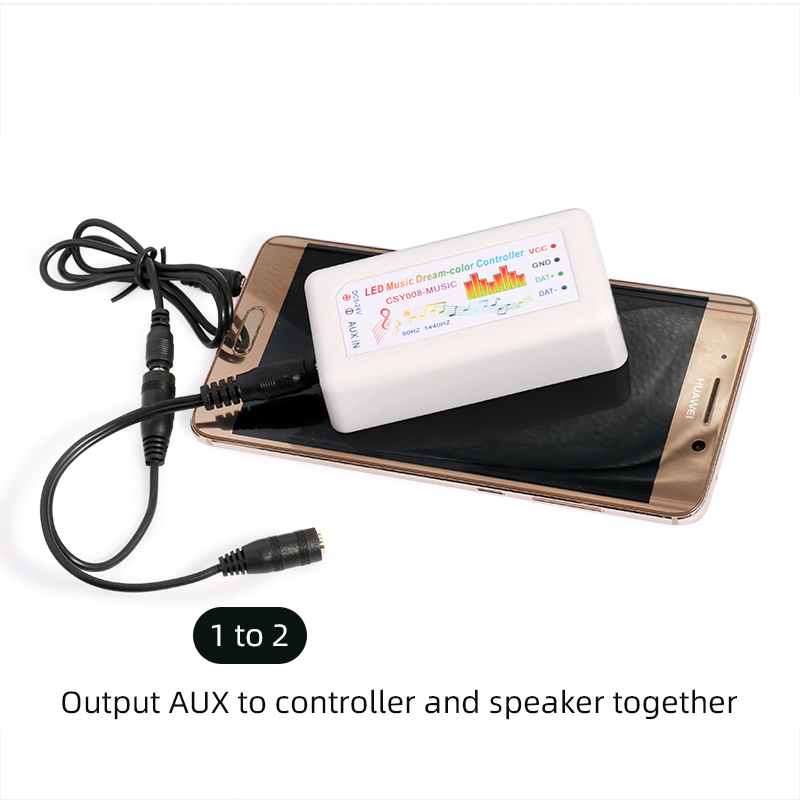

· Audio input: 3.5MM audio interface circuit input “AUX IN” + “MIC” microphone input (Automatic switch, No connection to "AUX IN" automatically switch to microphone mode).
· The size of the input sound source can be adjusted by key buttons.
· Recommend the purchase of our "Bluetooth Audio Receiver Module" can wireless Bluetooth connection to mobile phones.

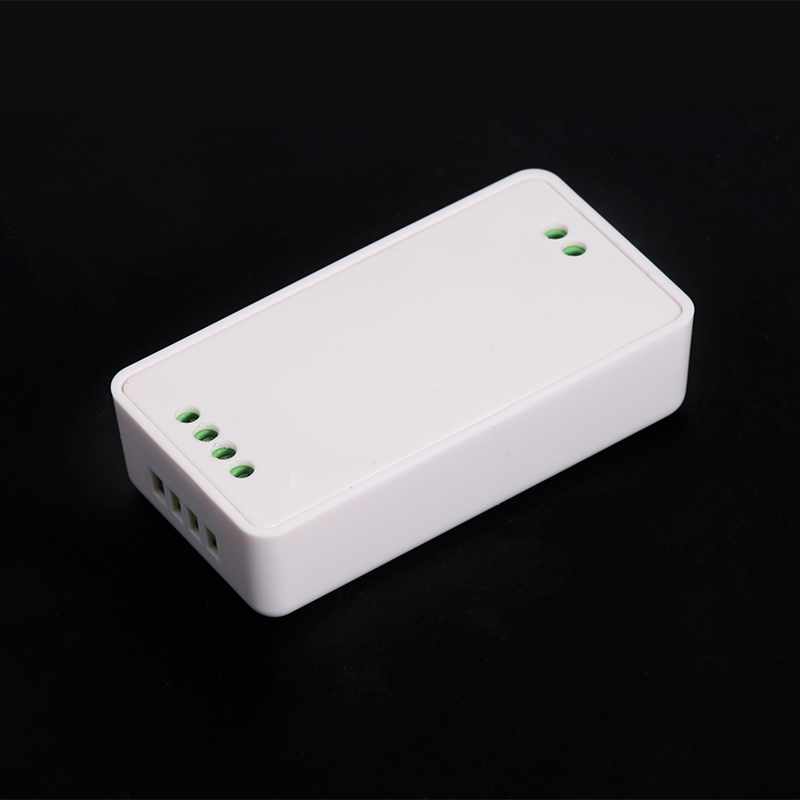

Item: LED Bluetooth Dream Color Controller
Input voltage: 5-24VDC
Output signal: SPI
Working temperature: -30℃~55℃

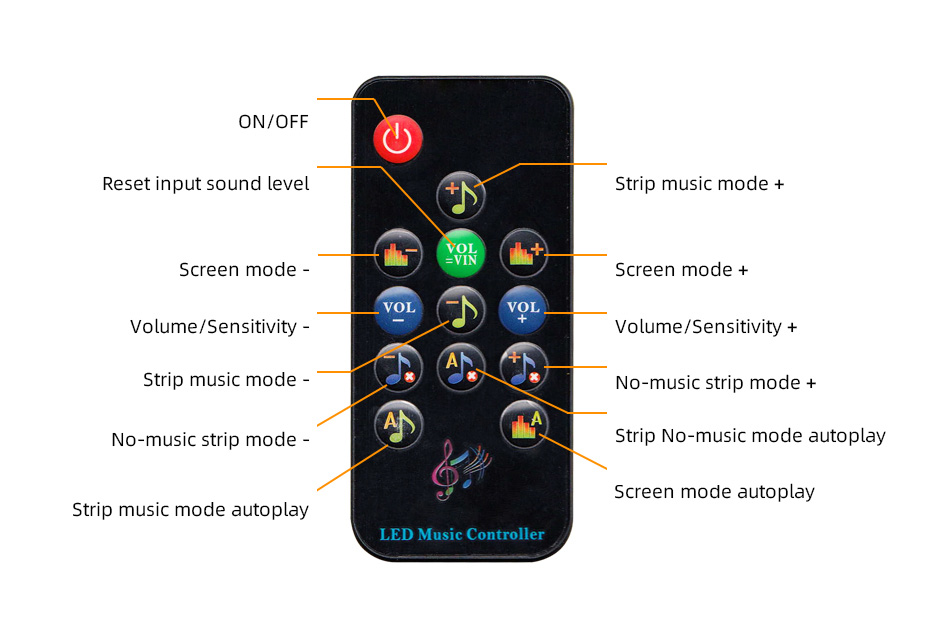

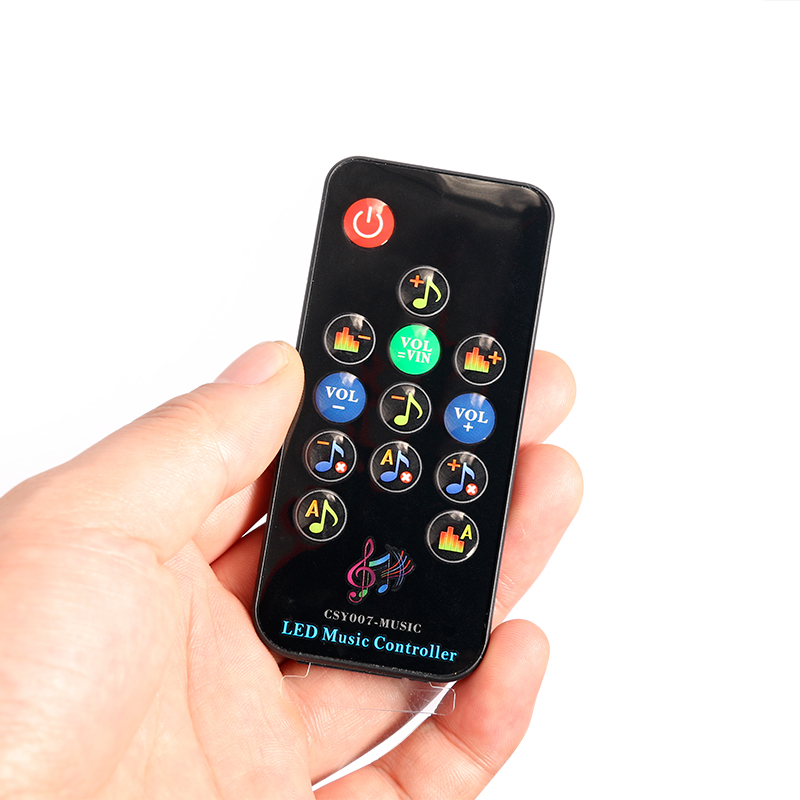

Remote: RF Dream Color Remote Controller
Control Distance: 20m

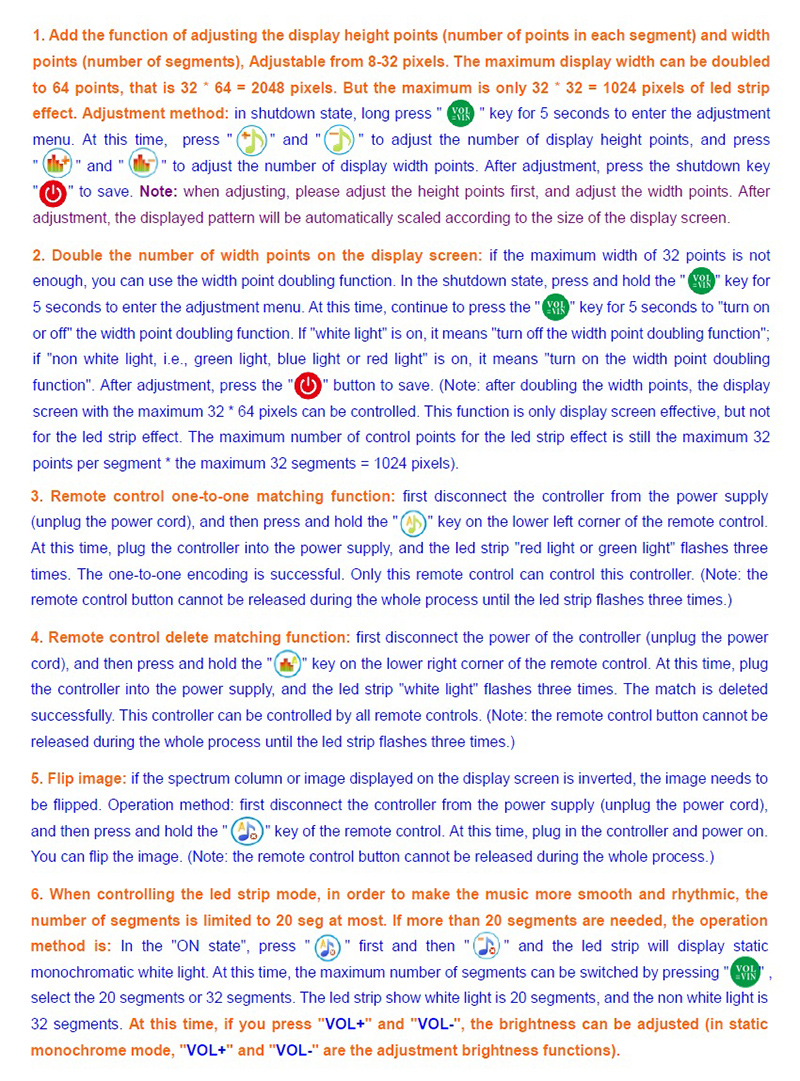

When controlling LED stip light, the default pixel is set to 256 pixel, it can be adjust to 1024 (or duble to 2048) pixel, but it is recommended to use 256 pixel as default, because if it was set to too many pixel, the play speed may slow down, and 256 pixel has batter effect !

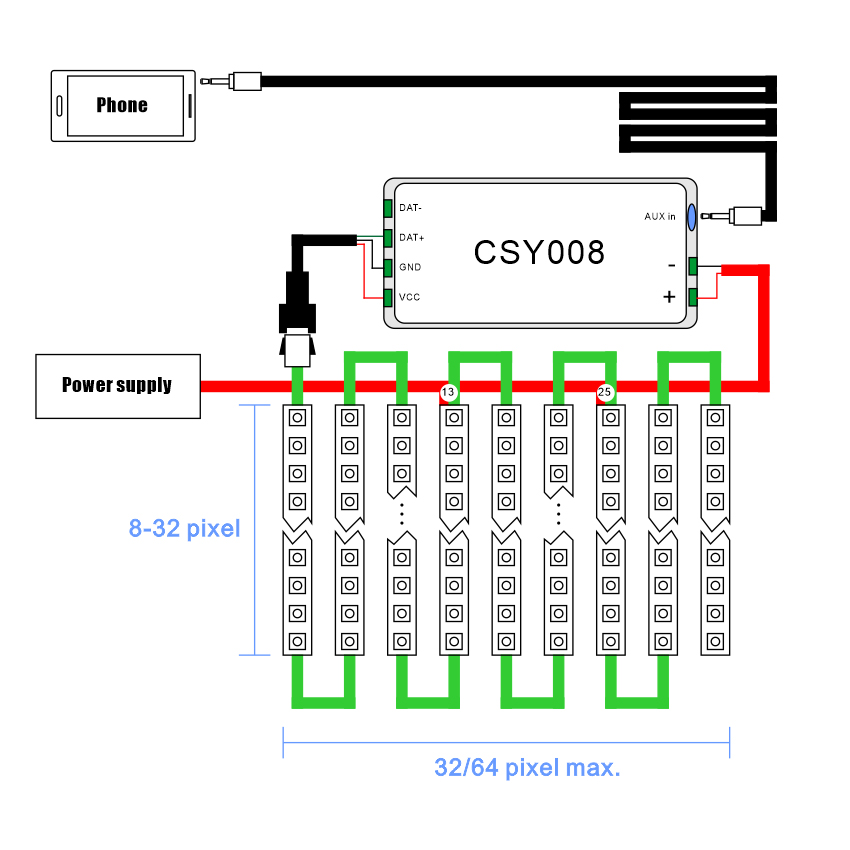

When controlling LED pixel screen, height can be 8-32 pixels to get good display, because the patterns was designed as 16 pixel high, width can be 1-32 pixel, more than 16 pixel width is recomended, because some patterns need more than 16*16 pixel to show completely.

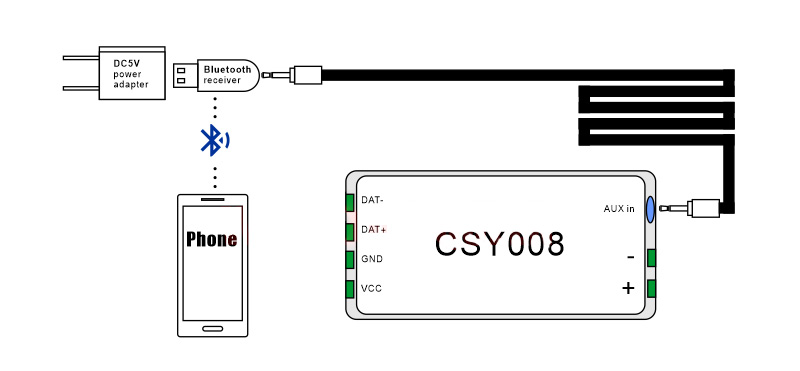

Above is the connection for Bluetooth receiver, it is option, can instead of the AUX cable to make music control by wireless.
It can control the contour led strip and LED display (32*32 pixels), two functions, and the audio frequency can be identified: 90HZ-1440HZ, frequency ultra accurate, and some similar controllers in the market do not know how much the frequency is captured at all, or even can not distinguish the high and high school bass. It's just a jumps in the form. When controlling the 32 * 16 led strip screen, the “S” type connection is used, the signal is input from the lower left corner, and the height must be 16 pixels (such as 16 WS2811 IC, or 16 WS2812B beads), the width of 32 led strip, and the parallel connection of multiple led strips to increase the width. For example: using 48 led/16 pixels per meter led strip to make a led strip screen, the height of 1 meters is just 16 pixels, the width can be 3 parallel, 32*3=96 led strip and other distance arrangement, the width can be 2 meters.
