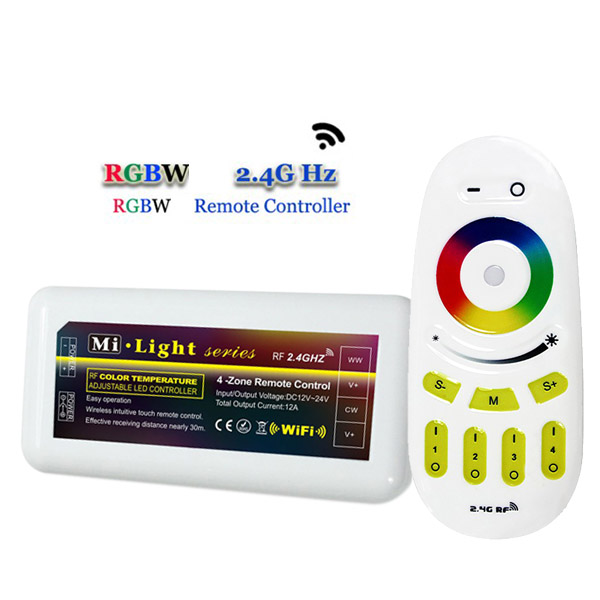

DC12/24V Max 12A, Universal New Style grouping Color temperature,RGB,RGBW multiple zones controller control led tape lights, for home lighting system

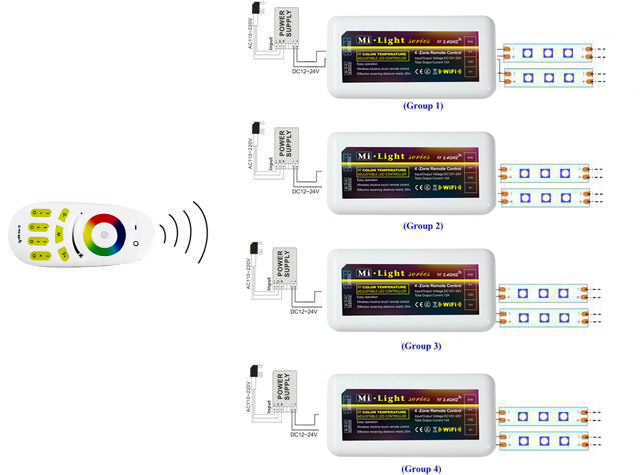

Adopt 2.4G wireless remote control technology, support use configuration one-for-one, one-for many, Capacitance and wireless touch technology no mechanical wear overcoming the lifespan problems caused by Physical buttons. Visible color wheel touched by finger then What you see is What you get. with brightness memory function. Support independent control, uniform control and simultaneously control, buzzer remind when remote. many-for-one method. Wireless RF control, free direction and long distance, more than 20 m. Adopt advanced PWM ,control technology ,gradual change gralscale up to 1024 levels ,change effect smooth,no flick. Auto adaptation of 12-24V DC working voltage and with input polarity protection function. High power dimmer control MOS tube with stable and reliable performance, strong.power-drive ability with max. 12A of 3 channels. Support independent control, uniform control and simultaneously control, buzzer remind when remotecontrol. Novelty and elegant appreance, especially fit for home and commecial occation.
Supply voltage: 12V~24VDC
Loadable current: 6Ax2CH /SC 4A*3CH/CT 3A*4CH/RGB 4A*4CH/RGBW
Output channels: 2CH /3CH /4CH
Output power: 144W/288W(DC12V/DC24V)
Control methoda: RF
Connection mode: common anode
Changing number: 3(warm white cool white color tempreture)
Dimmering mothod: PWM
Protection: Input polarity protection
Grey steps: 1024
Working voltage: 4.5VDC
Remote control way: RF
Launch frequency: 2.4G
Controlable distance: more than 20 meters
Battery types: 3 pcs AAA type batteries
Standby power: 0.1mW
Power consumption: 7.7mW
Transmission power: 35mW
Key Number: 6 touch keys，1 touch wheel
Working temperature: -20℃~60℃
● Please install the products by professional electrician
● This product can not waterproof, please put into water-proof tank if the clients want to use it outdoor
● Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temper-ature
● Please don't install this controller in lightening, intense magnetic and high voltage fields
● Check if the voltage and power adapter suit the controller and LED lights.
● Please make sure the wires can sufficiently load the LED lights for avoiding accident.
● Please make sure all the wires are connected correctly before switching on the power.

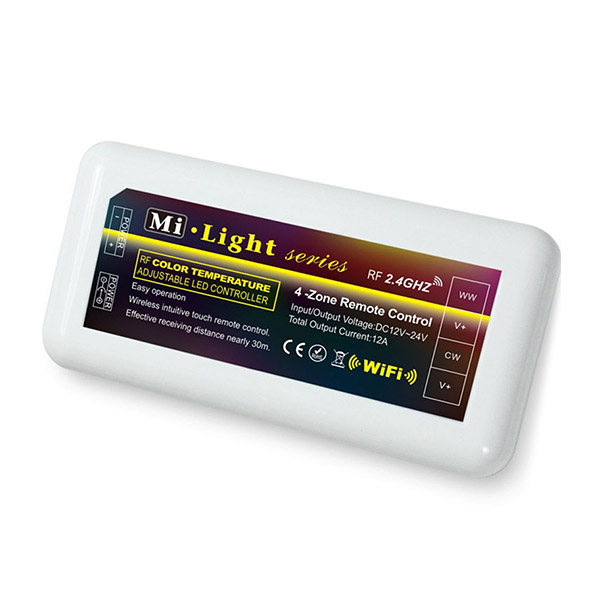

1 × color temperature dimmer
1 × RF wireless remote control.
1 x Piece of User's Manual
