DC5V, LED WIFI controller Hub Via IOS or Android Smart Phone Tablet PC For RGB LED Lighting(Repalcement by WL-Box1)

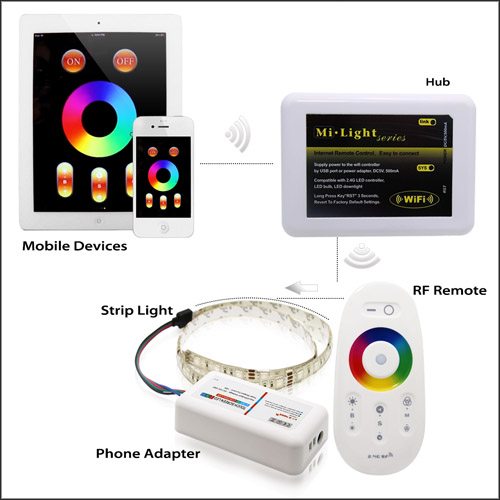

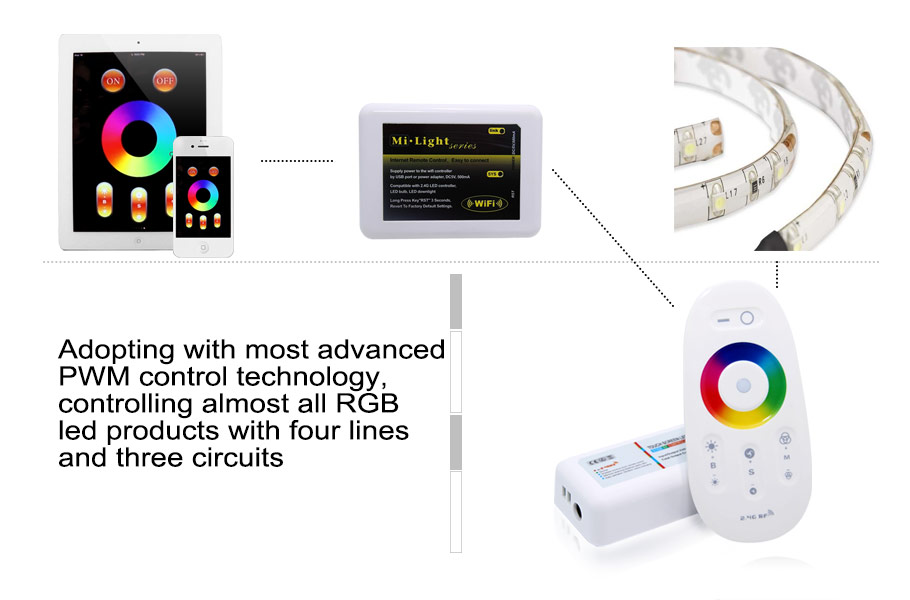

This MINI Wi-Fi LED Controller Hub is compatible with all RGB series 2.4Ghz RF LED Controllers from superlightingled.com(Model: CONRGB-RF-03). After completing this simple setup using just your smartphone or tablet and your existing or new LED lights and Wi-Fi compatible LED controller, you can have complete Wi-Fi control of all of your LED lights in your home.
This product has been discontinued, if you buy this product, we will send the WL-Box1
Controller functions: phone and tablet app
Remote: phone and tablet app

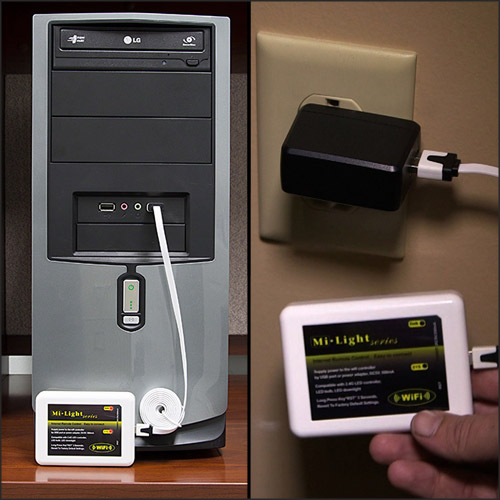

Power supply: 5VDC
Working current: 500mA
Max, load current: 216 watts
Remote distance: 30 meters
Power source: DC
Connection mode: common anode
Dimension: (L)9cm /3.54'' X (W)6.6cm /2.6'' X (H)1.5cm /0.59''
Slim light box,lighting, signs, advertising signs, etc.
In high-end stores,shopping malls and other indoor commercial lighting atmosphere
Entertainment,beauty salon lighting,Kara OK and other mood lighting, fashion lighting
Shopping malls, hotels, exhibition halls, outdoor decoration and other places
Atmosphere of the bar, KTV,cafes and other leisure venues lighting
Crafts light,car decoration,decorative lighting yacht

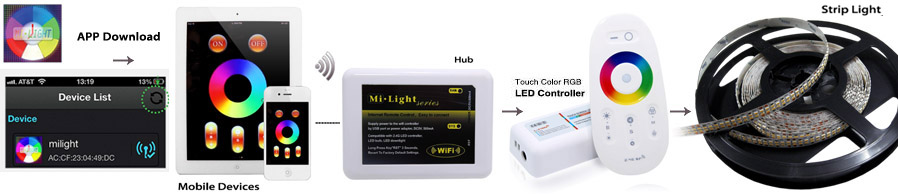

1. Wire all controller devices to one power supply or power strips but don’t turn it on yet.
2. With the power off,grab the smart device, and have app opened to your specific controller type.
3. power on the controller.
4. Within 3 seconds of providing power press the top button once in app on smart device.
If programming was successful any connected light strip should blink twice slowly and remote will immediately be functional.
Tips1:This control hub works with RF control unit (Model: CONRGB-RF-03)
Tips2:Single Device Pairing allows one control hub and one remote control to communicate as a unique pair. Multi Devices Pairing allow one remote controller to communicate with multiple control hubs without the required transmitting range.

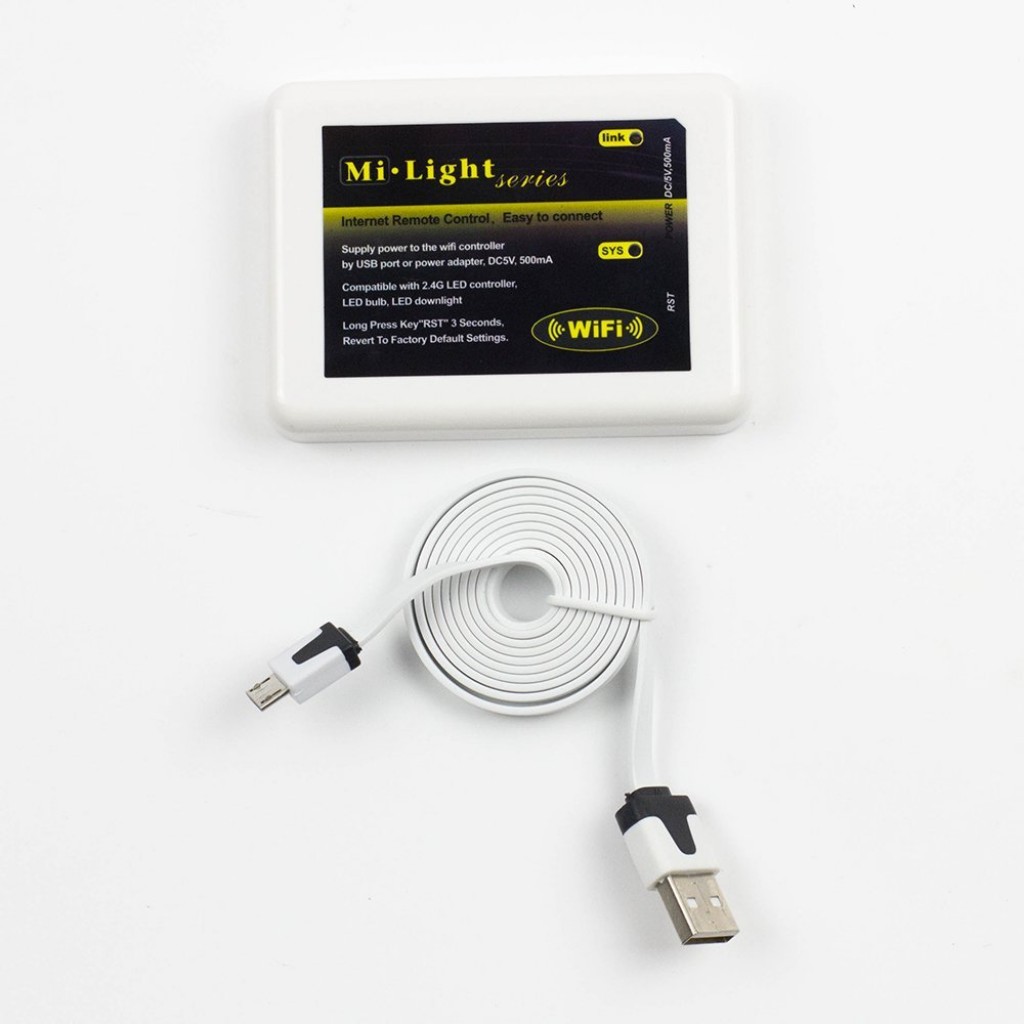

1pc WiFi control Hub
1pc USB cord
1pc user manual
