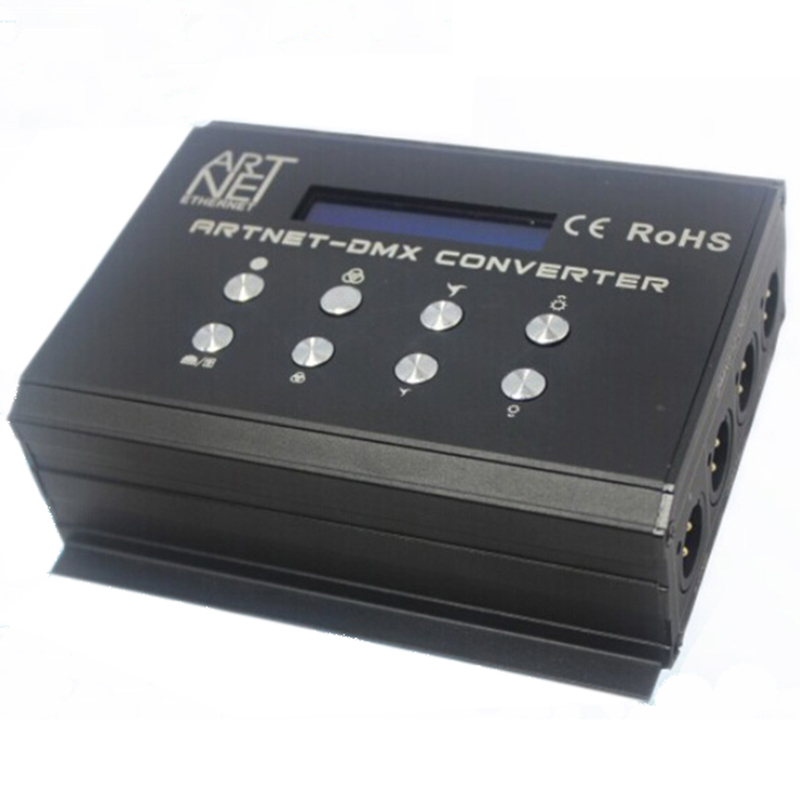

DC12V DMX400 Artnet DMX Converter 4 Standard DMX512 Data Output Ports SD Card Controller, DMX512 Decoder LED Controller
DMX400 is a controller that can realize two options of ARTNET, SD card, multiple colors, and multi-level dimming. A total of 2048 (512 X 4) data can be output. They are widely used in LED dot matrix and stage lighting control networks that require a large amount of DMX512 data. The ArtNet mode is an Ethernet control system based on the ArtNet protocol. It can convert network packets in the ArtNet protocol on the network to standard DMX512 data, follow Standard ArtNet protocol provides RJ45 network interface and standard DMX512 output interface. The SD card mode is based on the reading operation.LED file edited by the EDITOR software, and its data is decoded into standard DMX512 data to realize the control of the lighting.
Standards and Certifications
1.It can convert the network data package of ARTNET protocol in the network to standard DMX512 data, have 4 standard DMX512 data output ports.
2.Read operation of SD card .LED file ( can store 32 design files), convert to standard DMX512 data output, to achieve lighting control.
Working temperature: -20-60℃
Power supply voltage: DC12V
Input: ARTNET signal
Output: standard DMX512 signal, 4 channels
Static power consumption: <1W

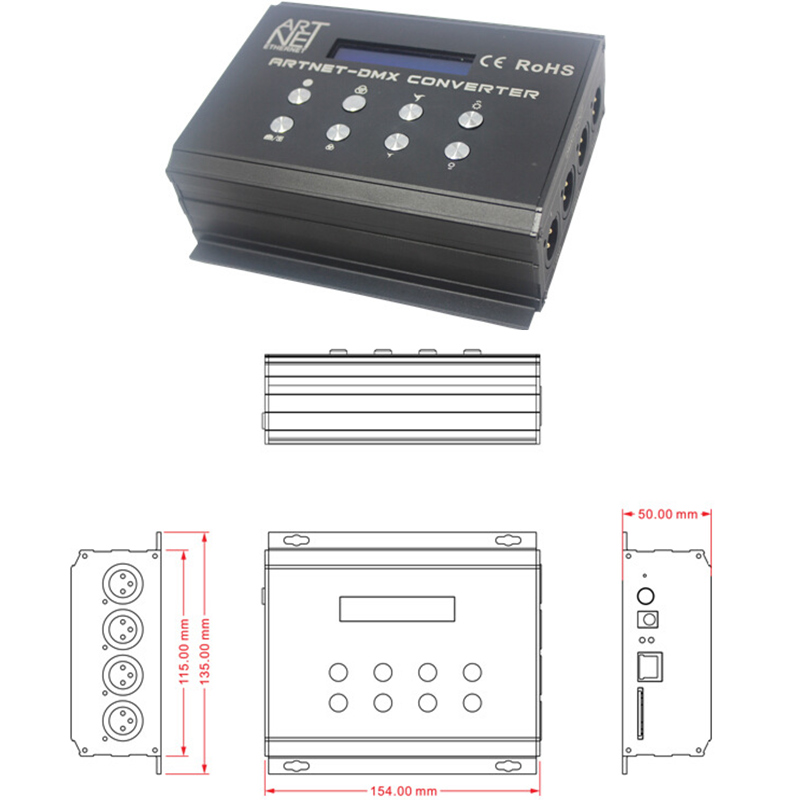

Internal dimension: L154*W135*H50mm±0.5mm
Packing size: L205*W105*H75mm
Net weight: 545g
Gross weight: 845g

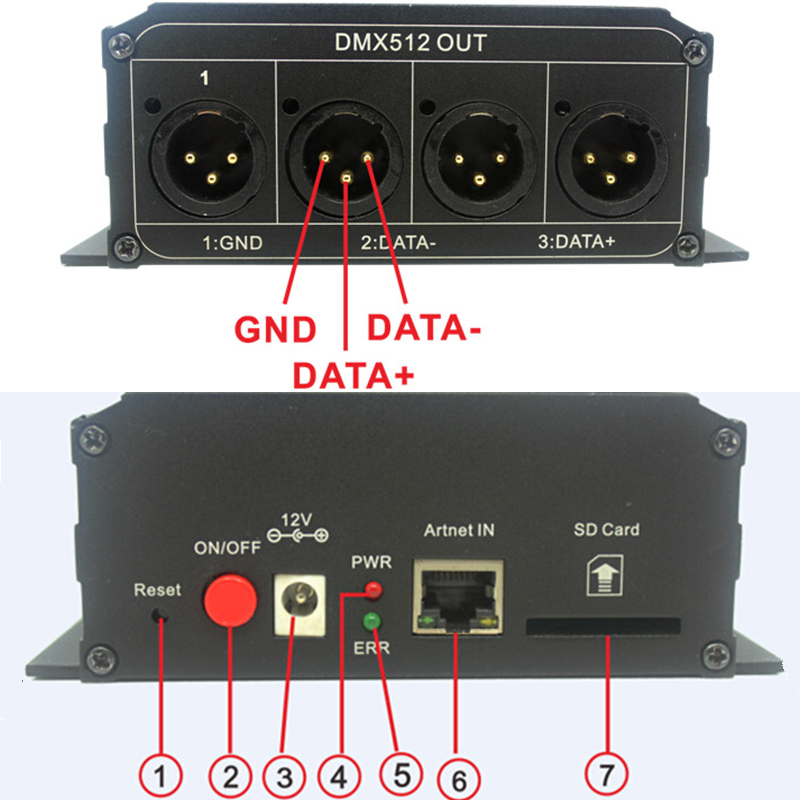

Input voltage DC12V, ARTNET signal input interface, SD card slot interface, as shown in the figure:
①: Reset key ②: Power switch
③: Power socket, input voltage 12V ④: Power indicator
⑤: Communication indicator, flashing communication
⑥: ARTnet signal input interface ⑦: SD card slot

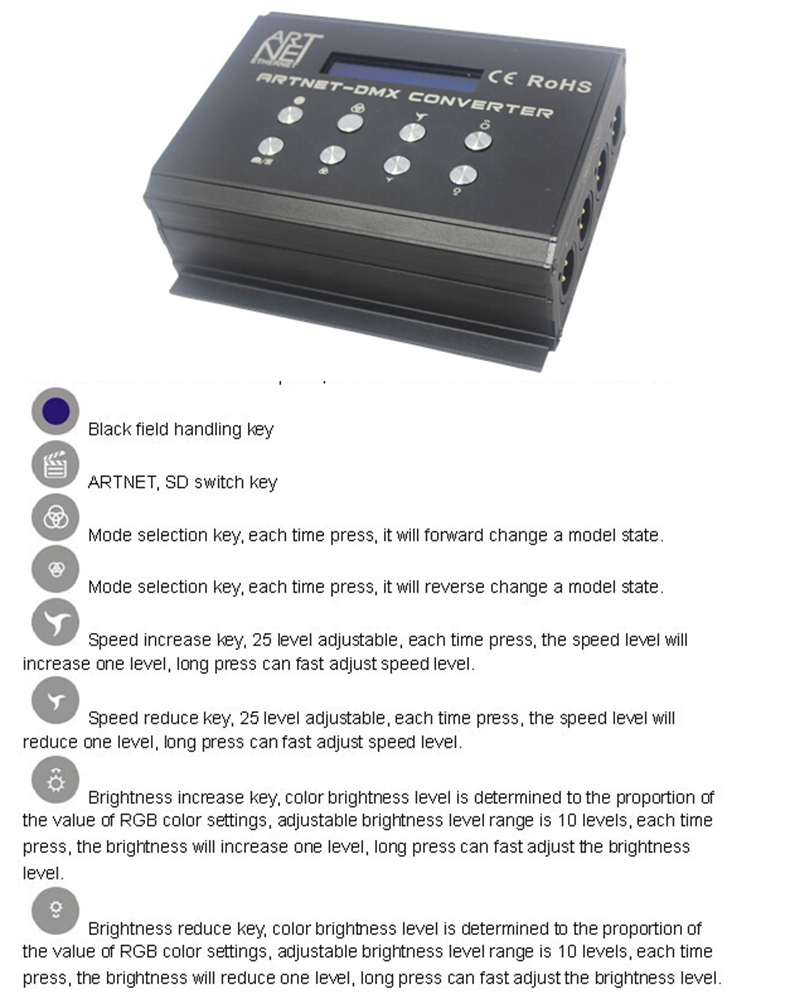

There are 8 buttons in the touch panel, and the function of each button is as below:
1.Connected the circuit;
2.Open the Power, power-on default state is black state by default
3.SD card mode, select SD card mode, select file that need to run, and adjust gray scale and speed of current file
4.ARTNET mode: select ARTNET mode, open the PC software DMX-workshop, configure node information, select output port, select output mode, select ARTNET.
Typical application diagram

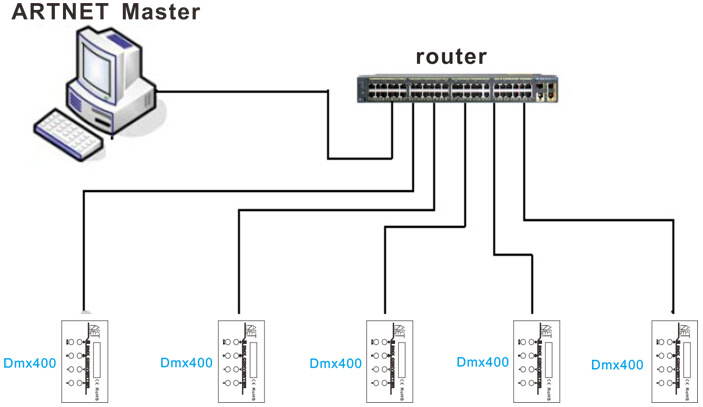

Connection with a computer in ARTNET mod

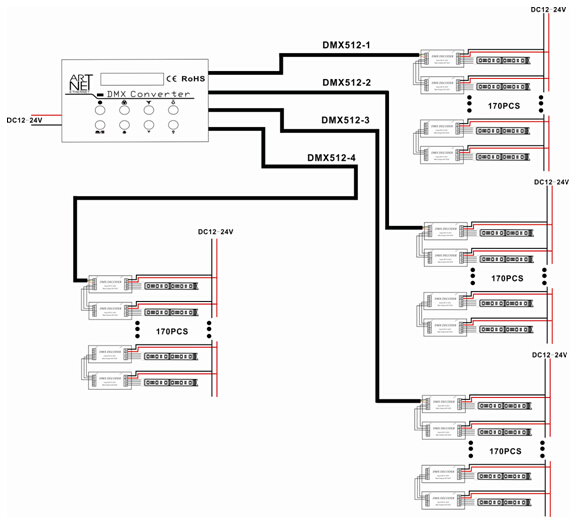

The connection way of controller and decoder
1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. The range of power supply voltage is DC12V, more than voltage range maybe burn out the controller;
3. When SD card insert and pull out, you need to do reset operation;
4. Each time ARTNET is power-off, need to configure the interface and node information firstly;
5.When you turn on the power, need to wait for initialization until appear black.
6.When SD card convert with ARTNET, need to wait for 3 seconds.
