SPI Controller With RF Remote Control For Addressable LED Strip

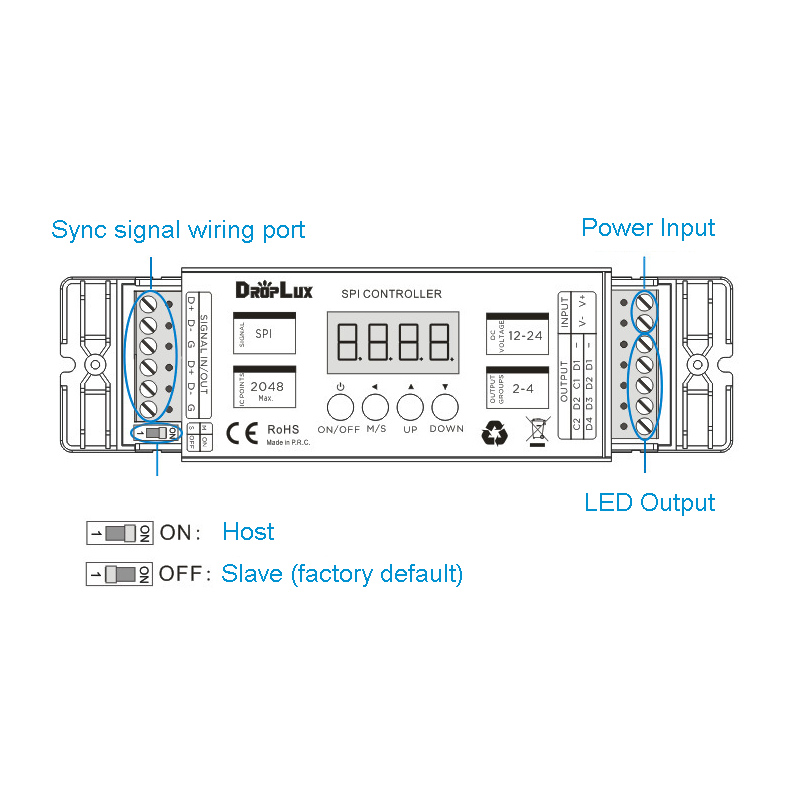

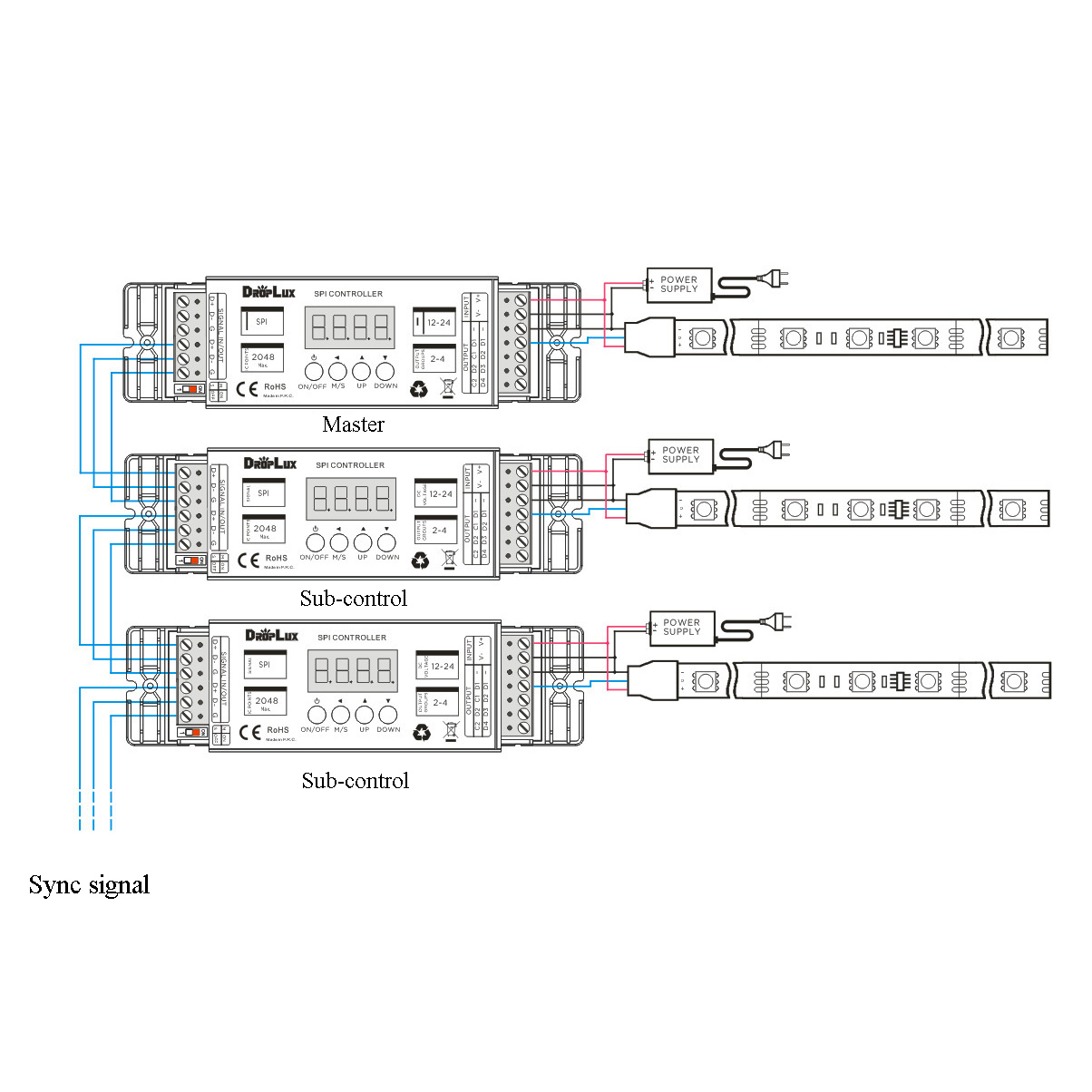

This SPI controller is designed to control addressable led light strips with WS2811/UCS1903/TM1814/SM16704/LPD6803 IC chip, which can realize 136 kinds of changing effects such as horse racing, flowing water, scanning, raindrops, etc. With synchronization function and memory storage function. Mode selection, speed and IC pixel adjustment via led controller buttons or RF remote control. It supports four single-signal pixel led strips or two dual-signal digital led strip lights, which can control up to 2048 pixels.
Standards and Certifications
|Support IC||WS2811, UCS1903, TM1814, SM16704, LPD6803|
|Max Control Pixel||2048|
4*(3-wire single signal digital LED strip)
2*(4-wire dual signal digital LED strip)
|RF Control Distance||≤20m|
►How to Wire Addressable LED Light Strips → Link
