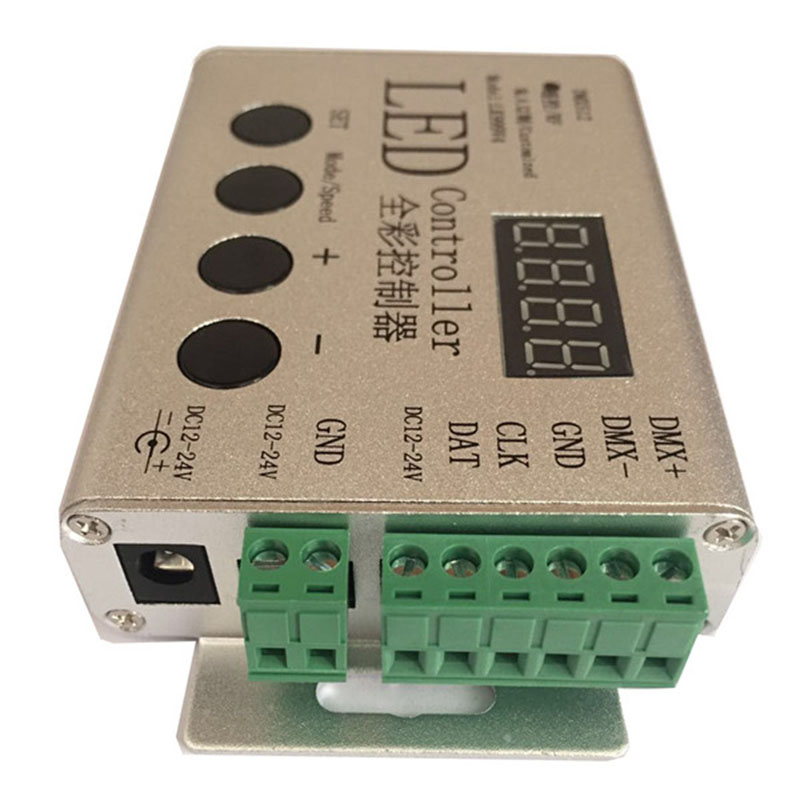

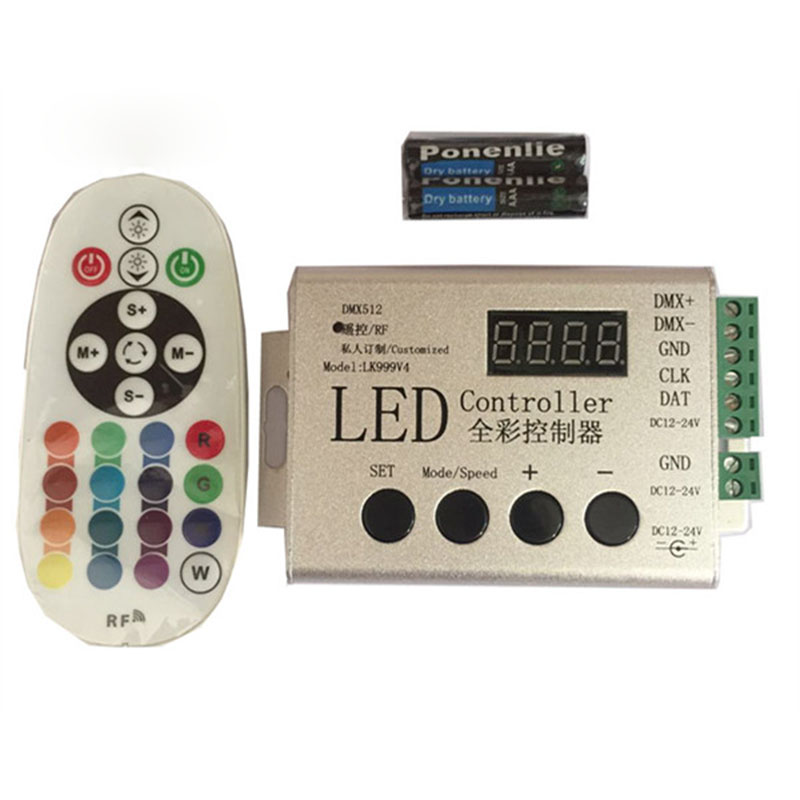

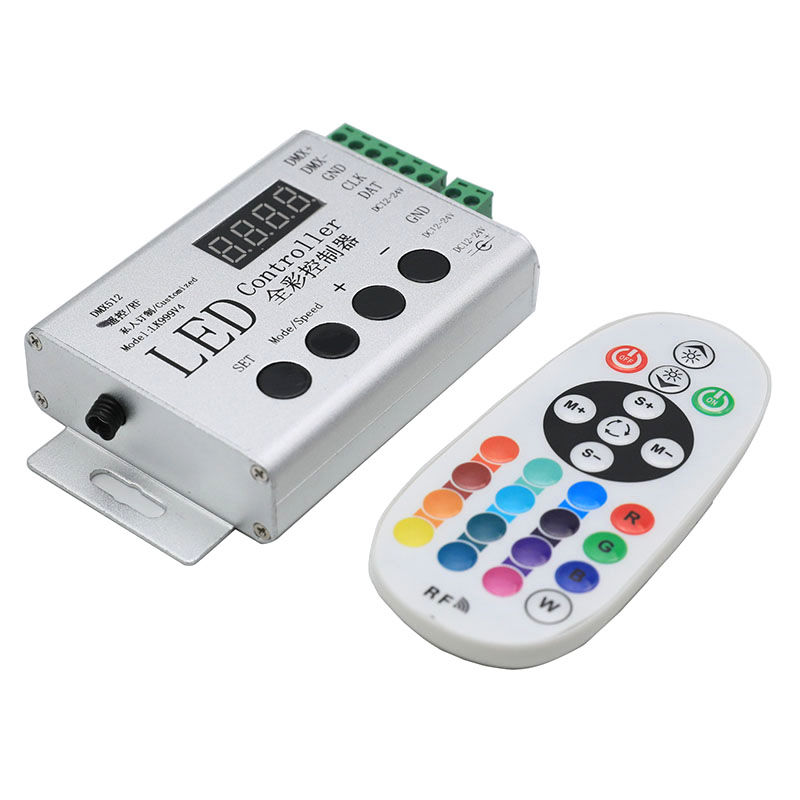

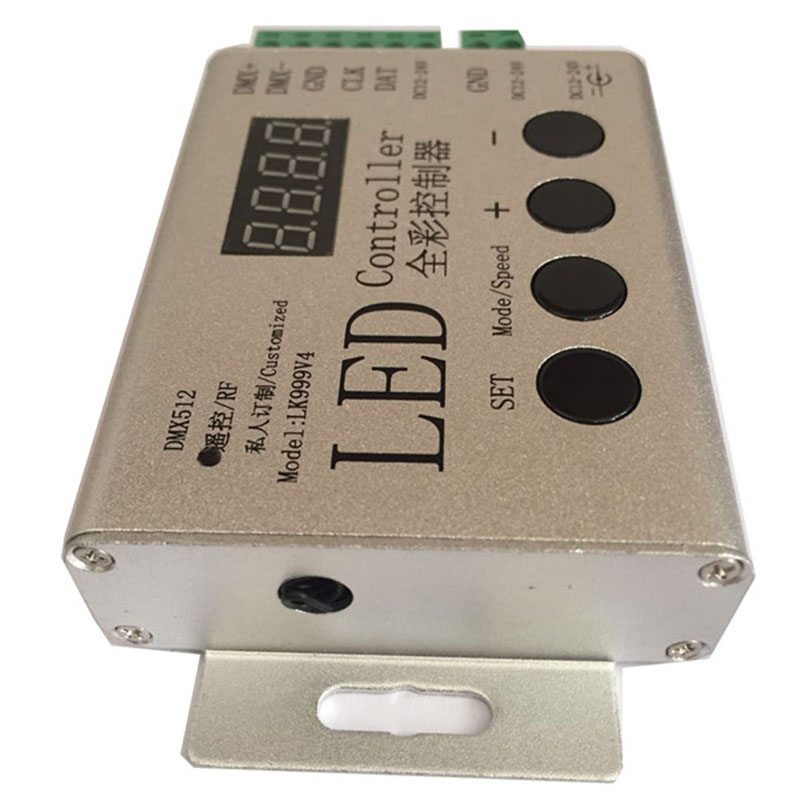

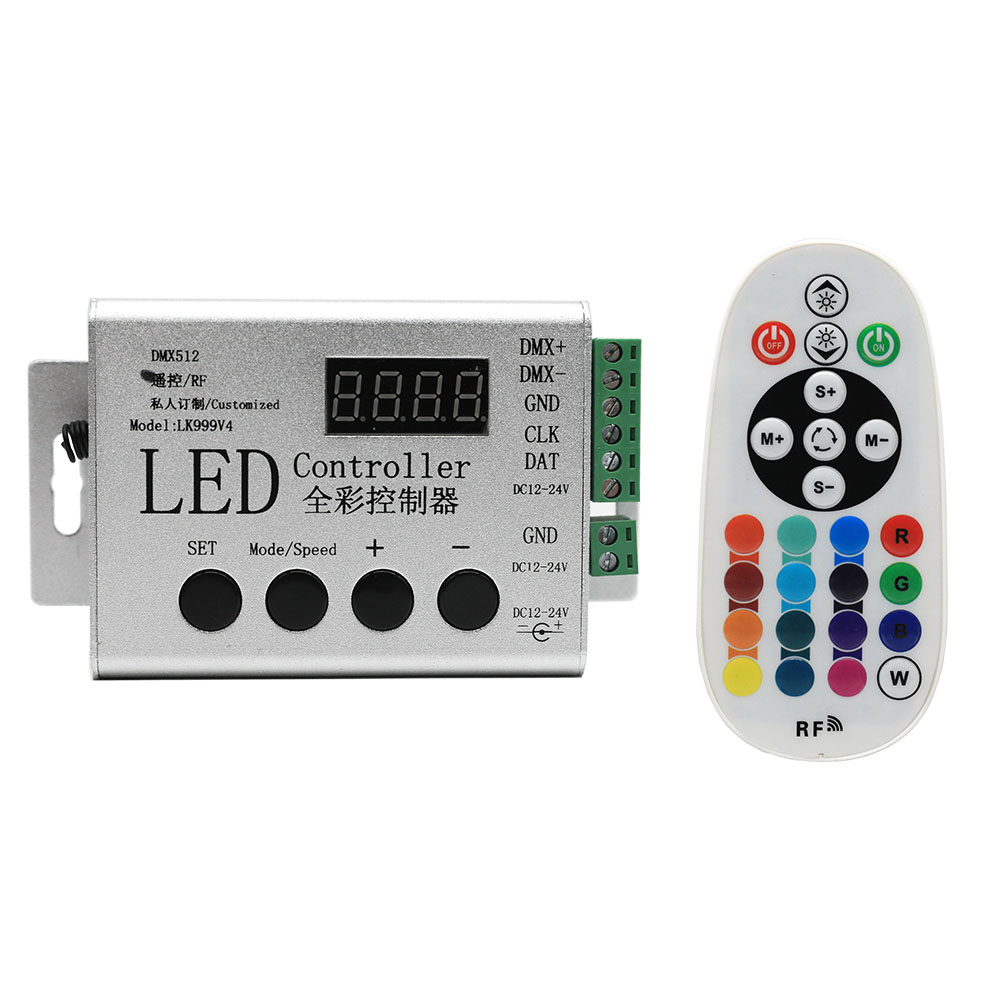

DC12-24V RF Wireless LED Controller For Dream Color Addressable LED Strip Light
The LED controller adopts the SPI bus control signal, which can control various LED driver chip light, flexible addressable led light strips,Exposed led module light points, etc., designed with multiple modes of control, and the controlled LED driver chip can be changed through the button Operating mode, operating speed and other parameter settings, you can choose your favourite model to run, supportWireless remote control to change the display parameters, widely used in lightbox advertising, lighting projects, home decoration, stage scenery, etc.
Note: Before powering on, observe whether the power supply is consistent with the working voltage of the controller, and make sure that there is no short circuit between the connecting wires
1. Menu setting, with power-off memory function.
2. Built-in 253 effects, you can choose your favourite program to run in 253.
3. The number of lights is set, and the maximum can control 999 lights.
4. Driver chip selection, 11 driver types, more than 20 or 30 driver models can be selected.
5. Program cycle time setting.
Standards and Certifications
1. Working Temperature: -20-60℃
2. Supply Voltage: DC12～24V
3. Dimensions: L 121×W 71×H 25 mm
4. Rated Power: <2W
5. Output: can bring 999 light points, a single group of SPI signal (5.08 terminal)
1* led controller
