Mini SPI RF LED Controller With Panel Control For Running Water LED Strip
Check this mini addressable led controller with RF wireless panel control for your low-voltage addressable white led strip lights/running water led strips. With anti-burning protection.

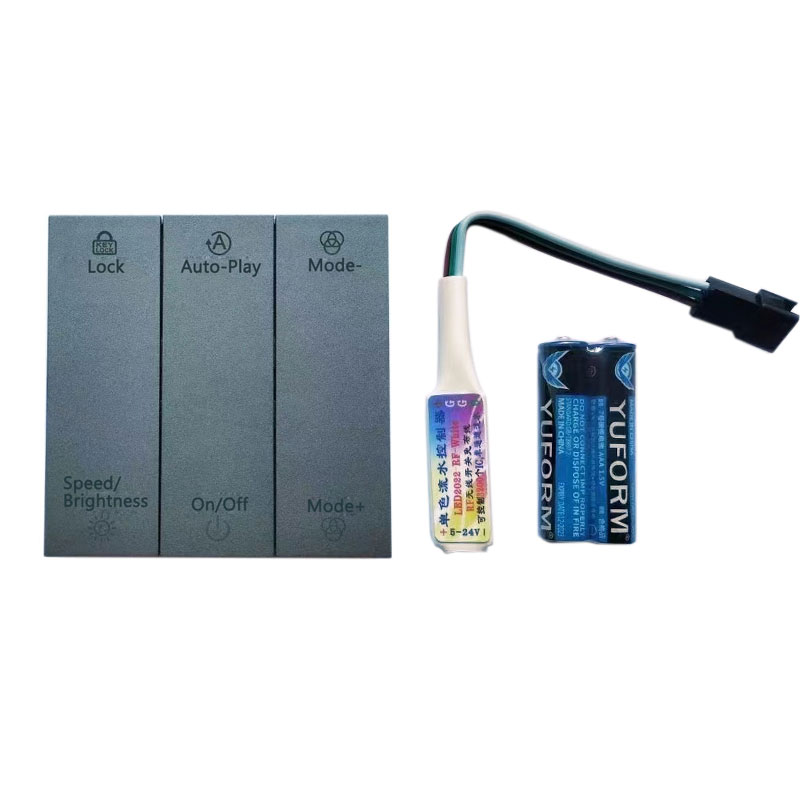

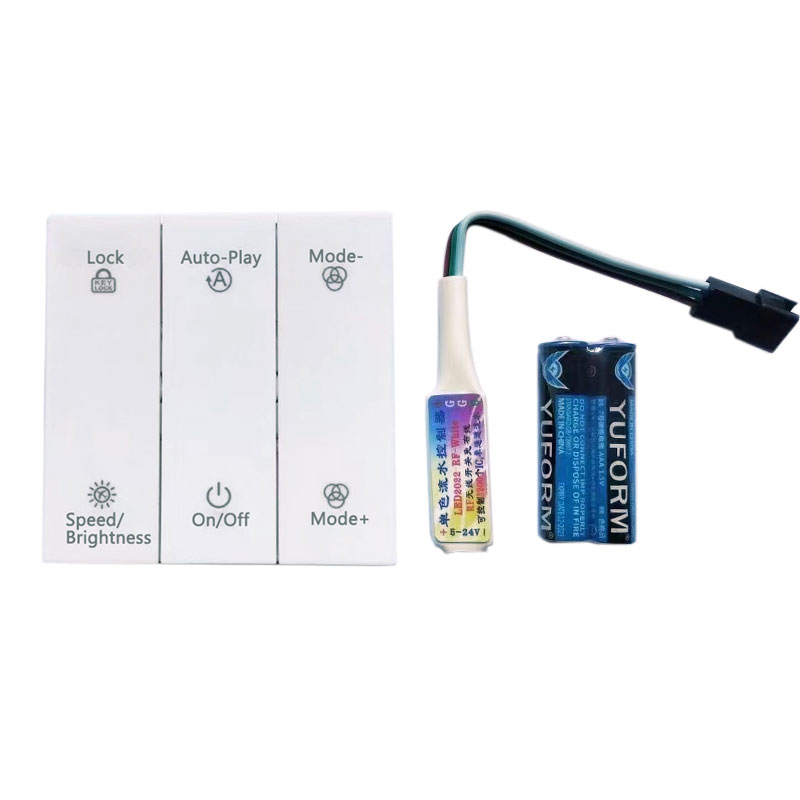

No wires are required between the mini controller and the RF panel, the control panel is powered by two AAA batteries (not included), easy installation.
This mini led controller comes with a 3-pin JST connector at the end to connect 3-pin white light color chasing led strips.
The controller panel is built-in 26 modes, can control 3200 pixels. With key lock function to prevent being messed up.
Press and hold "Lock" for 2 seconds to lock the panel. After locking, only the on/off key can be used, other keys do not work. Press and hold again for two seconds to unlock.
Input Voltage: DC5-24V
Apply to: 3-pin Addressable white led strip
Control Method: Wireless RF control
Control Signal: SPI/TTL
Max Control Distance: 30m
Max Control: 3200 pixels
Color: White / Gold / Gray
