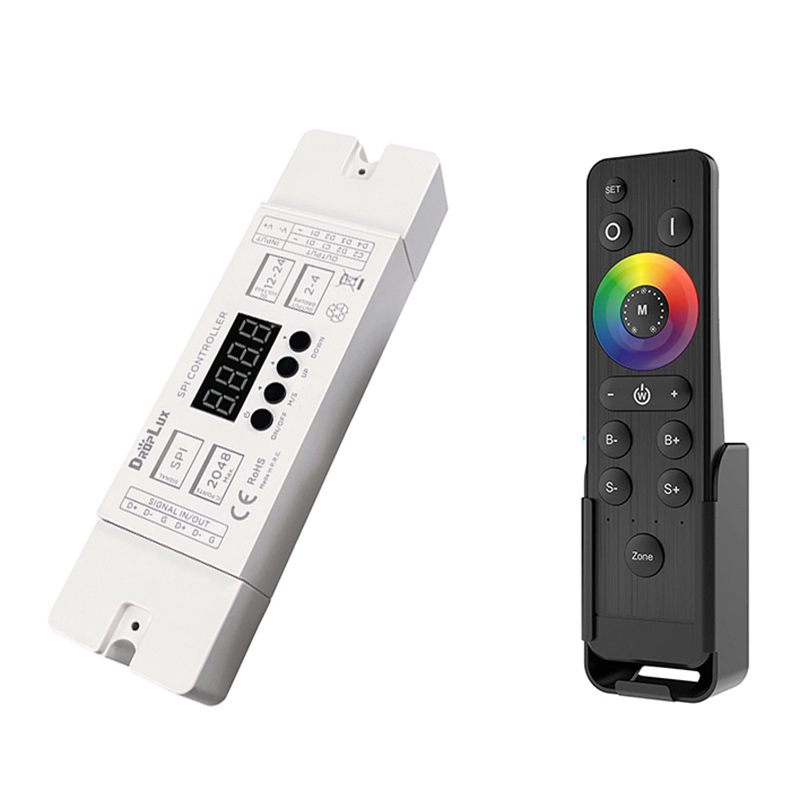

SPI LED Controller With RF Remote For Addressable RGB LED Strip

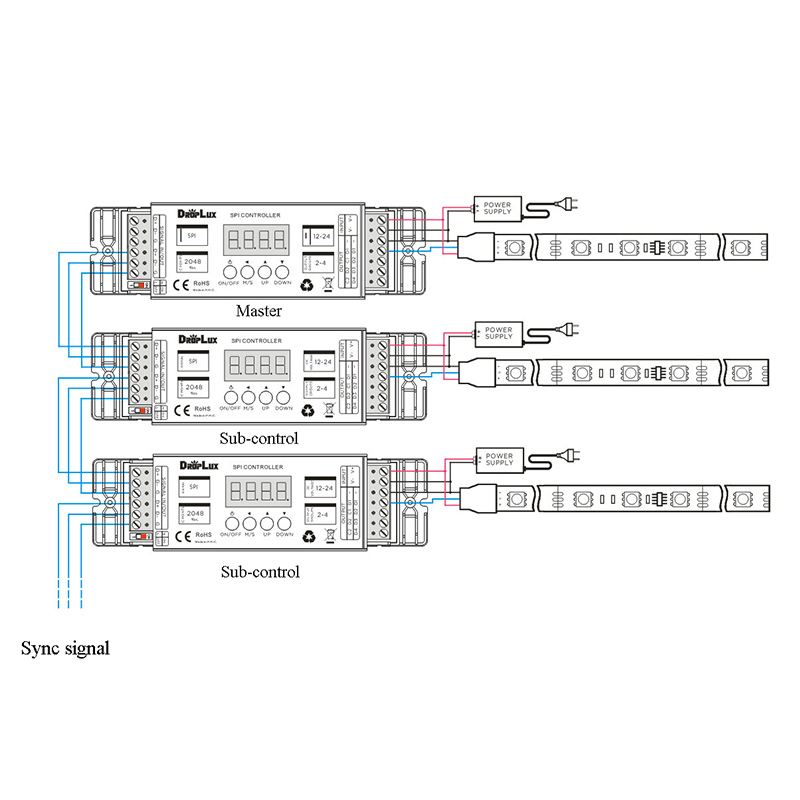

This SPI controller has synchronization function and memory storage function. Through built-in buttons or Wireless 4 group RF remote control, 136 kinds of color changing light effects can be realized on the addressable led strip such as running water, scanning, horse racing, raindrops, etc. The mode, speed and IC points can be adjusted. Compatible with WS2811/UCS1903/TM1814/SM16704/LPD6803 IC chip, it supports four single-signal addressable led strips or two dual-signal addressable led strip lights, which can control up to 2048 pixels. The control signal is stable.
Standards and Certifications
|Support IC||WS2811, UCS1903, TM1814, SM16704, LPD6803|
|Max Control Pixel||2048|
4*(3-wire single signal digital LED strip)
2*(4-wire dual signal digital LED strip)
|RF Control Distance||≤20m|
►How to Wire Addressable LED Light Strips → Link
