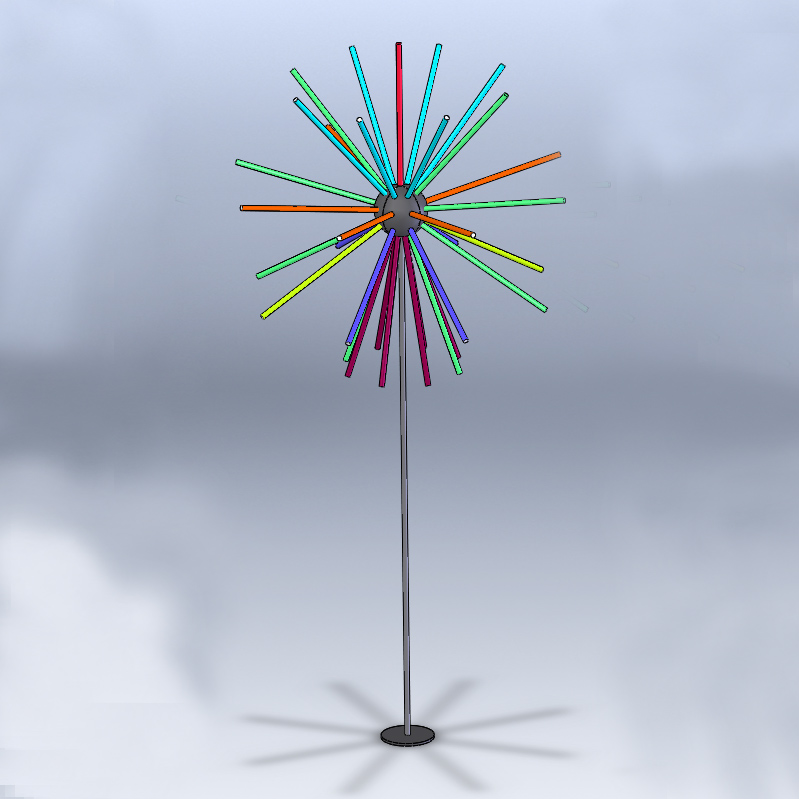

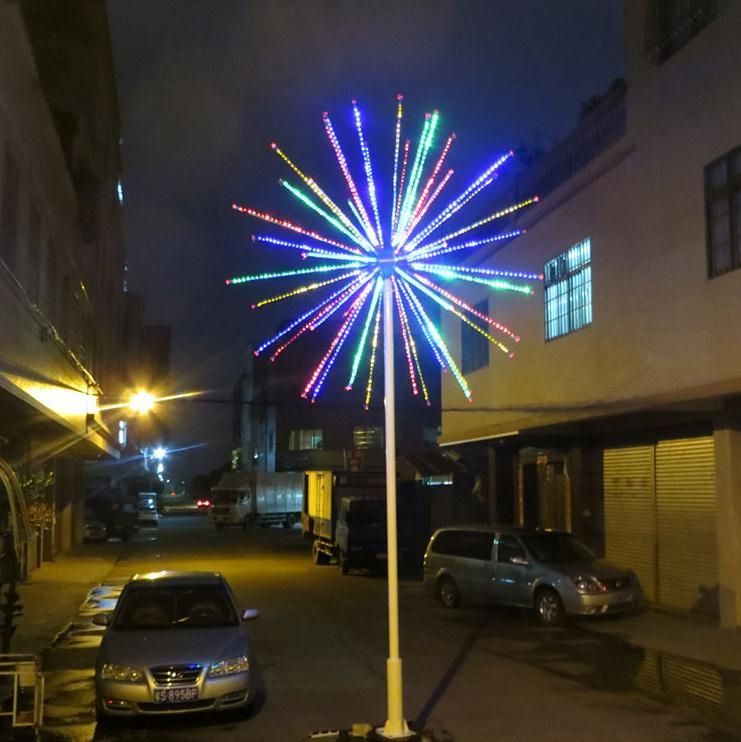

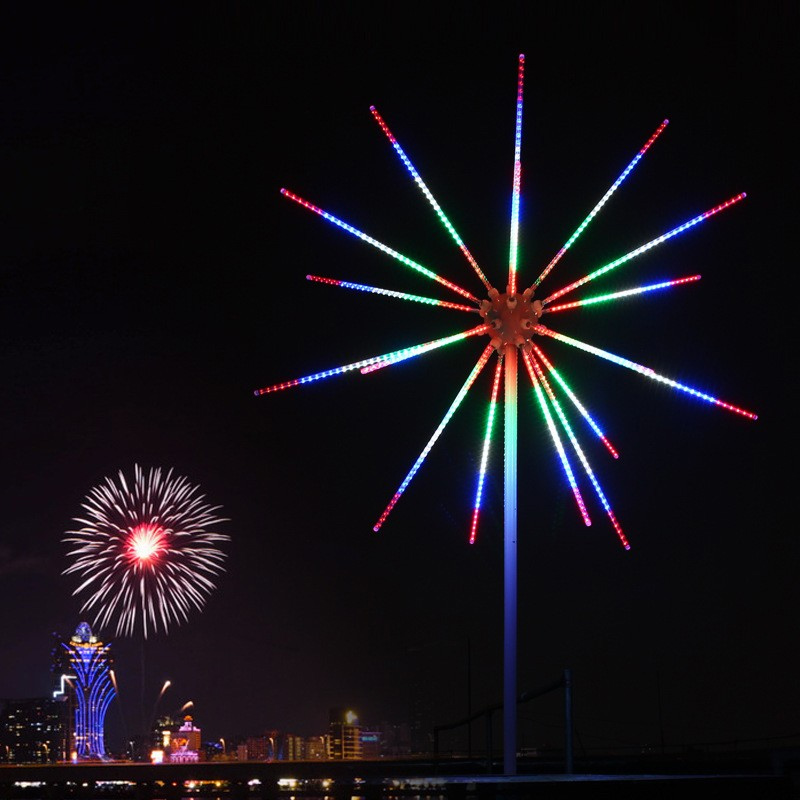

DC12V WS2815 60LEDs/m Waterproof Dream Color Programmable 5050 RGB Flexible LED Firework Light Kit with SP601E LED Controller and SP901E LED Signal Amplifier
This is the latest kit of led firework lights. The light strip is a dual-signal individually addressable LED light strip.The high-quality WS2815 60 light strip we use is used in conjunction with the SP601E controller and SP901E amplifier. The controller controls the light strip and works with the amplifier to produce a firework effect., The controller is a two-channel music controller with a built-in microphone, each channel can control 600IC, and two channels can control 1200IC. With mobile phone APP and 16-key RF remote control.SP901E Dream color amplifier is suitable for all dream color controllers of our company. Each additional dream color amplifier can output 84 sets of dream color signals to achieve the effect of multiple sets of dream color lights with synchronized changes.
Note: we only provide the material of led strip light kit, you need to make firework frames and make the assembly by yourself locally
LED pixel tube light specification:
LED Chip: WS2815 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
LED Quantity: 60 LEDs per 1meter (3.28 ft)
PCB Type：Double-side PCB
Length: 50cm/1.64ft(be default) & 100 cm/3.28ft
Pixel Quantity: 30pixel/pcs(individual addressable)
Input Voltage(V): 12VDC
Working Power: 14.4W/M, 72W/16.4ft Max
Water Proof: IP65
Channel Quantity: 90channels
Protocol Type: SPI
LED controller specification:
Product name: SP601E WIFI LED controller
Input Voltage: DC5V-24V
Can Be Control: DC5V/12V/24V Addressable RGB LED Strips
Support Pixels: 600 pixels/channel max
Support IC: WS2811(WS2812/WS2813/WS2815/WS2818)/WS2801/UCS1903/SM16716/LPD6803/LPD8806/LPD9813 etc
Remote distance: 30meters( 98feet)
Control mode: APP (iOS or Android)
APP name: SceneX
Music Control: Built-in MIC
Effect: more than 36 dynamic effect
Memory: Automatic memory function
Speed Control: adjustable
LED signal amplifier specification:
Working temperature: -20-60℃
Supply voltage: DC5-24V
Static power consumption: <1W
Output: 4 SPI signal channels
Compatible IC type: WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703, WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822,UCS1903, LPD6803, LPD8806, APA102
