Product Information

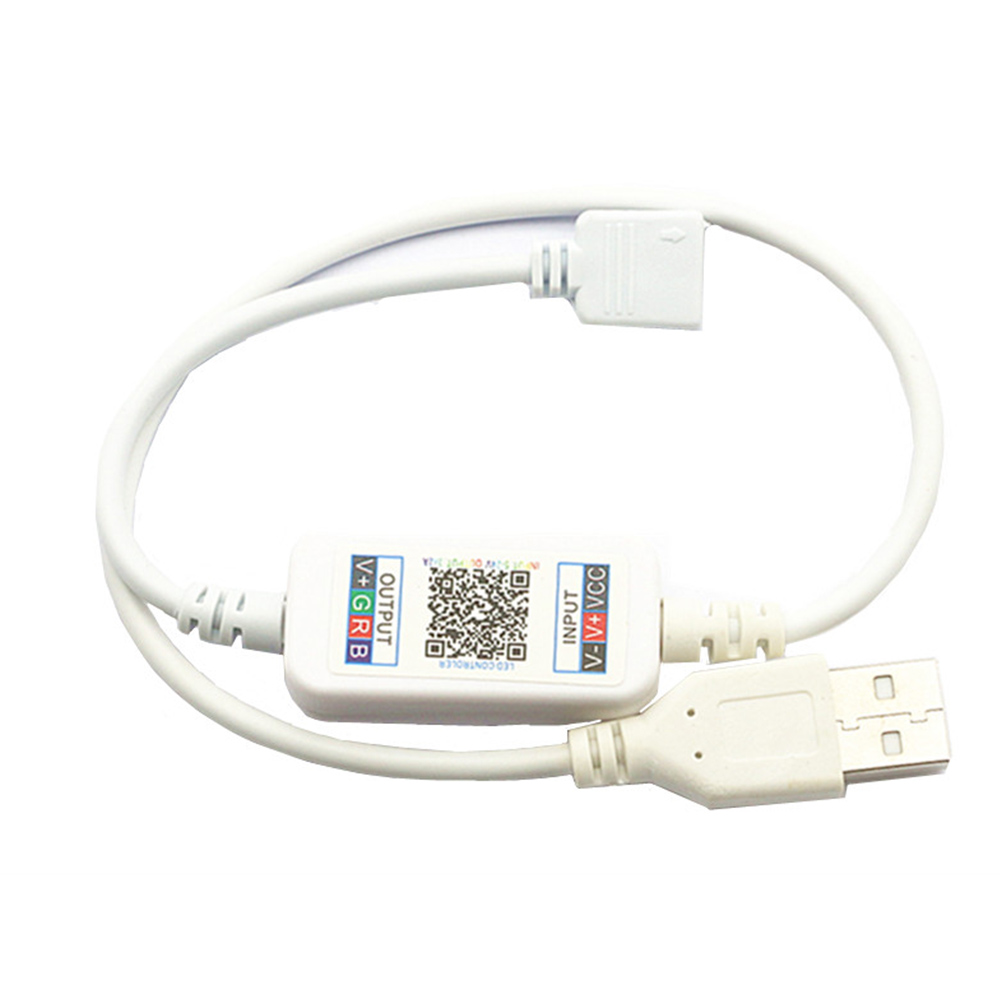

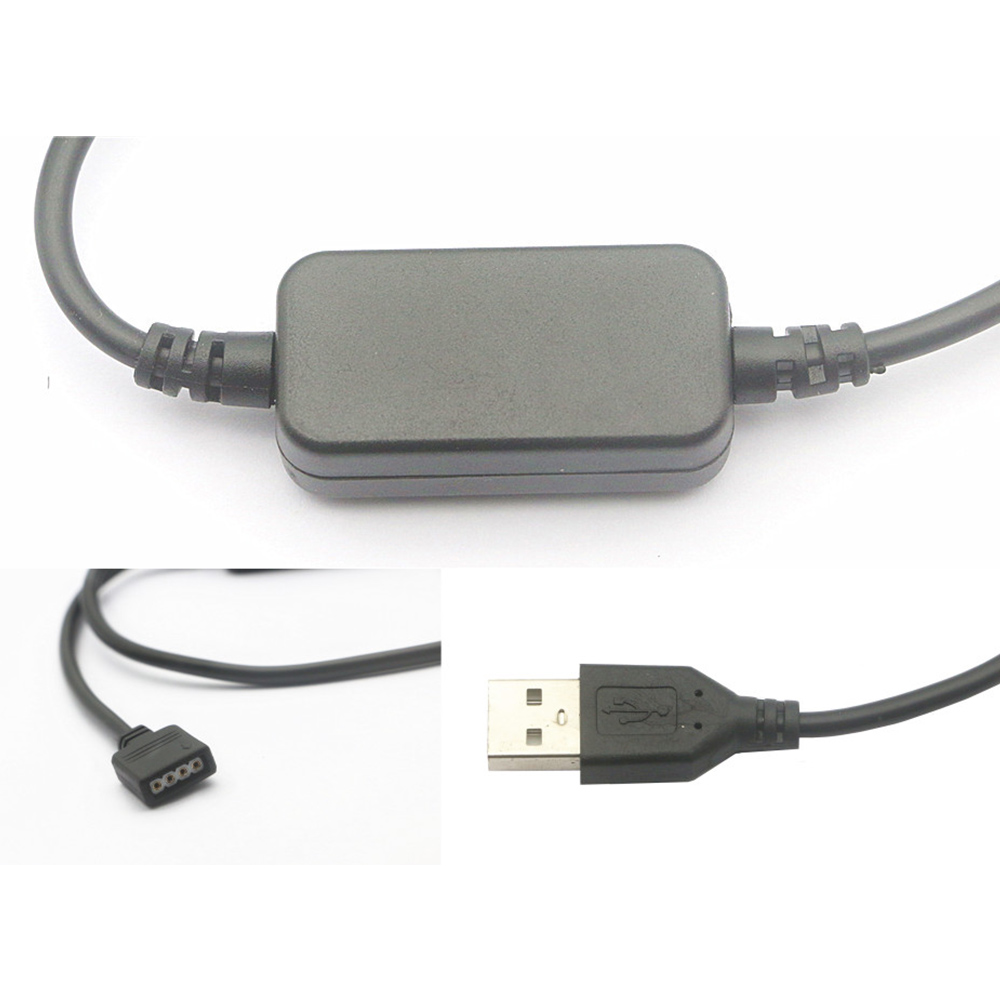

Bring your lighting to life with the CONRGB-MUSIC-06, an ultra-compact USB-powered Bluetooth LED controller designed for dynamic RGB lighting. Its standout feature is the built-in music synchronization, which makes your lights dance to the rhythm of your favorite songs. Powered directly by any standard USB port, this is the ideal bluetooth light controller for creating immersive TV backlighting, vibrant gaming setups, or accent lighting for desks and shelves. Simply connect your 5V to 24V RGB LED strip, pair it with the LEDBLE app on your smartphone, and unlock a world of over 160,000 colors and dozens of lighting effects. Its miniature size ensures it can be easily hidden for a clean, professional installation, offering powerful features in a tiny package.
Key Features of the Mini USB Bluetooth Controller
Dynamic Music Synchronization
Lights react in real-time to the rhythm and beat of music played from your smartphone for an immersive audio-visual experience.
Convenient USB Power
Plugs directly into any standard USB-A port on TVs, computers, power banks, or wall adapters, eliminating the need for a separate power supply.
Full Smartphone App Control
Manage colors, brightness, dynamic modes, and music settings from up to 15 meters away using the 'LEDBLE' app for iOS and Android.
Ultra-Compact & Discreet
Measuring only 43x21x10mm, this tiny controller can be easily concealed behind TVs, monitors, or inside cabinets for a seamless look.
Broad Voltage Compatibility
Supports a wide input voltage range from DC 5V to 24V, making it compatible with a vast array of standard 4-pin RGB LED strips.
Customizable Appearance
Available with either a sleek black or a clean white shell to best match your installation environment and preferences.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | CONRGB-MUSIC-06 |
| Input Voltage | DC 5-24V (via USB-A) |
| Output Signal | RGB (3 Channels) |
| Maximum Load Current | <6A (Total) |
| Control Method | Bluetooth 4.0 or higher |
| Control App Name | LEDBLE |
| Supported OS | Android 4.3 and above / iOS 6.0 and above |
| Control Distance | 8-15 meters (indoor) |
| Static Power Consumption | <1W |
| Working Temperature | -20°C to 60°C |
| Controller Dimensions | 43 x 21 x 10 mm (L x W x H) |
| Input Cable Length | 30 cm |
| Output Wire Length | 30 cm (4-pin female) |
| Available Shell Colors | White, Black |
Ideal Applications for Music Sync Lighting
How to Control & Use This Controller
- Connect the USB input plug to a suitable power source, such as a TV's USB port, a computer, or a 5V USB wall adapter.
- Connect the 4-pin female output connector to your 4-pin male RGB LED strip. Ensure the arrow on the plug aligns with the '+V' marking on the strip.
- Download the 'LEDBLE' application from the Google Play Store or Apple App Store on your smartphone.
- Enable Bluetooth on your phone. Open the LEDBLE app and it will automatically scan for and connect to the controller.
- Once connected, use the app's interface to select from 160,000 static colors, choose dynamic modes, adjust brightness, or activate the music rhythm function.
- Ensure the voltage of your LED strip (e.g., 5V, 12V, or 24V) matches the voltage of your power source. While the controller is versatile, the strip and power supply must match.
- The total power consumption of the connected LED strip should not exceed the controller's maximum load of 6A.
- This controller is designed for indoor use and is not waterproof. Keep it away from moisture.
- The Bluetooth control range is typically 8-15 meters and may be affected by obstacles like walls.
What's in the Box
- ✓1 x CONRGB-MUSIC-06 Mini USB Bluetooth Music Controller
Frequently Asked Questions
Q: How do I connect my music to my LED lights with this controller?
A:Simply play music on your phone after connecting to the controller via the 'LEDBLE' app. In the app's music mode, the controller will listen to the audio from your phone's microphone or internal audio and sync the lights automatically.
Q: Can I power this controller directly from my TV's USB port?
A:Yes, this is one of its main features. The USB input is designed to work perfectly with the 5V USB ports found on most modern televisions, computers, and gaming consoles.
Q: What app do I need to download for this Bluetooth controller?
A:You will need to download the 'LEDBLE' app, which is available for free on both the iOS App Store and the Android Google Play Store.
Q: Will this work with any RGB LED strip lights?
A:This controller is compatible with most standard 4-pin constant voltage RGB LED strips, such as the popular 5050 and 3528 models, that operate between DC 5V and 24V.
Q: Do I need a Wi-Fi connection for this to work?
A:No, this is a Bluetooth-only controller. It creates a direct connection with your smartphone and does not require a Wi-Fi network to function.
Q: What is the maximum length of LED strip I can control?
A:The maximum length depends on the strip's power consumption. The controller supports a total load of up to 6A. For example, you can control up to 5 meters of a typical 12V 5050 60 LEDs/m strip.
