Product Information
Deliver robust, reliable power to your most demanding lighting projects with the Meanwell LRS-600-5 AC/DC switching power supply. As a global leader in power solutions, Meanwell designed the LRS series for high performance and long-term stability. This model converts standard 110V or 220V AC household power into a clean, stable 5V DC output, capable of delivering a massive 500 watts (100 amps). It's the ideal power supply for large-scale installations of 5V addressable LED strip lights, commercial LED signage, and industrial control systems that require significant, dependable current. With its enclosed metal housing, intelligent fan cooling, and a full suite of safety certifications, the LRS-600-5 is the professional's choice for projects where power failure is not an option.
Key Features
High-Capacity 500W Output
Provides a massive 100A current at 5V DC, perfect for powering thousands of LEDs or other high-load electronics.
Genuine Meanwell Reliability
UL Listed and built to rigorous standards, ensuring safe, stable, and long-lasting performance for critical applications.
Switch-Selectable AC Input
Easily switch between 110V (90-132VAC) and 220V (180-264VAC) ranges for versatile use in North America, Europe, and beyond.
Intelligent Fan Cooling
Features a built-in DC fan with automatic on/off control that activates only when needed to maintain optimal operating temperature and reduce noise.
Comprehensive Safety Protections
Equipped with safeguards against short circuits, overload, over-voltage, and over-temperature to protect both the power supply and your connected devices.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | LRS-600-5 |
| Brand | Meanwell |
| Output Voltage | 5V DC |
| Rated Current | 100A |
| Rated Power | 500W |
| Input Voltage Range | 90~132VAC / 180~264VAC (Selectable by switch) |
| Input Frequency Range | 47 ~ 63Hz |
| Efficiency (Typ.) | 86.5% |
| AC Current (Typ.) | 10A/115VAC, 5A/230VAC |
| Protections | Overload, Over Voltage, Over Temperature, Short Circuit |
| Working Temperature | -20 ~ +65°C |
| Cooling | Built-in DC fan with ON-OFF control |
| Safety Standards | UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved |
| Dimensions (L*W*H) | 225 * 124 * 41mm |
| Weight | 1.07Kg |
Application Scenarios
How to Wire & Install This Power Supply

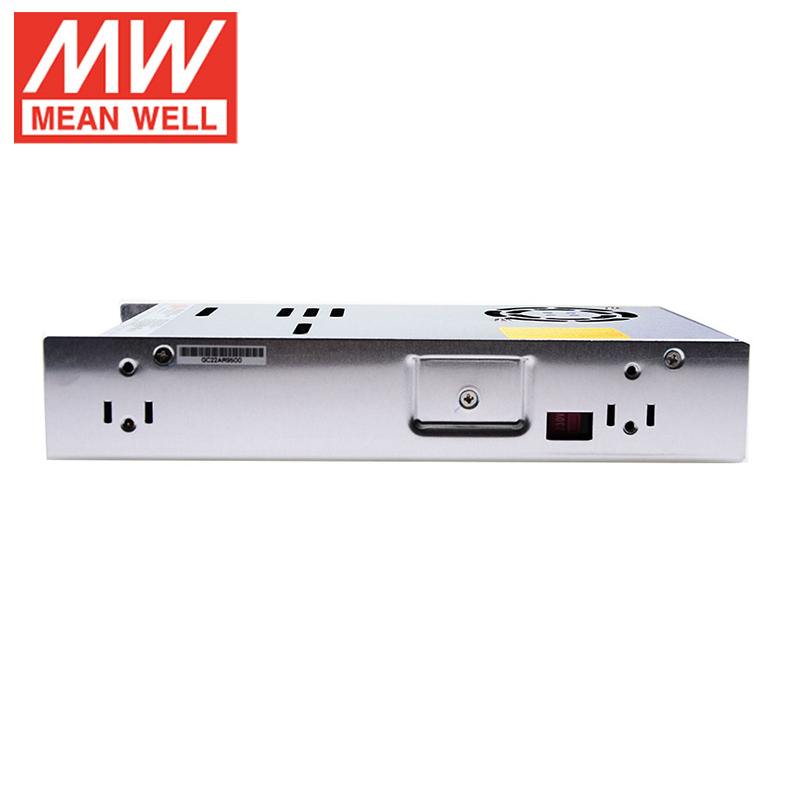

- Step 1: Set Input Voltage - Before connecting, locate the switch on the side of the unit. Set it to '115' for North American 110-120V mains or '230' for European/Australian 220-240V mains.
- Step 2: Calculate Your Load - To ensure longevity, your total connected load should not exceed 85% of the power supply's capacity (425W). Refer to our guide on how to calculate power for LED strip lights.
- Step 3: Wire AC Input - Securely connect your AC power source to the screw terminals. Connect the Live wire to (L), Neutral wire to (N), and the Earth/Ground wire to the (FG) terminal.
- Step 4: Wire DC Output - Connect the wires from your 5V LED lights or device to the DC output terminals. Ensure the positive wire goes to a V+ terminal and the negative wire goes to a V- terminal. Double-check polarity.
- Step 5: Test System - Once all connections are secure, apply AC power. The power supply's fan may spin briefly on startup. Verify that your DC5V LED strip lights or device powers on correctly.
- Installation should be performed by a qualified electrician in accordance with local regulations.
- Ensure adequate ventilation around the power supply to allow for proper heat dissipation. Do not operate in a fully enclosed, unventilated space.
- Incorrect input voltage selection can permanently damage the unit.
- Reversing DC output polarity can permanently damage your LED lights.
What's in the Box
- ✓1 x Meanwell LRS-600-5 5V 500W Switching Power Supply
- ✓1 x AC Power Plug (Only if 'Power Supply+AC Plug' option is selected)
Frequently Asked Questions
Q: What is the actual continuous power output of the LRS-600-5?
A:The LRS-600-5 model provides a stable 5V DC output with a maximum rated power of 500 Watts and a maximum current of 100 Amps.
Q: Is the cooling fan on all the time?
A:No, this unit features an intelligent cooling system. The built-in fan has an automatic ON/OFF control and will only activate when the internal temperature reaches a certain threshold, saving energy and reducing noise.
Q: Can I use this power supply in both the USA and the UK?
A:Yes, absolutely. It features a physical switch that allows you to select between the 110V AC range (for the US, Canada) and the 220V AC range (for the UK, EU, Australia).
Q: How many 5V WS2812B LEDs can this power supply run?
A:A typical WS2812B LED uses about 0.3W at full brightness. At a safe 80% load (400W), this power supply can reliably run approximately 1,333 LEDs. For detailed calculations, check our guide on How To Choose LED Strip Light Power Supply?.
Q: Does this power supply have an on/off switch?
A:The LRS-600-5 itself does not have an integrated power switch. It is controlled by the main AC circuit it's connected to. You can easily add your own switch or relay on the AC input line.
Q: What does being a 'switching' power supply mean?
A:A switching power supply is a modern, efficient design that converts AC to DC power with minimal heat loss compared to older linear transformers. This results in a smaller, lighter, and more energy-efficient unit.
