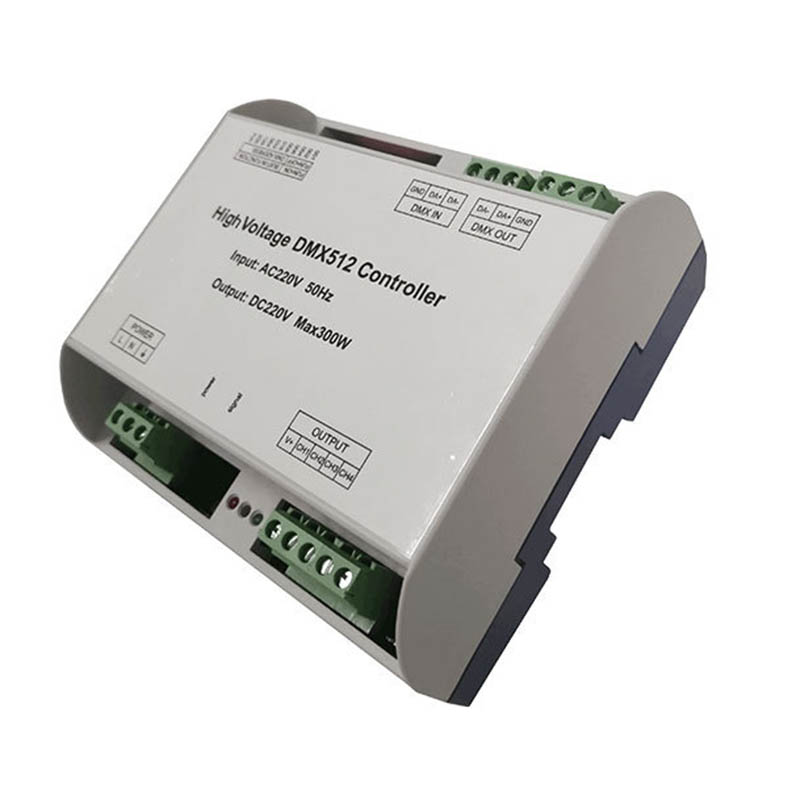

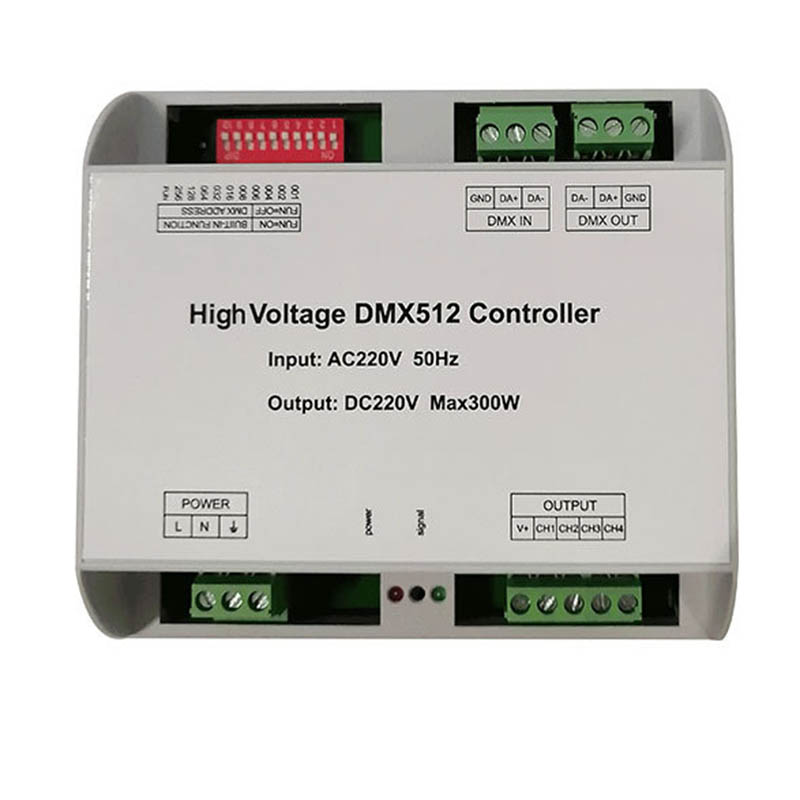

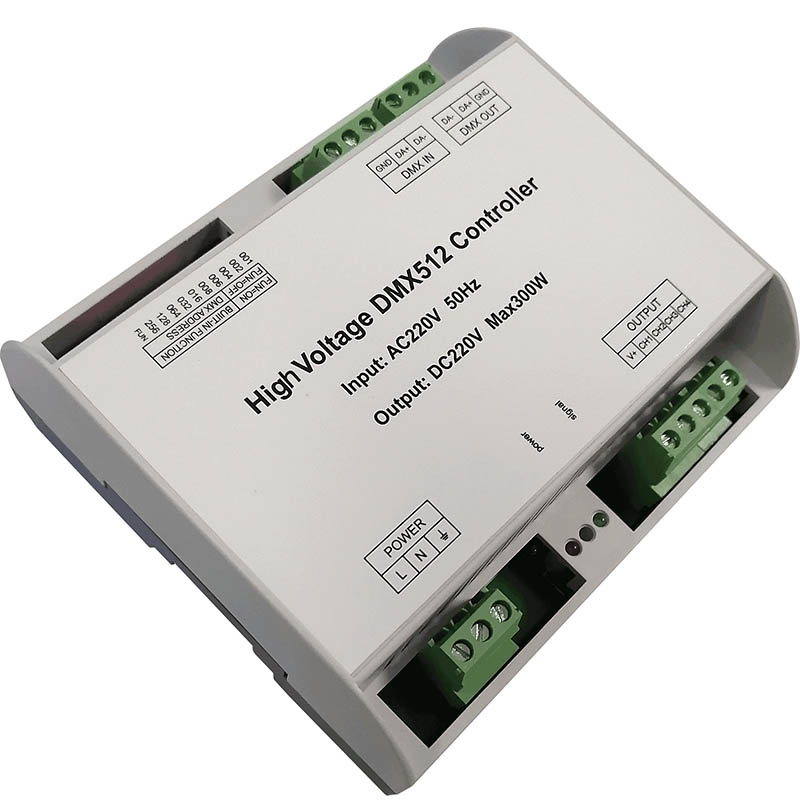

HVDMX1807 DC220V 4 Channels High Voltage, DMX512 Controller

Model: HVDMX1807
HVDMX1807 DC220V 4 Channels High Voltage, DMX512 Controller
  • HVDMX1807 DC220V 4 Channels High Voltage, DMX512 Controller
  • HVDMX1807 DC220V 4 Channels High Voltage, DMX512 Controller
  • HVDMX1807 DC220V 4 Channels High Voltage, DMX512 Controller
  • HVDMX1807 DC220V 4 Channels High Voltage, DMX512 Controller
  • HVDMX1807 DC220V 4 Channels High Voltage, DMX512 Controller

$35.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-19
$35.98
20-49
$34.18
50-99
$33.46
100+
$32.38
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    The DMX universal controller uses an advanced computer control chip to receive the DMX-512 standard digital control signal widely used in the world and convert it into a PWM control signal to drive the LED; it can be connected to the DMX digital console to achieve dimming or various program changes.

    Standards and Certifications





    Technical Parameters

    Working Temperature: -20-60℃

    Power Input: AC200~265V

    Output: DC220V 1.3A Pmax=300W

    Connection Method: Common anode

    Dimensions: L124*W111*H56 mm

    Packing Size: L135*W135*H60 mm

    Net Weight: 286.7g

    Gross Weight: 400g

    Output Current: <1.3A (4 channels total current)

    Output Power: 300W, with short circuit protection

    Controller Output Frequency: 980HZ



    Specifications Download

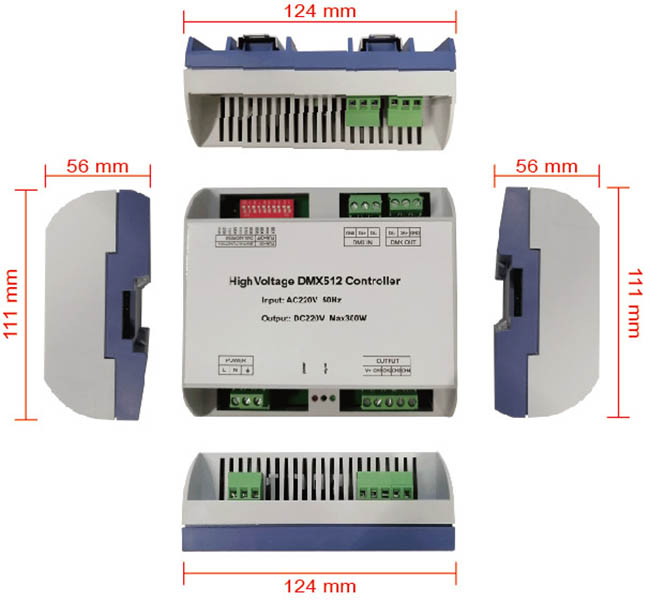

    Dimension



    Interface description

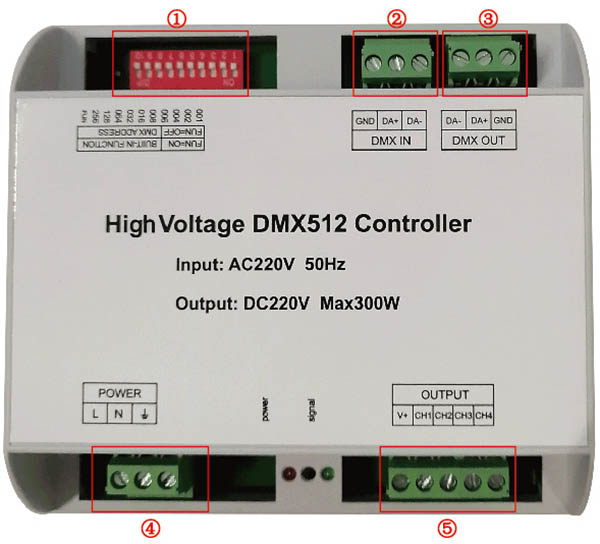

    ①: address code and function setting; ②, ③: DMX input and output interface; ④: power interface; ⑤: load interface

    Instructions for use

    DMX address code setting

    Each DMX universal controller occupies 4 DMX addresses. The address is set by a coding switch. The 1-9 bits of the coding switch is binary numeric coding switches that set the DMX start address code. The first bit is the lowest bid and the 9th bit is the highest bit. , A total of 511 address codes can be set. DMX start address code = the sum of the bit values of the coding switch 1-9 bits, dial the coding switch backwards (ON is set to 1), the bit value can be obtained; dial the coding switch forward (set to 0), then the bit Has a bit value of 0.

    Code switch FUN (10) = OFF (set to 0) can accept DMX signal function

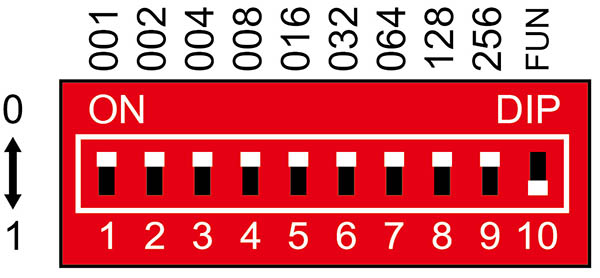

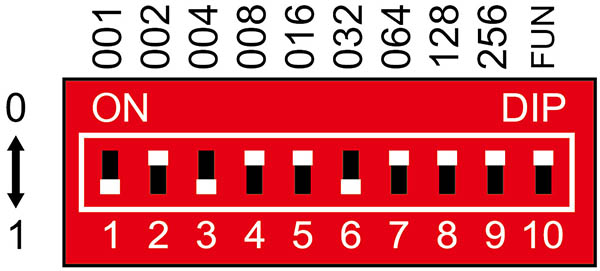

      Example 1: As shown in Figure 1, set the DMX to start address code to 37, and set the 6th, 3rd, and 1st positions of the coding switch to 1, and the remaining positions to 0. At this time, the total value of the 1-9 bits of the coding switch is 32 +4+1 is the DMX512 start address code 37.



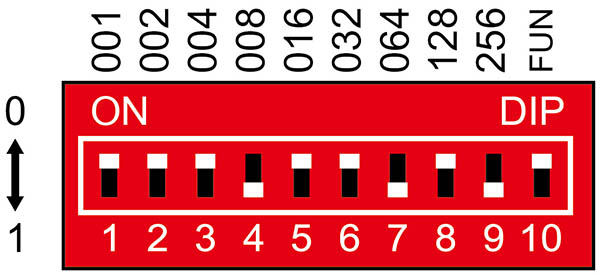

    Example 2: As shown in Figure 2, the DMX start address code is set to 328, then 9th, 7th, and 4th positions of the coding switch are set to 1, and the remaining positions are 0. At this time, the total value of the 1-9 bits of the coding switch is 256+64+8 is the DMX start address code 328.



    Instructions for other functions

    Test function:

    The 10th digit of the DIP switch is FUN, which is a built-in function key. When FUN=OFF, it is the DMX decoder function and accepts DMX signals.

    The test function when FUN=ON is shown in the figure:

    1-9 switch OFF: black

    Switch 1=ON: CH1 is on

    Switch 2=ON: CH2 is on

    Switch 3=ON: CH3 is on

    Switch 4=ON: CH4 is on

    Switch 5 = ON: all 4 channels are on

    Switch 6=ON: 4-channel average strobe (6-speed selection)

    Switch 7 = ON: four-colour jump back and forth (6-speed selection)

    Switch 8=ON: four-way back-and-forth increasing and decreasing jump (6-speed selection)

    Switch 9=ON: Four-color gradient (6-speed selection)



    Dynamic effect speed selection

    When testing the function, switch 6=ON is a 4-channel average strobe effect, switch 7=ON is a four-colour back and forth transition effect, switch 8=ON is a four-way back and forth increasing and decreasing transition effect, switch 9=ON is a four Color gradient effect, each effect has 6-speed options:

    1-5 switch = OFF: 0 speed

    Switch 1 = ON: 1 speed

    Switch 2=ON: 2nd speed

    Switch 3 = ON: 3 speeds

    Switch 4=ON: 4 speeds

    Switch 5=ON: 5 speeds (fastest speed)

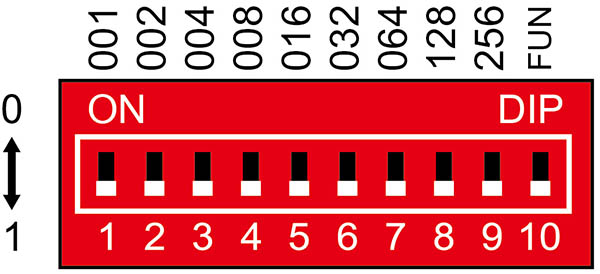

    When multiple switches are ON at the same time, the switch with the larger value shall prevail. As shown in Fig. 4, when all DIP switches = ON, the decoder speed at this time: the mode speed is 5 gears.

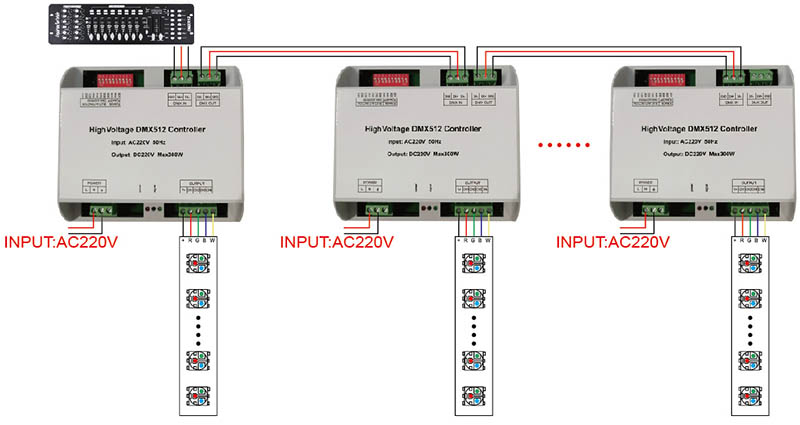

    Typical application



    HVDMX1807 DC220V 4 Channels High Voltage, DMX512 Controller

    HVDMX1807 DC220V 4 Channels High Voltage, DMX512 ControllerHVDMX1807 DC220V 4 Channels High Voltage, DMX512 ControllerHVDMX1807 DC220V 4 Channels High Voltage, DMX512 ControllerHVDMX1807 DC220V 4 Channels High Voltage, DMX512 ControllerHVDMX1807 DC220V 4 Channels High Voltage, DMX512 Controller
