LN-DMXCONY 6 Channel DMX512 Integrated Main Control Dimming Controller
Related Products
LN-DMXCONY 6 Channel...
$79.9812V WS2801 Addressable...
$34.98DC12V WS2811 Waterproof...
$18.99DC12V/24V 50mm 6leds...
$54.98-
Special Price: $79.98

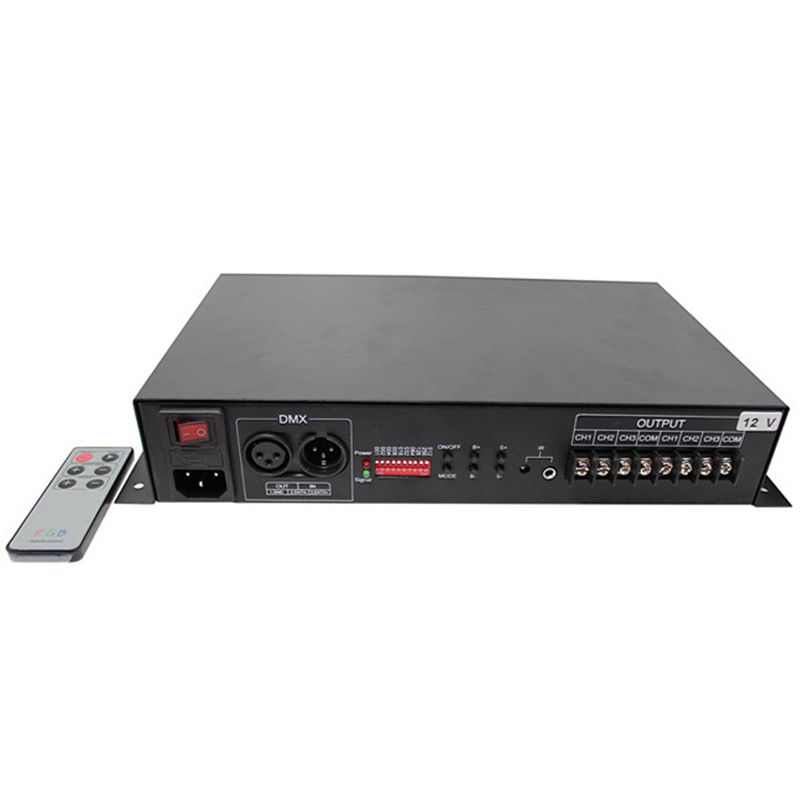

DMX512 integrated controller uses an advanced computer control chip to control various lamps with LED as light sources, such as point light source, soft light bar, wall washer, glass curtain wall lamp, etc.; has the advantages of convenient wiring and simple use; The actual needs of customers can achieve light changes such as jumps and gradients.
Standards and Certifications
Technical Parameters
Working Temperature: -20-60℃
Input Voltage: AC90~230V
Output Voltage: DC5V, 12V, 24V optional (specify the required voltage when ordering)
Output: 6 Channel
Connection Method: Common anode
Dimensions: L340ΧW180ΧH60mm
Packing Size: L360ΧW230ΧH90mm
Net Weight: 2.5Kg
Gross Weight: 3.1Kg
Static Power Consumption: <1W
Output Current: <4A (each circuit)
Output Power: <300W

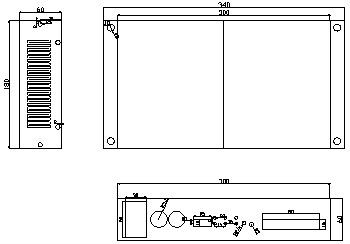

Dimensions
Interface description
Power input interface:
Use 220V socket as power interface
DMX signal interface:
Use three-core card dragon seat as DMX signal interface
Infrared input interface:
Use 3Pin microphone connector as an infrared input interface
Load output interface:
Use screw terminal as load output interface
Direction of Use
1. Connect the signal wire at first, following by the load wire,the last is power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. There are six buttons on the panel of controller in all, every button function as follows:
ON / OFF: The switch button, you could turn on or off the output of controller at any time;
MODE: mode button, every pressing, the light color changes one time;
B +: to enhance the overall brightness.
B -: to lower the overall brightness.
S +: to increase the rate of change.
S -: to reduce the rate of change.
3. Infrared remote control, a total of 6 buttons,their functions are as the same as functions of the panel, remote control and the button of panel can be used at the same time; Upon receiving the signal, the Signal light of panel will flashing, infrared receiver adopt the Plug-way, there is a infrared receiver plughole on panel.
4. the standard mode change is as the following form
No |
Modes |
Remarks |
No |
Modes |
Remarks |
1 |
Static red |
Brightness is adjustbale,speed is unadjustable |
7 |
Static white |
Brightness is adjustbale,speed is unadjustable |
2 |
Static blue |
8 |
Three-color jumpy changing |
Brightness and speed are adjustable |
|
3 |
Static purple |
9 |
Seven-color jumpy changing |
||
4 |
Static green |
10 |
Three-color gradual changing |
Speed is adjustbale,brightbess is unadjustable |
|
5 |
Static yellow |
11 |
Seven-color gradual changing |
||
6 |
Static cyan |
|
|
For example: The address of the code is 1, CH1 control the red (R), CH2 control the green (G), CH3 control the blue (B), DMX channel value (from 0 to 255) greater the output load,the greater DMX channel’s value(from 0 to 255) is, the higher brightness is, it can achieve 256 gray scale Arbitrary modulation for light mixing.
When the integration controller break away from the DMX control console, also return to their original state, panel buttons and infrared remote controller can be used again.
DMX address code of the factory default is "1", address can be setted by DMX address code editor of our company,you need an additional purchase for DMX address code editor if you required.
Typical Applications
typical application 1(without DMX function):

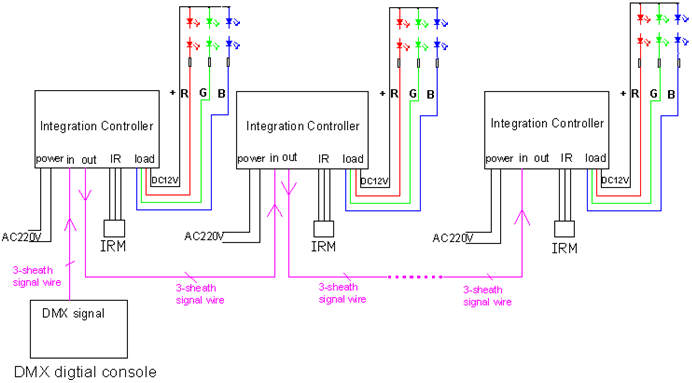

Typical 2 (with DMX function):
