Product Information

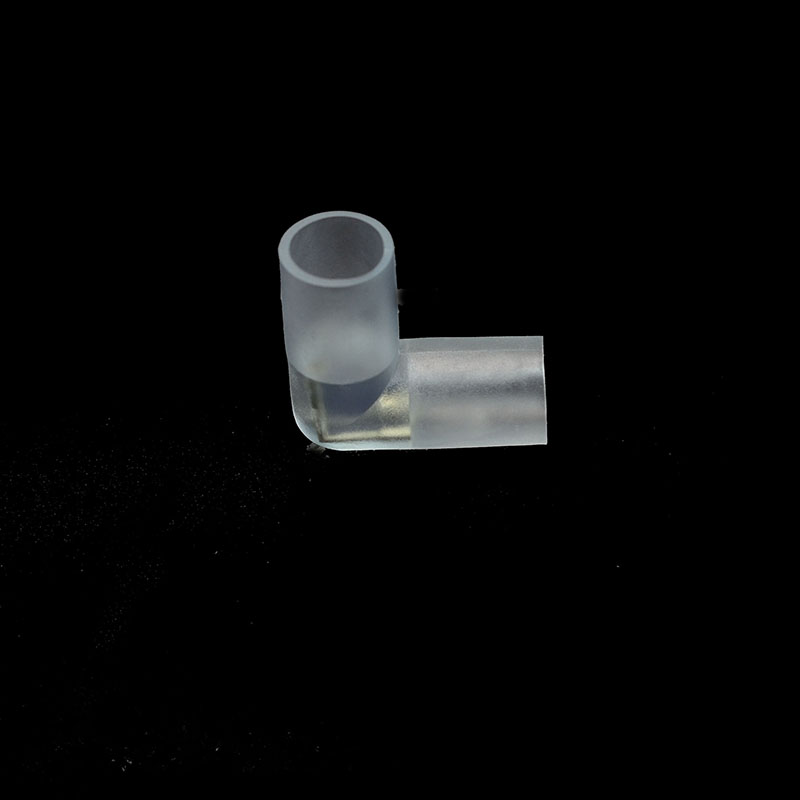

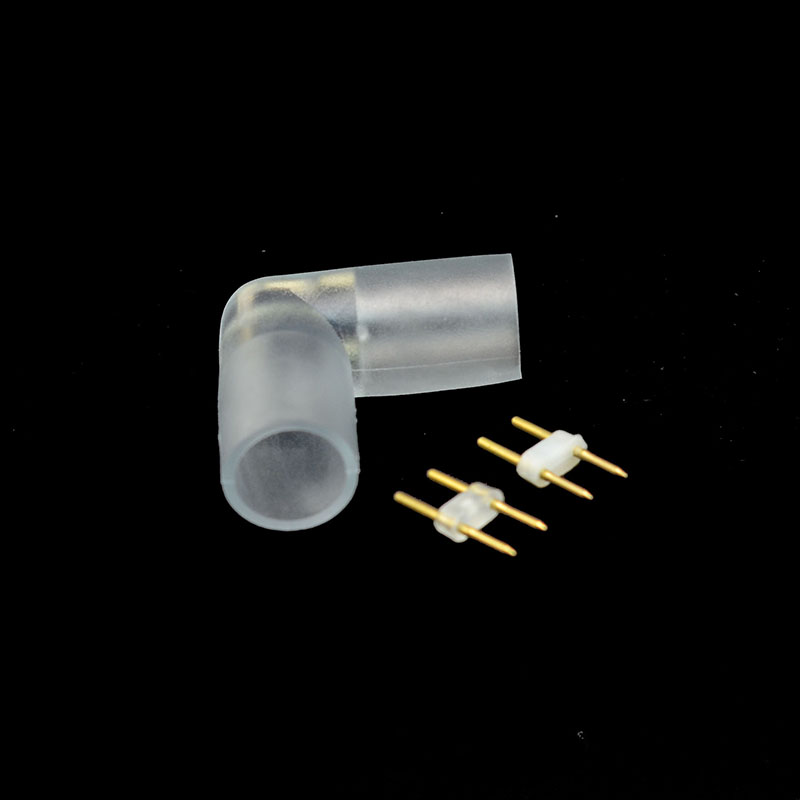

Achieve clean, professional 90-degree turns in your lighting projects with the L-Shape 2-Pin Fast Connector, designed specifically for single-color high-voltage LED neon strip lights. This essential accessory eliminates the need for awkward bending or soldering, allowing you to create sharp, continuous lines for architectural accents, custom signage, and intricate cove lighting. Its robust PVC housing and sharp copper pins ensure a secure, reliable connection every time. Available in multiple sizes to match your specific strip, this connector is part of our complete range of High Voltage LED Lights Parts designed to simplify your installations and deliver flawless results.
Key Features
Seamless 90° Corners
Effortlessly create sharp, right-angle turns without bending or damaging the neon strip.
Solderless Fast Connection
Features a piercing pin design for a quick, secure, and tool-free installation.
High-Voltage Compatibility
Engineered specifically for 2-conductor (single color) high-voltage AC LED neon strips.
Multiple Size Options
Available in 12mm, 14mm, and 16mm diameters to ensure a perfect fit for various LED neon flex profiles.
Reliable Electrical Contact

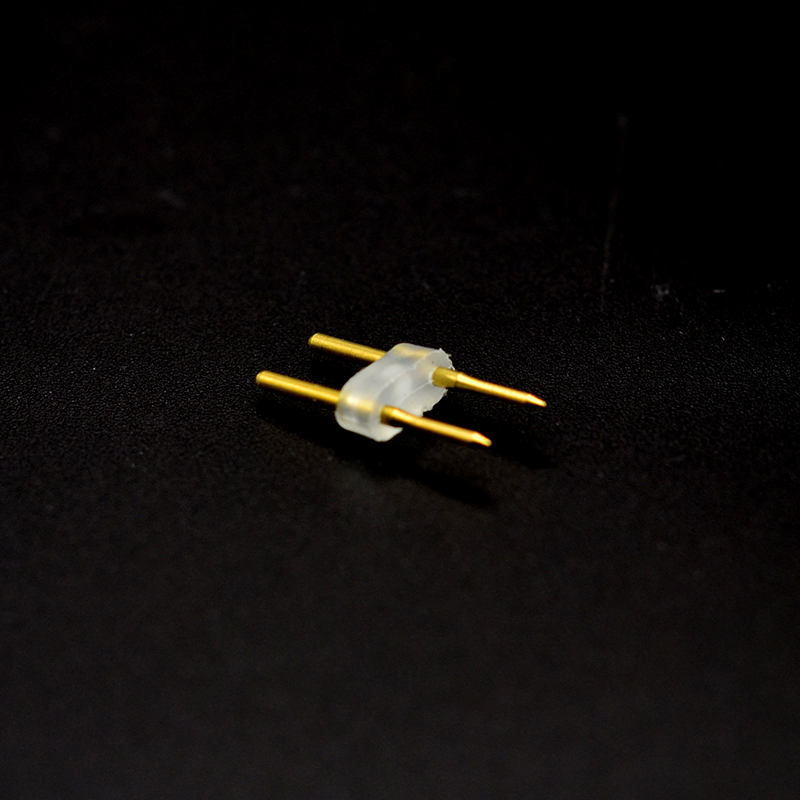

Two sharp copper conductor pins pierce the strip to establish a stable and durable connection.
Durable PVC Housing
Constructed from high-quality PVC for a secure grip and long-lasting performance.
Technical Highlights
- Engineered for a precise fit with common high-voltage neon flex profiles.
- Dual copper pins provide a stable, low-resistance connection for consistent light output around corners.
- The rigid L-shape form factor maintains the integrity of the lighting installation, preventing stress on the neon strip.
Product Specifications
| Parameter | Details |
|---|---|
| Model | LEDNEON-ACCOR-09 |
| Product Type | L-Shape Corner Connector |
| Pin Count | 2-Pin |
| Voltage Compatibility | High Voltage AC (e.g., 110V/220V) |
| Compatible Strip | Single Color High Voltage LED Neon Lights |
| Available Diameters | 12mm, 14mm, 16mm |
| Housing Material | PVC |
| Conductor Material | Copper |
| Connection Method | Solderless, Piercing |
Application Scenarios
How to Use This Connector
- ⚠ SAFETY FIRST: Ensure all power to the high-voltage circuit is completely turned off at the breaker before beginning installation.
- Select the connector size (12mm, 14mm, or 16mm) that precisely matches the diameter of your LED neon strip.
- Cut the LED neon strip cleanly at a designated cut mark using a sharp utility knife.
- Carefully align the conductors at the cut end of the neon strip with the two copper pins inside one opening of the L-connector.
- Firmly push the neon strip into the connector until it is fully seated and the pins have pierced the internal wires.
- Repeat the process with the second piece of neon strip on the other side of the L-connector.
- Once both strips are securely connected, you may restore power to test the corner connection.
- This connector is designed exclusively for 2-pin, single-color, high-voltage LED neon strip lights. Do not use with low-voltage or multi-color (RGB/RGBW) strips.
- Always double-check that the connector size matches your strip's profile for a secure fit.
- For outdoor or wet location installations, it is crucial to apply a waterproof silicone sealant around the connection points to maintain the IP rating and prevent moisture ingress.
What's in the Box
- ✓1 x L-Shape 2-Pin Connector for High Voltage LED Neon Flex (in your selected size)
Frequently Asked Questions
Q: What type of LED strip is this L-connector for?
A:This connector is specifically designed for high-voltage (e.g., 110V/220V AC) 2-pin single-color LED neon strip lights.
Q: Is this connector waterproof for outdoor use?
A:The connector provides a snug fit, but for full weather protection in outdoor installations, we strongly recommend sealing the connection points with a suitable waterproof silicone sealant.
Q: Do I need to solder the wires?
A:No, this is a solderless fast connector. The internal copper pins pierce the strip's conductors to create a secure electrical connection without any soldering.
Q: How do I choose the correct size for my neon strip?
A:Measure the diameter (or width) of your LED neon flex and select the matching size from the product options: 12mm, 14mm, or 16mm. An exact match is essential for a secure connection.
Q: Can I use this for my RGB color-changing neon strip?
A:No, this is a 2-pin connector intended for single-color strips only. RGB or RGBW neon strips typically require connectors with 4 or more pins.
Q: Will this connector work with low-voltage 12V or 24V neon flex?
A:No, this connector is specifically engineered for high-voltage AC systems and should not be used with low-voltage DC LED strips.
