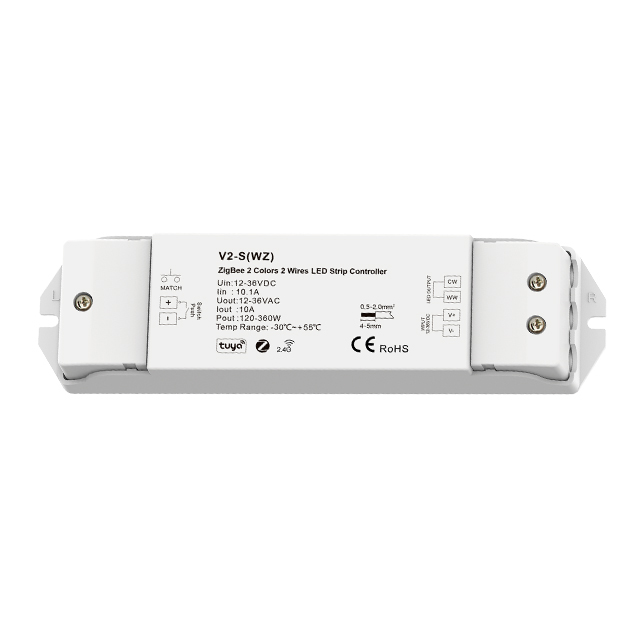

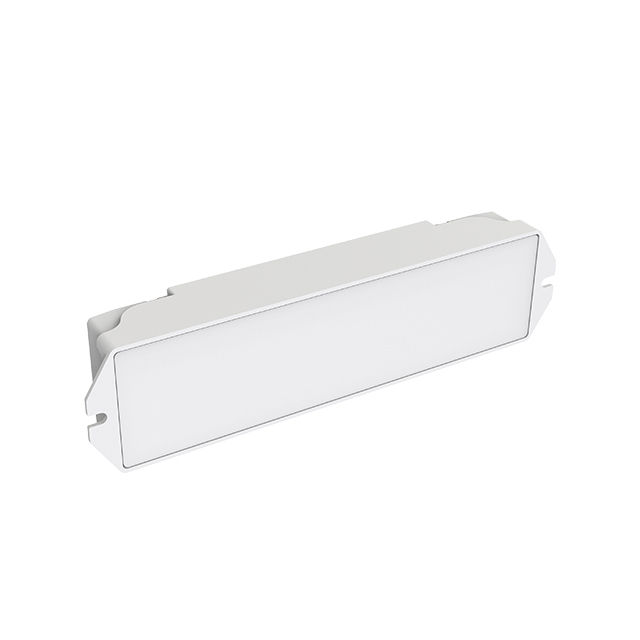

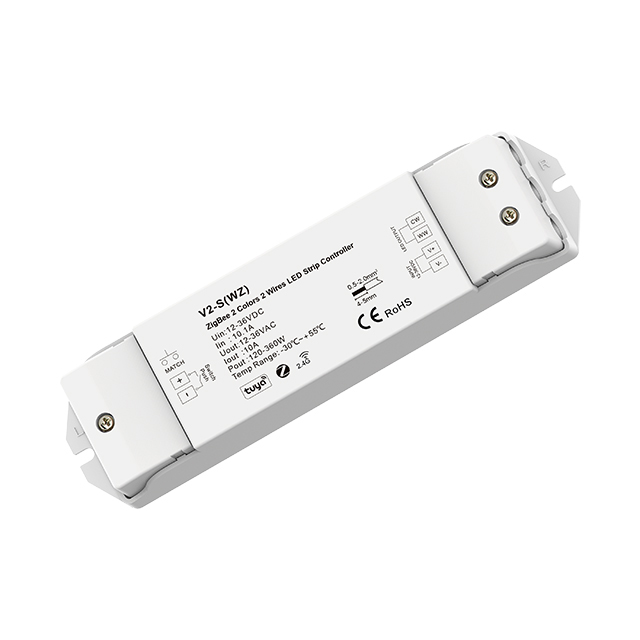

V2-S(WZ) 12-36VDC 10A ZigBee & RF Tuya Push Dim LED Controller For 2 Wires Tunable White LED Strips
● Only apply to 2-wires WW+CW LED strip.
● Tuya APP cloud control, support on/off, color temperature and brightness adjust, delay turn on/off light, timer run, scene and music play function.
● Voice control, support amazon ECHO and TmallGenie smart speaker.
● Match with RF 2.4G remote control optional.

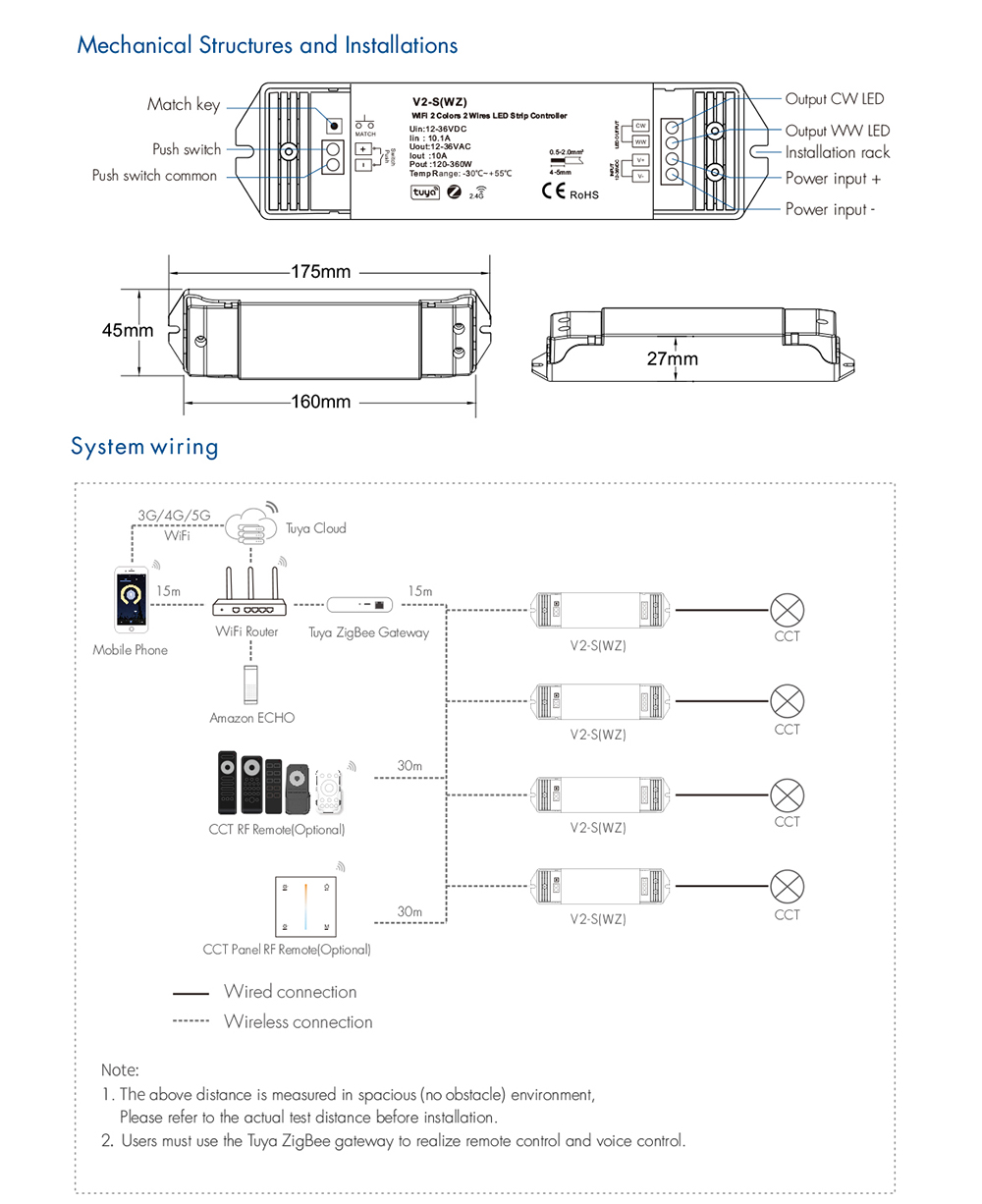

● Each V2-S(WZ) controller can also work as a Zigbee-RF converter, then use Tuya APP to control one or more RF CCT LED controllers synchronously.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
● Switch 3 levels of color temperature(WW, NW, CW) in consecutive power-on sequences.
● Fade in and out effect selectable.
Standards and Certifications
Input and Output
Input voltage: 12-36VDC
Input current: 10.1A
Output voltage: 12-36VDC
Output current: 10A
Output power: 120-360W
Output type: Constant voltage
Input signal: Tuya APP + RF + Push Dim
Control distance: 30m(Barrier-free space)
Dimming level: 256 levels
Dimming range: 0 -100%
Dimming curve: Linear
PWM Frequency: 2000Hz
Case Temperature(MAX.): +85℃
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity
