AC220V LED music controller,full color programmable,play effects with music,support DMX512,WS2812,etc.microphone&audio cable input,For Led strip light
Item Type: RGB Controler
Model Number: H803SC
Power Source: AC
Controled Method: SD card
Features: music control
Remote Distance: none
Applicable Lights: full color pixels
Warranty: 1 year
Max. Load Power: 10W

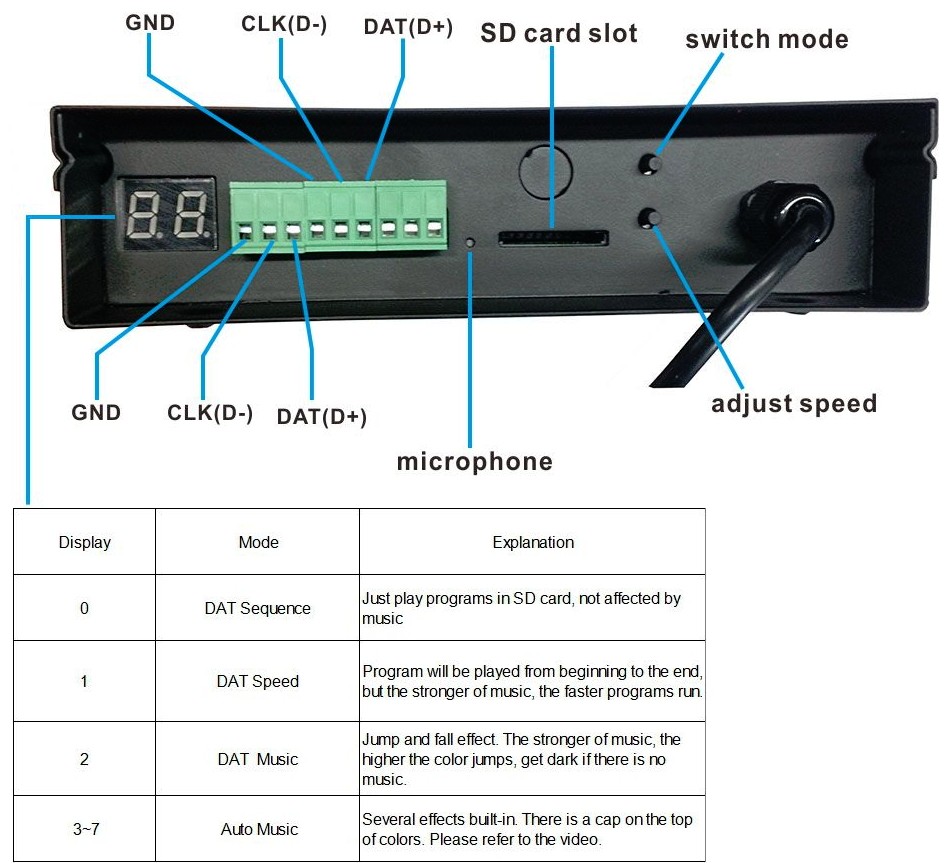

Connection Mode: GND-GND,CLK(D-)-CLK(D-),DAT(D+)-DAT(D+)
drive pixels number: 4096
ports number : 2
Input Voltage: Customized
Power Consumption: 1W
Drive Pixels Number: 4096
Dimension: L145 x W140 x H54
Carton Size: L205 x W168 x H69

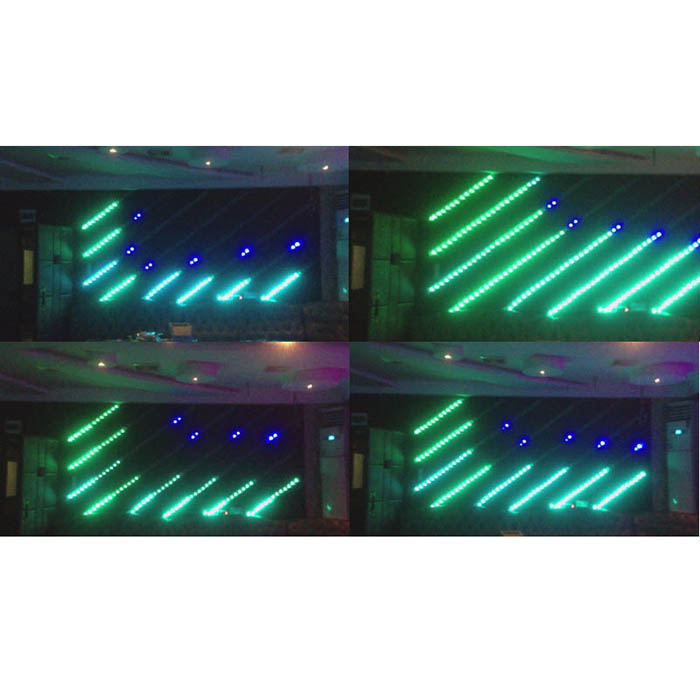

(1). H803SC is a music controller that can play diverse effects in accordance with strength and rhythm of music.
(2). H803SC is capable of controlling single-line, double-line, three-line and four-line LED driver chips with two ports,
(3). Drives maximum 4096 pixels.
(4). Four playing modes.
(5). Support microphone and earphone socket audio input.

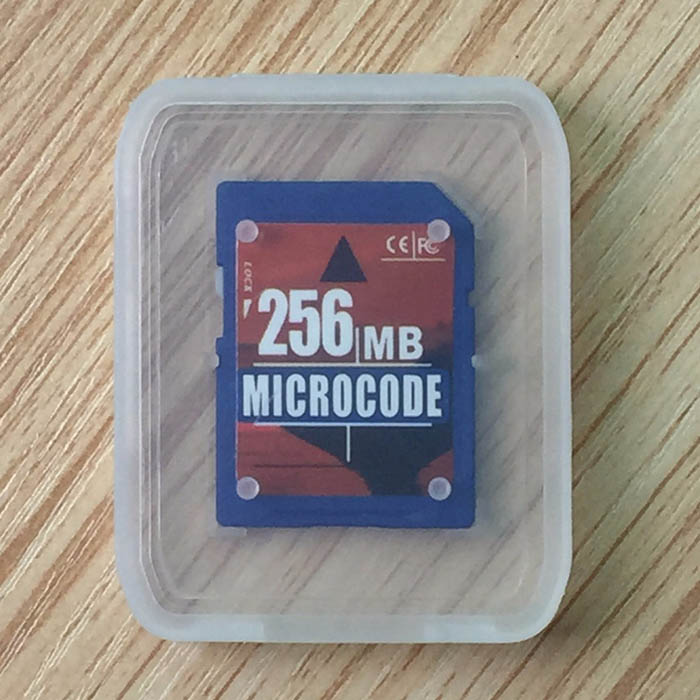

(6). SD card support FAT32 and FAT16 format, the maximum capacity is 64G bytes, stores up to 64 DAT files.

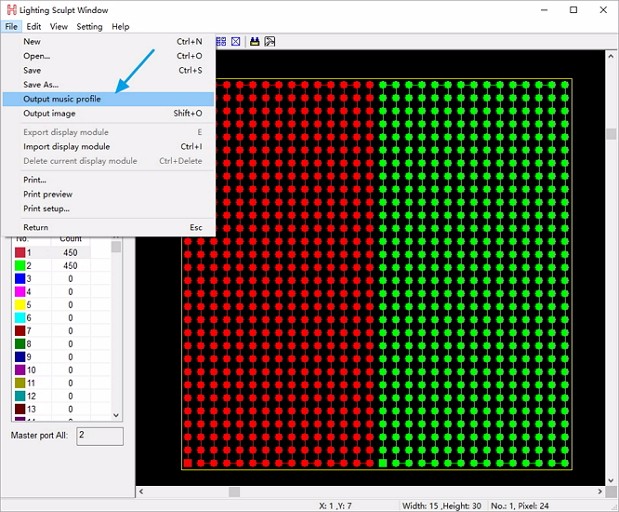

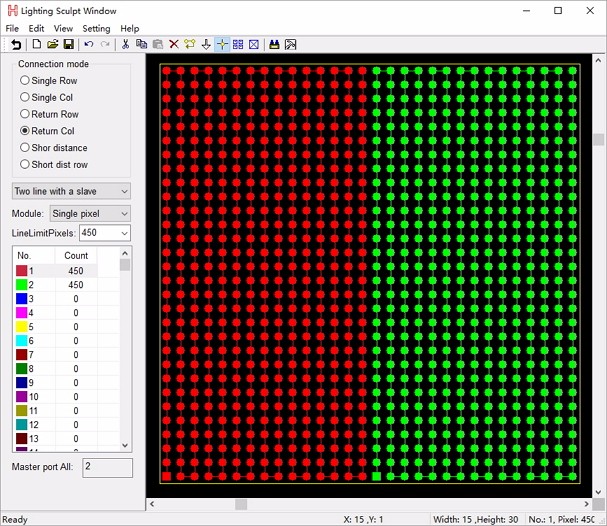

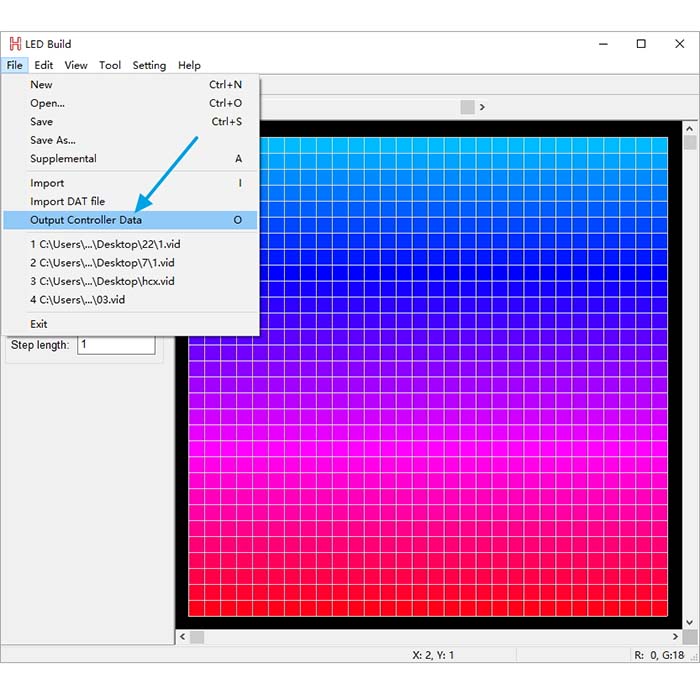

(7). Software is LED Build Software.

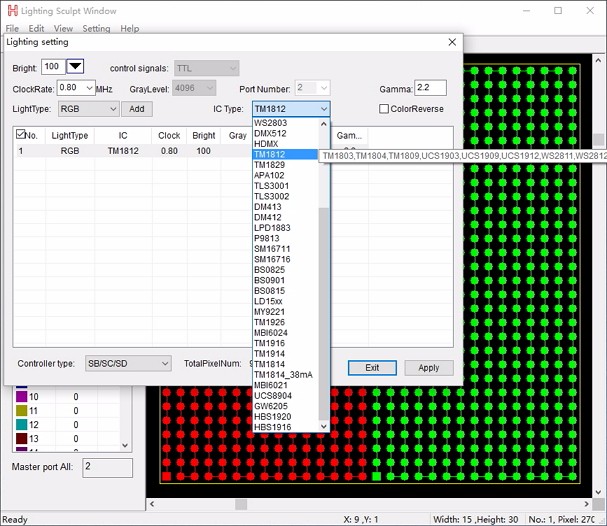

2. Supported driver chips
LPD6803, LPD8806, LPD6813, LPD1882, LPD1889, LPD6812, LPD1886, LPD1883,UCS6909, UCS6912, UCS1903, UCS1909, UCS1912,WS2801, WS2803, WS2811, WS2812,TM1812, TM1809, TM1804, TM1803, TM1829, TM1926, TM1914,LX1003, LX2003, LX2006, DMX512, APA102, P9813, DZ2809, INK1003, BS0825, BS0901, TLS3001, TLS3002, SD600, SM16711, SM16716, SM16726, LD1510, LD1512, LD1530, LD1532, MBI6023, MBI6024, etc.
3. Software and tutorial video download
LED Build: https://drive.google.com/open?id=0B1gzqyV6hfOgN2pkMV8yMFozYzQ
LED Build Tutorial Video: https://drive.google.com/open?id=0B1gzqyV6hfOgUnFjeG9EM3VRZjA
Video for H803SC: https://drive.google.com/open?id=0B1gzqyV6hfOgblU0ODdsUG1oZVU
4. Product Display
