TV LED Lights Addressable RGB WS2811 LED Strip Lighting Kit

Model: CCSLKITS-WS2812B-TV-L
TV LED Lights Addressable RGB WS2811 LED Strip Lighting Kit
  • TV LED Lights Addressable RGB WS2811 LED Strip Lighting Kit
  • TV LED Lights Addressable RGB WS2811 LED Strip Lighting Kit
  • TV LED Lights Addressable RGB WS2811 LED Strip Lighting Kit
  • TV LED Lights Addressable RGB WS2811 LED Strip Lighting Kit
  • TV LED Lights Addressable RGB WS2811 LED Strip Lighting Kit
  • TV LED Lights Addressable RGB WS2811 LED Strip Lighting Kit
  • TV LED Lights Addressable RGB WS2811 LED Strip Lighting Kit
  • TV LED Lights Addressable RGB WS2811 LED Strip Lighting Kit
  • TV LED Lights Addressable RGB WS2811 LED Strip Lighting Kit

Select Specifications:

Select LED Quantity:

Starting at: $99.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$99.98
5-9
$97.98
10-14
$94.98
15+
$90.98
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

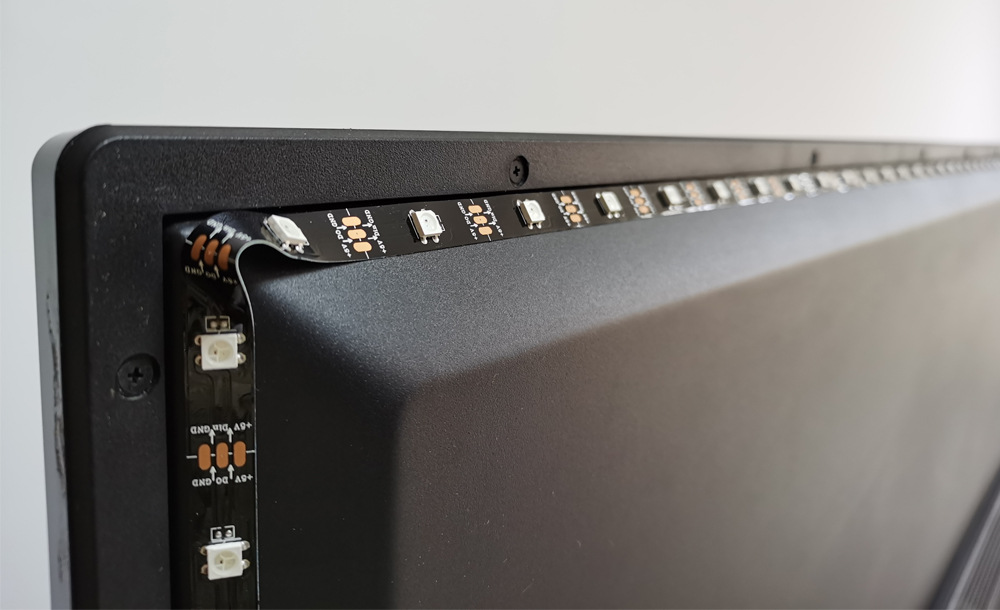

    The biggest feature of the DC12V 60LEDs/m Ambilight Addressable RGB WS2811 TV LED Lights is that the LED strip light color and the color of the picture displayed on the TV can be synchronized. These LED lights for TV are suitable to use on different computers and different systems. And they are suitable for installation on TVs and monitors of different sizes to create ample home theaters and personal theaters.

    The color of the edge of the screen is analyzed through software, and the controller controls the TV light strip to emit light to realize the ambilight effect, bringing a cool screen effect when watching movies in the game. There are various modes that the TV LED lights can display, such as music mode, creating a colorful atmosphere. The controller supports smartlife and tuya app,  alexa and google assistant voice control.

    Adding LED strip lights for TV can alleviate eye fatigue: the TV LED lights reduce the brightness and color difference between the screen and the environment, which greatly enhances the visual atmosphere in movies, chase dramas, and games.

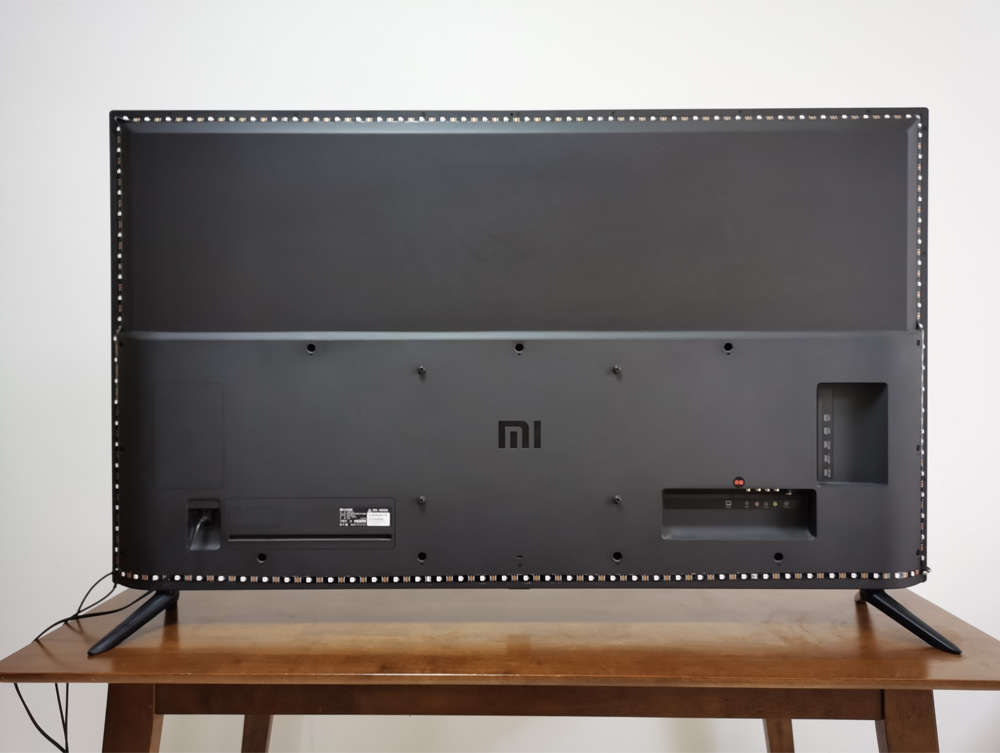

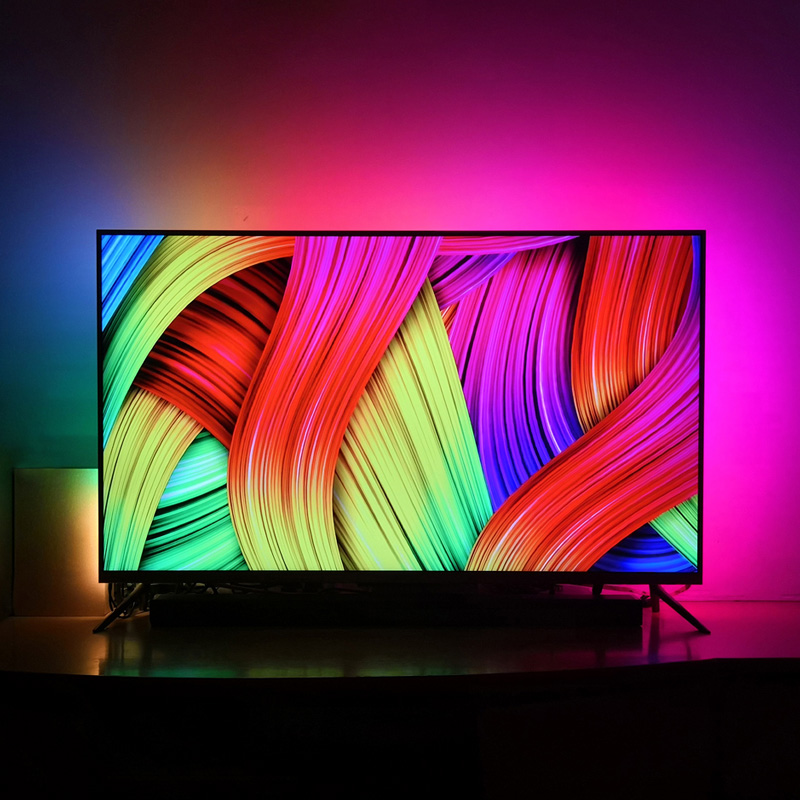

    The LED lights behind TV make the picture color overflow, synchronize the video and picture on the display screen, the brightness and atmosphere can be adjusted through the system software, and the personalized needs of music modes are supported.



    1. The TV LED lighting system adds ambient backlighting to the screen content. Elements such as color and brightness can be dynamically adjusted according to the content of the screen to create an immersive multimedia experience.

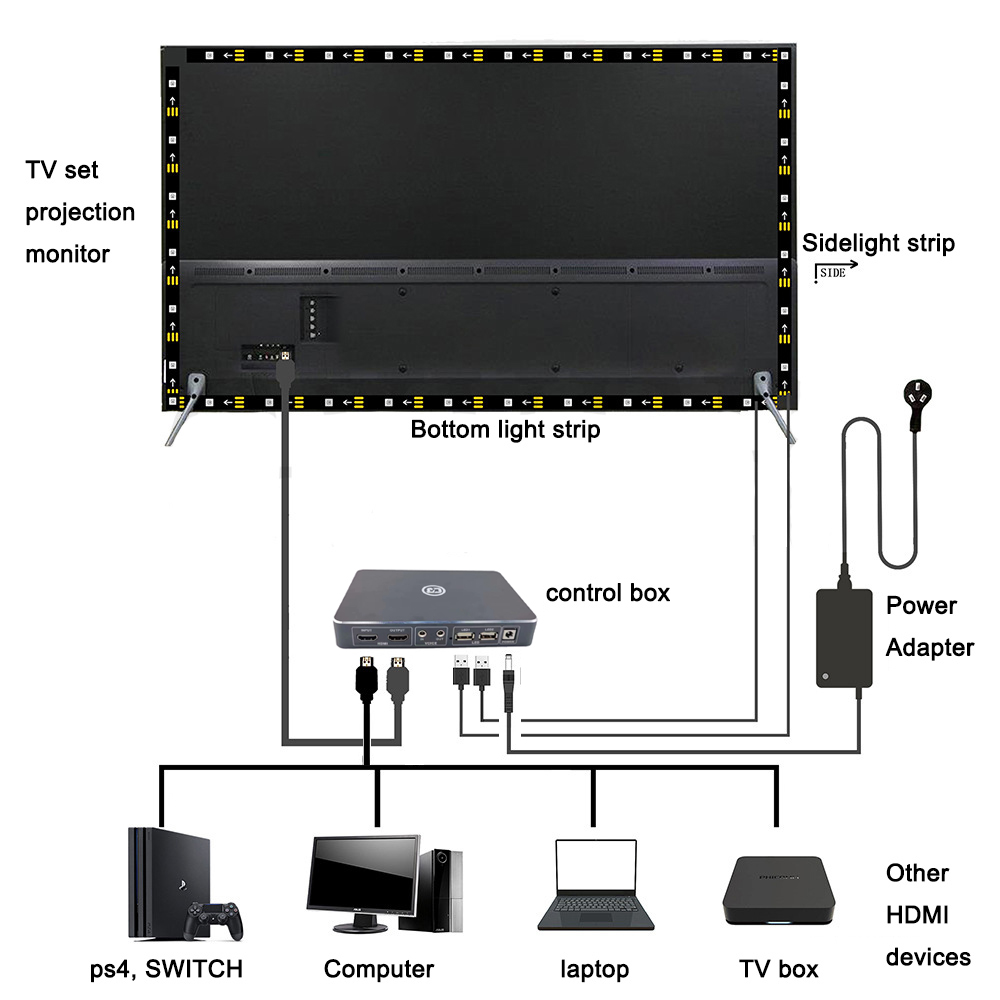

    1. Suitable for HDMI devices, such as PS4, SWITCH game consoles, computers, set-top boxes, etc.

    2. Multiple modes: synchronization with the screen, sound and light rhythm, soft lighting, dream rainbow, static monochrome, monochrome breathing, light chase.







    Specification

    1. LED strip light parameters:

    Voltage: DC12V

    LED Chip Brand: WS2811

    Waterproof Rating: IP20

    Circuit Board Material: FPCB

    LED Quantity: 60LEDs/M

    LED Lenghth: 2*6.56ft~13.12ft

    Color range: 16 million colors

    Full load power: 5W / M

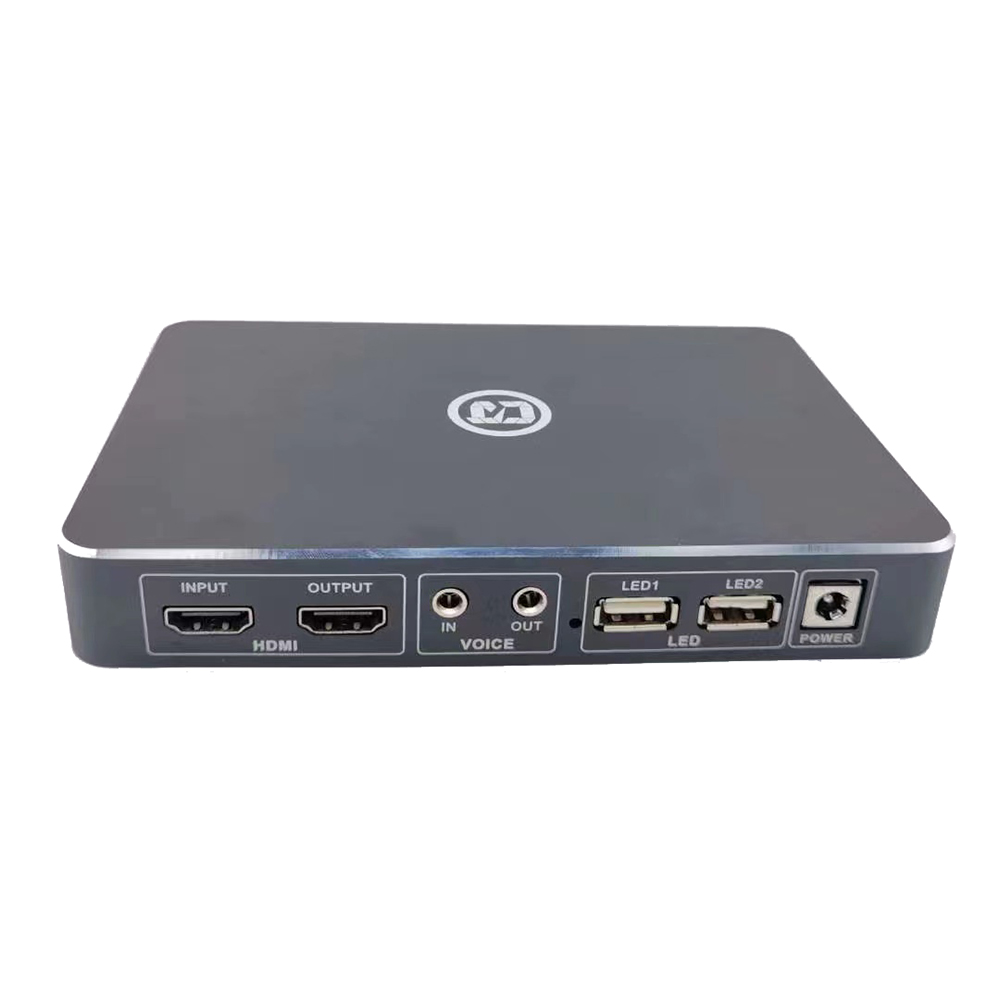

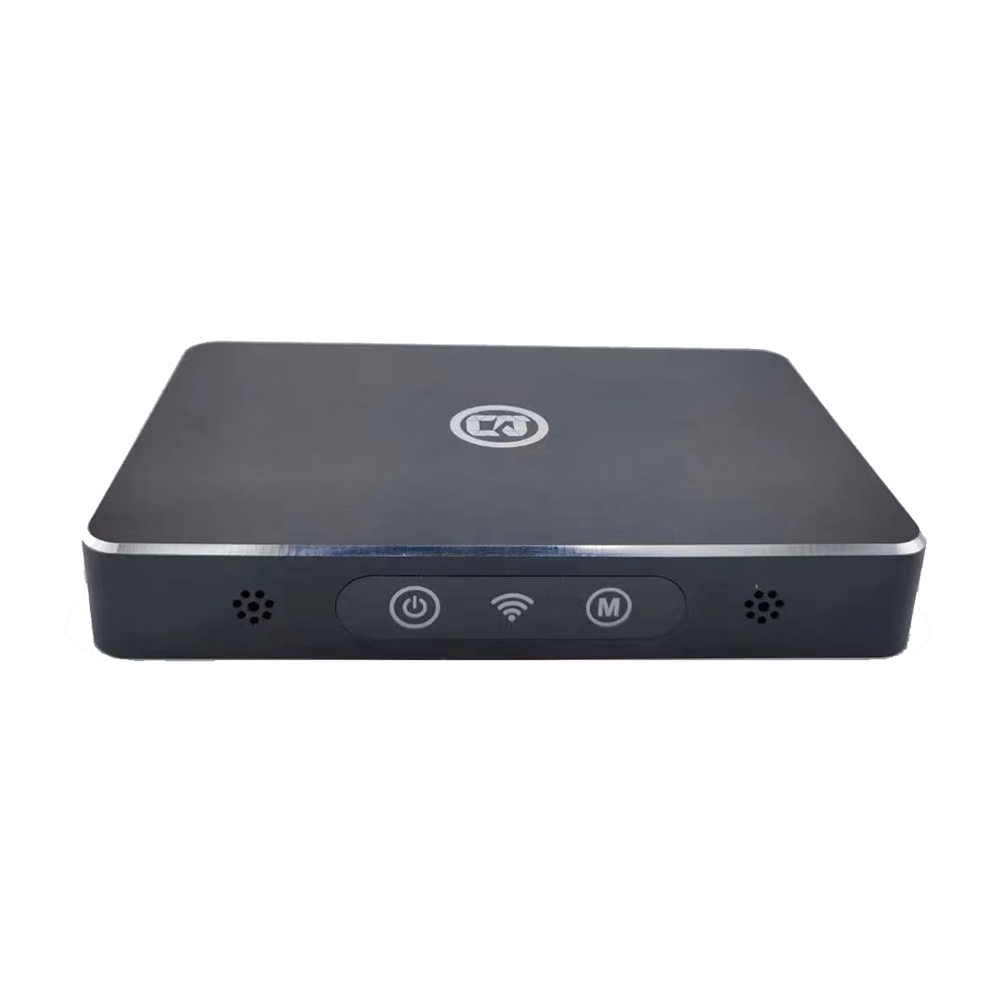

    2. Control box parameters:

    Rated input voltage: DC12V

    Driver color sequence: SPI RGB

    Maximum number of lights per channel: 150

    Pickup: built-in microphone



    3. HDMI parameters:

    Support the maximum resolution: 4096 * 2160 (4K)

    Support color depth: 10/12/16Bit

    HDMI protocol version: 1.4b

    Size information: L103 * W108 * H26mm





    Product list

    2*led light srip (Please refer to options for a specific length)

    1*USB cable

    1*Control box

    1*Power adapter

    30LEDs/m Power Adapter
    2*6.56ft/2m 4A
    2*8.20ft/2.5m 6A
    2*9.84ft/3m 8A
    2*13.12ft /4m 10A





















    How to use





    Note for TV version:

    If the color of the strip does not match the color displayed on the TV, or part of the light strip does not light up, the solution is as follows:

    1. Whether the installation direction of the LED light strip is consistent with the indicator light of the controller (the wiring diagram has two ways, A and B, and there is a direction confirmation switch A and B on the controller. We need to ensure that the actual wiring direction is consistent with the A/B direction switches of the controller).

    2. Whether the length of the extra light strip is cut off. (Cut only after power off)

    3. Before the controller is powered on, whether the light strip USB has been inserted into the controller, and you need to make sure that the strip is inserted into the correct side and bottom USB ports of the controller.

    4. The controller can only recognize the picture signal on the HDMI line. When the TV itself plays video (programs and functions built into the brand TV itself), the HDMI cable will not be able to recognize its signal, so the controller cannot recognize the light and cannot synchronize.

    5. The HDMI input interface must be connected to HDMI devices, such as set-top boxes, game consoles, and computer hosts, and then connected to the TV through the HDMI output interface. The controller will automatically recognize the picture and synchronize the lights.
