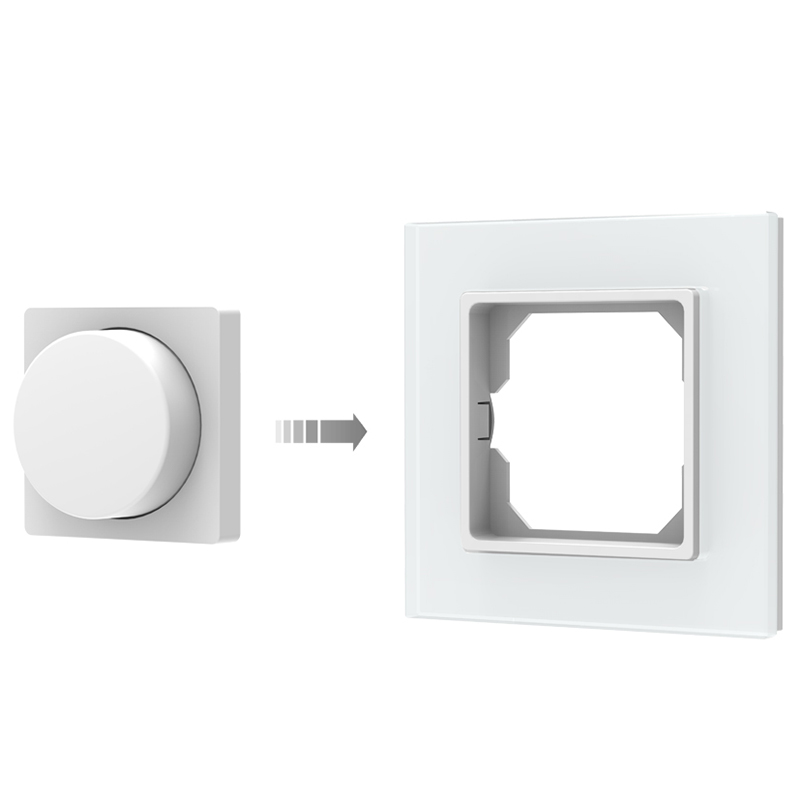

PK2(G) DC3V Rotary Glass Panel RF Color Temperature Remote Controller
● Apply to single color, dual color or RGB LED controller.
● Rotate knob to change RGB color, color temperature or brightness, support long press or twice click operation.
● Each remote can match one or more receiver.
● CR2032 battery powered.
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller’s Match key
Short press match key, immediately push the knob. The LED indicator fast flash a few times means match is successful.
Press and hold match key for 5s to delete all match,The LED indicator fast flash a few times means all matched remotes were deleted.
Use Power Restart
Switch off the power, then switch on power again, immediately push the knob 3 times.The light blinks 3 times means match is successful.
Switch off the power, then switch on power again, immediately push the knob 5 times.The light blinks 5 times means all matched remotes were deleted.
PK2(G) Color temperature remote
● Push: Turn on or off light.
After turn on light:
● Rotate: Rotate knob to change color temperature or brightness (2.5 turns, 50 levels).
● Push twice: Switch between color temperature or brightness adjustment.
● Long push(1-6s): Continuous 256 levels brightness adjustment.
1. Read all instructions carefully before you begin this installation.

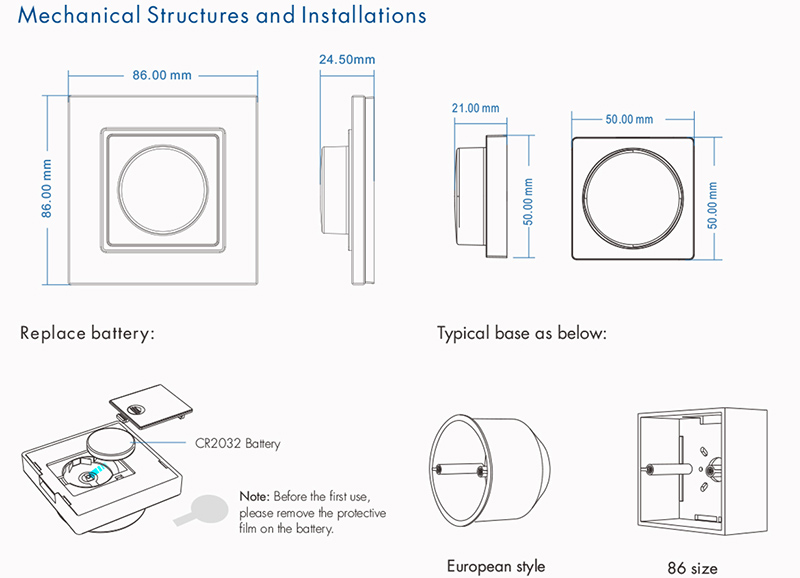

2. When installing battery, pay attention to the battery positive and negative polarity.
A long time without the remote control, remove the battery.
When remote distance becomes smaller and insensitive, replace the battery.
3. If no response from the receiver, please re-match the remote.
4. Gently handle remote, beware of falling.
5. For indoor and dry location use only.
Standards and Certifications
Input and Output
Output Signal: RF 2.4GHz
Working Voltage: DC3V(CR2032)
Standby Current: ＜10μA
Remote Distance:30m(Barrier-free space)
Warranty: 5 years
Safety and EMC
EMC Standard (EMC): EN301 489,EN 62479
Safety Standard(LVD): EN60950
Radio Equipment(RED): EN300 328
