RGB led timetable controller,play effects by schedule,control max 8192 pixels,support WS2812 WS2811,For programmable led strip
Item Type: RGB Controler
Connection Mode: GND-GND, CLK(D-)-CLK(D-), DAT(D+)-DAT(D+)
Power Source: AC
Controled Method: SD card
Remote Distance: none
Features: timetable controller
Warranty: 1 year
Max. Load Power: 10W
Model Number: H805SA
Applicable Lights: full color lights
output ports number: 8
drive pixels number: 8192
Input Voltage: Customized
Power Consumption: 1.5W
Drive Pixels Number: 8192
Dimension: L189 x W123 x H40
Carton Size: L205 x W168 x H69
H805SA has eight output ports, drives maximum 8192 pixels. Built-in timetable module,play effects by schedule.
2. Supported Driver Chips:
LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, APA104, P9813, P9823, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, DZ2809, SM16716, TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.
Note: H805SA can support more than the chips listed above(some chips have the same sequence diagram, for example: UCS512, WS2821 and DMX512 have the same protocol. UCS2903 has the same sequence diagram with UCS1903, so H805SA supports them all). Auxiliary software is "LED Build Software".
3. Software and tutorial video download
LED Build download link: https://drive.google.com/open?id=0B1gzqyV6hfOgN2pkMV8yMFozYzQ
LED Build Tutorial Video: https://drive.google.com/open?id=0B1gzqyV6hfOgUnFjeG9EM3VRZjA
(1).Eight output ports, controls maximum 8192 pixels. Built-in timetable module,play effects by schedule.
(2).SD card supports FAT32, FAT16 format; the maximum capacity is 64G bytes.
(3).Support encryption by limiting the number of power-on time.

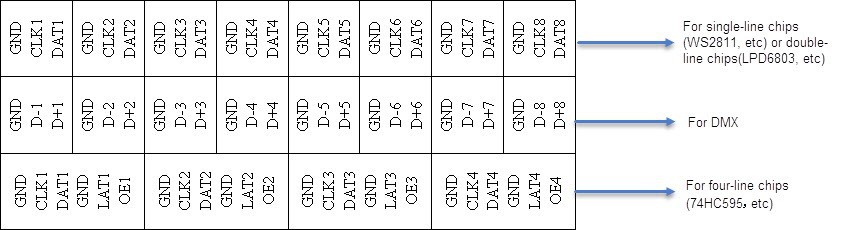

5. Ports Definition

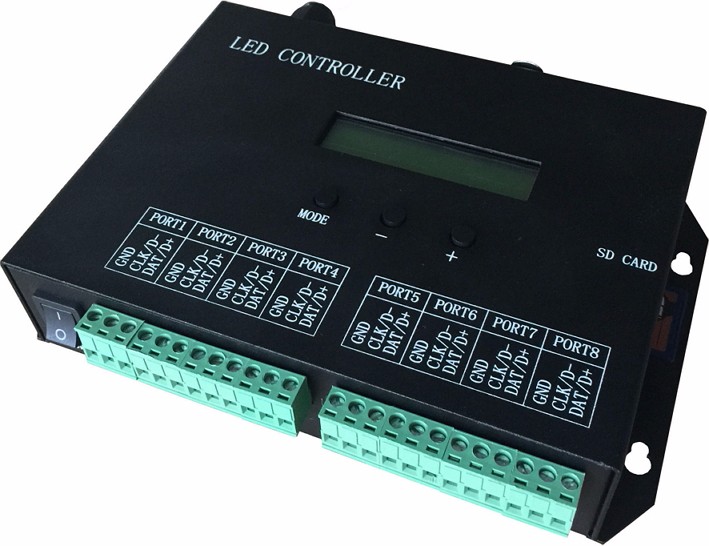

6. Product Display

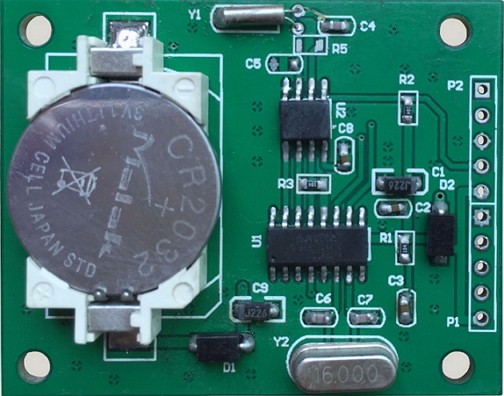

Built-in timetable module

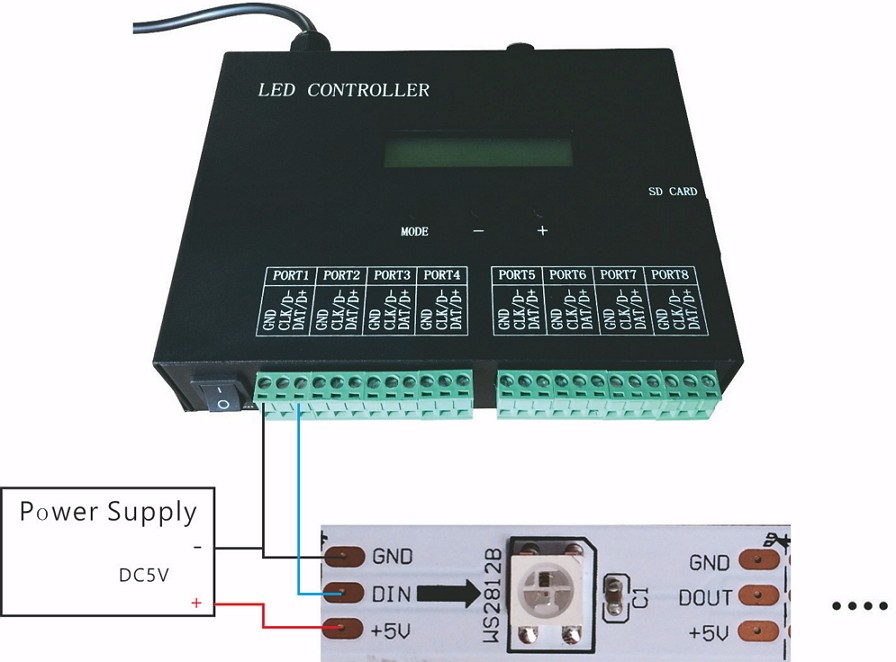

7. Wiring Diagram
(1). For double-line chips, like APA102, connect GND, DIN to DAT, CIN to CLK. For DMX512, D- to CLK, D+ to DAT. H805SA also supports the four-line chips like 74HC595, please refer to the ports definition above.
(2). You can choose to connect 1 port, 2 ports..... or 8 ports. Pixels number of each port is advised less than 1000 in real project.
(3). You might need more than one power supply in your project, i just draw one for example.

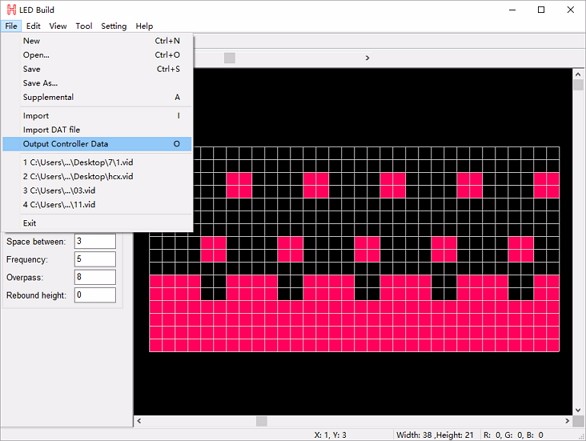

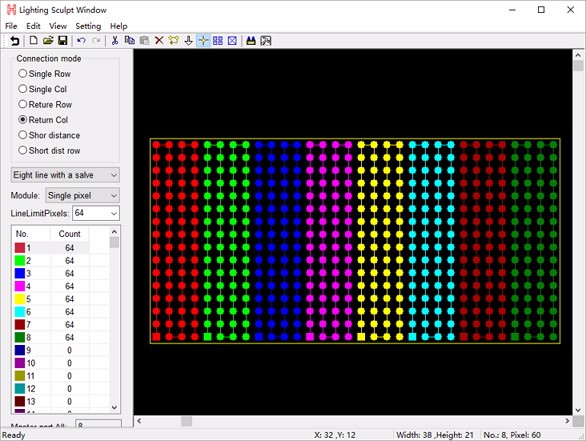

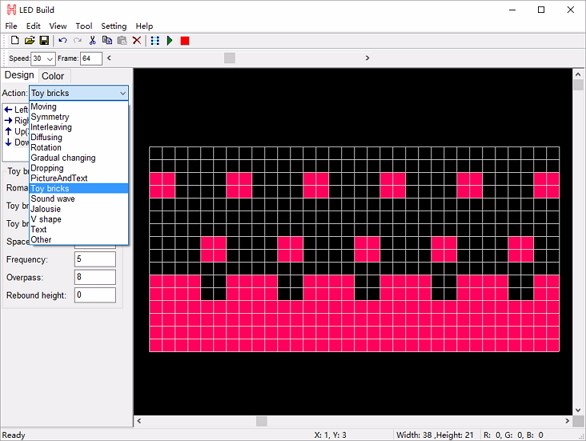

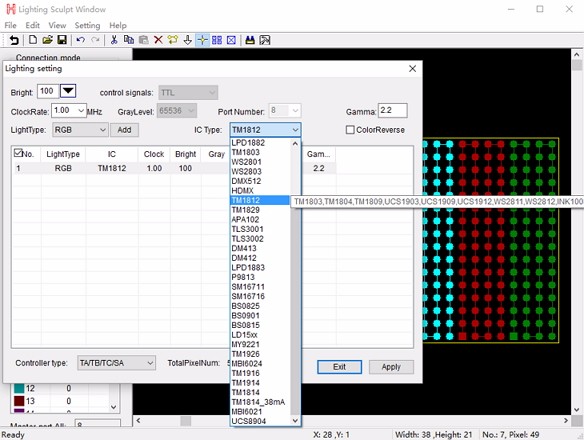

8. LED Build Basic Working Procedure
The format of the file is .dat, then copy this file to SD card.

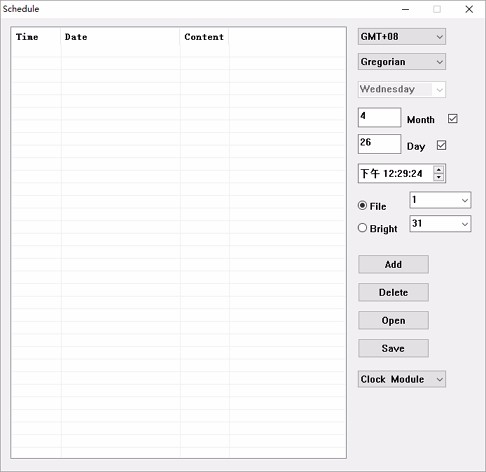

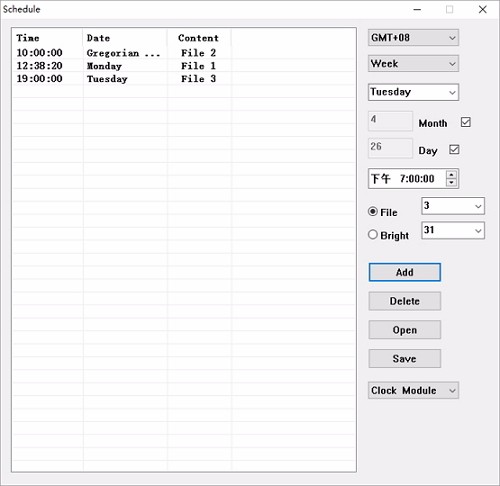

9. Schedule Making procedure

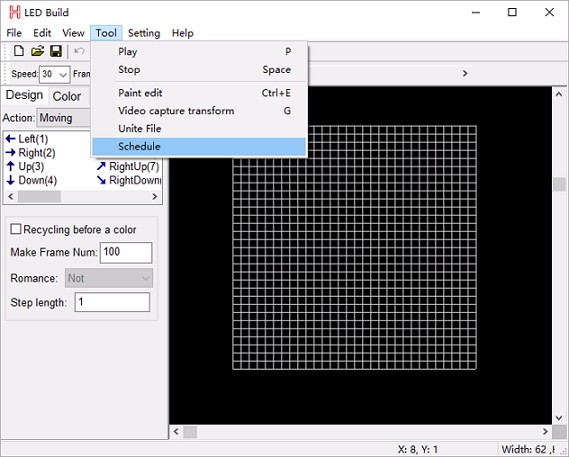

(1). In LED Build main interface, click "Tool"--"Schedule".
