12x12mm Super Mini Neon LED Hexagonal Patterned Flex Profile For 8mm LED Tape
Related Products
12x12mm Super Mini Neon...
$8.98
10m Long Full Spectrum...
$25.98
24V 8mm WS2811 Dream...
$17.98
Single Row Series...
$42.98 $20.9851% off
Narrow 7mm 12V SK6813...
$21.98 $18.9814% off
24V to 36V 100ft No...
$11.98
DC12V SM16703 SMD2835...
$19.98-
Special Price: $8.98
LED neon with unique black honeycomb pattern breaks the monotonous luminous surface of traditional neon lights, adding a stylish and modern visual effect to neon tube lighting, which is also ornamental during the daytime when it is not illuminated.
Profile neon led flex is used as external diffuser for flexible IP20 LED strips, enabling the light to spread seamlessly and evenly. Due to the special pattern design on the light emitting surface, the light will pass through the honeycomb shaped holes, reducing the intensity and the harshness of the neon light.
The silicone material is flexible and bendable, allows the mini neon tube lights to be bent into various shapes during installation without breaking as easily as traditional glass neon lights. At the same time, it also acts as a waterproof device. When the LED strip is threaded into the neon tube and sealed with glue at both ends, the neon flex can reach IP67 or even IP68 protection level.
If you buy our neon diffuser tubing and led strip light together, we can make neon strip lights for you for free, you only need to make a note when ordering.

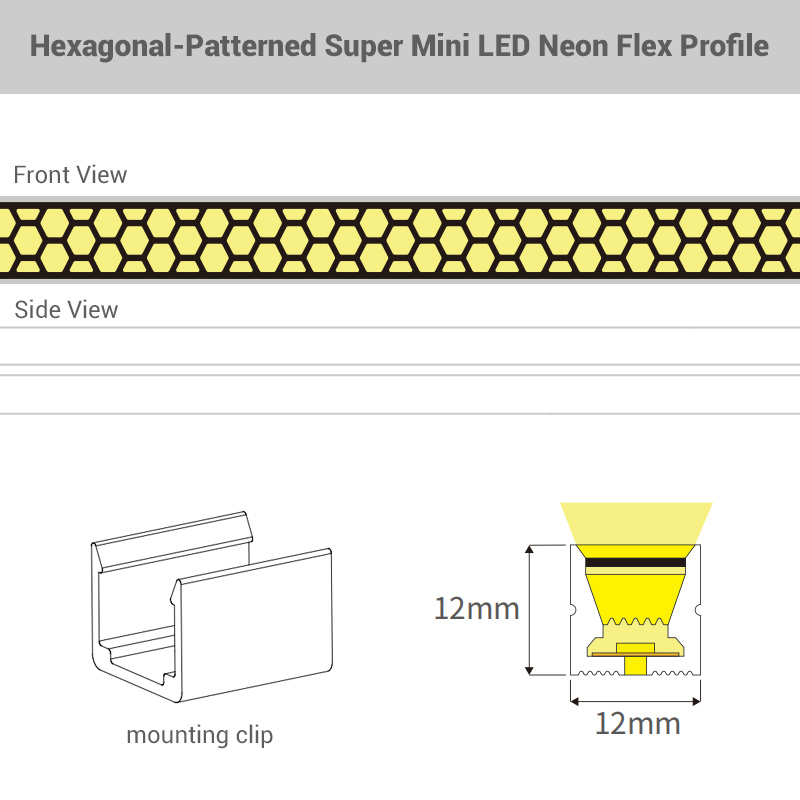

• Super mini led neon flex profile with black honeycomb-louvered pattern (top bend), length customizable
• 12mm*12mm small led neon cross-section size, compatible with any 8mm PCB wide LED strips, choose different sizes of LED strips according to your needs.
• Provides both perforated and non-perforated end cap options, the default configuration is a perforated straight-out end cap.
• Simply attach the neon tape to a surface with the snap-on clips, and support linear aluminum or flexible profile mounting.
Product Specification
| Item: | Hexagonal Patterned Mini Neon LED Flex Profile |
| Size: | W12mm*H12mm |
| Length: | 1m/3.28ft, 2m/6.56ft, 5m/16.4ft |
| Material: | Food-grade silicone |
| Color: | White tubing with Black honeycomb surface |
| Cuttable: | Yes |
| Suitable LED (not contain): | 8mm PCB width and below with SMD 2835, 3535 |
| Beam Angle: | 120-degree |
| Waterproof Rating: | IP67, IP68 (seal ends with glue) |
| Working Temperature: | -50°C to 200°C |

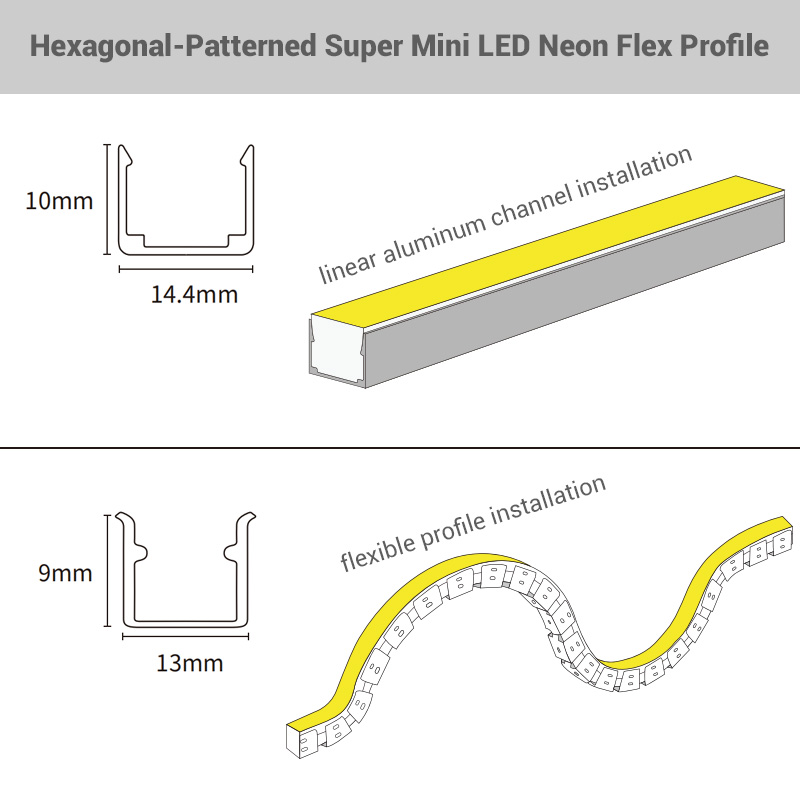

| Installation: | Mounting clip, linear aluminum channel, or flexible aluminum profile (purchase separately) |
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
