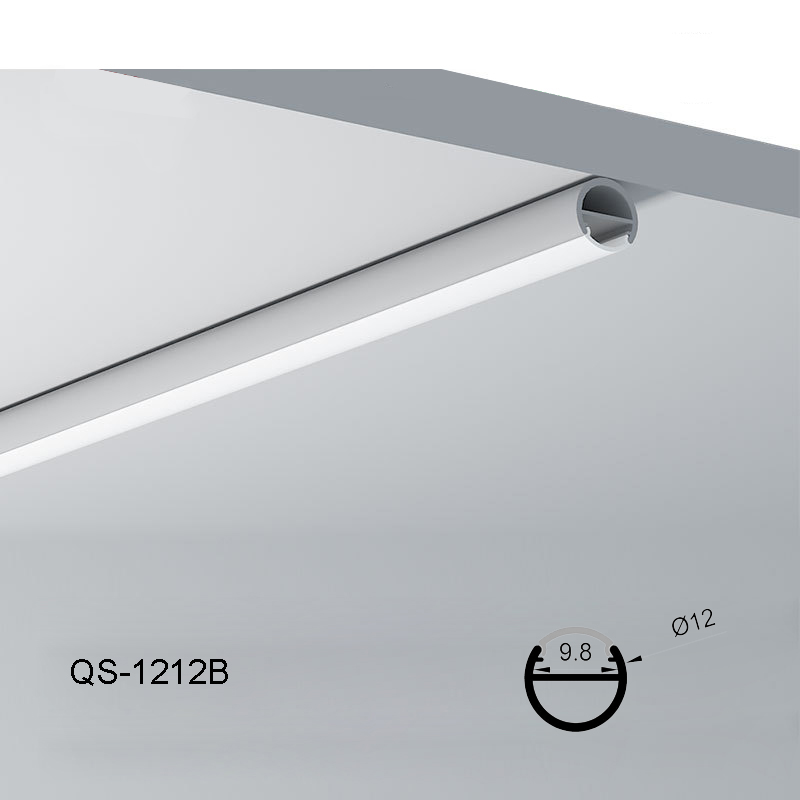

Round LED Aluminum Black Channel For 9mm Slim COB LED Strip Lights
This round led light aluminum channel with a 9.8mm/0.39in inner width, made of high-quality 6063-T5 aluminum alloy, compatible with low-voltage thin COB led strip lighting, the aluminum LED diffuser channel plays a role in led heat dissipation, led strip protection, and better led lighting distribution.
We provide 4 kinds of PC light diffusers, PC opal microprism diffuser, PC clear microprism diffuser, PC semi-clear diffuser, and PC black diffuser. Each type of led diffuser differs from the others in its diffusing effect. To match your decoration lighting style, silver, white, and black led strip channels are available.

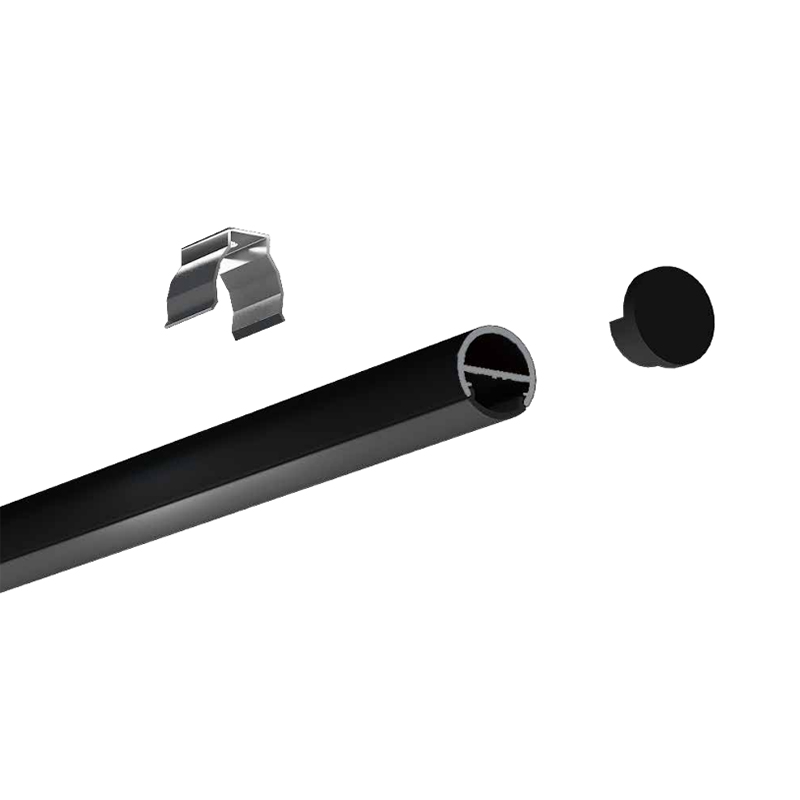

Comes with the end caps and mounting clips, the led profile can be used in home lighting and commercial lighting projects such as ceilings, cabinets, kitchens, offices, supermarkets, etc. After fixing the round led channel, you can rotate it to the angle you want, so that the led light can hit other places. We offer 1m and 2m led strip channel options, and you can cut the led channel to any length.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PC opal microprism diffuser /PC clear microprism diffuser / PC semi-clear diffuser / PC black diffuser|
|Accessory||End cap without hole, end cap with wire hole, mounting clips|
|Apply to||8mm COB/5050/2216/2110/5630/5730 flexible led strip lights|
|Installation||Surface Mounted / Recessed Mount|
Applications - Ultimate Guide to LED Aluminum Channel
1. Furniture production (kitchen/office)
2. Stores shelf LED lighting
3. Heat sink and physical protection to the LEDs
4. Independent LED lamp
5. Interior light design (stairs / storage / floor)
6. Exhibition boot LED lighting
