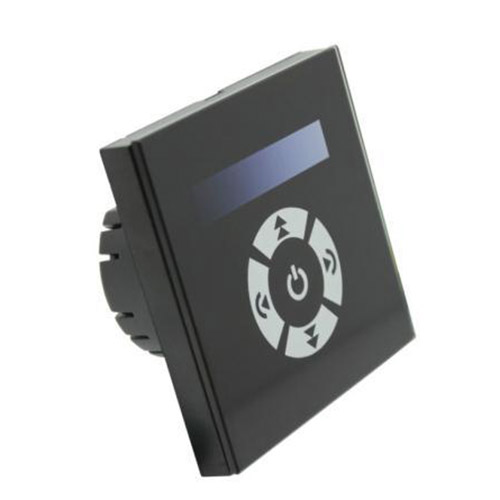

TM06E DC12-24V 1 Channel Low Voltage Touch Panel Dimmer, 0-10V Glass Panel Control
The touch panel controller is a new high-end controller newly developed by our company. It adopts a glass panel design, which is beautiful and fashionable in appearance. The use of a high-precision capacitive touch control chip increases the sensitivity of touch and reduces false triggering. It is used to control various lamps with LED as light sources, such as point light source, soft light bar, panel light, etc.; it has the advantages of convenient wiring and simple use.
Working Temperature: -20-60℃
Power Supply Voltage: DC 12～24V
Output Voltage: DC 12～24V
Output: 1 Channel
Connection Method: Common anode

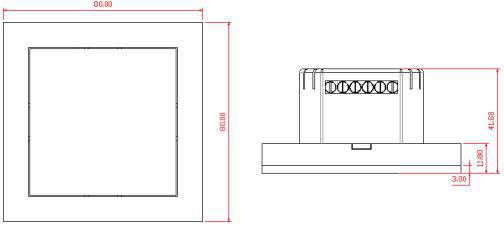

Dimensions: L80xW80xH41.8 mm
Packing Size: L110xW110xH56 mm
Net Weight: 127g
Gross Weight: 212g
Static Power Consumption: <1W
Output Current: <8A
Output Power: DC12V: <96W, DC24V: <192W

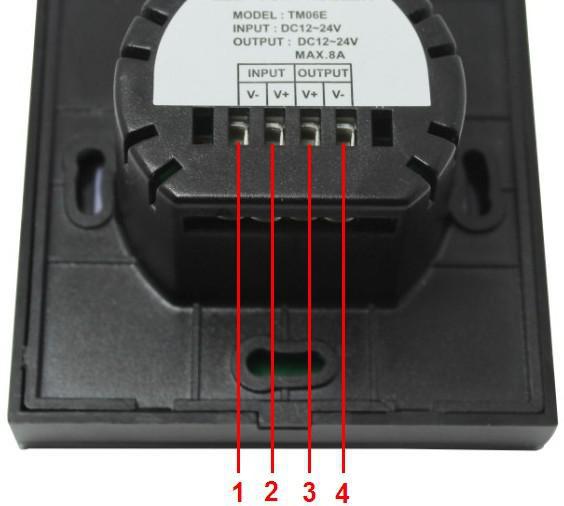

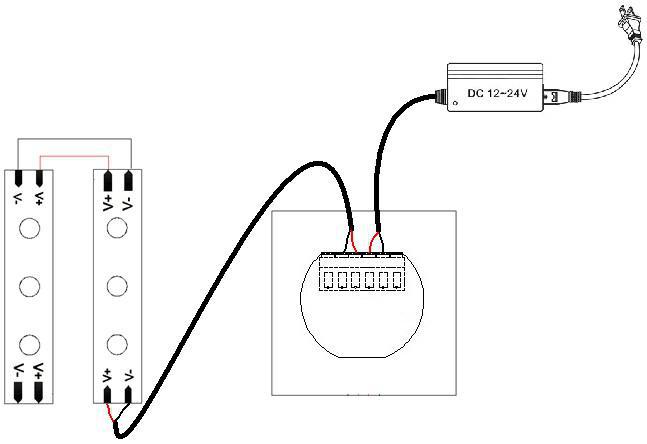

"1", "2": power input pin, the input voltage range is 12-24V, "1" is negative, "2" is positive;
"3", "4": power supply output pin, the output voltage is 12-24V, output maximum current is 8A, "3" is positive, "4" is negative.
