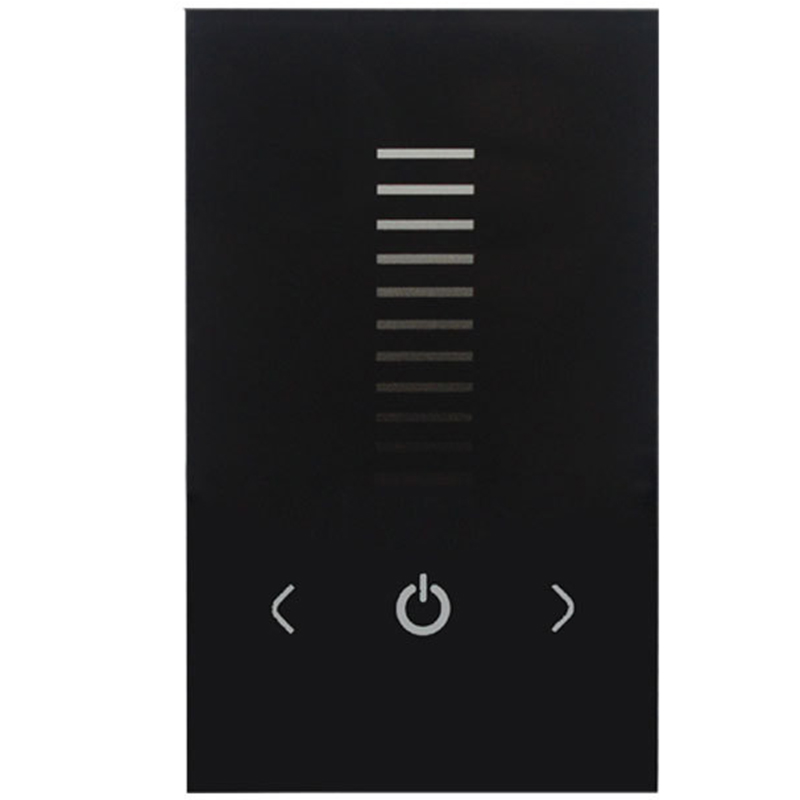

TM06U DC12V-24V1 Channel Low Voltage Tempered Glass Panel Dimming Controller
Touch panel dimmer is a new high-end dimmer which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel lights etc., it has many advantages such as convenient to connect, easy to use and others.
Standards and Certifications
Working Temperature: -20-60 ℃

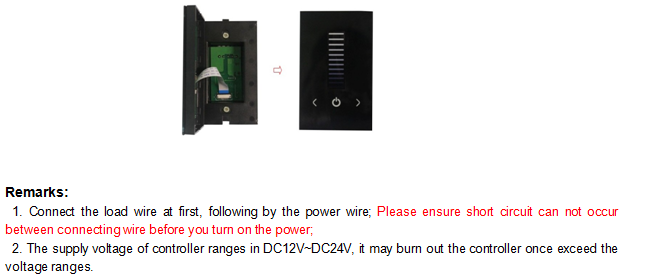

Supply Voltage: DC12~24V
Output Voltage: DC12~24V
Output: 1 channel
Connection Mode: common anode

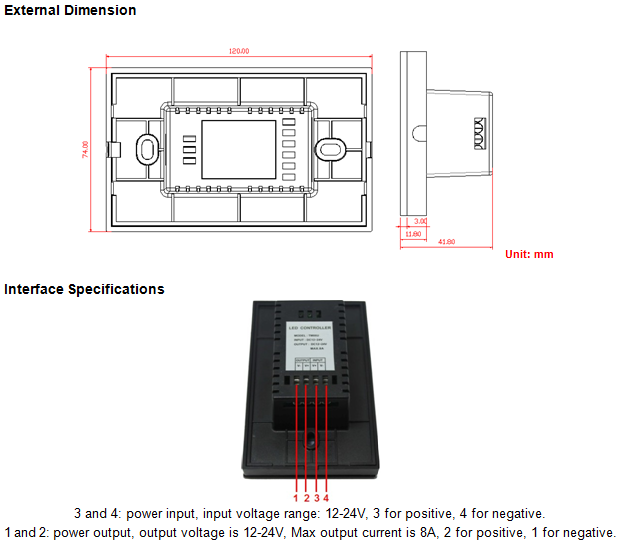

External Dimension: L74 Χ W120 Χ H41.8mm
Packing Size: L150 Χ W100 Χ H57 mm
Net Weight: 150g
Gross Weight: 248g
Static Power Consumption: <1W
Output Current: <8A
Output Power: 12V<96W, 24V<192W
