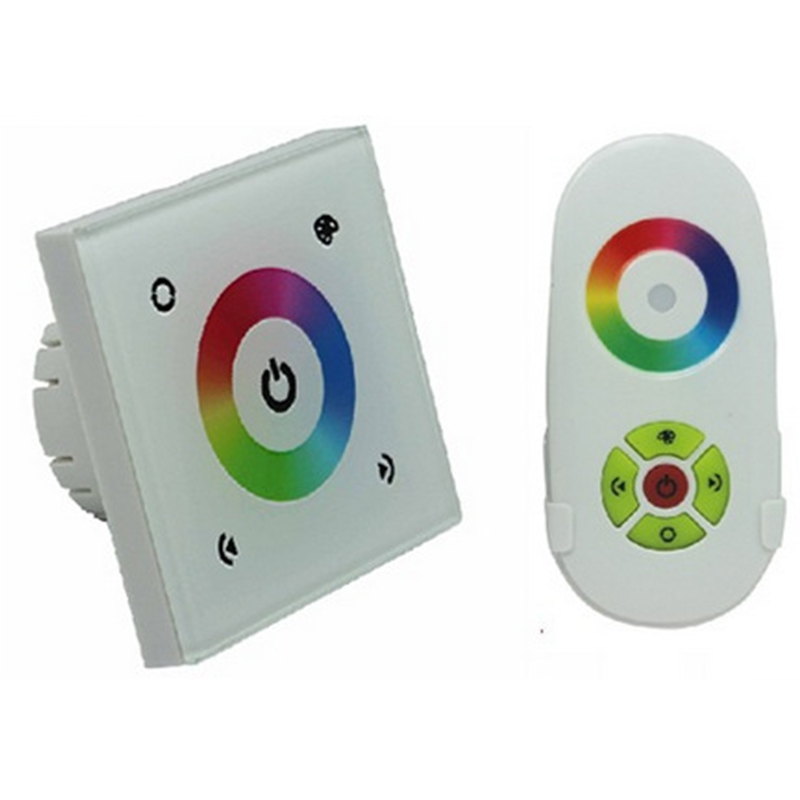

TM082E DC12-24V 3 Channel Low-voltage Touch Panel Full-colour Controller
Touch panel controller is a new high-end controller which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel lights etc., it has many advantages such as convenient to connect, easy to use and others.
Standards and Certifications
Working Temperature: -20-60 ℃
Supply Voltage: DC12~24V
Output Voltage: DC12~24V
Output: 3 channels
Connection Mode: common anode

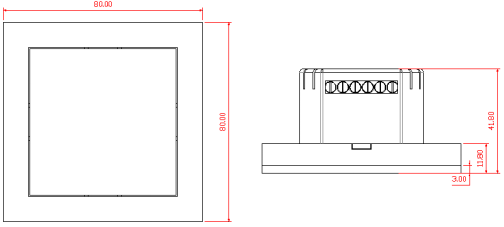

External Dimension: L80 Χ W80 Χ H41.8 mm
Packing Size: L105 Χ W105 Χ H53 mm
Net Weight: 127g
Gross Weight: 177g
Static Power Consumption: <1W
Output Current: <4A (each channel)
Output Power: DC12V<144W, DC24V<288W
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
