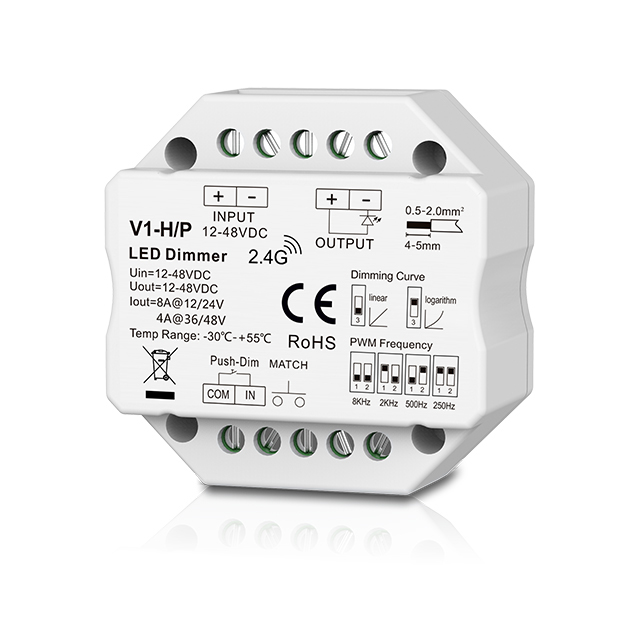

1CH*6A/8A 12-48VDC PWM Dimmable RF CV controller V1-H/P

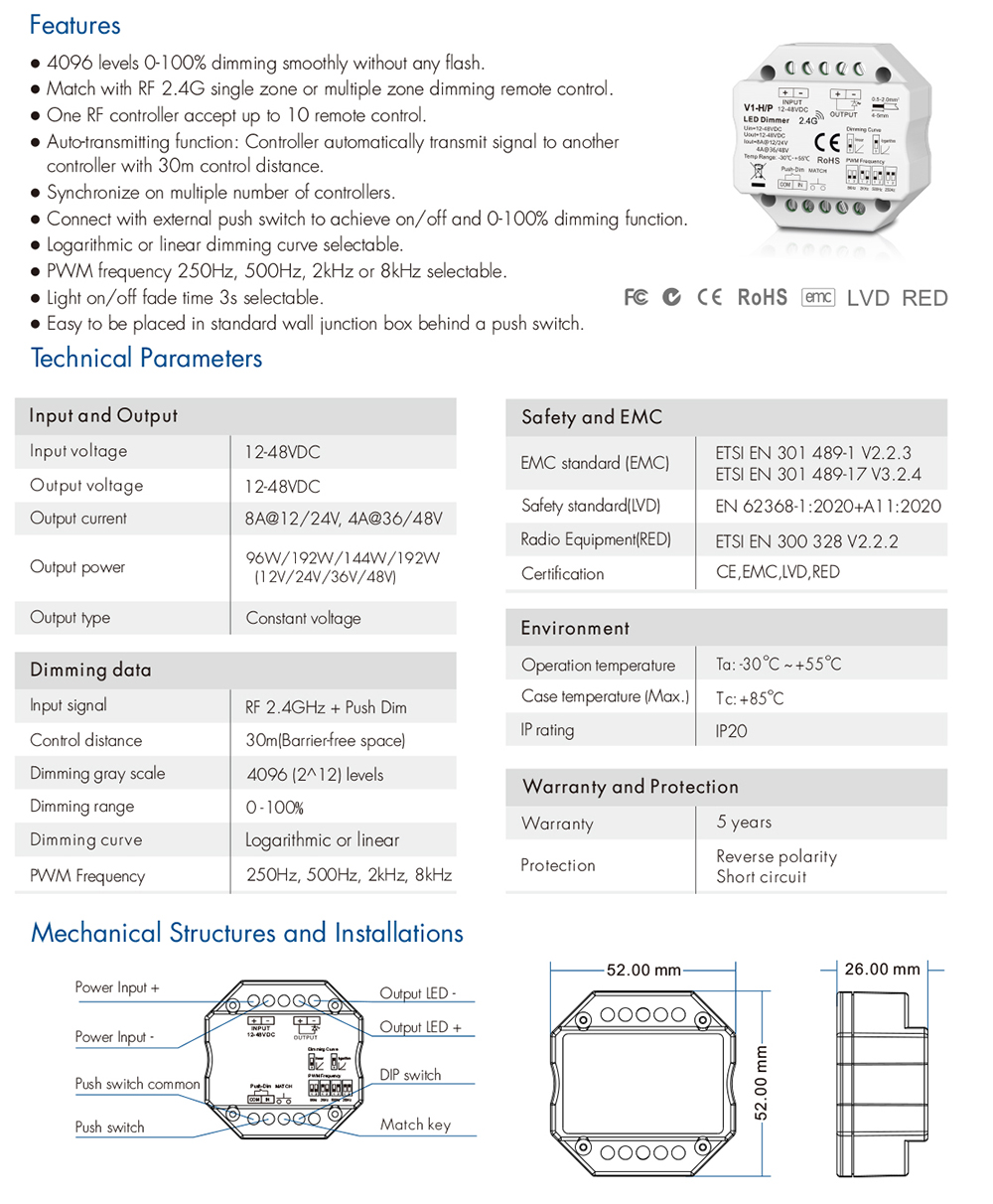

● 4096 levels 0-100% dimming smoothly without any flash.
● Match with RF 2.4G single zone or multiple zones dimming remote control.
● One RF controller accepts up to 10 remote control.
● Auto-transmitting function: Controller automatically transmits signal to another controller with a 30m control distance.
● Synchronize on multiple controllers.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
● Logarithmic or linear dimming curve selectable.
● PWM frequency 250Hz, 500Hz, 2kHz or 8kHz selectable.
● Light on/off fade time 3s selectable.
● Easy to be placed in a standard wall junction box behind a push switch
Input voltage: 12-48VDC
Output voltage: 12-48VDC
Output current: 8A@12/24V 4A@36/48V
Output power: 96W@ 12V 192W@24V 144W@36V 192W@48V
Output type: Constant voltage
Operation temperature: Ta: -30C~+55"C
Case temperature (Max.): Tc:+85"C
IP rating: IP20
Input signal: RF 2 4GHz + Push Dim
Control distance: 3Om(Barrier-free space)
Dimming gray scale: 4096 (2 12) levels
Dimming range: 0-100%
Dimming curve: Logarithmic or linear
PWM Frequency: 250Hz, 500Hz, 2kHz, 8kHz
Warranty and Protection
Protection：Reverse polarity Short circuit
Standards and Certifications
