30° Lens Aluminum LED Channel For 10mm LED Rope Lights
- $49.98 $23.9852% off
- $45.00 $32.9827% off
- $30.00 $24.9817% off
- $59.98 $19.9867% off
This 10mm/0.39in inner width led channel supports surface mounting with 30 degrees lens beam angle, perfect for wall-grazing lighting and accent lighting appalications, suitable for COB led strip lights. LED aluminum channels as a linear lighting fixture play a role in the led light distribution, led heat management, and led strip protection. We provide 3 kinds of PC material led diffusers, clear, semi-clear, or opal matte diffuser, different light diffuser has different lighting effect. And silver, white, and black aluminum channel colors are available. The aluminum led strip channel length can be cut into any length to meet your needs.

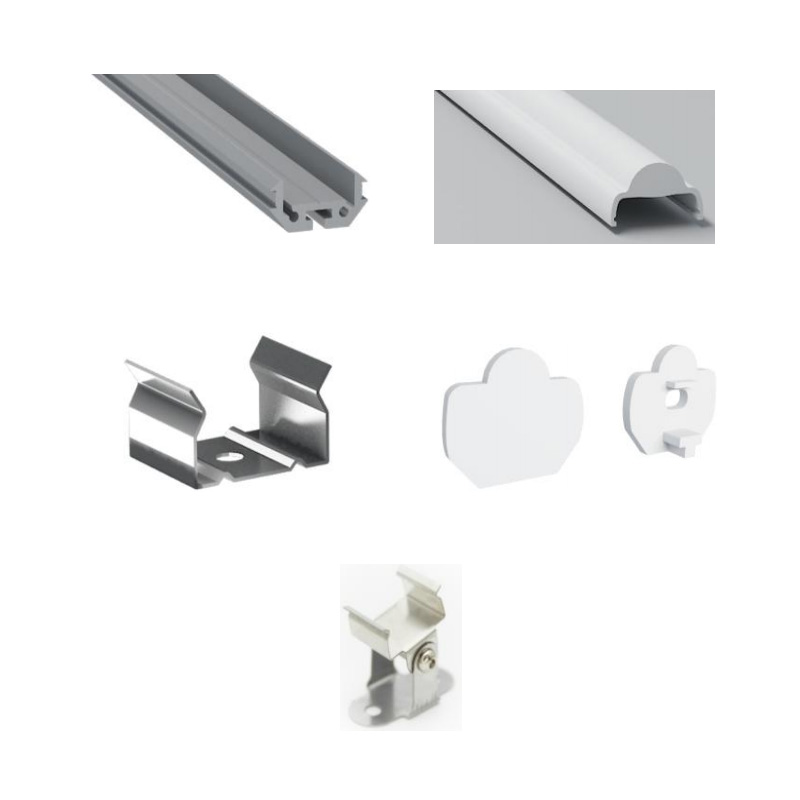

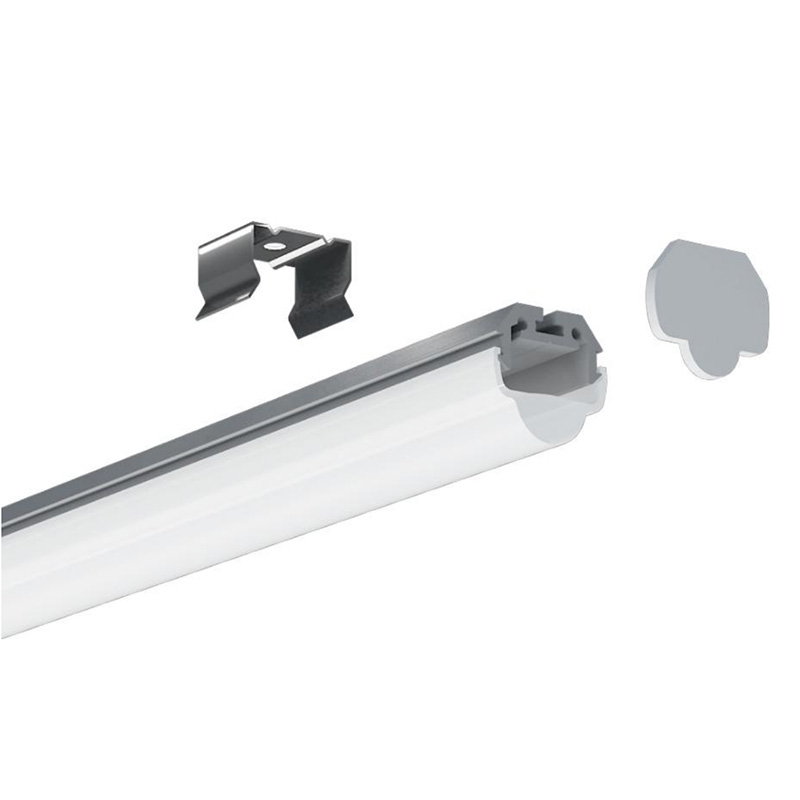

This led diffuser channel comes with end caps, mounting clips, and optional swivel brackets, can be mounted in walls, furniture, or other indoor led linear lighting projects. Endcap without hole to protect the led tape light from dust and external damage. End cap with wire hole to let the led lighting strip connect the led dc power supply or the led controller to power or control the led strip lighting.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required.
The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PC opal microprism diffuser /PC clear microprism diffuser / PC semi-clear difuser|
|Accessory||End cap without hole, end cap with wire hole, mounting clips, swivel brackets(optional)|
|Apply to||8mm/10mm 5050/2216/2110/5630/5730/COB/CCT flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
Residential lighting: wardrobe, cabinet, kitchen, furniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
