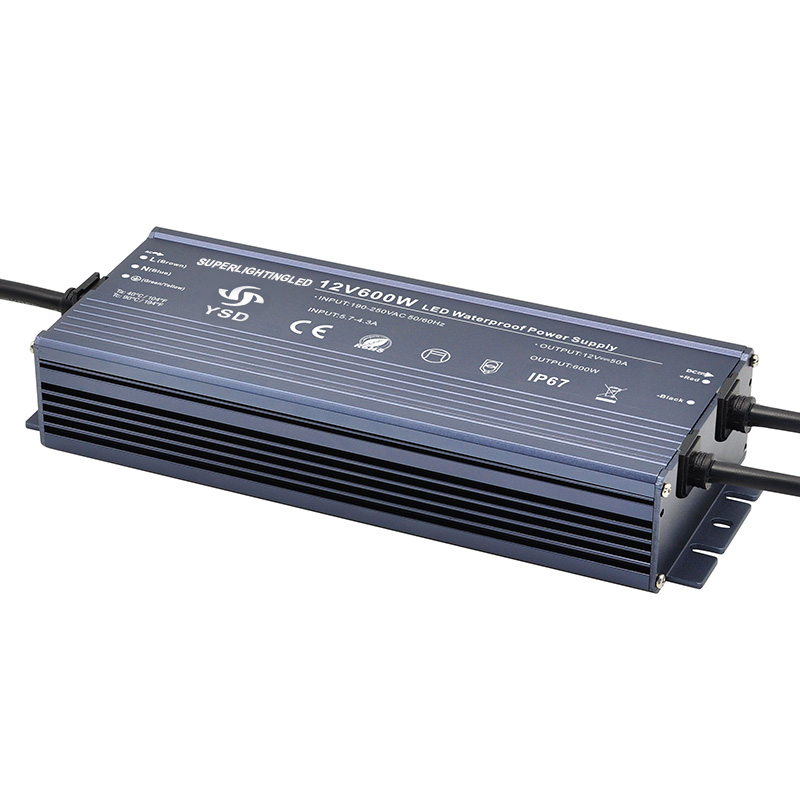

AC220V 600W50A DC12V Ultra Slim Constant Voltage Outdoor Waterproof IP67 LED Power Supply For Outdoor Waterproof LED Lights
This is a DC12V 600W50A ultra slim constant voltage high quality waterproof IP67 protection grade power supply for LED lights. Ensure that the LED lamp is used indoors or outdoors for a long time, short circuit/overload/overheat protection. 100% full load aging test, free air convection cooling, long service life, product provides three-year warranty. The average working time is no more than 50,000 hours. The product has passed CE certification, which complies with the world lighting safety regulations

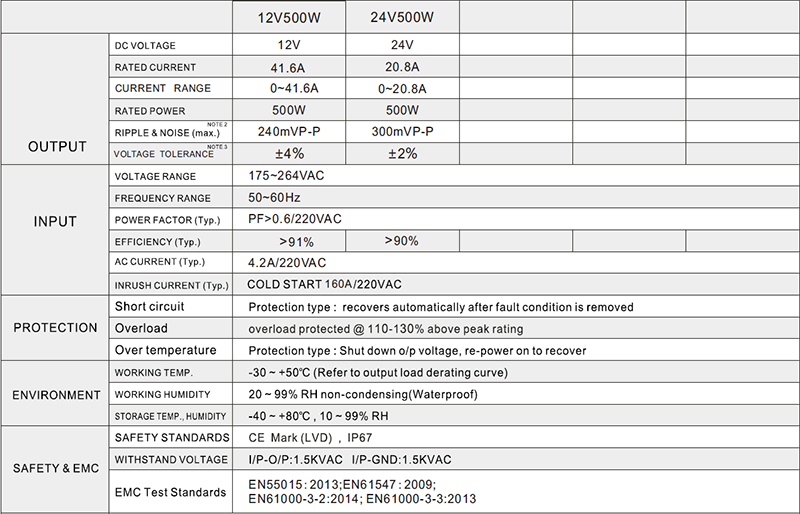

1. All parameters NOT specially mentioned are measured at 220VAC OR 110VAC input rated load and 25°C of ambient temperature
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12''twisted pair-wire terminated with a 0.1 uf & 10uf parallel capacitor
3. Tolerance: includes set up tolerance, line regulation and load regulation
Standards and Certifications
Product Type: LED Constant Voltage Waterproof Power Supply
Protect Level： Waterproof IP67
Working Temperature: -30°C~50°C / 20% ~ 99% RH (no frost)
Store Temperature: -40°C~80°C / 10% ~ 99% RH (no frost)
Output Voltage： DC12V
Output Current： 50A
DC Output Power: 600W
Output Channels: 2 channels
Average working no trouble: ＞50, 000 hours
Soft Switch Technology: Efficiency>91%.
Protect Function: Short circuit, Overload, Over temperature
Input Frequency: 50-60Hz
Overload protection: 110% - 130% above, peak rating
1 x 12V 600W Constant Voltage waterproof IP67 power supply
1 x Product package box
