Bluetooth Addressable Dream Color IR Remote LED Controller
This Bluetooth LED controller can be used for mobile phones with Apple and Android 4.3 and above systems, intelligently control the LED color, brightness, and color temperature of the pixel LED light strip through the mobile APP, set various flashing patterns, adjust the lights and music to dance together, and turn off the LED lights at a distance and other functions, you can also use the infrared remote to control, the function is powerful. You can set the function mode and music mode at will. The APP has a variety of built-in color change modes and more than 212 kinds of dynamic mode control. It can adjust the color and brightness of 160,000 colors of dream color addressable LED strips and adjust the brightness and color temperature of single color LED strip lights. Play mobile phone music or turn on a sound player, you can make the LED light change color and brightness with the music rhythm.
Addressable LED Strip Lights Guide:
Standards and Certifications
|Type||Bluetooth APP / IR Remote|
|Controllable IC Chips||300 pixels|
|Output Signal||SPI (TTL) Digital Signal|
1. Scan the product QR code to download the APP and register an account.
2. Connect the music controller and the led light strip, and turn on the power.
3. Open the APP automatically connect the LED strip light.
4. Use APP to control the color and light mode of the light strip, adjust the brightness, switch the machine, set the scene, and time, etc.
1) Enter the scene page, the APP presets 12 kinds of dynamic scenes (falling, rainbow, snake, chasing, flying, colorful flags, collision, rebound, sparkle, jump, breathing, flashing). Each dynamic scene can be edited and changed in color, and it is not possible to rename or add new scenes.
2) Enter the music mode (divided into local mode and APP mode), the local mode is external voice control, including five music modes: passion, cheerful, soft, brisk, and flowing. The APP mode includes three types: music rhythm, game, and romance. The LED lighting can change with the rhythm of the music.
3) Enter the setting interface, you can set the delayed shutdown and timing to turn off the light, turn on the light, turn on the light and dimming, turn on the light and set the scene.

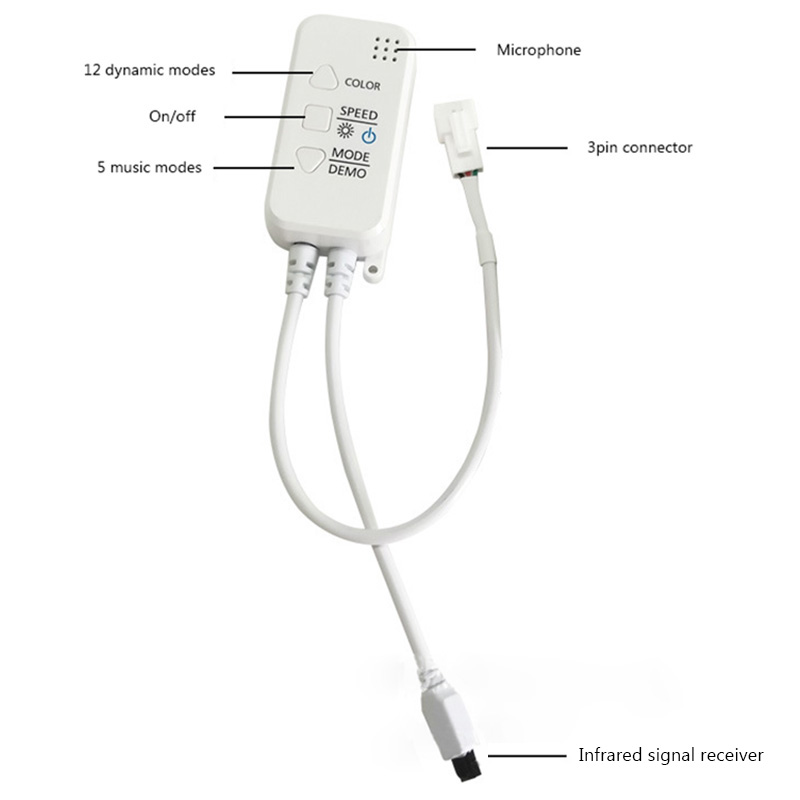

4) This led controller can be controlled by smart phone APP and intelligent voice, and can also be controlled by controller buttons and remote control. It is simple and clear, has power-off memory, is convenient and practical, and avoids repeated settings.
