Product Information

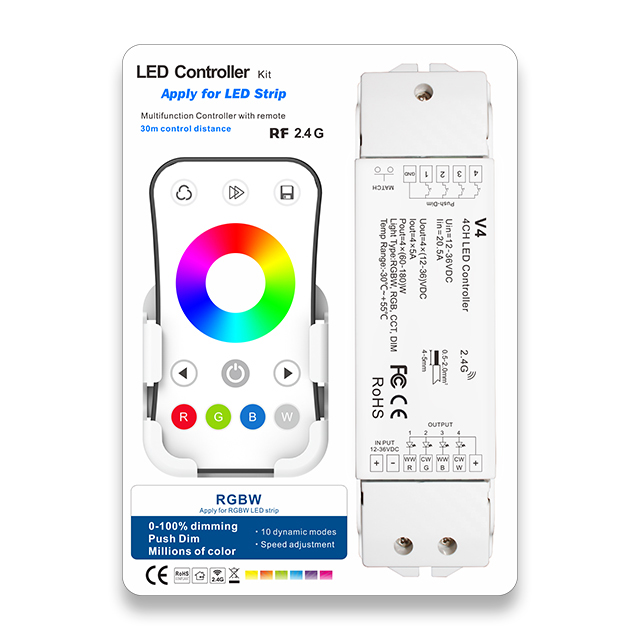

Achieve complete and dynamic control over your RGBW LED strip lighting with the SkyDance V4+R8-1 Controller Kit. This all-in-one package pairs the high-performance V4 constant voltage receiver with the intuitive R8-1 RF remote, providing a seamless, out-of-the-box solution for sophisticated lighting projects. Delivering a robust 5 Amps per channel across four channels (RGB+W), this kit is engineered to power longer or more demanding LED strip installations without signal loss or voltage drop.
Perfect for creating vibrant color scapes, subtle ambient moods, and crisp, pure white light, the V4+R8-1 kit offers smooth, flicker-free dimming and reliable wireless performance for both residential and commercial applications.
Key Features
Complete Controller Kit
Includes both the V4 receiver and R8-1 remote for a plug-and-play lighting control solution.
High Power Output
Delivers a robust 5A per channel (20A total), ideal for powering longer runs of RGBW LED strips.
4-Channel RGBW Control
Provides independent control over Red, Green, Blue, and White channels for precise color mixing and true white light.
Wireless RF Remote
Features a user-friendly R8-1 remote with a 30m range for convenient operation without line-of-sight.
Ultra-Smooth Dimming
Achieve flicker-free brightness adjustments from 0.1% to 100% with 4096 levels of dimming resolution.
Auto-Transmitting Function
Extends control range by allowing one receiver to pass signals to another within a 30m radius.
Technical Highlights
- One receiver can be paired with up to 10 compatible remote controls.
- Includes 10 built-in dynamic color-changing modes with adjustable speed.
- Constant voltage design ensures compatibility with standard 12V and 24V DC LED strips.
- Secure 2.4GHz wireless technology provides stable and responsive control.

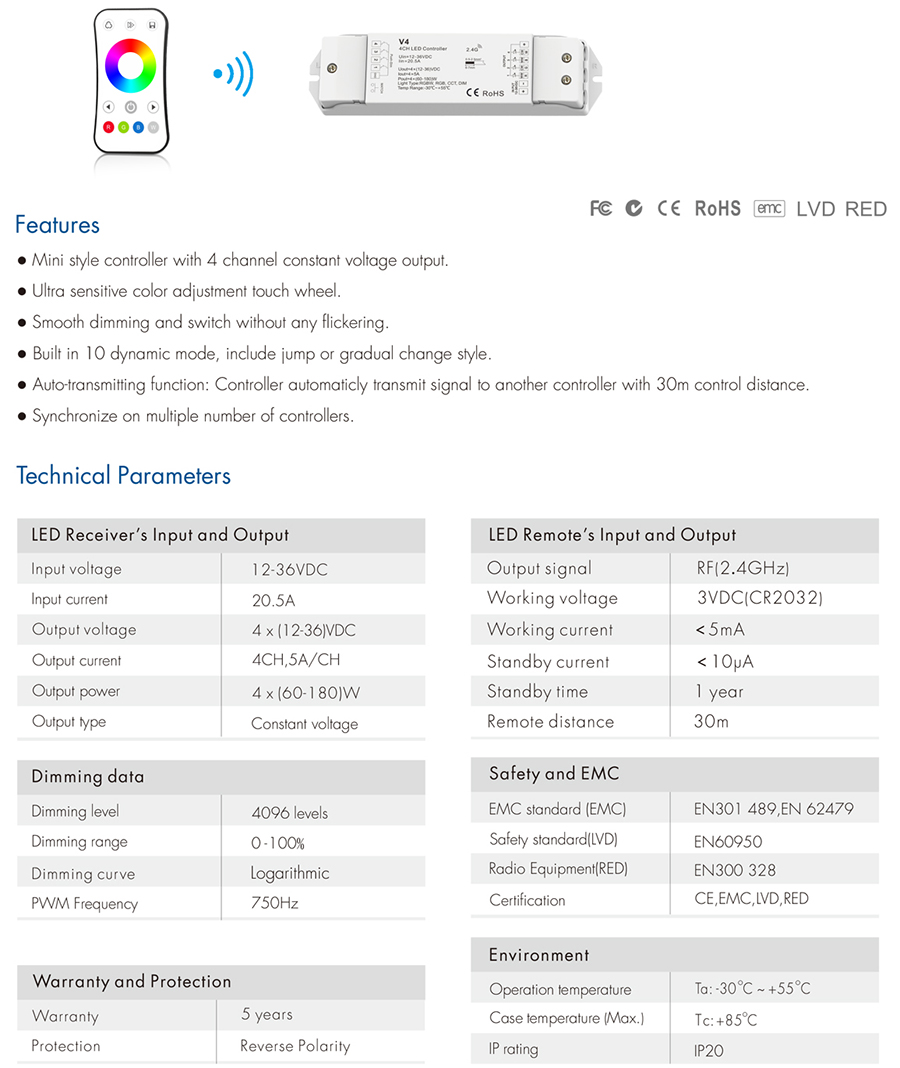

Product Specifications
| Parameter | Details |
|---|---|
| Kit Model | V4+R8-1 |
| Receiver Model | V4 |
| Remote Model | R8-1 |
| Input Voltage | 12-24V DC |
| Output Current | 4 Channels, 5A/Channel |
| Total Output Current | Max 20A |
| Output Power | 240W (12V) / 480W (24V) |
| Output Type | Constant Voltage (CV) |
| Control Signal | RF 2.4GHz |
| Remote Distance | 30m (98ft) in open area |
| Dimming Levels | 4096 levels |
| Dimming Range | 0.1 - 100% |
| PWM Frequency | 500Hz (flicker-free) |
| Working Temperature | -30°C ~ 55°C |
| Certifications | CE, EMC, LVD, RoHS |
Application Scenarios
How to Control & Use This Controller
- 1. Wiring: De-energize your power supply. Connect the 12-24V DC power supply to the receiver's 'INPUT' V- and V+ terminals. Connect your RGBW LED strip to the 'OUTPUT' V+, R, G, B, and W terminals, ensuring correct polarity.
- 2. Pairing the Remote: Power on the receiver. Short press the 'Match' key on the V4 receiver. Immediately press an on/off key or zone key on the R8-1 remote. The connected LED strip will flash to confirm successful pairing.
- 3. Operation: Use the R8-1 remote's color wheel to select static colors, use the brightness keys to dim, and use the mode keys to cycle through the 10 built-in dynamic effects.
- 4. Un-pairing: To delete a pairing, press and hold the 'Match' key on the receiver for 5 seconds until the connected LED light flashes, indicating all paired remotes have been removed.
- Ensure your power supply voltage (12V or 24V) exactly matches the voltage requirement of your LED strip.
- Do not exceed the maximum load of 5A per channel or a total of 20A for the entire receiver.
- Double-check all wiring connections for correct polarity before applying power to prevent damage.
- Install the receiver in a dry, well-ventilated location away from direct heat sources.
What's in the Box
- ✓1 x V4 4-Channel RGBW CV LED Receiver
- ✓1 x R8-1 RF Remote Control
- ✓1 x User Manual
Frequently Asked Questions
Q: What is the main advantage of this V4+R8-1 kit?
A:This kit provides a complete, factory-paired solution. You get a high-power 5A/channel receiver and a compatible remote control that are guaranteed to work together perfectly right out of the box.
Q: Can I control multiple areas independently with this kit?
A:The included R8-1 remote is a single-zone remote. To control multiple zones independently, you would need a multi-zone SkyDance remote and a separate V4 receiver for each zone.
Q: What is the maximum length of RGBW LED strip I can connect?
A:This depends on the power consumption (W/m) of your strip. The controller's maximum output is 240W at 12V or 480W at 24V. Calculate your strip's total wattage to ensure it does not exceed these limits.
Q: Is the V4 receiver waterproof?
A:No, the V4 receiver is designed for indoor use only and has no IP rating. It must be installed in a dry location protected from moisture.
Q: How do I access the dynamic color-changing modes?
A:The R8-1 remote has dedicated 'Mode' buttons that allow you to cycle through the 10 built-in dynamic effects. You can also adjust the speed of these effects using the 'Speed' buttons.
Q: Can I pair more than one remote to a single V4 receiver?
A:Yes, one V4 receiver can be paired with and controlled by up to 10 compatible SkyDance RF remotes.
Q: What happens if the power goes out?
A:The controller has a power-off memory function. It will return to the last used color, brightness, and mode setting when power is restored.
