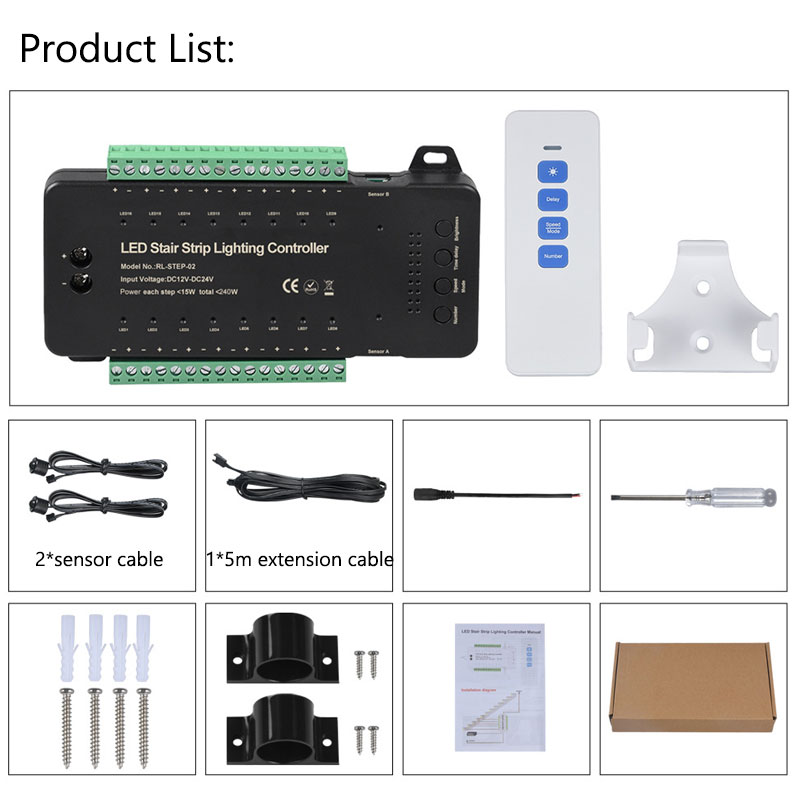

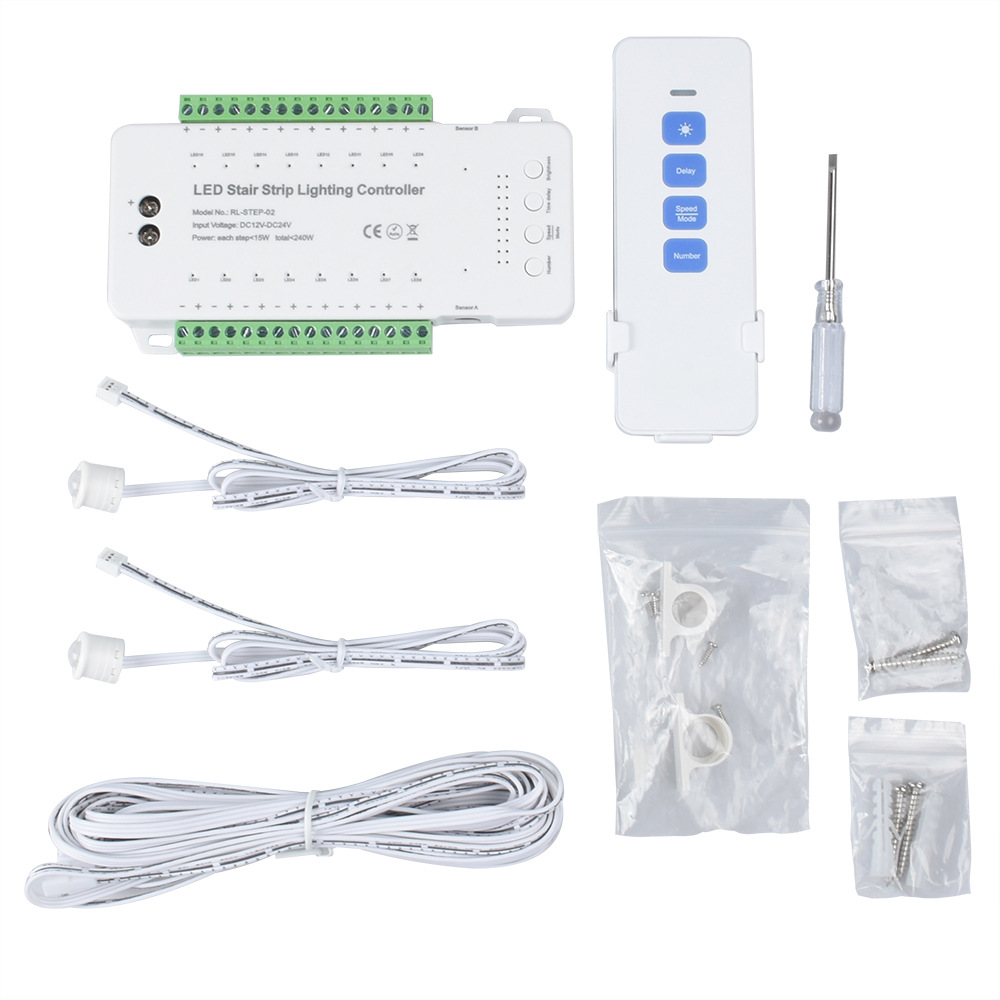

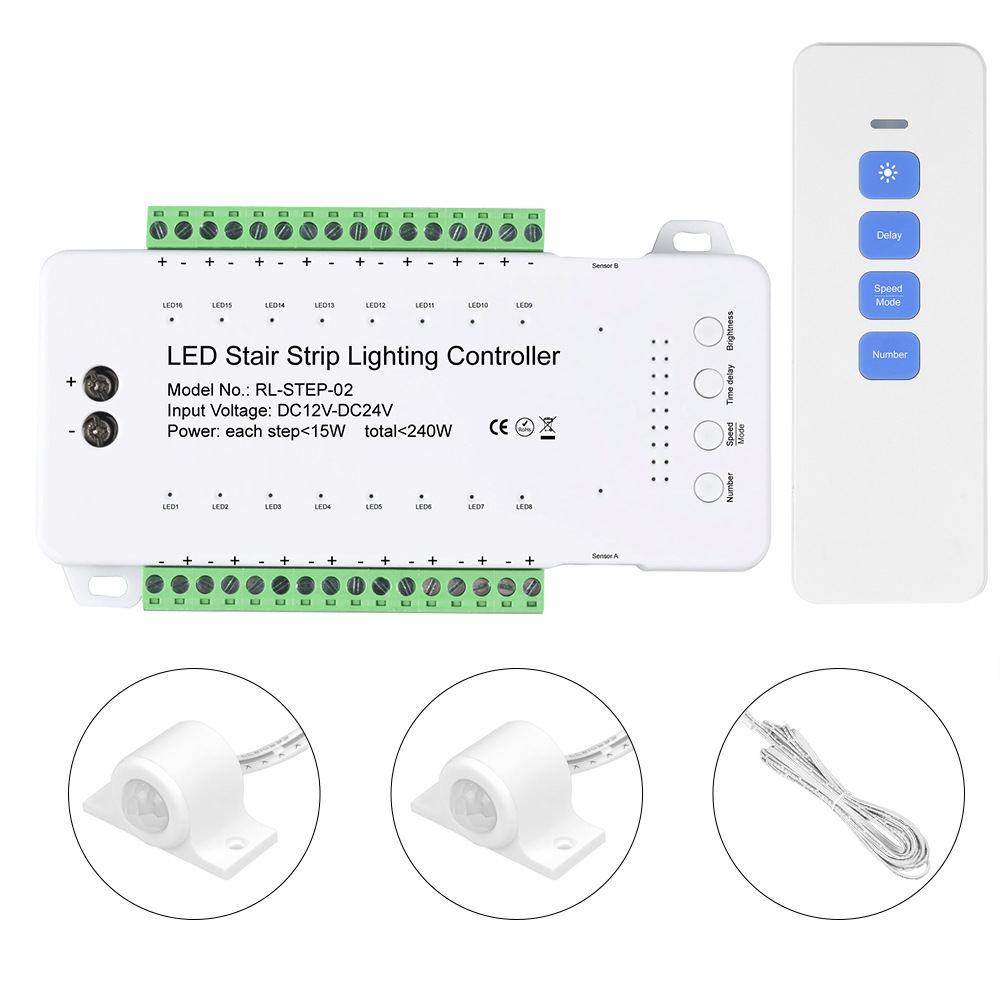

16CH LED Motion Sensor Light Controller With Remote For Staircase Lighting
PIR motion sensor light controller with remote for led staircase lighting, it can control 16 led step lights driven by DC12V or DC24V low voltage, with two PIR motion sensors, this led stair lighting controller can automatically sense your movements up and down the stairs, because the PIR sensors are installed at each end of the stair. And then the stair led lighting will turn on, you don't need to switch it manually. The speed and brightness of the step lights can be adjusted.
|Input Voltage:||DC12-24 V|
|Control Channel:||16 steps|
|Max Single Step Power:||Each step<15W, total<420W|
|Sensor Method:||PIR motion sensor|
|Control Method:||Controller buttons (Number, Mode/Speed, Time Delay, Brightness) & Remote|
1. Step Number: Long press the "number" key to set the number of the stair steps, short press to select the step you want to set, and long press to save the setting. Each led step light corresponds to a blue signal light.
2. Mode: Long press the stair controller speed/mode button to enter the mode selection, short press to select the specific stair light mode, and long press to save the mode selection. Including all stair lights on at the same time, stair lights on in sequence, or stair light chase and other stair light modes.
3. Speed: There are 9 speeds in total, corresponding to the red signal lights, short press to set.
4. Time Delay: 9 gear time settings, corresponding to the blue signal lights.
5. Brightness: Short press to adjust the brightness of the led stair light.
PIR Motion Sensor LED Stair Lights Installation: Two PIR motion sensors can be mounted on the stair surface or embedded in the stair treads.
More led stair lighting ideas are here.
