DC5/12/24V 800 Pixels Max 36 Channels Human Body Sensor Smart LED Stair Lights Controller
- $30.00 $25.9813% off
- $190.00 $159.9816% off
- $1.20 $0.9918% off
- $79.98 $54.9831% off
- $29.98 $12.9857% off
Special Price: $99.98

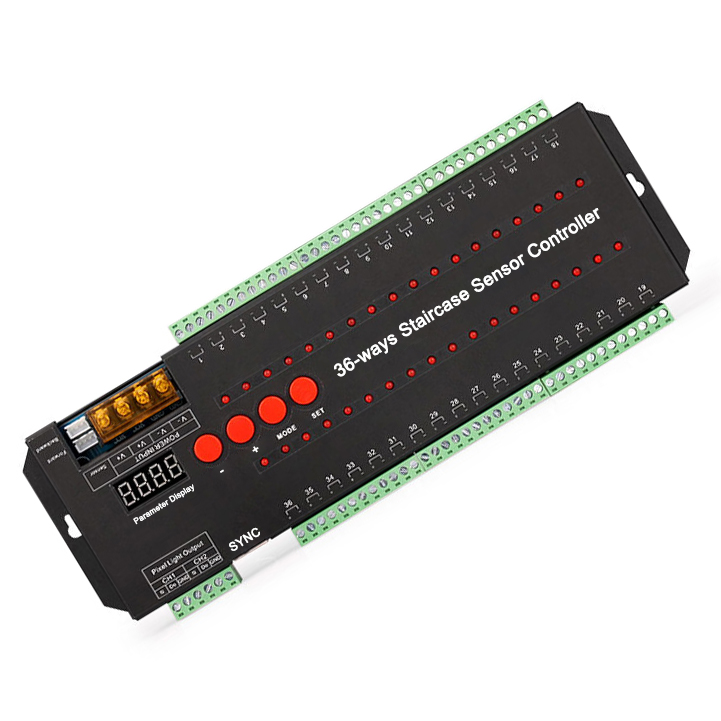

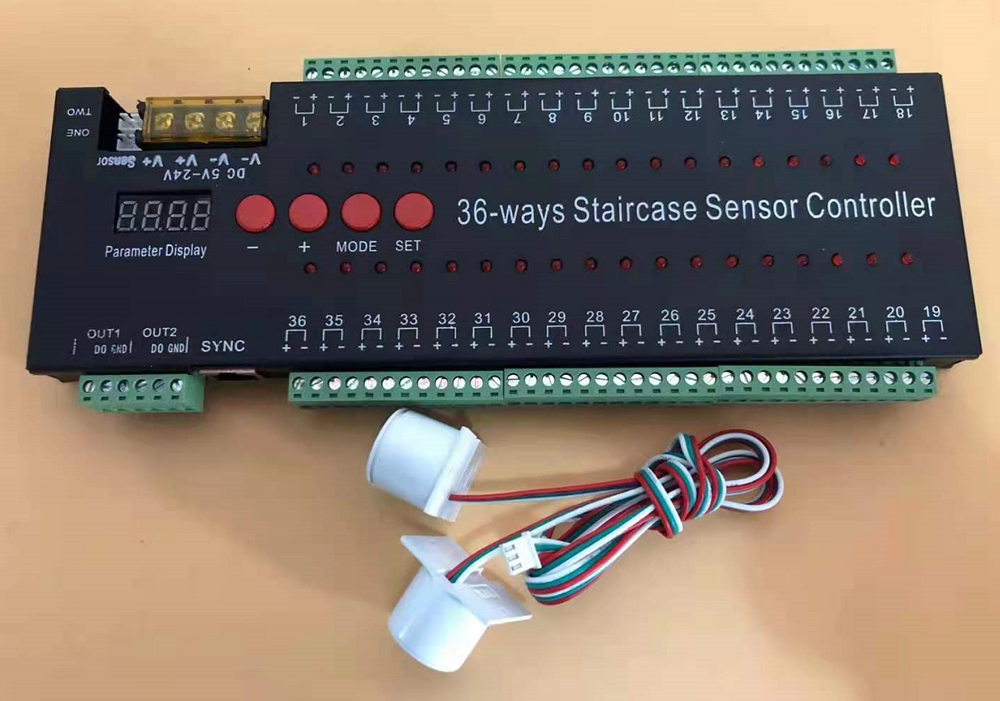

The controller has four buttons and a front digital display. After starting, the digital tube will display XX-L XX representing the effect speed of the 1903 light bar. You can directly press SPEED + or SPEED- to adjust the speed of light flow, it is best to match the speed of people up and down the stairs. There are four buttons on the controller panel, namely SPEED +, SPEED-, MODE, SET. Through the SET button, you can adjust the length of the monochromatic ladder lamp and 1903 IC light bar, the speed of the light bar flow, and the lighting effect of the light bar. There are six options for the SET button. Press the SET key to enter LXXX, where L is the number of points that will drive the 1903 light bar. After adjusting the quantity, press the SET key to enter PLXXX. "XX" is the effect, which can also be adjusted by the two buttons of SPEED + SPEED-.
Automatic LED Motion sensor stair lighting
With this controller, you can easy DIY your own intelligent stair lighting,

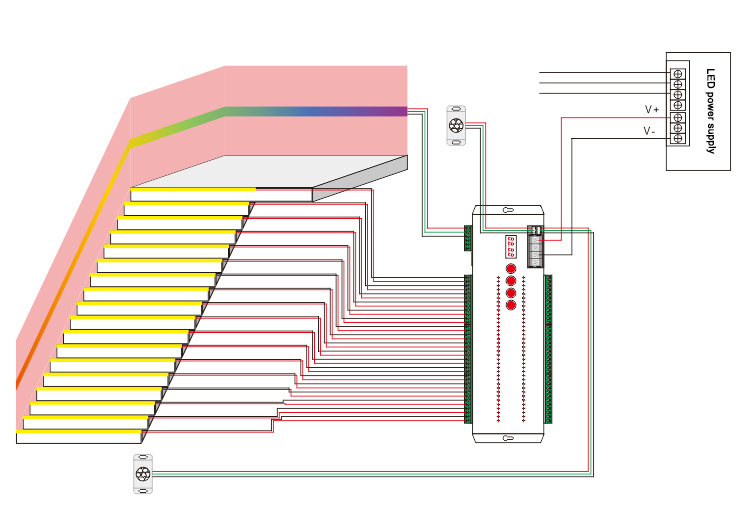

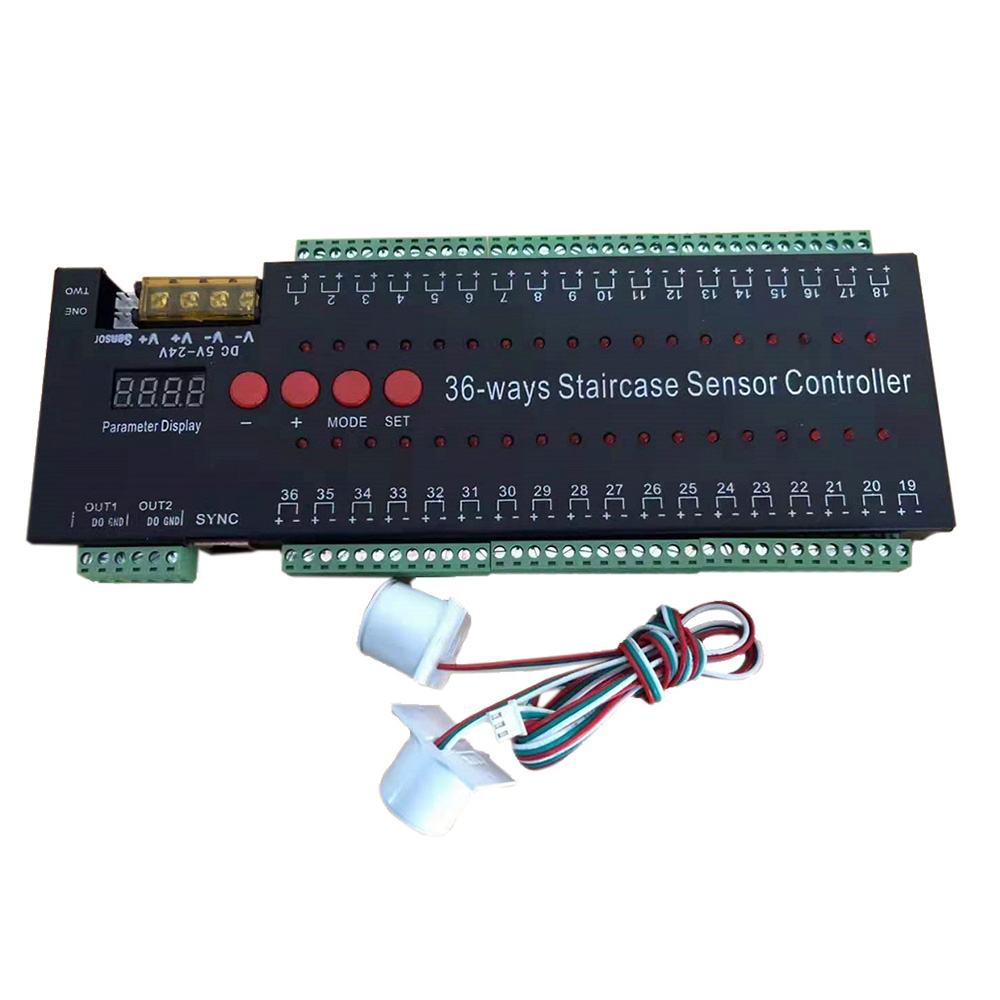

It has two human body motion sensor, one installed on upstairs, another on downstairs, when you pass, it can sense you, and light up the stairs background light one by one to your ahead,
when you go upstairs, it will light up the lights from downstairs to upstairs,
and if you are going downstairs, it will light up the lights one by one from up to down.
It also drive LED horse racing light, which was installed on the stairs side, like wall or handrail.
Run speed is adjustable, and delay time, you can easy make suitable smart-stair-way to your self.

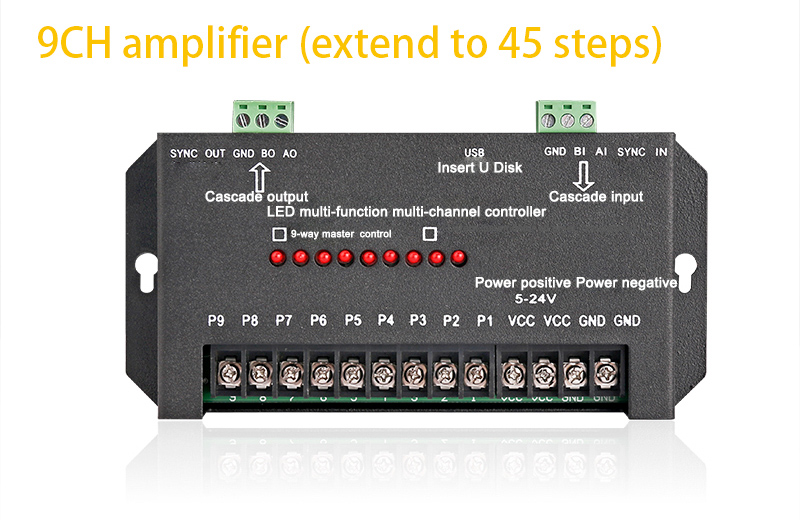

The main controller can drive 36 stairs light, you can also add amplifier to get 9 stairs more, it is 45 stairs in total.
NOTE: If the number of steps is less than 36 floors, we recommend that you only buy one controller. We will send you a 36CH controller. You can purchase a human sensor controller separately. Please note: For your convenience, You need to buy two human sensor controllers, and you need to install one upstairs and downstairs. Please see the details page below for the specific installation diagram.

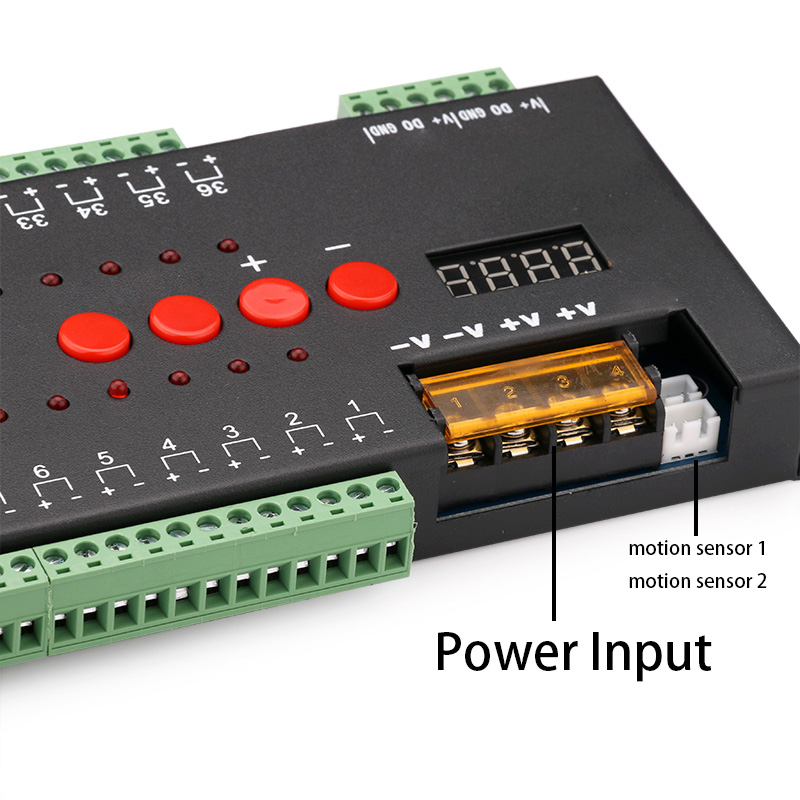

Working voltage: DC5/12/24V (3 in 1)
Output current: 1.5A/CH
Channel quantity: 36CH
Power: 5V ~ 350W
12V ~ 700W
24V ~ 1400W
Horse racing light: 800 pixels max.
* if you use DC12V SMD5050 60 LEDs/m strip light, each stair can be 1.5m max.
if you use DC24V SMD5050 60LEDs/m strip light, each stair can be 2.5m max.
Application: production of the led screen, led wall, advertising board, suitable for hotel, KTV, bar, advertising company, decoration company, urban lighting project, entertainment and leisure place lighting.
36 stairs controller:
1*36CH main controller
45 stairs controller:
1*36CH main controller

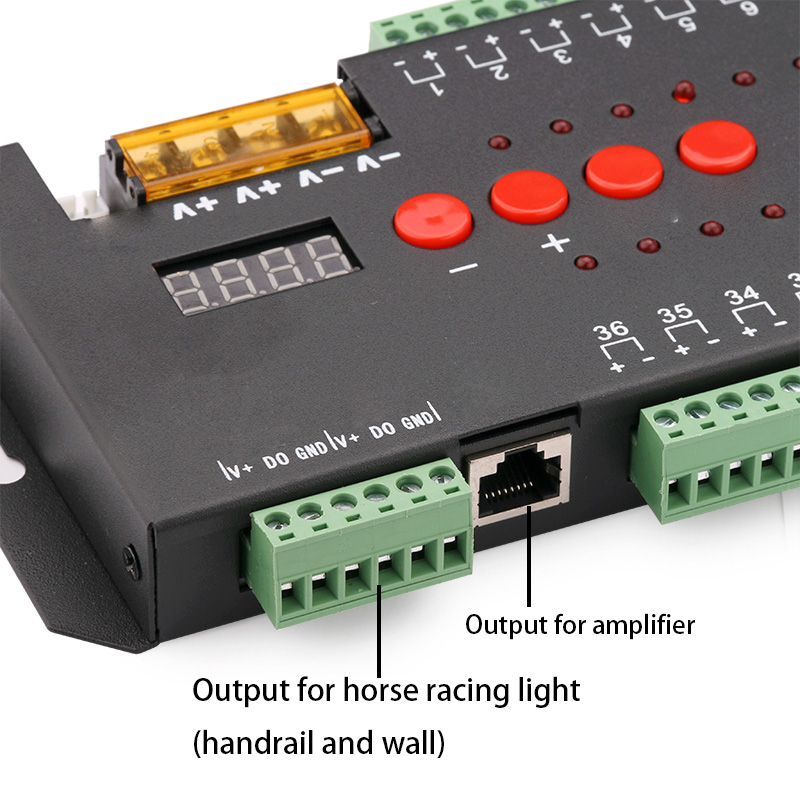

1*Connector for the main controller to amplifier

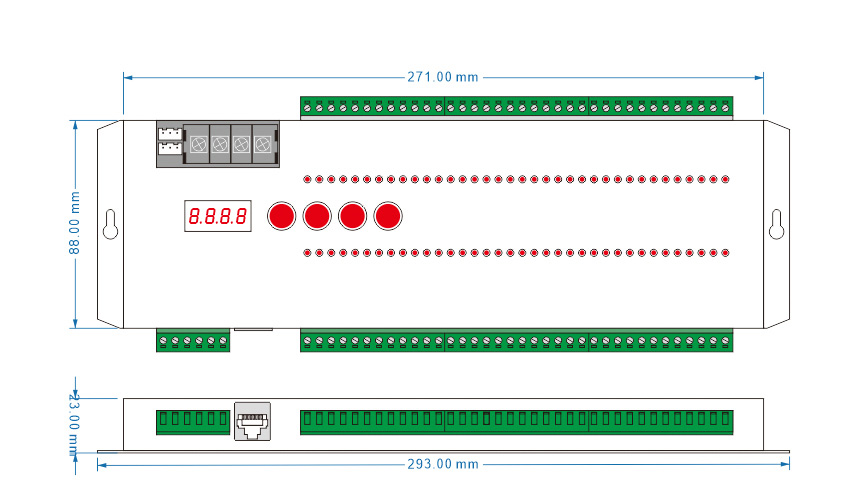

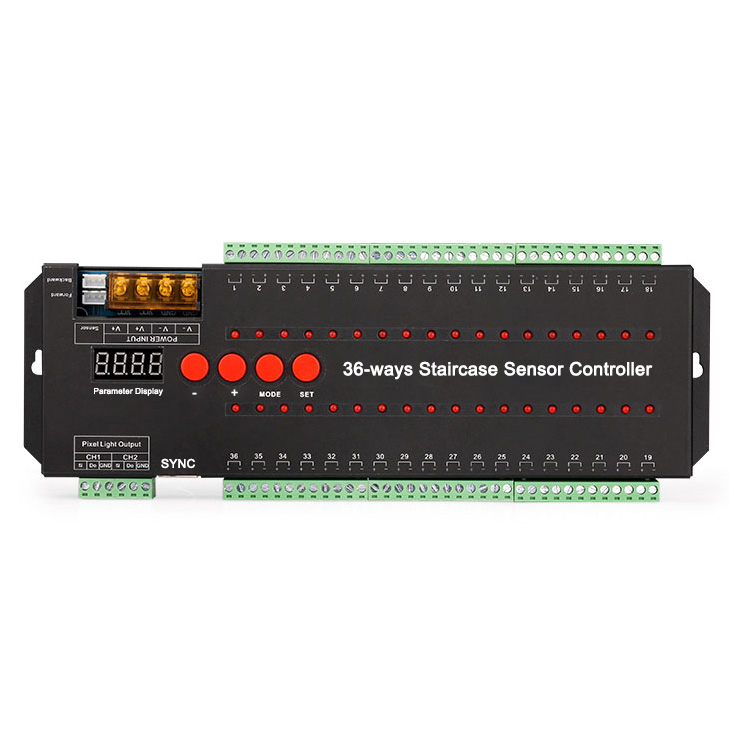

36CH Main controller:

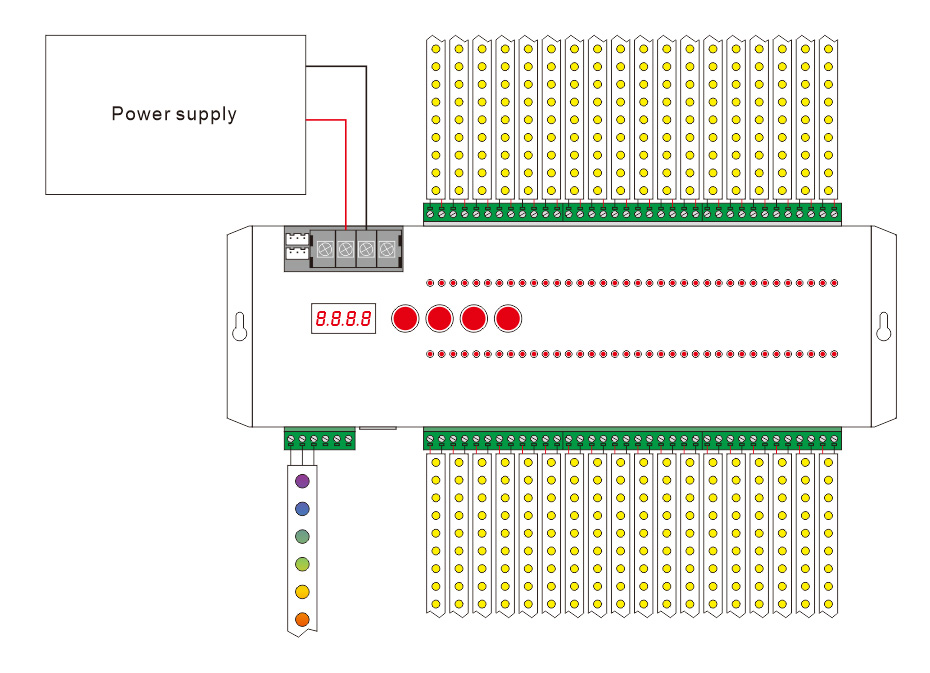

when you are using only power supply:

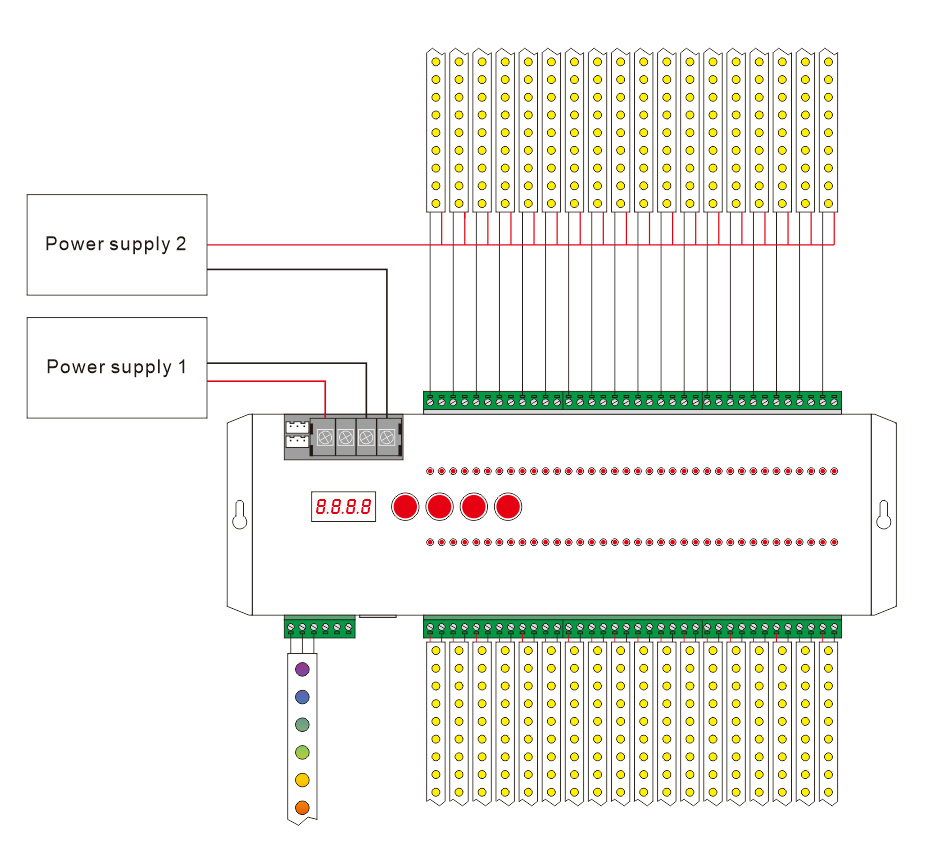

when you are using two power supply:
you can easy set the controller like above code direction, if you can not get the effect you like , please full read the following guide, thanks.
The * in the below words instead of number, please know, thanks.

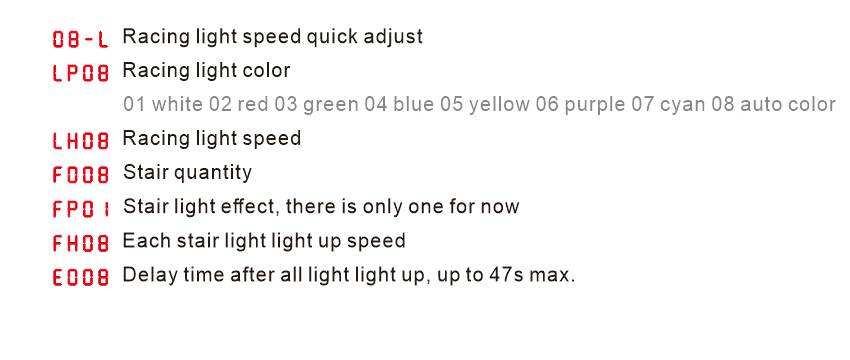

1. When you power on the controller, it will display **-L, it is the speed of horse racing light, which should be installed on the handrail or wall, you can press SPEED +, or SPEED – to adjust its running speed easily.
2. If you want to change more effect, press set to choose options, please.
3. When you press SET, it display L***, it is the pixel of horse, press SPEED+/ SPEED- to adjust. If you use 20IC/m (60LEDs/m) strip light, it can drive about 40m long.
4. When it display LP**, it is color of horse racing light, press SPEED+/ SPEED- to adjust, there is white- red- green- blue- yellow- purple- cyan, and auto changing available to choose.
5. When it display LH**, it is speed of horse racing light, press SPEED+ /SPEED- to adjust.
6. When it display F***, it is the stairs setting, press SPEED+ /SPEED- to adjust, make it same quantity to your stairs.
7. When it display FP**, it is the stair light lighting up mode, it is only one for now, can not be changed.
8. When it display FH**, it is stair lighting up speed, press SPEED+ /SPEED- to adjust, the number rise, the speed down.
9. When it display E***, it is the delay time after all light lighted up, it is not real living time, you can try to adjust it by SPEED+ /SPEED-.
*Horse racing light pixel(L***) * its running speed(LH**) = Stairs quantity(F***) * Its lighting up speed(FH**)
press set again to it display **-L, it will auto store the setting you did, when you reboot the system, it will apply the setting.
