DC12-24V 20A 16CH Dynamic LED PIR Motion Sensor Stair Step Light Controller, Wiring-Free

Model: RL-STEP-05
DC12-24V 20A 16CH Dynamic LED PIR Motion Sensor Stair Step Light Controller, Wiring-Free
  • DC12-24V 20A 16CH Dynamic LED PIR Motion Sensor Stair Step Light Controller, Wiring-Free
  • DC12-24V 20A 16CH Dynamic LED PIR Motion Sensor Stair Step Light Controller, Wiring-Free
  • DC12-24V 20A 16CH Dynamic LED PIR Motion Sensor Stair Step Light Controller, Wiring-Free

Select Specifications:

Starting at: $72.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-19
$72.98
20-49
$71.52
50-99
$70.06
100+
$68.60
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    This stair light controller has more modes than others. With 2pcs PIR motion sensors, it senses your movement up and down the stairs, and then automatically turn on the LED step lights. You can use this controller to make multiple stait light effects.

    The controler comes with a main wire to conenct various 2-pin single color led strip lights, easy to use. By default this controller has 16 channels. The length between two wire conenctors is 13.8", 18ft in total length.

    We provide 3000K/6000K linear dotless COB led strip in the kit, choose according to your needs. Based on the power of your strip and the number of strip lights to calculate how much capacity power supply you need. The required strip length and strip wire length can be customized by contacting us or remarked when placing an order.

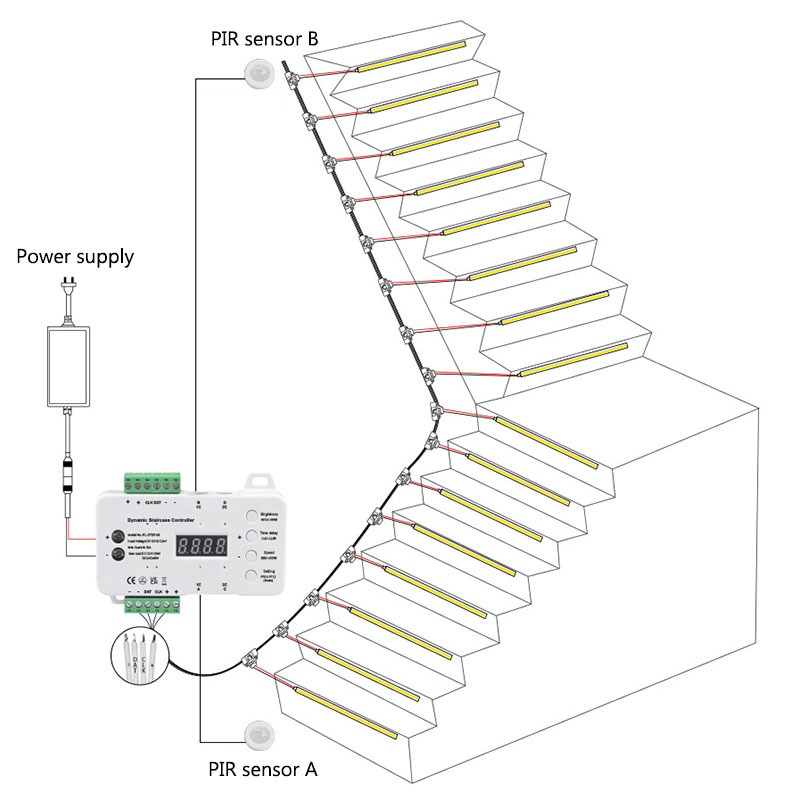

    Conventional wiring VS upgraded wiring

    Conventional wiring: Each step needs a separate wire to connect to the controller, the wiring is complicated.

    Upgraded wiring: One main wire connects all the step lights, easy to install. Max to connect 99 steps.

    Modes Effects
    FF01 All step lights on
    FF02 All step lights on one by one
    FF03 All step lights on with 2pcs steps at the time
    FF04 All step lights on with 3pcs steps at the time
    FF05 1 step light on, moving according to the speed setting
    FF06 2 step light on, moving according to the speed setting
    FF07 3 step light on, moving according to the speed setting
    FF08 1 step light chase, moving according to the speed setting
    FF09 2 step light chase, moving according to the speed setting
    FF10 3 step light chase, moving according to the speed setting
    FF11 Seperated chase, moving according to the speed setting
    FF12 Auto change all modes 01-11



    Standards and Certifications

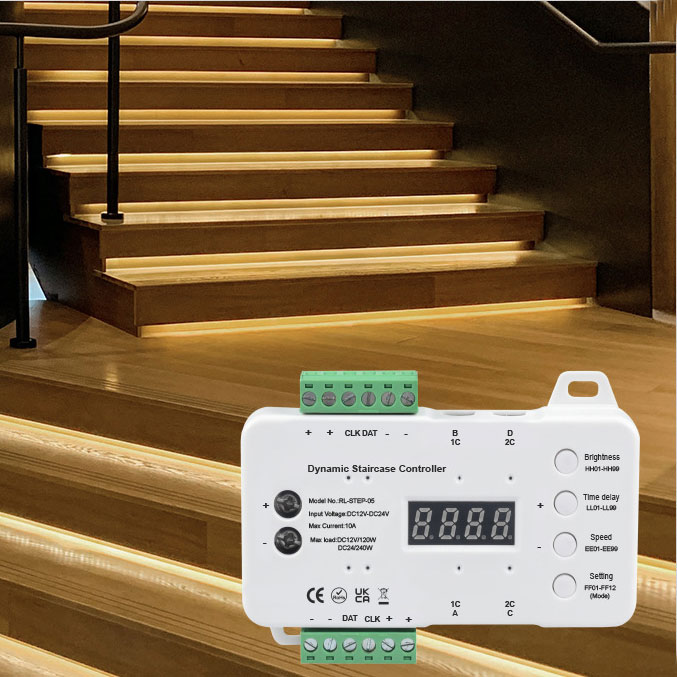

    Type: Motion Sensor LED Stair Light Controller

    Shell Material: ABS

    Working Voltage: DC12-24V

    Max Current: 20A

    Max Steps: 99

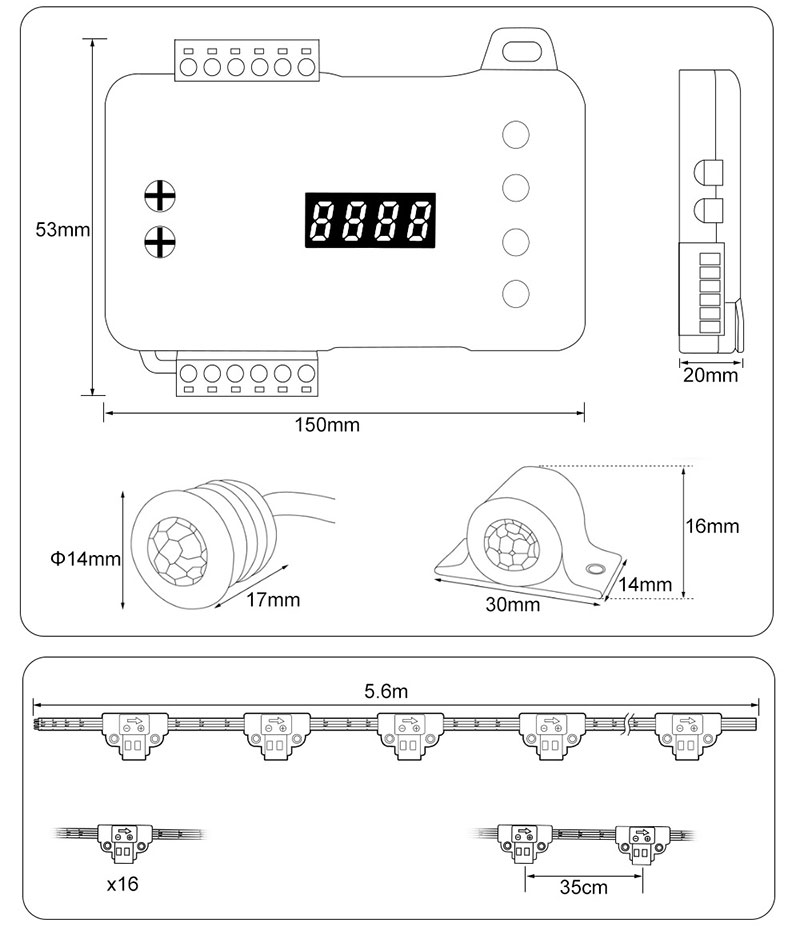

    Controller Size: 150mm*53mm*20mm

    PIR Sensor Size: 30mm*14mm*16mm for surface mount; 14mm*17mm for recessed mount

    Power: Each step < 15W; max load 240W/12V, 480W/24V

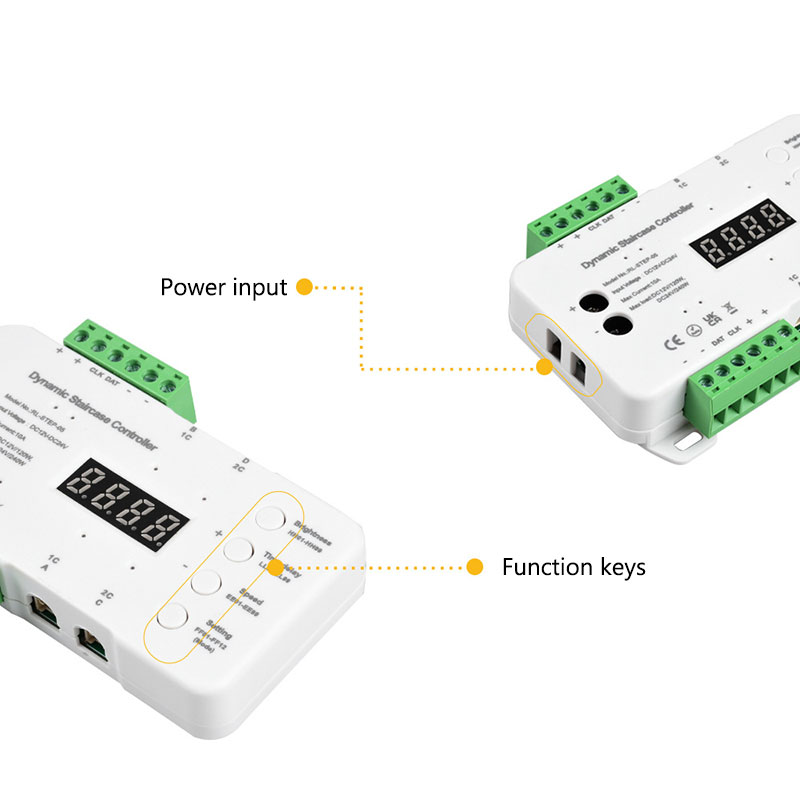

    Function: Mode, brightness, delay time, speed adjustable

    Package List: 1*controller, 2*PIR sensor, 2*1m sensor cable, 1*5m extension cord
