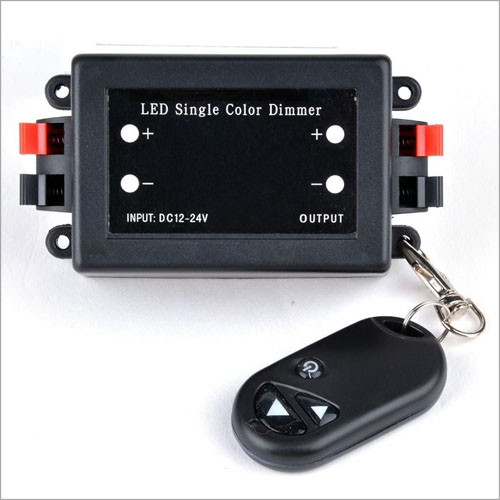

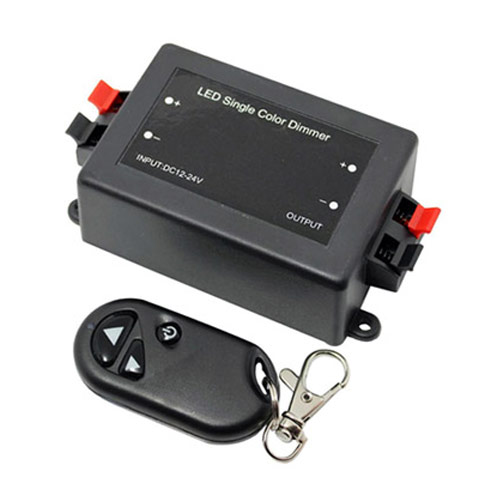

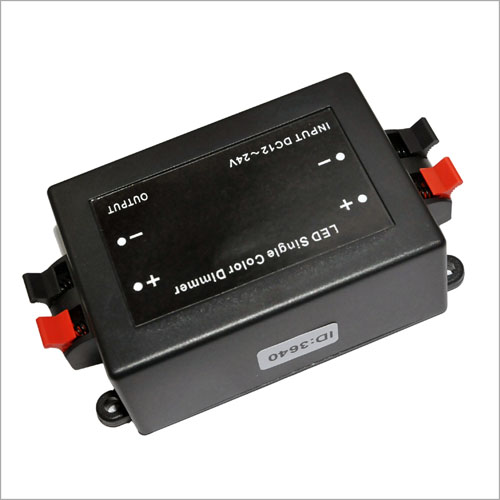

DC12/24V Max 8A , RF Radio Frequency Wireless Remote 3-Key Dimmer Controller for single color led lighting

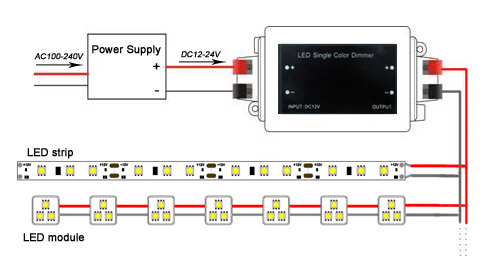

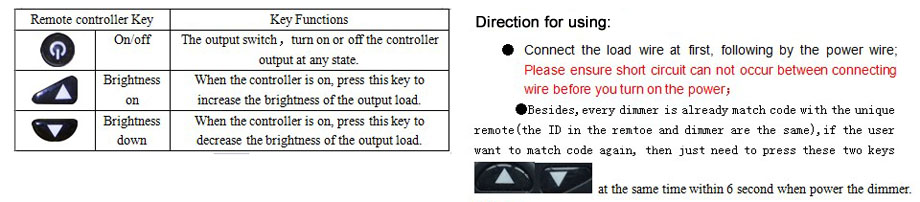

RF dimmer is a controller that can adjust brightness infinitely, its control mode is wireless control, you could adjust light to the appropriate lighting brightness in accordance with your actual need. 3 key RF remote led dimmer 12v CE&RoHS 1.DC12V~24V dimmer 2. 8A dimmer 3.led single color dimmer 4.CE&RoHS Attentions -- Please read this inner manual carefully before using it; -- Connecting the load wire at first, following by the power wire; -- Never connect directly to the AC 220V; -- Please ensure that short circuit can not occure between connecting wires before turning on the dimmer.
Supply voltage： 12V／24V
Static power consumption： <1W
Output： 1 channel
Output current： <8A
Working temperature: -20~60°C
Supply voltage: DC 12~24V is default, DC 5V is optional
Control mode: universal is default, unique is optional
Output power： 5V:<40W, 12V:<96W, 24V:<192W

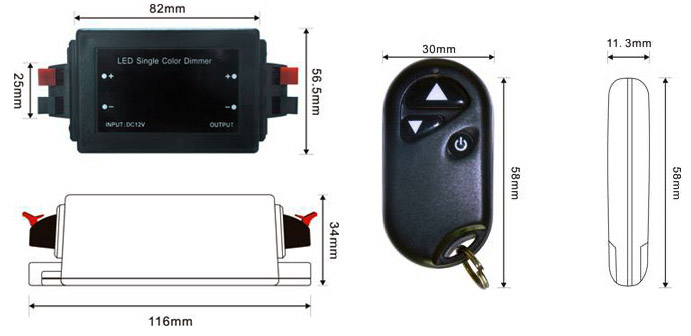

Product size： 105*57*34mm
Package size： 122*85*47mm
Carton size： L496*W272*H308mm
Net weight： 100g
1 x led dimmers
1 x 3key RF Remote control
1 x Piece of User's Manual
